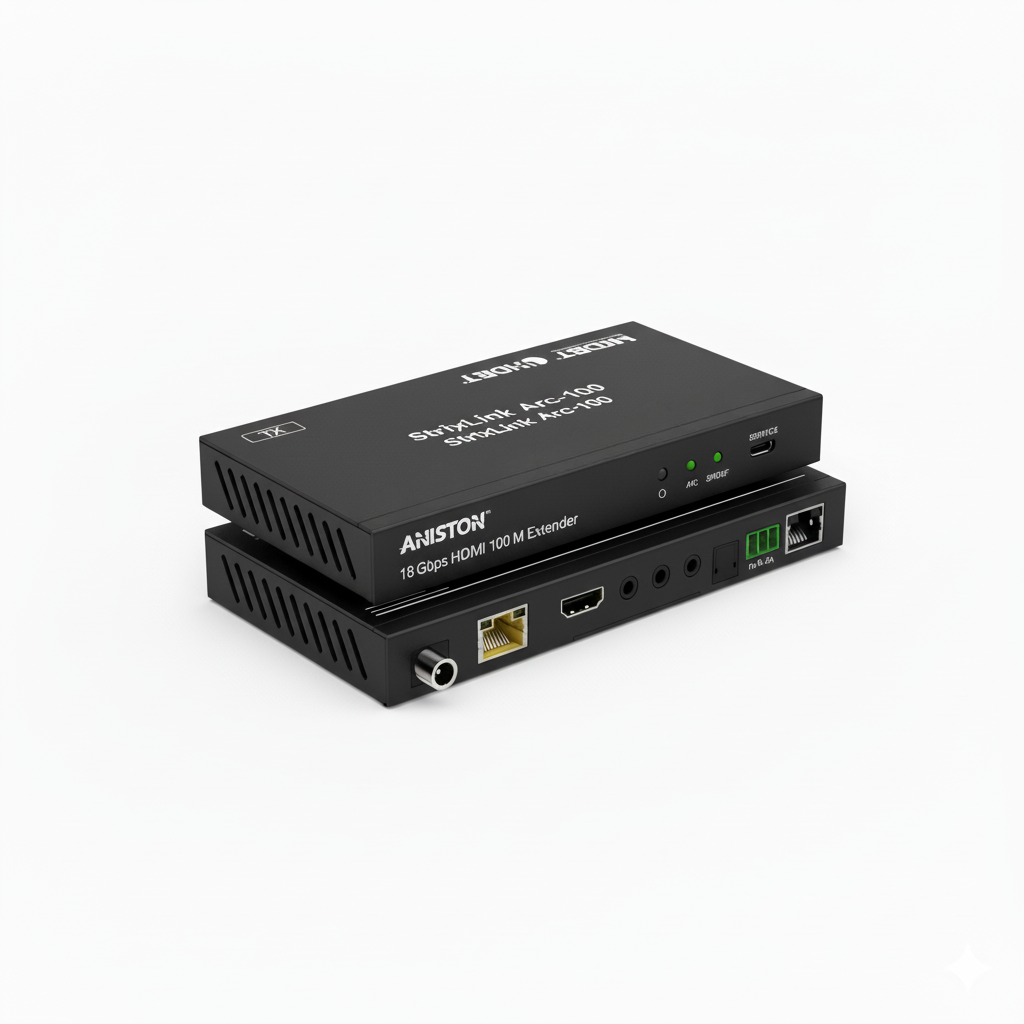

StrixLink ARC-100
HDMI 2.0b HDBaseT Extender Set
The StrixLink ARC-100 is a professional HDMI over HDBaseT extender pair engineered for near-zero-latency transmission of uncompressed 4K@60Hz (4:4:4) video up to 100m over a single CAT6/6a cable, with integrated ARC, bidirectional IR, RS-232, LAN pass-through and PoC—ideal for enterprise AV, education, signage and premium home cinema.
- Uncompressed 4K60 over HDBaseT: Delivers full-bandwidth HDMI 2.0b (18Gbps) up to 100 meters on a single CAT6/6a run with near-zero latency and pristine signal integrity.
- ARC, PoC, IR & RS-232 Built-in: Supports Audio Return Channel from display to TX, Power over Cable from either end, plus bidirectional IR and RS-232 for seamless control and integration.
- HDR Formats & Pro Audio: HDR10+, Dolby Vision and HLG supported with LPCM up to 7.1, Dolby Digital/TrueHD and DTS-HD/DTS:X; includes SPDIF and analog stereo audio break-out on the receiver.
Whether deployed in conference rooms, classrooms, auditoriums or signage networks, the StrixLink ARC-100 streamlines long-distance AV extension with HDBaseT Class A performance, robust metal enclosure and integrator-friendly I/O.
Product Features
- Extends uncompressed 4K@60Hz (4:4:4) HDMI up to 100 m over a single CAT6/6a cable.
- HDBaseT Class A technology for near-zero-latency video, audio, control and Ethernet transport.
- HDMI 2.0b / HDCP 2.2 compliant for modern 4K sources and protected content.
- Supports HDR10, HDR10+, Dolby Vision and HLG with up to 12-bit deep color (format-dependent).
- Integrated ARC (Audio Return Channel) from display to TX for simplified audio backhaul.
- Flexible PoC (Power over Cable) from either TX or RX to power both units.
- Bidirectional IR pass-through (20–60 kHz) for remote control from either end.
- RS-232 pass-through via 3-pin Phoenix for third-party control system integration.
- Pro-grade audio support: LPCM up to 7.1, Dolby Digital/TrueHD, DTS-HD MA, DTS:X.
- Digital/analog audio breakout on RX via SPDIF and 3.5 mm stereo outputs.
- CEC pass-through and EDID management (auto/manual) for reliable device interoperability.
- Robust metal enclosure with compact footprint designed for rack, wall or display-side installs.
- Passive, fanless thermal design for silent operation and long-term reliability.
- Service/firmware port available for maintenance and future enhancements.
- Full 18Gbps video bandwidth ensures true 4K60 4:4:4 performance.
- I/O (TX/RX): HDMI IN (TX), HDMI OUT (RX), HDBaseT RJ45, IR IN/OUT, RS-232, LAN, SPDIF OUT, L/R OUT.
- Typical pair power consumption ≤13 W (PoC supported).
- Dimensions (each): 163 mm (W) × 90 mm (D) × 16 mm (H); lightweight metal chassis.
- Power: 24 V DC (locking connector) — single PSU required with PoC.
- Operating Temperature: 0°C to 40°C; Storage Temperature: −20°C to +60°C.
- Compliance: CE and RoHS.
- Package includes: TX, RX, IR Blaster & Receiver cables, 24 V adapter, Mounting ears, Phoenix connectors, User manual.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | StrixLink ARC-100 |
| Product Type | HDBaseT HDMI 2.0b Extender Set (TX + RX) |
| Video Interface | 1× HDMI IN (TX), 1× HDMI OUT (RX) |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Supported Resolutions | Up to 4K@60Hz (4:4:4), 1080p, 720p, 480p |
| Max Distance @ 4K60 | Up to 100 m via CAT6/6a |
| Max Distance @ 1080p | Up to 100 m via CAT6/6a |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | 8/10/12-bit (mode-dependent) |
| HDR Support | HDR10, HDR10+, Dolby Vision, HLG |
| Video Bandwidth | 18 Gbps |
| Audio Formats | LPCM 2.0–7.1, Dolby Digital/Plus/TrueHD, DTS-HD MA, DTS:X |
| Audio Break-out | SPDIF (PCM 2.0/DD/DD+), 3.5 mm stereo (PCM 2.0) on RX |
| IR Pass-through | Bidirectional (20–60 kHz) |
| RS-232 Pass-through | Supported (3-pin Phoenix) |
| ARC | Supported (Display → TX) |
| LAN | 10/100 Ethernet pass-through (RJ45) |
| CEC / EDID | CEC pass-through; EDID auto/manual |
| Firmware / Service | Service port available |
| PoC (Power over Cable) | Supported (power from either TX or RX) |
| Cooling | Passive (fanless) |
| ESD Protection | Integrated (TVS) |
| Power Supply | 24 V DC (locking barrel) |
| Power Consumption | ≤13 W (pair, max) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | −20°C to +60°C |
| Operating Humidity | 20%–80% RH (non-condensing) |
| Storage Humidity | 10%–90% RH (non-condensing) |
| Input/Output (TX/RX) | HDMI IN (TX), HDMI OUT (RX), HDBT (RJ45), IR IN/OUT, RS-232, LAN, SPDIF OUT, L/R OUT |
| Extender Technology | HDBaseT Class A |
| Chassis Construction | Metal enclosure |
| Dimensions (each) | 163 mm (W) × 90 mm (D) × 16 mm (H) |
| Weight | Approx. TX 170 g / RX 165 g |
| Mounting | Surface mount with included ears |
| Package Includes | TX unit, RX unit, IR Blaster Cable, IR Receiver Cable, 24 V Adapter, Mounting Ears, Phoenix Connectors, User Manual |
| Compliance | CE, RoHS |
Product Dimension
Resources & Manuals
Software & Downloads
Coming Soon
StrixLink ARC-100 – 4K60 HDBaseT Extender for Pro AV Applications
The StrixLink ARC-100 is a high-performance
HDMI 2.0b HDBaseT extender designed for long-distance, uncompressed
4K@60Hz (4:4:4) signal extension over a single CAT6/6a cable up to
100 m. It transports multichannel audio, ARC, IR, RS-232 and 10/100
Ethernet with near-zero latency and rock-solid reliability.
With Power over Cable (PoC), HDR formats including Dolby Vision
and HDR10+, plus professional audio break-outs on the receiver,
ARC-100 is ideal for classrooms, conference rooms, digital signage
and control spaces—delivering robust connectivity without complexity.
Main Features
Uncompressed 4K60 Video to 100 m
The StrixLink ARC-100 transmits uncompressed 4K@60Hz (4:4:4) HDMI over a single CAT6/6a cable up to 100 m, ensuring near-zero latency for mission-critical AV systems.
ARC, PoC, IR, RS-232 & LAN
Built-in Audio Return Channel, Power over Cable from either end, bidirectional IR and RS-232, plus 10/100 Ethernet pass-through streamline installation and control.
HDR Formats & Pro Audio
Enjoy HDR10+, Dolby Vision and HLG support with LPCM up to 7.1, Dolby TrueHD and DTS-HD. RX provides SPDIF and analog stereo audio outputs for flexible integration.
Premium 4K60 Transmission for Seamless AV Workflows
The StrixLink ARC-100 HDBaseT Extender Set delivers
uncompressed 4K@60Hz (4:4:4) video up to 100 meters on CAT6/6a while
transporting ARC, IR, RS-232 and Ethernet. Designed for classrooms,
conference rooms and control spaces, it ensures crystal-clear visuals
with near-zero latency.
With Power over Cable (PoC), HDR (HDR10+/Dolby Vision/HLG) and
professional audio break-out on the receiver, ARC-100 streamlines AV
infrastructure and supports modern media formats.
Effortless Connectivity with PoC & Control
The StrixLink ARC-100 simplifies system rollout via a single
CAT6/6a link that carries power (PoC) alongside
uncompressed 4K60 video, multichannel audio,
ARC, IR, RS-232 and
LAN up to 100 meters.
Built for professional AV, the ARC-100 supports HDR10+, Dolby Vision,
HDCP 2.2 and EDID/CEC pass-through—making it a dependable solution
for boardrooms, classrooms, signage and command spaces.
Smart Connectivity with StrixLink ARC-100 HDBaseT Extender
Elevate system efficiency with the
StrixLink ARC-100 from ANISTON. Purpose-built for
professional and hybrid environments, this compact
extender pair carries 4K@60Hz video over a single CAT6/6a cable up
to 100 m with PoC, HDMI 2.0b / HDCP 2.2,
and transports multichannel audio, RS-232,
IR, LAN and CEC.
With HDR10+, Dolby Vision and convenient audio break-out on the RX,
ARC-100 integrates cleanly into boardrooms, classrooms, control
centers and digital signage networks—without added complexity.
