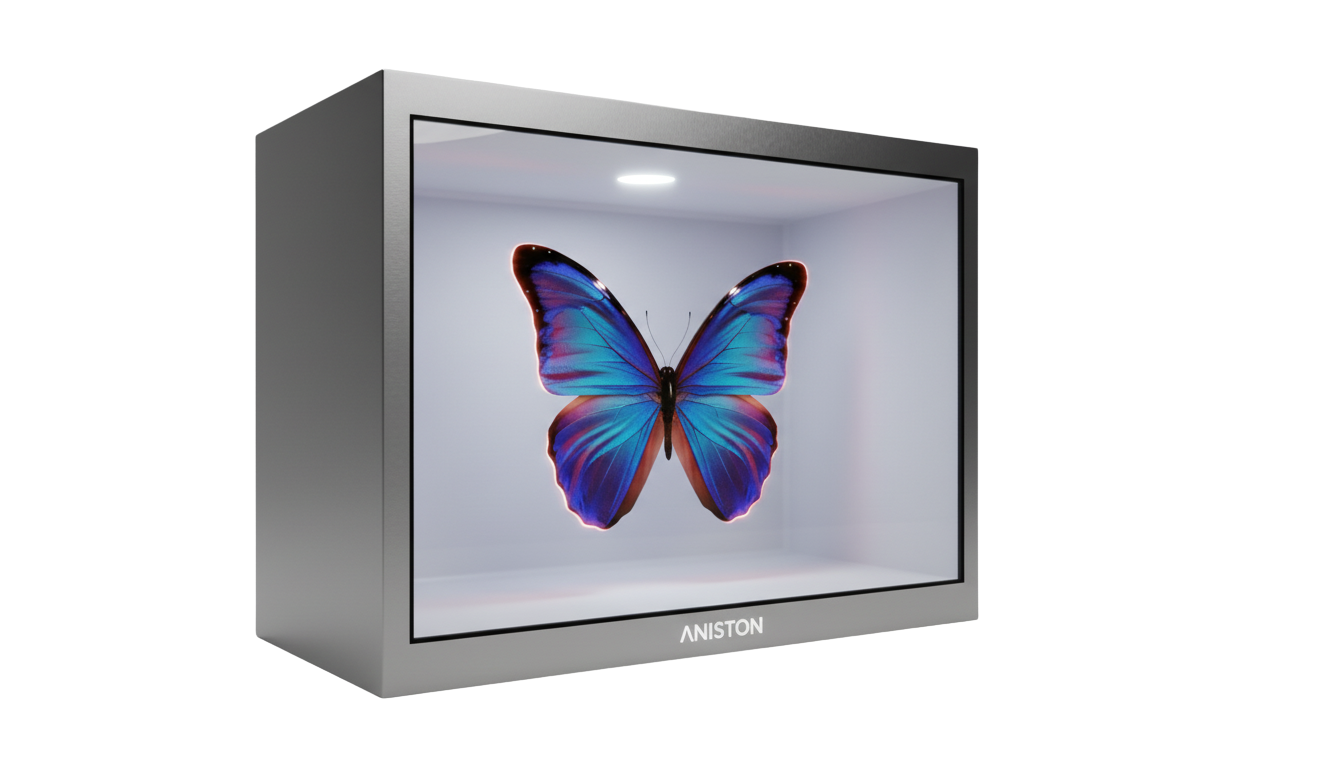

LumiHolo Pro13 (LHP-133)
13.3″ Full-HD Multi-Touch Transparent Holographic LCD
The LumiHolo Pro13 is a 13.3-inch transparent LCD engineered for premium interactive showcases. With Full HD 1920×1080, ≥75% panel transparency, 300 nits brightness, and 178° viewing, it overlays rich content onto real objects. An embedded Android 7.1+ player with a quad-core A53 CPU, 1 GB RAM and 32 GB storage supports native apps and local playback over Wi-Fi/LAN with optional 4G.
- High-clarity transparent optics: ≥75% panel transparency with >88% glass transmittance preserves visibility of physical objects behind the glass.
- 10-point PCAP touch: ±2 mm accuracy and ~15 ms response deliver smooth, reliable interactivity for exhibits and counters.
- Integrated Android player: Quad-core A53, 1 GB RAM, 32 GB storage with Wi-Fi 802.11 b/g/n, 10/100 Mbps LAN, and optional 4G expansion.
Built for corporate showrooms, retail, museums, and classrooms, Pro13 combines a durable metal enclosure, integrated stereo speakers, and a 50,000-hour panel life for dependable 24/7 operation.
Product Features
- 13.3-inch transparent TFT-LCD with Full HD 1920 × 1080 resolution for crisp mixed-reality visualization.
- ≥75% panel transparency and >88% glass transmittance preserve clear background visibility.
- 10-point Projected Capacitive (PCAP) touch, ±2 mm accuracy, ~15 ms response, unlimited click durability.
- Wide 178° viewing (89°/89°/89°/89°) with 300 nits brightness and 1000:1 contrast.
- Embedded Android 7.1+ player (quad-core A53, 1 GB RAM, 32 GB storage) for native apps and local playback.
- Connectivity: Wi-Fi 802.11 b/g/n, 10/100 Mbps LAN, optional 4G expansion.
- Rear-panel I/O: HDMI, USB 2.0 & 3.0, microSD (Micro Card Slot), RJ45 LAN, audio jack, Wi-Fi antenna connector.
- Integrated stereo speakers with low distortion (THD <3% within 500 Hz–10 kHz).
- Industrial metal enclosure designed for reliable 24/7 operation; panel life rated to 50,000 hours.
- OSD multi-language support; custom kiosk / showcase integration and mounting flexibility.
- Power: AC 100–240 V, 50/60 Hz; max power consumption ≤40 W.
- Certifications: CE, RoHS; Safety: BIS & RoHS compliant; Warranty: 3 years (optional 5 years).
Technical Specifications
| Parameter | Details |
|---|---|
| Model | LumiHolo Pro13 — LHP-133 |
| Product Type | Transparent Multi-Touch Holographic Display |
| Panel Size / Type | 13.3″ diagonal, TFT-LCD transparent panel |
| Aspect Ratio | 16:9 |
| Native Resolution | 1920 × 1080 (Full HD) |
| Brightness / Contrast | 300 cd/m² (typ.) / 1000:1 |
| Transparency | ≥75% (panel); glass transmittance >88% |
| Viewing Angle (H/V) | 178° (89°/89°/89°/89°) |
| Response Time | 8 ms (gray-to-gray) |
| Field Frequency | 50/60 Hz auto-detect |
| Panel Life | 50,000 hours |
| Speakers | Integrated stereo (THD <3% @ 500 Hz–10 kHz) |
| Input Voltage / Max Power | AC 100–240 V, 50/60 Hz / Max ≤40 W |
| Touch Technology | Projected Capacitive (PCAP), 10-point |
| Touch Accuracy / Min Size | ±2 mm / 5 mm |
| Touch Resolution / Response | 32767 × 32767 / ~15 ms |
| Input Methods | Finger, stylus, touch pen |
| Touch Interface | USB; light resistance supported |
| Embedded OS | Android 7.1+ |
| CPU / Memory | Quad-core A53-class / 1 GB DDR3 / 32 GB storage |
| Network | Wi-Fi 802.11 b/g/n; 10/100 Mbps Ethernet; optional 4G |
| I/O (rear) | HDMI, USB 3.0, USB 2.0, microSD, RJ45 LAN, audio jack, Wi-Fi antenna |
| OSD Languages | English (multi-language available) |
| Storage Temp / Humidity | -20°C to +60°C / ≤90% RH |
| Dimensions (W × D × H) | 320 × 195 × 25 mm |
| Net Weight | 3.2 kg |
| Certifications / Safety | CE, RoHS / BIS & RoHS compliant |
| Mounting | Custom kiosk / showcase integration |
| Warranty | 3 years (optional extension to 5 years) |
Product Dimension
Resources & Manuals
Software & Downloads
Coming Soon
LumiHolo Pro13 — Compact Mixed-Reality for Counters & Plinths
LumiHolo Pro13 (LHP-133) delivers holographic-style visuals
in a compact footprint for desks, podiums, and reception counters. Its
transparent LCD and precise multi-touch bring digital context to real objects.
The embedded Android player (1 GB/32 GB) with Wi-Fi/LAN and optional 4G,
plus rear I/O (HDMI, USB, microSD, RJ45, audio), streamlines deployment
and day-to-day operation.
Main Features
Full-HD Transparent Optics
13.3″ transparent LCD with 1920×1080 resolution, ≥75% panel transparency, and >88% glass transmittance for crisp, layered visuals.
10-Point PCAP Interactivity
Accurate ±2 mm touch with ~15 ms response enables smooth gestures and reliable interaction in public-facing installations.
Android Player with Rich I/O
Quad-core A53 platform (1 GB/32 GB) with Wi-Fi/LAN, optional 4G, and rear I/O: HDMI, USB 2.0/3.0, microSD, RJ45, and audio out for flexible workflows.
Premium Mixed-Reality in a Compact Form
LumiHolo Pro13 combines high transparency, Full-HD clarity, and responsive
multi-touch for countertop and podium displays. The integrated Android player
supports native apps and local playback for streamlined setups.
With HDMI, USB 2.0/3.0, microSD, RJ45, and audio output on the rear panel,
content updates and servicing are fast and reliable.
Built for 24/7 Professional Use
A robust metal enclosure and 50,000-hour panel life make Pro13 a dependable
choice for showrooms, museums, and retail counters.
Wi-Fi/LAN connectivity and optional 4G ensure flexible deployment, while
300-nit brightness, 1000:1 contrast, and 178° wide viewing maintain legibility.
Smart Connectivity for Countertop Storytelling
Elevate compact displays with the LumiHolo Pro13. Transparent optics
and precise touch invite natural engagement with objects behind the glass while
digital layers add narrative.
Integrated Android, Wi-Fi/LAN, optional 4G, and rear I/O (HDMI, USB, microSD,
RJ45, audio) simplify deployment across counters, podiums, and reception desks.
