LumiHolo Ultra32 (LHP-320)
32″ Multi-Touch Transparent Holographic LCD
The LumiHolo Ultra32 is a professional 32-inch transparent LCD engineered for mixed-reality showcases. With ≥75% panel transparency, 300 nits brightness, and 178° viewing, it overlays vivid content onto real objects for an immersive “holographic” effect. An embedded Android 7.1+ player powered by Rockchip RK3566S with 2 GB RAM and 16 GB eMMC enables native apps and local playback over Wi-Fi/LAN with optional 4G.
- High-transparency optics: ≥75% transparent LCD with >88% glass transmittance for clear visibility of physical objects behind the screen.
- 10-point PCAP multi-touch: ±2 mm accuracy, 1 ms controller response, and unlimited click durability for responsive interaction.
- Integrated Android signage player: Quad-core RK3566S, 2 GB RAM, 16 GB eMMC; supports Wi-Fi 802.11 b/g/n, 10/100 Mbps LAN, and optional 4G.
Designed for corporate showrooms, education, retail, and exhibitions, Ultra32 combines a rugged metal enclosure, integrated stereo speakers, and a 50,000-hour panel life to deliver reliable 24/7 mixed-reality experiences.
Product Features
- 32-inch transparent TFT-LCD with HD 1366 × 768 resolution for mixed-reality visualization.
- ≥75% panel transparency and >88% glass transmittance to preserve clear background visibility.
- 10-point Projected Capacitive (PCAP) touch, ±2 mm accuracy, 1 ms controller response, unlimited click durability.
- Wide 178° viewing (89°/89°/89°/89°) with 300 nits brightness and 1000:1 contrast.
- Embedded Android 7.1+ player (RK3566S, 2 GB RAM, 16 GB eMMC) for native apps and local playback.
- Connectivity: Wi-Fi 802.11 b/g/n, 10/100 Mbps LAN, optional 4G expansion.
- Rear-panel I/O: HDMI, USB 2.0 & 3.0, microSD (Micro Card Slot), RJ45 LAN, audio jack, Wi-Fi antenna connector.
- Integrated stereo speakers with low distortion (THD <3% within 500 Hz–10 kHz).
- Industrial metal enclosure designed for reliable 24/7 operation; panel life rated to 50,000 hours.
- OSD multi-language support; custom kiosk / showcase integration and mounting flexibility.
- Power: AC 100–240 V, 50/60 Hz; max power consumption 60 W.
- Certifications: CE, RoHS; Safety: BIS & RoHS compliant; Warranty: 3 years (optional 5 years).
Technical Specifications
| Parameter | Details |
|---|---|
| Model | LumiHolo Ultra32 — LHP-320 |
| Product Type | Holographic Transparent LCD Display |
| Panel Size / Type | 32″ diagonal, TFT-LCD transparent panel (A-Grade) |
| Aspect Ratio | 16:9 |
| Native Resolution | 1366 × 768 |
| Brightness / Contrast | 300 cd/m² (typ.) / 1000:1 |
| Transparency | ≥75% (panel); glass transmittance >88% |
| Viewing Angle (H/V) | 178° (89°/89°/89°/89°) |
| Response Time | 8 ms (gray-to-gray) |
| Field Frequency | 50/60 Hz auto-detect |
| Panel Life | 50,000 hours |
| Speakers | Integrated stereo (THD <3% @ 500 Hz–10 kHz) |
| Input Voltage / Max Power | AC 100–240 V, 50/60 Hz / Max 60 W |
| Touch Technology | Projected Capacitive (PCAP), 10-point |
| Touch Accuracy / Min Size | ±2 mm / 5 mm |
| Touch Resolution / Response | 32767 × 32767 / 1 ms controller |
| Input Methods | Finger, stylus |
| Touch Interface | USB; light resistance supported |
| Embedded OS | Android 7.1+ |
| CPU / Memory | Rockchip RK3566S quad-core / 2 GB RAM / 16 GB eMMC |
| Network | Wi-Fi 802.11 b/g/n; 10/100 Mbps Ethernet; optional 4G |
| I/O (rear) | HDMI, USB 3.0, USB 2.0, microSD, RJ45 LAN, audio jack, Wi-Fi antenna |
| OSD Languages | English (multi-language available) |
| Storage Temp | -20°C to +60°C |
| Operating Humidity | ≤85% RH |
| Dimensions (W × D × H) | 750 × 440 × 65 mm |
| Net Weight | 2.0–2.5 kg |
| Certifications / Safety | CE, RoHS / BIS & RoHS compliant |
| Mounting | Custom kiosk / showcase integration |
| Warranty | 3 years (optional extension to 5 years) |
Product Dimension
Resources & Manuals
Software & Downloads
Coming Soon

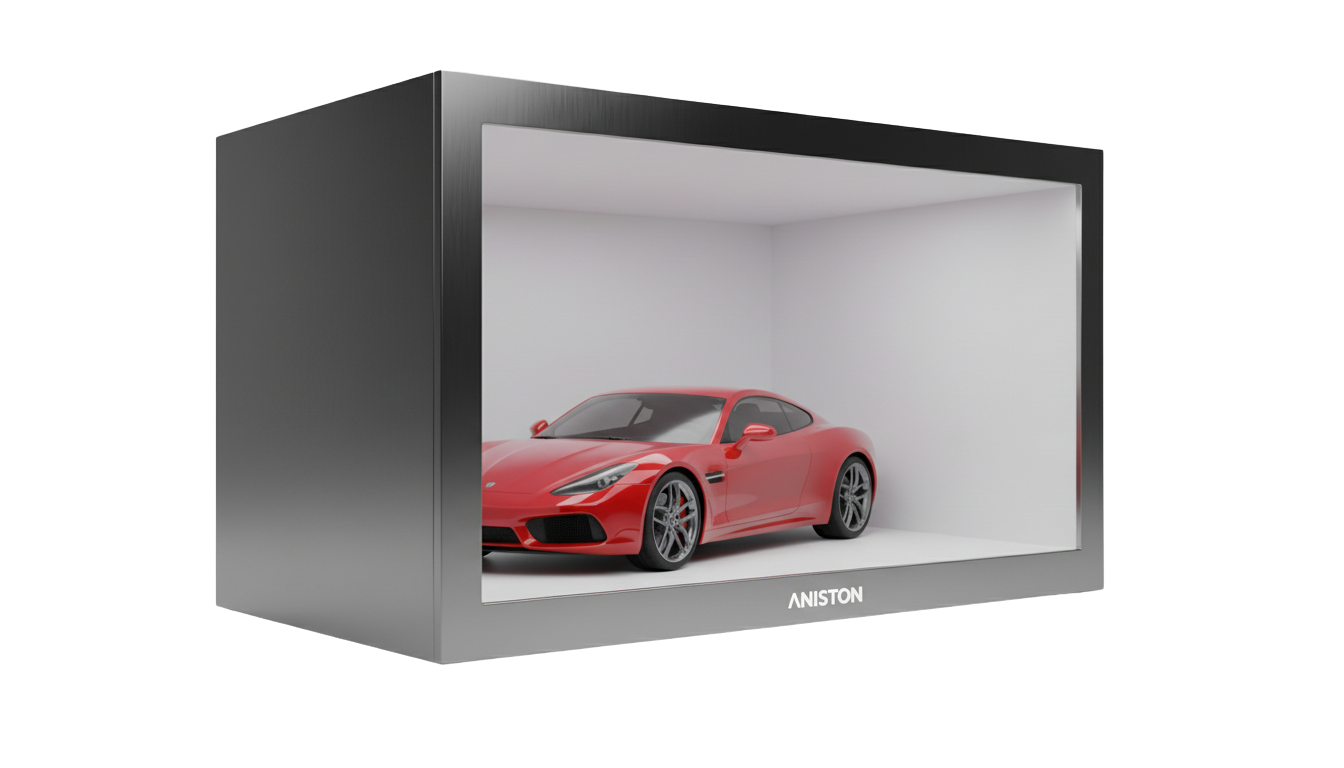

LumiHolo Ultra32 — Mixed-Reality Display for Premium Showcases
LumiHolo Ultra32 (LHP-320) brings holographic-style visuals
to retail vitrines, museum plinths, and corporate demo pods. Its
transparent LCD, high clarity optics, and fast multi-touch
interaction let digital content sit naturally with real objects.
With an integrated Android player (RK3566S, 2 GB/16 GB), Wi-Fi/LAN,
optional 4G, and rear I/O including HDMI, USB, microSD, and RJ45,
deployments are simple and reliable for 24/7 use.
Main Features
Transparent Optics with High Clarity
≥75% panel transparency with >88% glass transmittance preserves the visibility of real objects while adding vivid overlaid content.
10-Point PCAP Multi-Touch
Fast, accurate interaction with ±2 mm precision and 1 ms controller response—ideal for interactive exhibits and retail engagement.
Embedded Android Player
RK3566S quad-core platform with 2 GB RAM and 16 GB eMMC for native apps, local media, and seamless control over Wi-Fi/LAN with optional 4G.
Premium Mixed-Reality Visuals with Integrated Control
LumiHolo Ultra32 delivers a balanced combination of high
transparency, wide viewing, and responsive multi-touch. The integrated
Android player supports native apps and local playback—no external
media box required.
With HDMI, USB 2.0/3.0, microSD, RJ45, and audio output on the rear
panel, content updates and field servicing are streamlined for
professional deployments.
Designed for 24/7 Professional Installations
The rugged metal enclosure and 50,000-hour panel life make Ultra32
a reliable choice for showrooms, museums, and retail vitrines.
Deploy with confidence using Wi-Fi/LAN connectivity and optional 4G,
while maintaining crisp on-glass legibility with 300-nit brightness,
1000:1 contrast, and 178° wide viewing.
Smart Connectivity for Real-World Storytelling
Elevate product storytelling with the LumiHolo Ultra32.
High-transparency optics and responsive touch invite audiences to engage
naturally with objects behind the glass while digital layers add context.
Integrated Android, Wi-Fi/LAN, optional 4G, and rear I/O (HDMI, USB,
microSD, RJ45, audio) simplify deployment across boardrooms, museums,
control centers, and retail environments.
