Cadence AI 16x16
Advanced AI Analog Audio DSP
The Cadence AI 16x16 is a high-performance AI-driven Digital Signal Processor (DSP) developed by Aniston for professional and consumer-grade audio processing.
- 16x16 Analog & Digital Audio Processing: Supports 16-input and 16-output channels, offering robust audio routing and processing for complex installations.
- USB Digital Audio Integration: Equipped with 4-in/4-out USB digital audio connectivity, simplifying integration with computers and digital audio workstations.
- AI-Driven Voice & Audio Enhancement: Advanced AI-based voice processing eliminates ambient noise and enhances speech clarity, making it ideal for conferencing and broadcast applications.
Engineered for conference halls, auditoriums, and professional AV installations, the Cadence AI 16x16 delivers unmatched audio processing with intelligent DSP capabilities.
Product Features
- Advanced AI-driven digital signal processing (DSP) for high-quality audio enhancement.
- 16 analog inputs and 16 analog outputs, supporting both line-level and mic-level selections.
- 4-in/4-out USB digital audio integration for seamless connectivity with computers and workstations.
- Acoustic Echo Control (AEC) for superior voice clarity in video conferencing and meetings.
- Active Noise Control (ANC) to reduce unwanted background noise in live environments.
- Automatic Feedback Control (AFC) with two selectable levels to minimize audio feedback.
- AI-based intelligent voice processing to eliminate ambient noise and non-human voice signals.
- +48V phantom power support on each mic-level input for professional microphones.
- Flexible equalization options: 15 or 8-band input EQ and 10 or 8-band output EQ.
- Supports high-pass and low-pass filtering with Butterworth, Bessel, and Linkwitz-Riley designs.
- Auto-mixing and matrix-mixing capabilities for customized audio routing and distribution.
- Camera tracking control compatible with most camera control protocols.
- Multiple control interfaces: USB, TCP/IP, RS232, RS485, and GPIO for easy system integration.
- Graphical user interface (GUI) for Windows 7/8/10/11 and Android network control app.
- Optional touch screen wall control panel via RS485 for convenient system adjustments.
- Optimized for boardrooms, auditoriums, conference rooms, and professional AV installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Processor | ADI SHARC 21489 + ARM Quad-Core |
| Audio Latency | < 3ms (Propagation Delay, 450MHz, 24-bit Processing) |
| Input Channels | 16 Analog Mic/Line Inputs |
| Output Channels | 16 Analog Line-Level Outputs |
| USB Digital Audio | 4-in / 4-out |
| Phantom Power | +48VDC, 6.5mA per mic input |
| Dynamic Range | 90dB @ 17dBu, 1kHz, A-weighted (Line) |
| THD+N | -90dB (0.003%) Line / -86dB (0.005%) Mic @ 1kHz, A-weighted |
| Sampling Rate | 48kHz (A/D - D/A Conversion) |
| Acoustic Echo Cancellation (AEC) | Yes |
| Active Noise Control (ANC) | Yes |
| Automatic Feedback Control (AFC) | Yes, Two Selectable Levels |
| Equalization | Input: 15 or 8 Bands / Output: 10 or 8 Bands |
| Filters | HPF & LPF (Butterworth, Bessel, Linkwitz-Riley) |
| Mixing Functions | Auto Mixing, Matrix Mixing |
| Camera Tracking | Yes, Compatible with Most Control Protocols |
| Control Interfaces | USB, TCP/IP, RS232, RS485, GPIO |
| User Interface | Windows 7/8/10/11 GUI, Android App |
| Touch Screen Control | Optional (RS485 Wire Control) |
| Power Supply | AC 100V-240V, 50/60Hz |
| Power Consumption | Typical 40W, Maximum 75W |
| Operating Temperature | -20°C to 60°C |
| Weight | 4.2 kg |

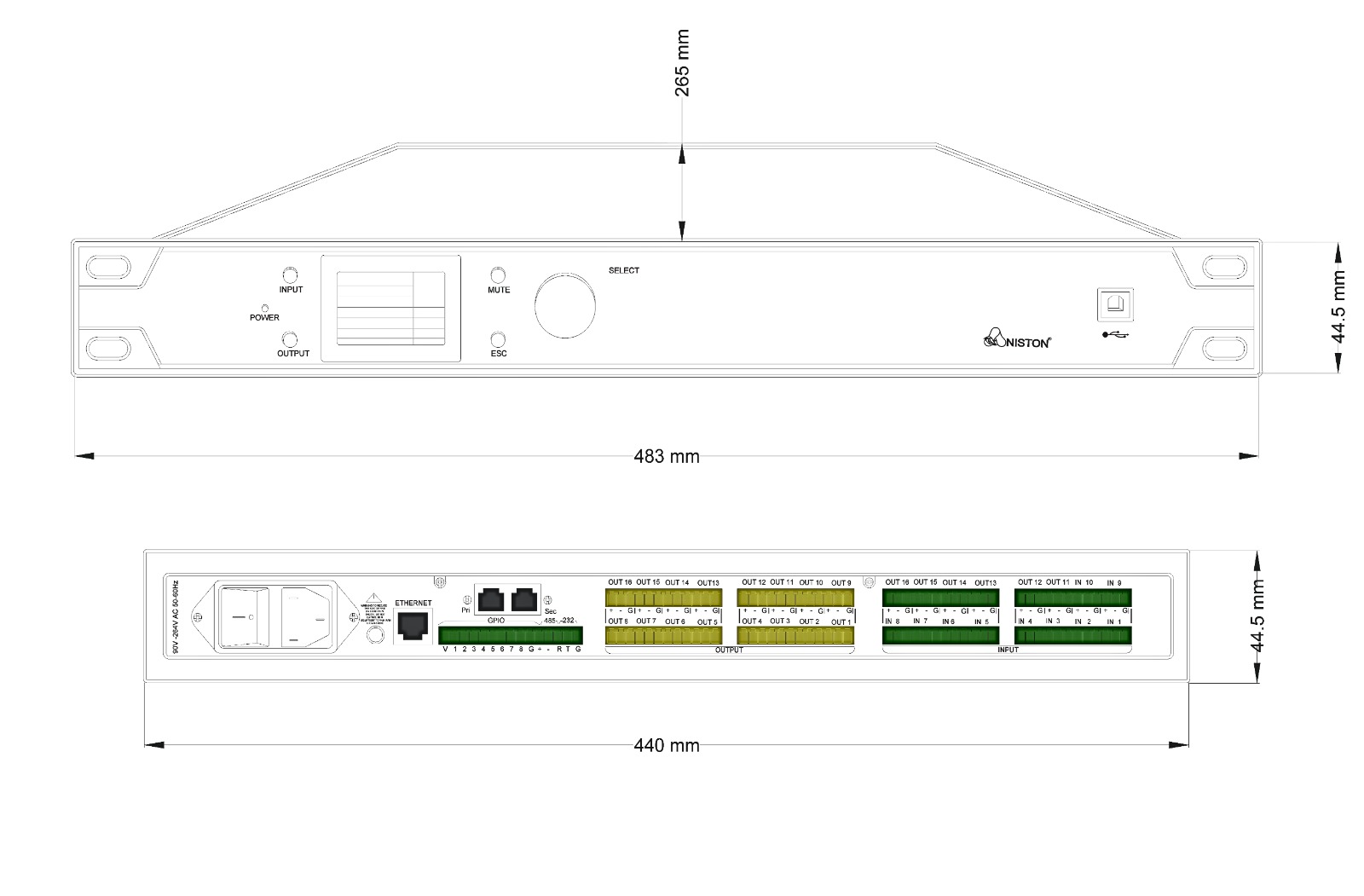

| Dimensions | 483mm × 265mm × 44.5mm |
| Network Connectivity | USB Type A-B, Free Driver |

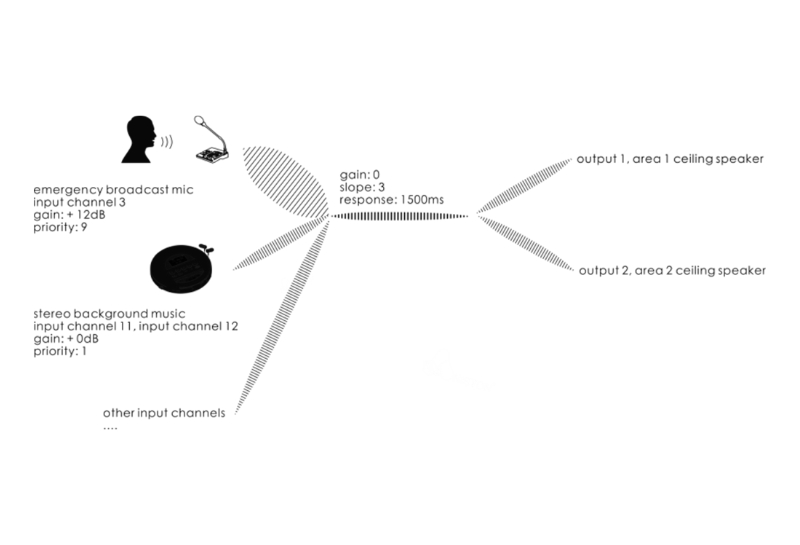

Block Diagram
Advanced AI-Driven Audio DSP for Professional AV Solutions
The Cadence AI 16x16 DSP is a state-of-the-art digital signal processing solution developed by Aniston, designed to optimize audio performance in professional AV, conferencing, broadcasting, and multimedia applications. Featuring a 16x16 analog input/output configuration, 4-in/4-out USB digital audio integration, and intelligent AI-driven processing, it delivers superior sound management, enhanced voice clarity, and seamless system integration for large-scale installations.
Main Features
AI-Driven Voice & Audio Enhancement
The Cadence AI 16x16 DSP leverages advanced AI algorithms to eliminate ambient noise, suppress unwanted sounds, and enhance speech clarity. Ideal for conferencing, broadcasting, and live audio applications, it ensures a pristine listening experience.
Expanded I/O & USB Audio Integration
With 16 analog inputs and 16 analog outputs supporting mic/line level selection, along with 4-in/4-out USB digital audio integration, the DSP offers versatile connectivity for professional AV systems and complex audio setups.
Comprehensive Feedback & Noise Control
Equipped with Automatic Feedback Control (AFC), Acoustic Echo Control (AEC), and Active Noise Control (ANC), the Cadence AI 16x16 DSP intelligently suppresses echoes, feedback, and background noise, ensuring clear and uninterrupted sound.
AI DSP for High-Performance Audio Processing
The Cadence AI 16x16 DSP is a cutting-edge digital signal processor designed to optimize audio quality for professional AV, conferencing, broadcasting, and multimedia applications. With 16 analog inputs and 16 analog outputs, it delivers seamless system integration and precise sound management. Powered by an ADI SHARC 21489 DSP and an ARM quad-core processor, it ensures ultra-low latency, high-fidelity audio processing, and intelligent AI-driven voice enhancements for superior performance.
Audio Integration & Advanced Noise Control
The Cadence AI 16x16 DSP offers extensive connectivity options, including USB digital audio (4-in/4-out), TCP/IP, RS232, RS485, and GPIO, enabling seamless integration into any professional AV system. It is equipped with built-in Acoustic Echo Control (AEC), Active Noise Control (ANC), and Automatic Feedback Control (AFC) to enhance speech clarity, reduce background noise, and eliminate audio feedback. Designed for conference rooms, auditoriums, and large-scale AV installations, the Cadence AI 16x16 DSP delivers superior sound performance and unmatched reliability.

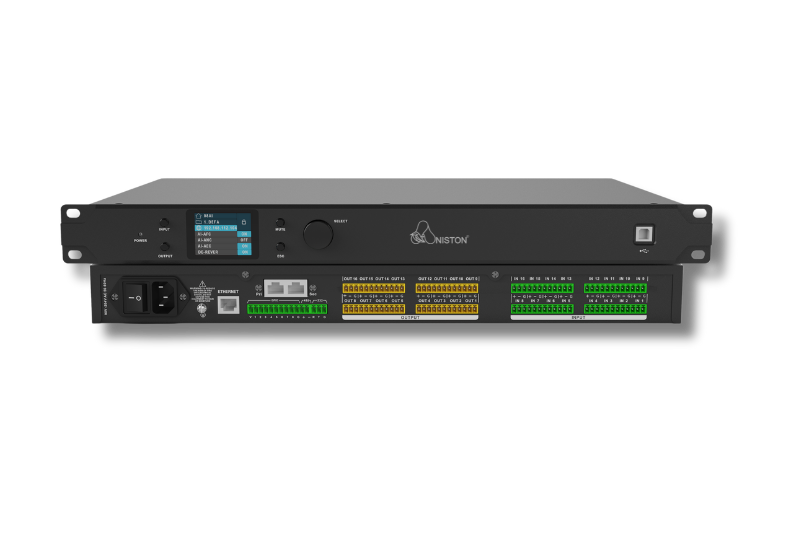

Seamless Audio Processing with Cadence AI 16x16 DSP
Elevate your audio experience with the Cadence AI 16x16 Digital Signal Processor (DSP) by Aniston. Designed for conference rooms, auditoriums, broadcasting, and professional AV installations, this advanced DSP delivers high-quality, real-time audio processing with AI-driven voice enhancements. Featuring 16 analog inputs and 16 analog outputs, 4-in/4-out USB digital audio integration, and a powerful ADI SHARC 21489 DSP with an ARM quad-core processor, it ensures precise sound management with ultra-low latency and seamless system integration.
