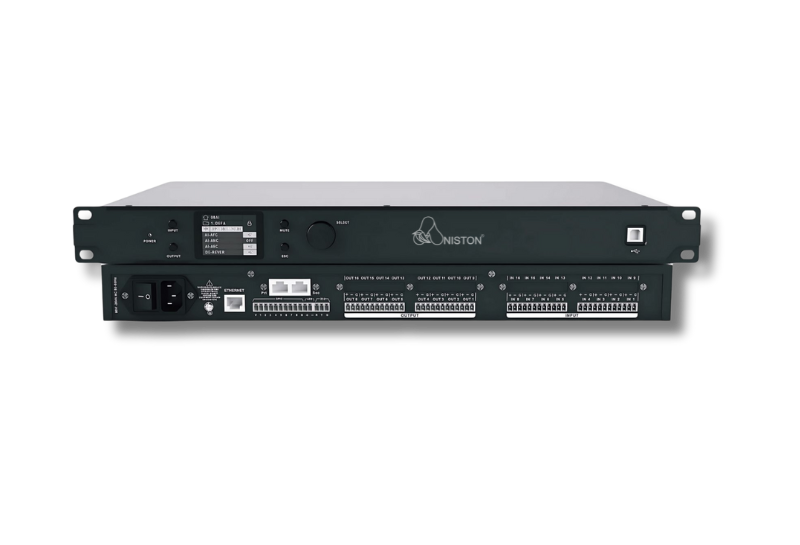

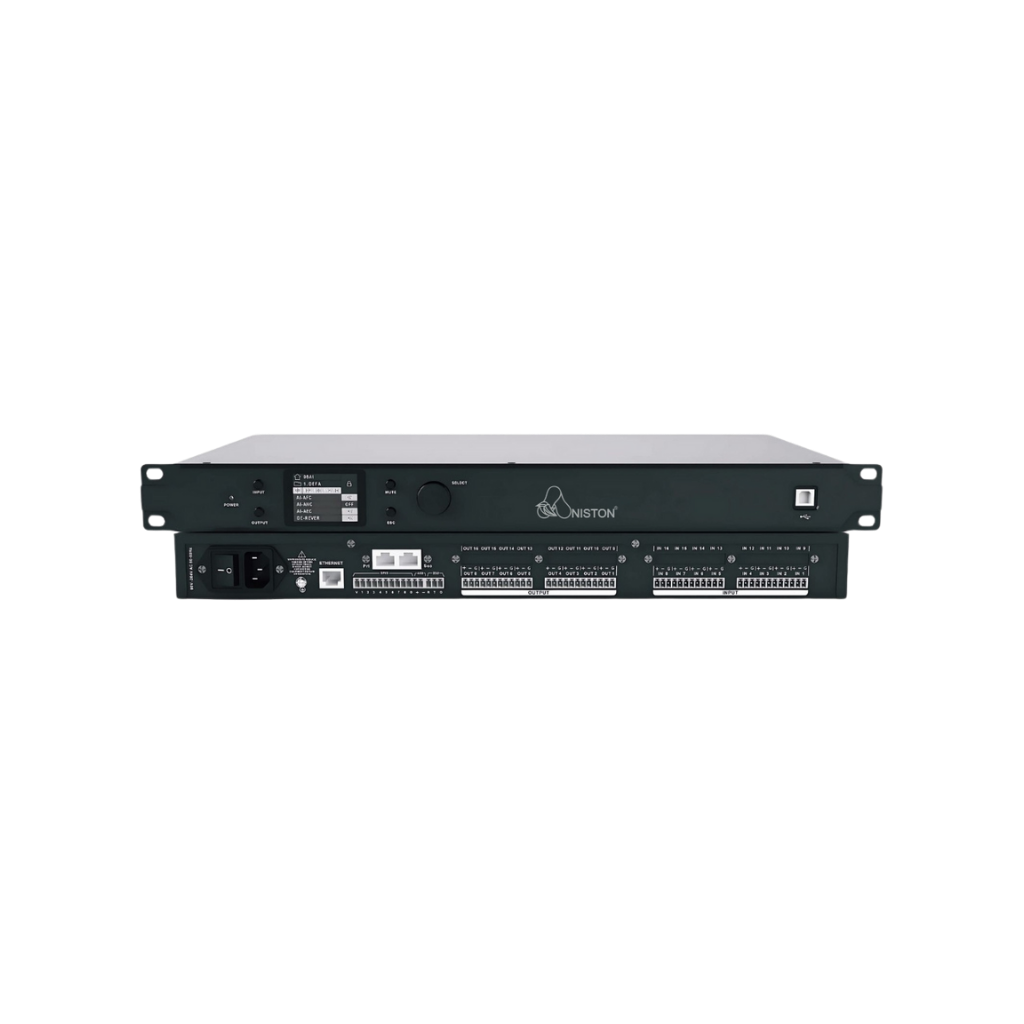

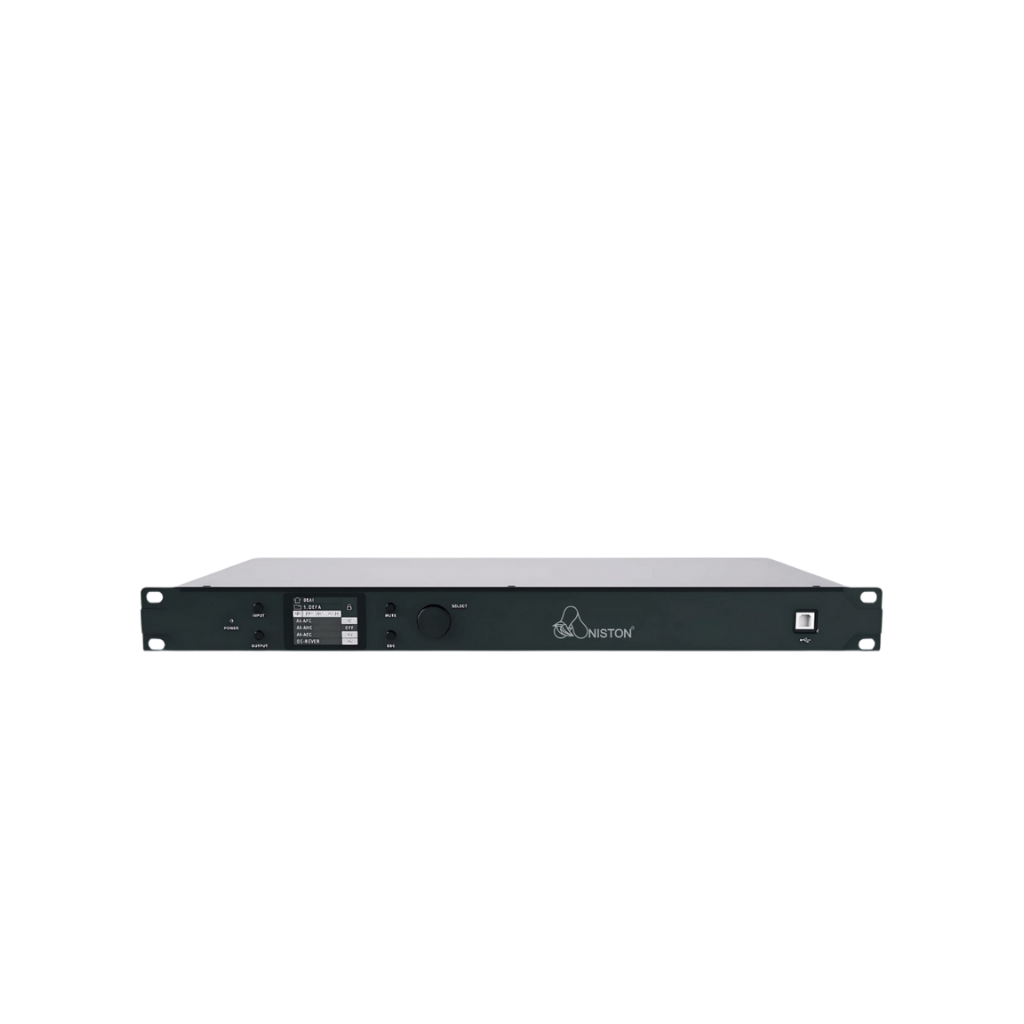

Cadence AI 8x8
Advanced AI Analog Audio DSP
The Cadence AI 8x8 is an advanced AI-driven Digital Signal Processor (DSP) designed by Aniston for superior audio processing in professional and consumer environments.
- USB Digital Audio Integration: Equipped with 2-in/2-out USB digital audio connectivity, simplifying integration with computers and digital audio workstations.
- Intelligent Voice Processing: Integrated AI-driven voice processing effectively eliminates ambient noise and non-human voice signals, ensuring superior speech clarity.
- Advanced Feedback and Noise Control: Includes Automatic Feedback Control (AFC), Acoustic Echo Control (AEC), and Active Noise Control (ANC) for optimal sound management.

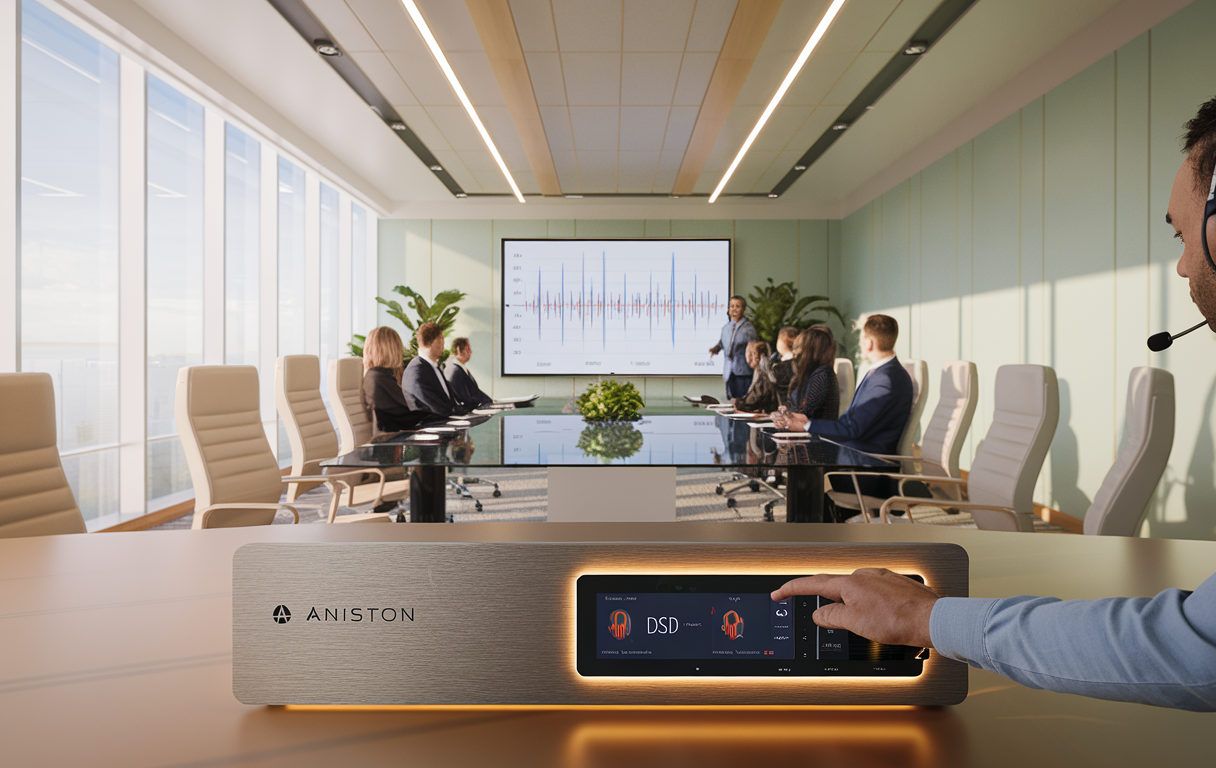

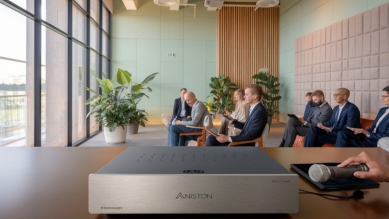

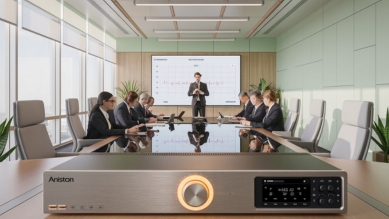

Designed for boardrooms, auditoriums, and professional AV installations, the Cadence AI 8x8 delivers exceptional audio performance with intelligent DSP features.
Product Features
- Advanced AI-driven digital signal processing (DSP) for high-quality audio enhancement.

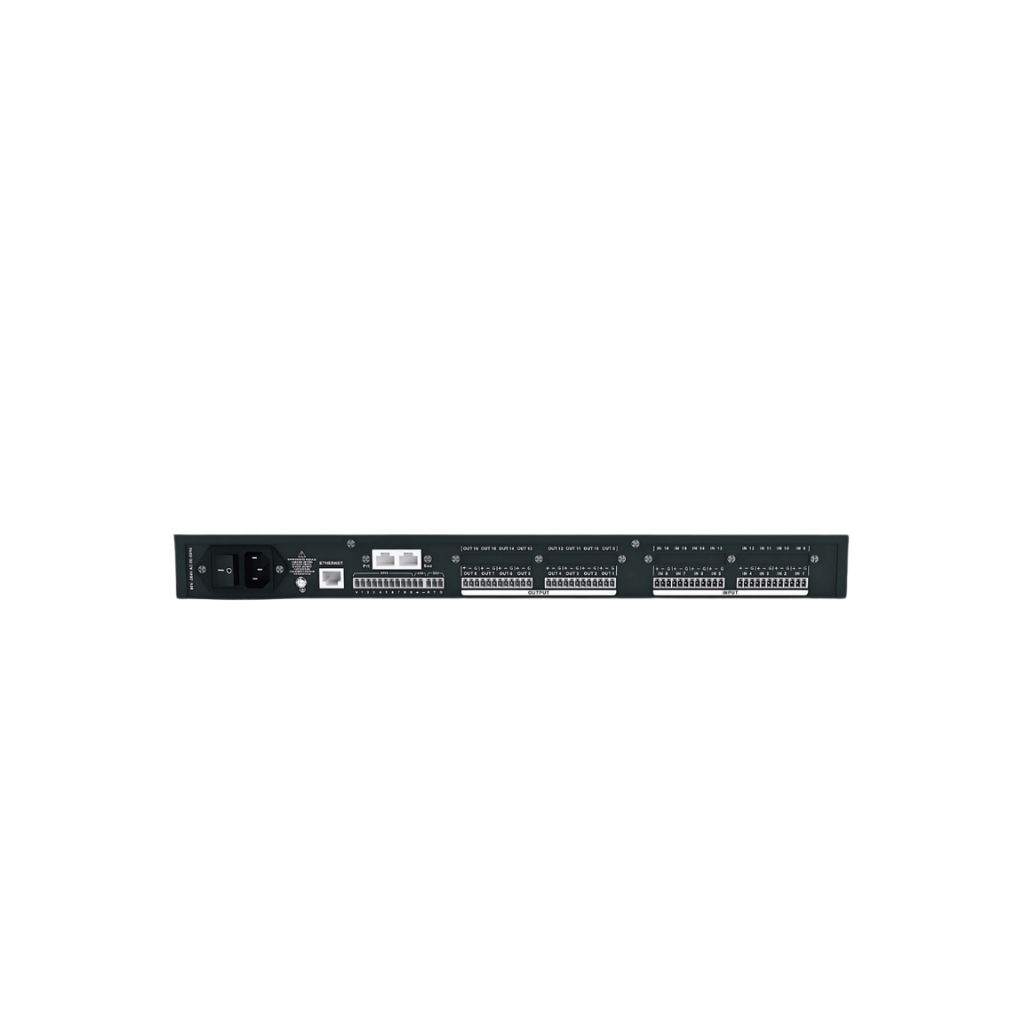

- 8 analog inputs and 8 analog outputs, supporting both line-level and mic-level selections.
- 2-in/2-out USB digital audio integration for seamless connectivity with computers and workstations.
- Acoustic Echo Control (AEC) for superior voice clarity in video conferencing and meetings.
- Active Noise Control (ANC) to reduce unwanted background noise in live environments.
- Automatic Feedback Control (AFC) with two selectable levels to minimize audio feedback.
- AI-based intelligent voice processing to eliminate ambient noise and non-human voice signals.
- +48V phantom power support on each mic-level input for professional microphones.
- Flexible equalization options: 15 or 8-band input EQ and 10 or 8-band output EQ.
- Supports high-pass and low-pass filtering with Butterworth, Bessel, and Linkwitz-Riley designs.
- Auto-mixing and matrix-mixing capabilities for customized audio routing and distribution.
- Camera tracking control compatible with most camera control protocols.
- Multiple control interfaces: USB, TCP/IP, RS232, RS485, and GPIO for easy system integration.
- Graphical user interface (GUI) for Windows 7/8/10/11 and Android network control app.
- Optional touch screen wall control panel via RS485 for convenient system adjustments.
- Optimized for boardrooms, auditoriums, conference rooms, and professional AV installations.
Technical Specifications
| Parameter | Details |
|---|---|
| Processor | ADI SHARC 21489 + ARM Quad-Core |
| Audio Latency | < 3ms (Propagation Delay, 450MHz, 24-bit Processing) |
| Input Channels | 8 Analog Mic/Line Inputs |
| Output Channels | 8 Analog Line-Level Outputs |
| USB Digital Audio | 2-in / 2-out |
| Phantom Power | +48VDC, 6.5mA per mic input |
| Dynamic Range | 90dB @ 17dBu, 1kHz, A-weighted (Line) |
| THD+N | -90dB (0.003%) Line / -86dB (0.005%) Mic @ 1kHz, A-weighted |
| Sampling Rate | 48kHz (A/D - D/A Conversion) |
| Acoustic Echo Cancellation (AEC) | Yes |
| Active Noise Control (ANC) | Yes |
| Automatic Feedback Control (AFC) | Yes, Two Selectable Levels |
| Equalization | Input: 15 or 8 Bands / Output: 10 or 8 Bands |
| Filters | HPF & LPF (Butterworth, Bessel, Linkwitz-Riley) |
| Mixing Functions | Auto Mixing, Matrix Mixing |
| Camera Tracking | Yes, Compatible with Most Control Protocols |
| Control Interfaces | USB, TCP/IP, RS232, RS485, GPIO |
| User Interface | Windows 7/8/10/11 GUI, Android App |
| Touch Screen Control | Optional (RS485 Wire Control) |
| Power Supply | AC 100V-240V, 50/60Hz |
| Power Consumption | Typical 35W, Maximum 60W |
| Operating Temperature | -20°C to 60°C |
| Weight | 3.4 kg |

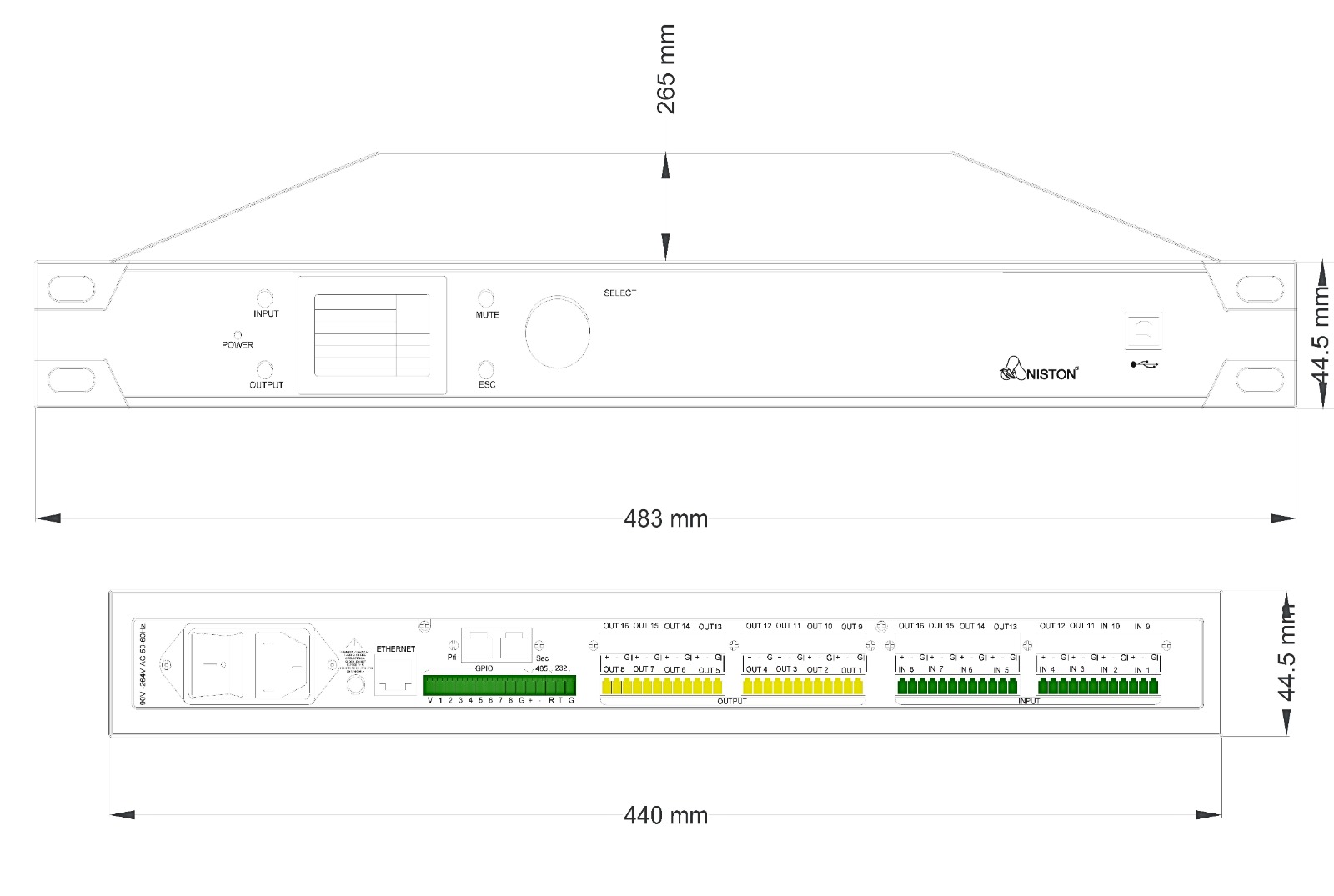

| Dimensions | 483mm × 265mm × 44.5mm |
| Network Connectivity | USB Type A-B, Free Driver |

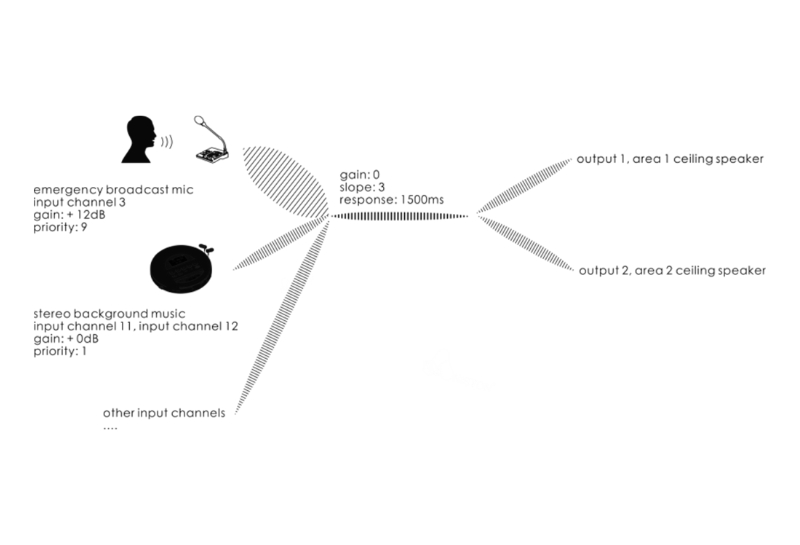

Block Diagram
Advanced AI-Driven Audio DSP for Professional AV Solutions
The Cadence AI DSP is a cutting-edge digital signal processing solution developed by Aniston Technologies LLP, designed to enhance audio quality in professional AV, conferencing, teaching, and multimedia applications. Featuring an 8x8 analog input/output configuration, USB digital audio integration, and intelligent AI-driven processing, it ensures superior sound management and seamless system integration.
Main Features
Intelligent AI-Driven Voice Processing
The Cadence AI DSP utilizes AI-powered voice processing to eliminate ambient noise and non-human voice signals, ensuring superior speech clarity in conferencing and multimedia applications.
Comprehensive I/O & USB Audio Integration
Featuring 8 analog inputs and 8 analog outputs with mic/line level selection, along with 2-in/2-out USB digital audio integration, the device provides flexible connectivity for professional AV setups.
Advanced Feedback and Noise Control
Equipped with Automatic Feedback Control (AFC), Acoustic Echo Control (AEC), and Active Noise Control (ANC), the DSP optimizes sound clarity by minimizing background noise and preventing feedback in live audio environments.
AI-Driven DSP for Professional Audio Processing
The Cadence AI DSP is an advanced digital signal processor designed to enhance audio quality in professional AV, conferencing, and multimedia applications. With 8 analog inputs and 8 analog outputs, it offers seamless integration and superior sound management. Powered by an ADI SHARC 21489 DSP and an ARM quad-core processor, it ensures low-latency, high-precision audio processing with intelligent AI-driven voice enhancements.
Flexible Audio Integration & Intelligent Noise Control
The Cadence AI DSP features comprehensive connectivity options, including USB digital audio (2-in/2-out), TCP/IP, RS232, RS485, and GPIO, making it easy to integrate into any professional AV environment. It includes built-in Acoustic Echo Control (AEC), Active Noise Control (ANC), and Automatic Feedback Control (AFC) to optimize speech clarity, eliminate background noise, and prevent audio feedback. Ideal for conference rooms, auditoriums, and commercial AV installations, the Cadence AI DSP ensures a seamless and high-quality audio experience.
Seamless Audio Processing with Cadence AI DSP
Elevate your audio experience with the Cadence AI Digital Signal Processor (DSP) by Aniston Technologies LLP. Designed for conference rooms, auditoriums, and professional AV installations, this advanced DSP delivers high-quality, real-time audio processing with AI-driven voice enhancements. Featuring 8 analog inputs and 8 analog outputs, USB digital audio integration, and a powerful ADI SHARC 21489 DSP with an ARM quad-core processor, it ensures seamless sound management with ultra-low latency.
