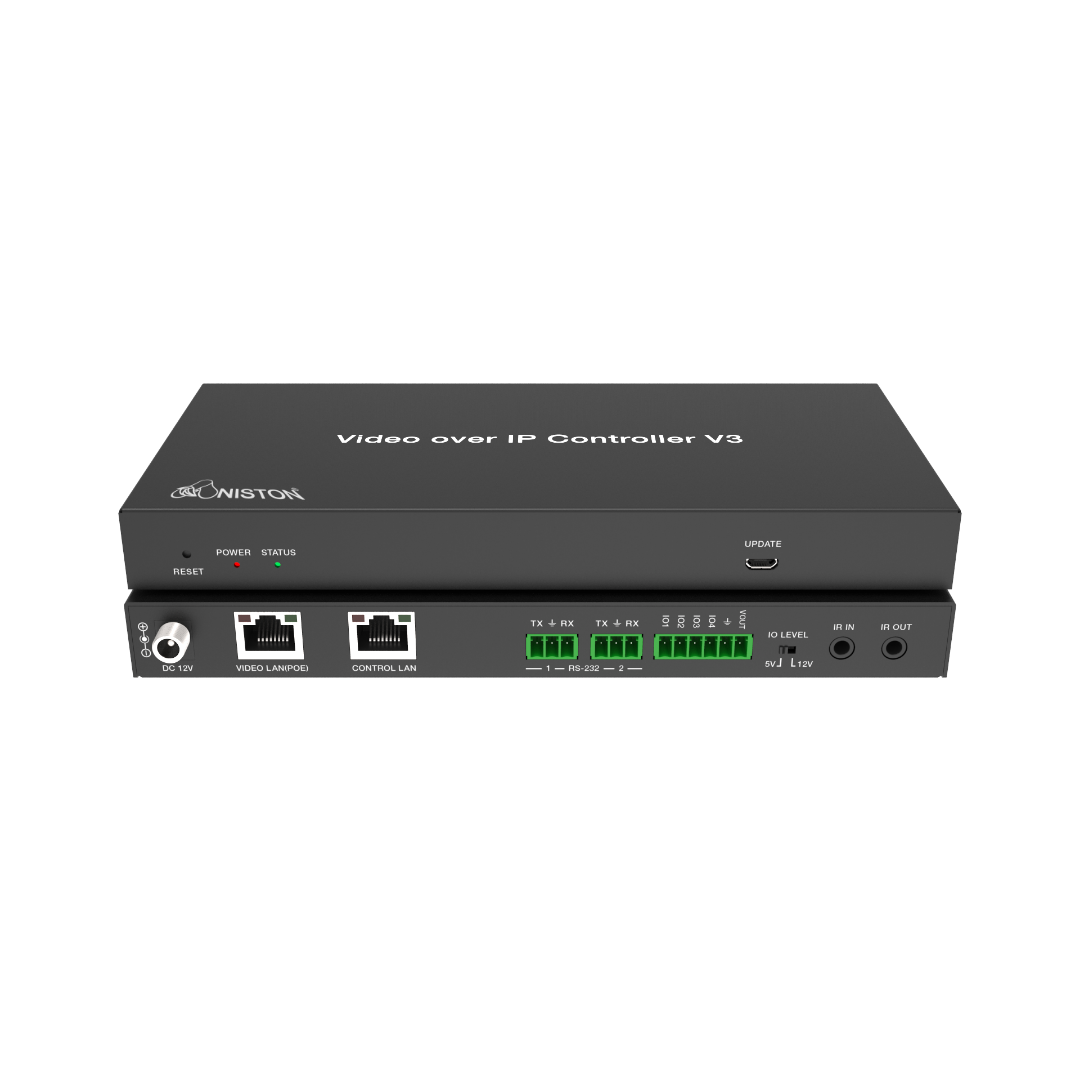

Aurelia C800
Controller
The Aurelia C800 by Aniston is a robust, enterprise-grade controller purpose-built for centralized AV-over-IP management in complex environments such as corporate campuses, educational institutions, and government facilities. Supporting drag-and-drop matrix switching, secure dual-LAN segregation, and multi-protocol routing, it offers comprehensive control over encoder and decoder deployments.
- Drag-and-Drop AV Routing: Real-time configuration of video, audio, USB, IR, RS-232, and CEC paths via an intuitive web GUI. Enables matrix switching and multiview management with visual previews.
- Dual-LAN Security Design: Segregates AV (Video LAN) and control traffic (Control LAN) for optimal network integrity. Supports HTTPS, SSH, 802.1X, and IGMP snooping for enterprise security.
- Dante Audio Bridge & Signal Integration: Integrates Dante audio routing and supports ARC, eARC, S/PDIF, and analog audio. Offers latency control, AES67 compatibility, and multi-channel audio passthrough.
With the ability to manage up to 762 devices and 9 independent video walls, the Aurelia C800 streamlines AV control for distributed networks. Additional features include GPIO, IR, relay outputs, and role-based multi-user login—making it a cornerstone for future-ready AV infrastructures.
Product Features
- Centralized AV-over-IP controller for managing encoders, decoders, and transceivers across 1GbE/10GbE networks.
- Intuitive drag-and-drop routing via secure web GUI for video, audio, USB, IR, and RS-232 signals.
- Dual LAN architecture with separate Control LAN and Video LAN interfaces for enhanced security and performance.
- Supports up to 762 unique device IDs and management of 9 video walls with multiview and matrix switching capabilities.
- Comprehensive signal routing including HDMI, L/R analog, Dante, ARC/eARC, S/PDIF, IR, RS-232, CEC, and USB KVM.
- Compatible with Dolby, DTS, and LPCM audio formats with signal embedding/de-embedding across AV streams.
- Real-time device status monitoring, preview streaming, and EDID management via Web GUI and API.
- Role-based user login, audit logs, and access control with HTTPS and SSH protocols.
- IGMP snooping, VLAN tagging, and 802.1X authentication support for secure enterprise network integration.
- GPIO ports, IR in/out, and relay outputs for control system interfacing and automation triggers.
- Firmware upgrades via GUI or controller with scheduled and bulk update support.
- Compact and rack-mountable metal chassis with passive thermal design and 24/7 reliability.
- Designed for scalability, redundancy, and mission-critical AV deployment with long MTBF rating.
- Certified for CE, FCC, RoHS, and BIS standards with a 3-year warranty (extendable to 5 years).
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | Aurelia C800 |
| Processor | Quad-core ARM Cortex-A72 |
| Operating System | Linux-based embedded OS |
| Memory | 4GB DDR4 RAM |
| Storage | 32GB eMMC |
| Control Interfaces | 2× RJ45 (Control LAN & Video LAN), RS-232, USB |
| Video Control | Matrix switching, video wall (9×9), multiview support |
| Audio Routing | Supports HDMI & analog L/R audio input selection |
| KVM Routing | USB over IP routing for keyboard/mouse extension |
| Network Standards | 1GbE (control), 10GbE (AV), IGMP v2/v3, DHCP, HTTPS, SSH |
| User Management | Admin login, role-based access control |
| Device Support | Manages up to 762 IDs |
| Web Interface | Drag-and-drop GUI for configuration & monitoring |
| LED Indicators | System status, network, power |
| Power Supply | 12V DC (2A) |
| Power Consumption | <15W |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | –20°C to 70°C |
| Dimensions | 180 × 120 × 35 mm |
| Weight | 610 g |
| Certifications | CE, FCC, RoHS |
| Reliability | 24/7 continuous operation |
| Warranty | 3 Years (extendable to 5 Years) |

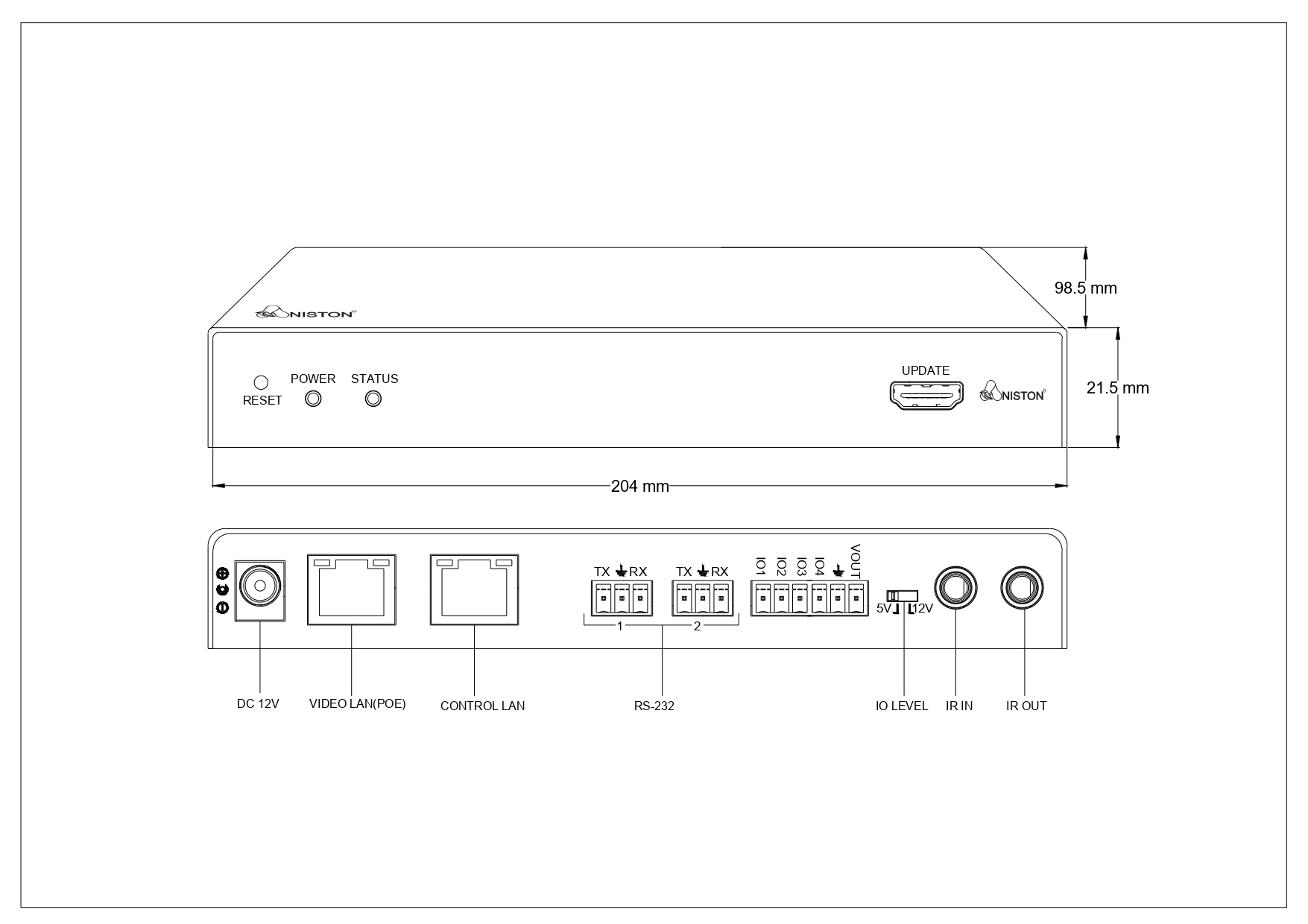

Mechanical Drawing
Software & Downloads
Coming Soon
Unified AV-over-IP Transceiver for Enterprise-Grade Performance
The Aurelia C800 is a next-generation SDVoE-compliant AV-over-IP
transceiver designed to streamline high-performance video distribution across diverse
environments—from mission-critical control centers to campus-wide networks.
With support for uncompressed 4K60 4:4:4 video, HDR formats including Dolby Vision and
HLG, and multichannel audio such as Dolby Atmos and DTS:X, it offers cinema-quality
media transport over standard 10GbE copper or fiber networks—all with sub-millisecond
latency.
Its compact form integrates both encoder and decoder functions, USB 2.0 KVM extension,
matrix/multiview processing, and advanced control options via Web GUI and API. Designed
for 24/7 reliability with PoE+ support, the Aurelia C800 empowers scalable and secure AV
deployments.
Main Features
All-in-One Transceiver Architecture
The Aurelia C800 combines both encoder and decoder capabilities into a single compact unit. This dual-mode functionality allows for simplified AV system designs and real-time switching without the need for additional hardware.
Uncompressed 4K60 over Copper & Fiber
Supporting uncompressed 4K60 4:4:4 transmission, the Aurelia C800 delivers flawless visuals via 10GbE networks—whether using copper or fiber. HDR10, Dolby Vision, and immersive multichannel audio formats like DTS:X are supported for full-fidelity content distribution.
Advanced AV-over-IP Control & Visualization
The Aurelia C800 supports robust control through Web GUI and API for seamless AV management. With matrix switching, 9×9 video wall configuration, 25-window multiview, and signal routing (IR, USB, RS-232, audio), it's built for demanding AV environments.
High-Performance SDVoE Transceiver for Enterprise AV & Streaming Applications
The Aurelia C800 sets a new standard in AV-over-IP systems with its integrated
encoder-decoder design. It delivers uncompressed 4K60 4:4:4 video and high-fidelity audio across
10GbE networks, making it ideal for mission-critical, real-time applications.
Designed for flexibility and scalability, it excels in control rooms, classrooms, and multi-screen
video walls. With robust signal routing, PoE+ support, and standards-based security, the Aurelia
C800 is your go-to transceiver for modern AV infrastructures.
Integrated PoE+ Networking & Advanced IP Protocol Support
The Aurelia C800 streamlines AV system deployment with a unified RJ45 or SFP+ port solution,
providing both PoE+ (802.3at) power and ultra-low-latency 4K video transmission
over 10GbE networks. Its copper and fiber dual-mode interface supports diverse installation
topologies.
With built-in support for RTSP, H.264/H.265 streaming, and robust control via Web GUI and API, the
Aurelia C800 ensures interoperability across IP-based infrastructures. Seamless USB, RS-232, IR, and
analog audio routing make it ideal for classrooms, signage networks, and enterprise AV deployments.
Scalable AV Integration with the Aurelia C800 Transceiver
Elevate your AV infrastructure with the Aurelia C800 by ANISTON—a next-gen
SDVoE transceiver designed for enterprise-grade video distribution. Its
compact, all-in-one form factor enables both encoding and decoding, supporting matrix switching,
multiview, and expansive video wall setups with up to 9×9 configuration.
Featuring dual 10GbE interfaces (RJ45 and SFP+), PoE+ power, and outputs
including HDMI, USB 2.0, and analog stereo, the Aurelia C800 integrates smoothly into IP-centric
environments. Ideal for classrooms, control centers, and digital signage networks, it delivers
zero-frame latency, intelligent signal routing, and reliable 24/7 performance.
