Aurelia D800
Decoder
The Aurelia D800 Decoder by Aniston is a high-performance AV-over-IP receiver designed for real-time decoding of 4K60 4:4:4 video and multi-channel audio over standard 1GbE networks. Built on ultra-low latency JPEG2000 compression, it ensures pristine playback with robust control, scalability, and compatibility across diverse AV environments.
- Visually Lossless 4K60 Decoding: Seamlessly reconstructs UHD video streams using JPEG2000 with sub-frame latency—perfect for broadcast displays, control rooms, and immersive presentations.
- Flexible Output & Audio Handling: HDMI 2.0 video out with support for ARC/eARC, S/PDIF, and analog audio extraction. Delivers Dolby Atmos, DTS-HD Master, and LPCM with precision.
- USB/KVM Extension & Control: Offers full USB 2.0/KVM pass-through for HID devices and peripherals. Includes RS-232, IR, GPIO, CEC, and relay for advanced automation.
The Aurelia D800 features intelligent video wall scaling (up to 9×9), real-time MJPEG preview, EDID management, and is powered via PoE+ or 12V DC. Engineered for 24/7 use, it is ideal for digital signage, enterprise AV, and multi-display environments.
Product Features
- Professional AV-over-IP decoder supporting visually lossless 4K60 4:4:4 video playback over 1GbE using JPEG2000 compression with sub-frame latency.
- HDMI 2.0 video output with support for ARC/eARC, delivering high-fidelity audio directly to soundbars and AV receivers.
- Advanced audio decoding for Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, and LPCM with flexible de-embedding options.
- Supports audio extraction through HDMI, analog L/R (Phoenix), and S/PDIF optical outputs.
- Integrated USB 2.0 KVM extension enabling real-time control of remote desktops and peripherals over IP.

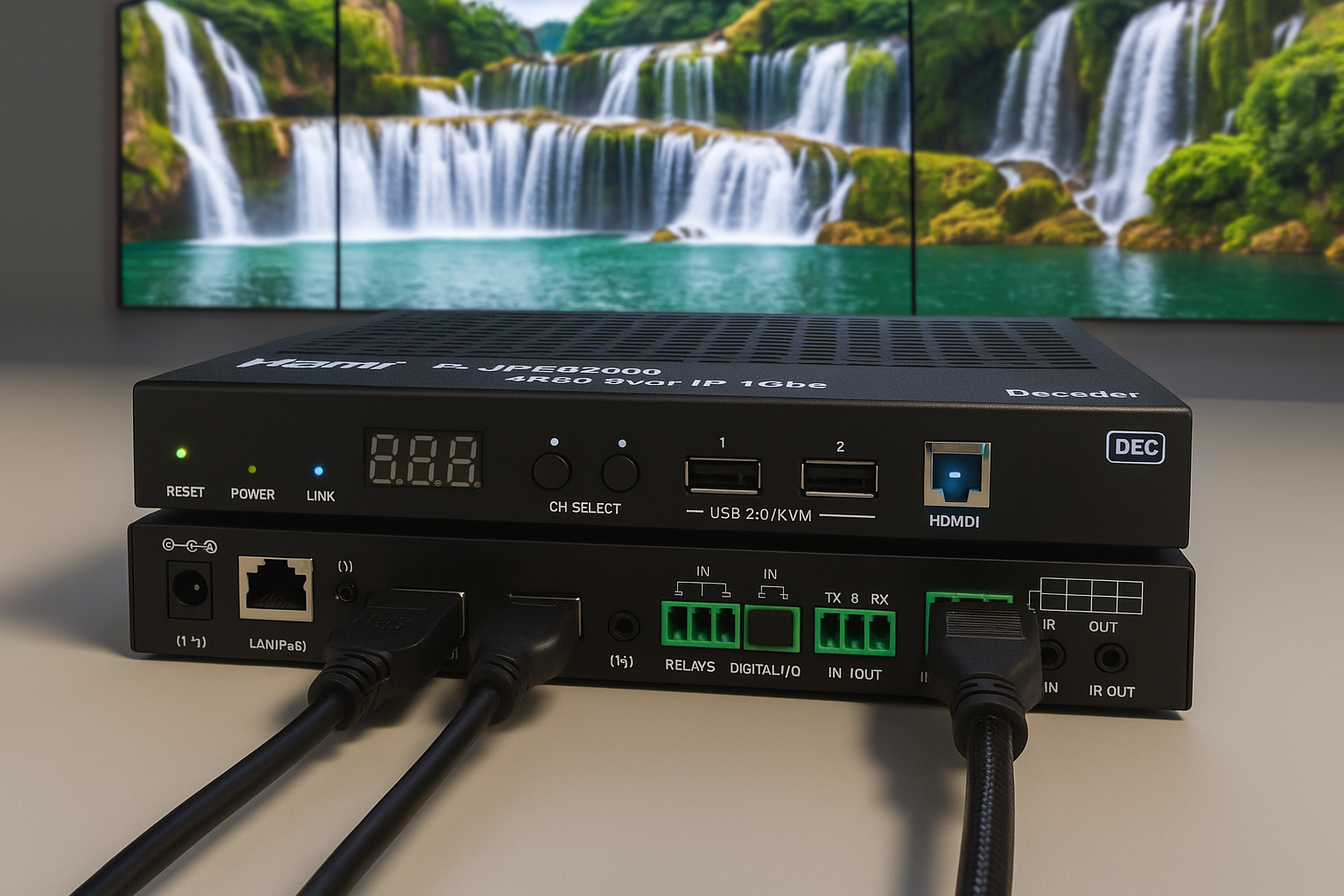

- Real-time video wall processing with support for display arrangements up to 9×9 with bezel correction and scaling.
- MJPEG sub-stream preview available via web interface or third-party players like VLC.
- EDID copy and preset modes ensure source compatibility with displays of all formats.
- Network-ready with IGMP snooping, 802.1X authentication, and jumbo frame support for secure and optimized streaming.
- Supports multicast and unicast streaming modes with static, DHCP, or auto-IP configurations.
- Comprehensive control via RS-232, IR In/Out (5V/12V), relay triggers, GPIO, CEC, web GUI, Telnet, SSH, and API.
- Compatible with Dante AV-A platforms (license activation required) for networked audio systems.
- Supports input signal resolutions from 480i up to 4K60, with HDR10, Dolby Vision, and HLG playback support.
- Color format flexibility including RGB and YCbCr (4:4:4, 4:2:2, 4:2:0) with 8/10/12-bit input processing.
- Transmission over distances up to 100 meters on CAT6/6A/7 cabling with ultra-low latency performance.
- Durable fanless metal enclosure ensures silent 24/7 operation in professional AV environments.
- Powered via 12V DC input or PoE+ (802.3at) with low power draw (<12W).< /li>
- Firmware updates available via web interface, with support for bulk and scheduled deployments.
- Meets CE, FCC, RoHS, and BIS certifications. Covered by a 3-year warranty (optional 5-year extension).
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | Aurelia D800 |
| Video Output | HDMI 2.0b, HDCP 2.2 compliant |
| Compression Format | JPEG2000 (visually lossless, sub-frame latency) |
| Supported Resolutions | 480i to 4K60 (4:4:4); HDR10, Dolby Vision, HLG |
| Color Formats | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | Input: 8/10/12-bit, Output: 8-bit |
| Video Bandwidth | 18Gbps |
| Audio Outputs | HDMI ARC/eARC, S/PDIF Optical, Analog L/R (Phoenix) |
| Audio Formats | LPCM 2.0/5.1/7.1, Dolby Atmos, Dolby TrueHD, DTS-HD Master, DTS:X |
| Audio Sample Rate | 32–192kHz |
| Audio SNR | >96 dB A-weighted |
| Audio THD+N | <0.015% @ 1kHz |
| USB Extension | 1× USB 2.0 Host (Type-B), 2× USB 2.0 Device (Type-A) |
| USB Bandwidth | 480Mbps (USB 2.0) |
| Video Wall Processing | Supports up to 9×9 configurations, bezel/gap compensation |
| Sub-Stream Preview | MJPEG streaming via Web GUI or VLC |
| EDID Management | 24 presets, EDID copy mode |
| Control Interfaces | RS-232, LAN, IR In/Out, 2× Relay Out, 2× GPIO (Phoenix), CEC |
| Network Protocols | 1GbE, IGMP snooping, Jumbo Frames (8KB), DHCP, Static IP, Auto-IP |
| Streaming Modes | Unicast and Multicast |
| Security | 802.1X, HTTPS, SSH, Telnet, API, Web GUI |
| Dante AV-A Support | License required |
| Transmission Distance | Up to 100m over CAT6/6A/7 |
| Power Input | 12V DC (2.5A) or PoE+ (802.3at) |
| Power Consumption | Max 12W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –20°C to 60°C |
| Humidity | 10–90% RH (non-condensing) |
| Enclosure | Metal housing, fanless passive cooling |
| Dimensions | 204 × 136 × 25.5 mm |
| Weight | ~632 g |
| Certifications | CE, FCC, RoHS, BIS |
| Warranty | 3 Years (extendable to 5 Years) |

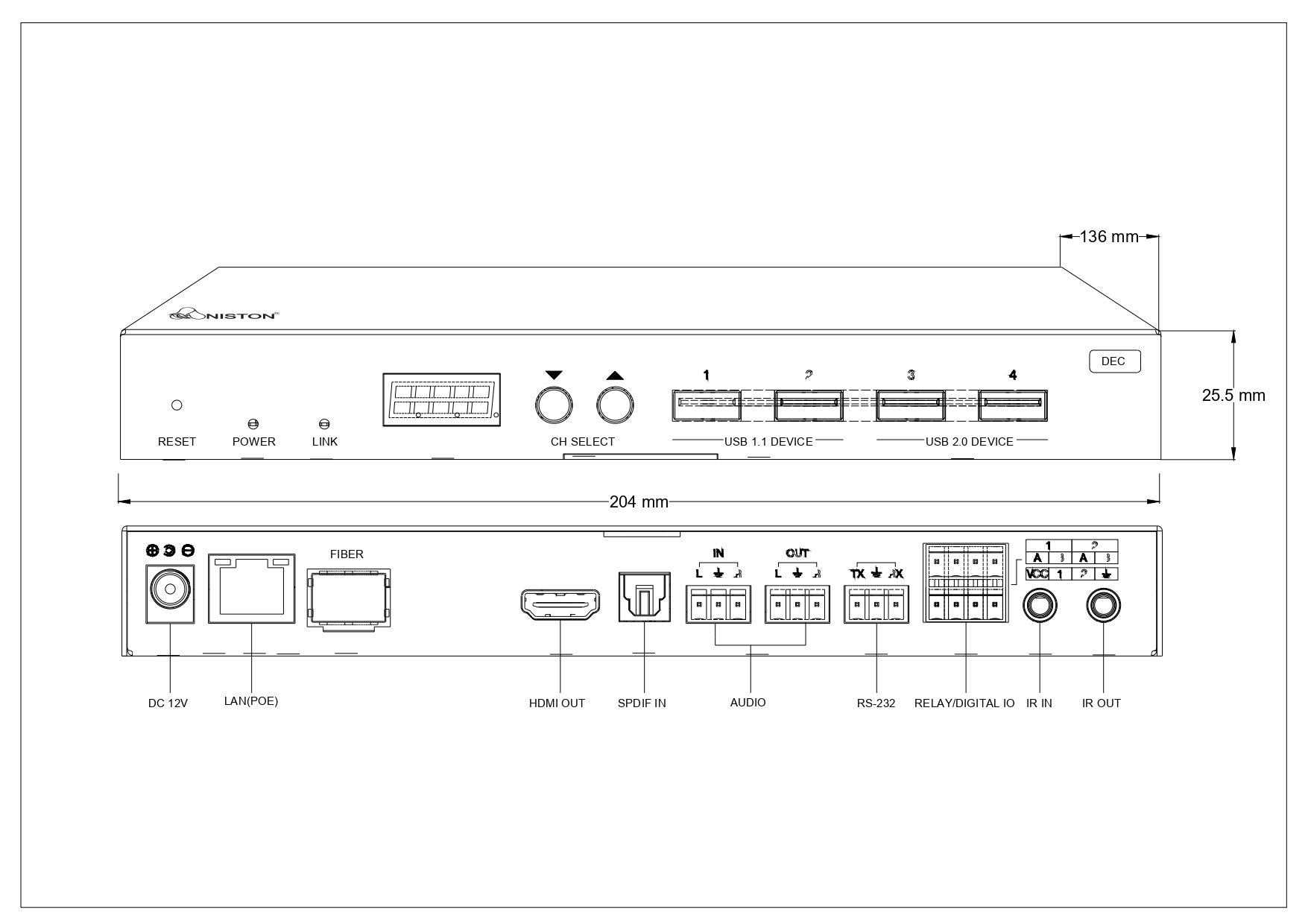

Mechanical Drawing
Software & Downloads
Coming Soon
Ultra-Reliable 4K60 AV-over-IP Decoder for Professional Deployments
The Aurelia D800 by Aniston is a high-performance AV-over-IP decoder
engineered to deliver pristine 4K60 4:4:4 video and rich multichannel audio over
standard 1GbE networks.
Utilizing JPEG2000 compression, it ensures sub-frame latency and visually lossless video
ideal for critical applications like control rooms, digital signage, and broadcast
environments.
With features including HDMI video out, advanced audio extraction, USB 2.0/KVM
pass-through, and integrated video wall scaling, the D800 offers flexible integration
and unmatched reliability for demanding AV infrastructures.
Main Features

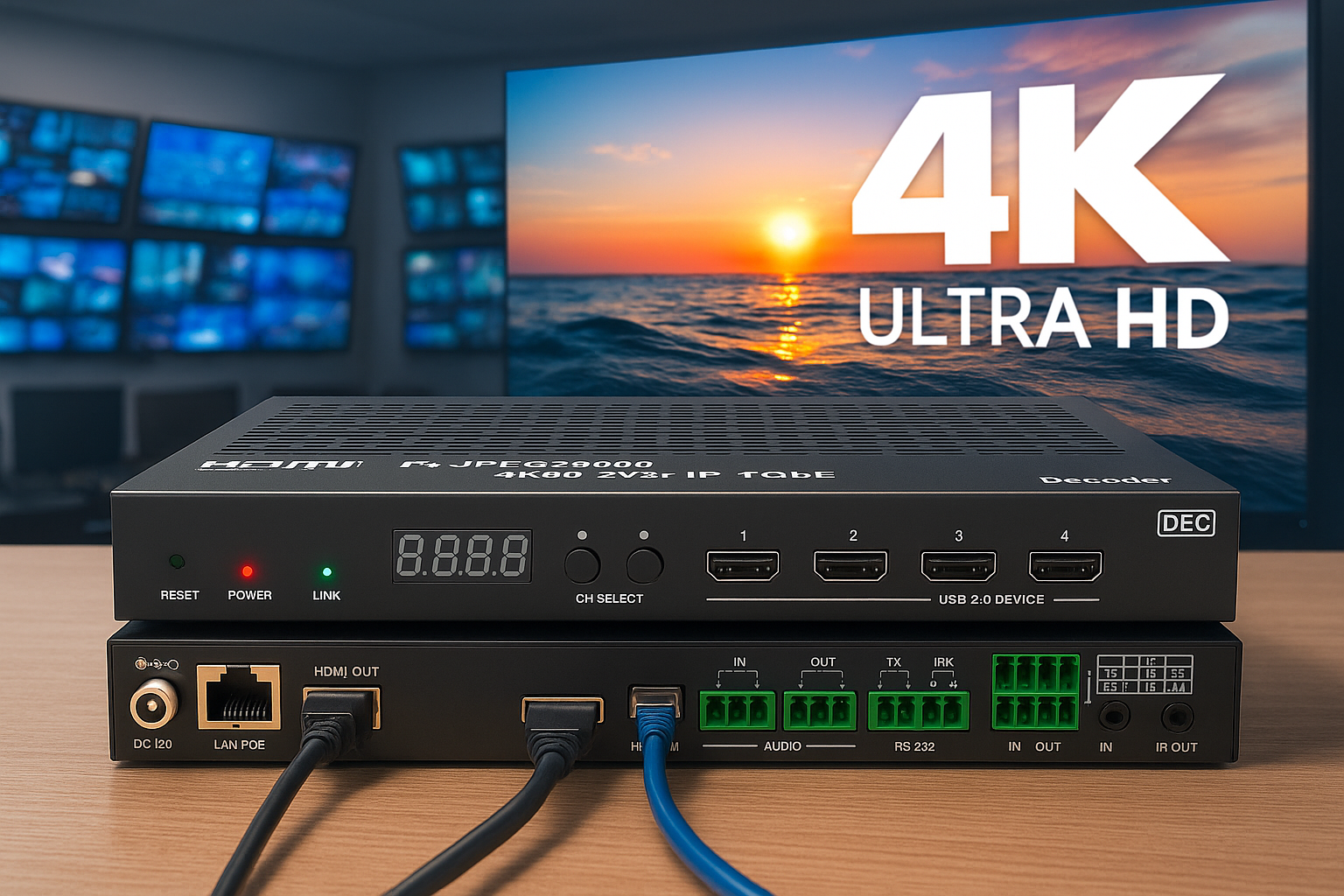

Visually Lossless 4K60 Video Decoding
The Aurelia D800 delivers pristine Ultra HD playback with JPEG2000 compression, offering sub-frame latency and 4K60 4:4:4 fidelity over 1GbE. It’s ideal for critical AV scenarios where clarity and speed are paramount.

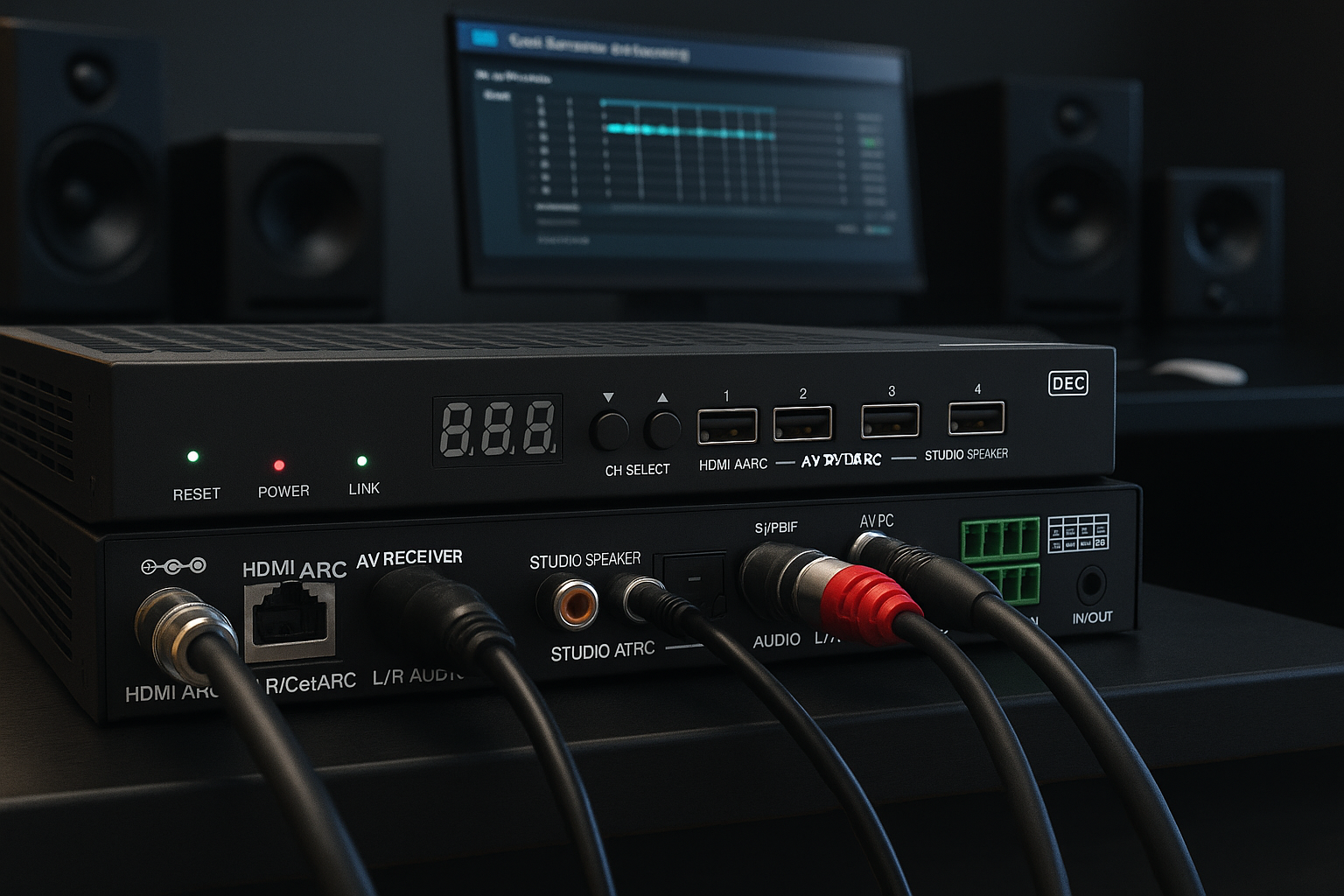

Advanced Audio Extraction
Decode and route audio seamlessly with support for HDMI ARC/eARC, S/PDIF, and analog L/R output. Compatible with Dolby Atmos, DTS:X, and more, the D800 simplifies audio deployment in complex systems.

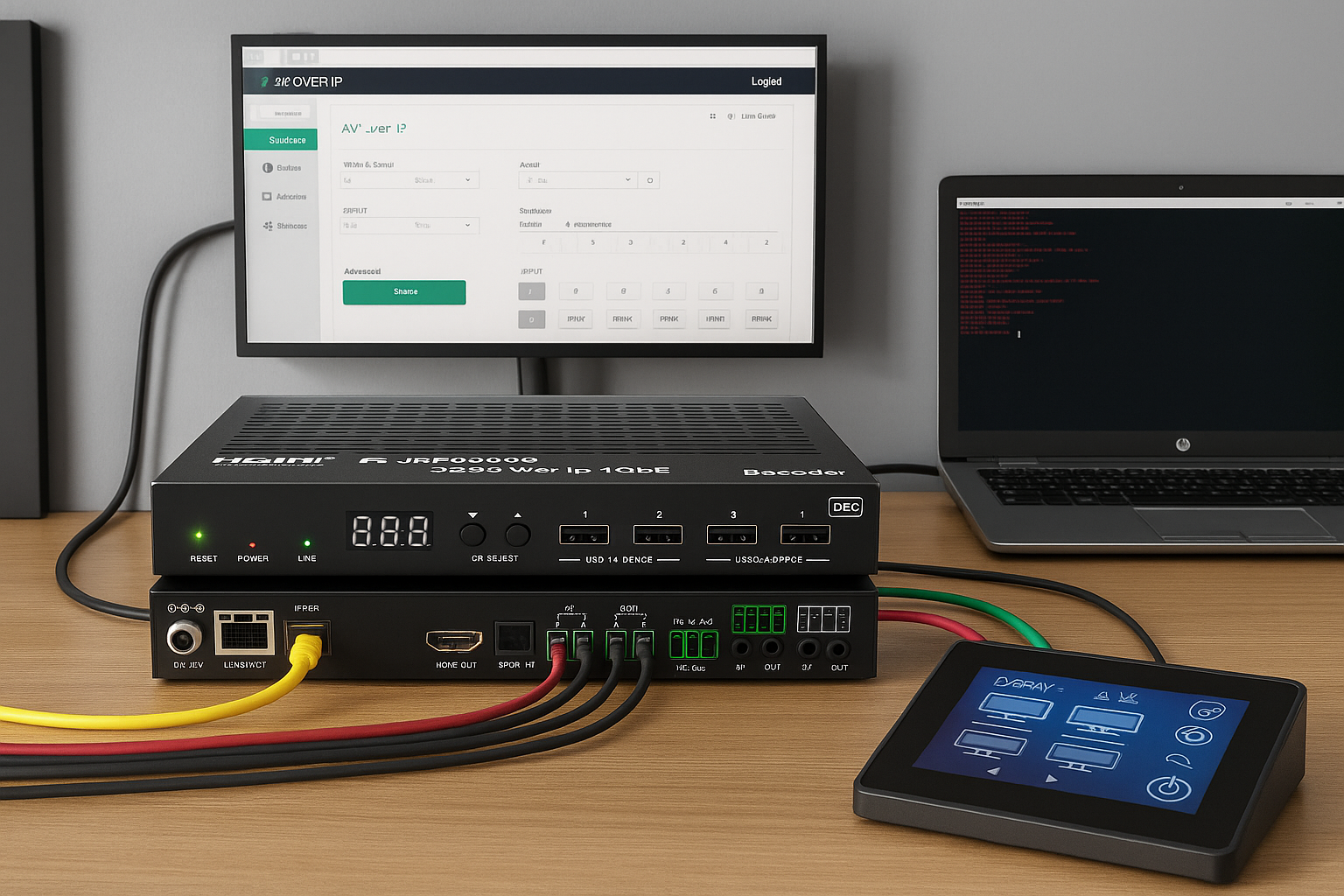

Robust AV Control & Automation
Offers rich control options including Web GUI, API, SSH, and Telnet, along with RS-232, IR, GPIO, relay, and CEC interfaces. Integrates effortlessly into automation platforms for fully synchronized AV environments.
High-Performance AV-over-IP Decoder for Real-Time 4K60 Applications
The Aurelia D800 redefines IP-based video distribution with its precision 4K60 4:4:4 decoding
capabilities, built on JPEG2000 compression for visually lossless playback and sub-frame latency
over 1GbE networks.
Designed for reliability in demanding AV installations, it features ARC/eARC, USB/KVM support, and
video wall scaling up to 9×9. Ideal for environments like control centers, broadcast setups, and
campus AV systems, the D800 ensures seamless integration and crystal-clear media output across
diverse deployments.
Visually Lossless 4K60 AV Decoding for Mission-Critical Installations
The Aurelia D800 provides enterprise-class AV-over-IP decoding using JPEG2000 compression to
deliver 4K60 4:4:4 video with sub-frame latency and high-fidelity multichannel audio—all over
standard 1GbE infrastructure.
Featuring HDMI output, advanced audio extraction, USB 2.0/KVM pass-through, and robust signal
control, the D800 is ideal for mission-critical environments such as control centers, video walls,
broadcast, and education. Its support for video wall scaling, Dante AV-A (license), and
comprehensive security makes it a dependable core for scalable AV ecosystems.
Scalable 4K60 AV Decoding with Enterprise-Level Control
Enhance your AV distribution with the Aurelia D800 by ANISTON—an advanced
decoder built for visually lossless 4K60 AV-over-IP playback. Designed for
reliability and real-time performance, it supports HDMI 2.0 output, multiformat audio
extraction, and USB 2.0/KVM functionality.
Perfect for control rooms, signage, and broadcast environments, it integrates effortlessly with
up to 9×9 video wall layouts, IR and GPIO control, Dante AV-A (license required), and
802.1X-secured networking. The Aurelia D800 delivers uncompromising visual quality and
automation for professional AV deployments over 1GbE networks.
