Aurelia E800
Encoder
The Aurelia E800 Encoder by Aniston is a high-performance AV-over-IP solution designed to deliver 4K60 4:4:4 video, multi-channel audio, and advanced control over standard 1GbE networks. Ideal for professional AV environments like control rooms, campuses, and broadcast facilities, it offers flexible input options, seamless video wall management, and comprehensive system integration.
- Visually Lossless 4K60 Encoding: JPEG2000-based compression delivers UHD video with sub-frame latency and pristine image quality. Perfect for presentations, medical imaging, and live broadcasting.
- Dual Input Architecture: Features HDMI 2.0 and USB-C with intelligent auto-switching, manual override, and up to 100W USB-C charging passthrough.
- Dante AV-A & Audio Integration: Supports Dante audio routing with optional license, ARC/eARC, S/PDIF, analog audio, Dolby Atmos, and more. Includes audio embedding/de-embedding.
The Aurelia E800 supports USB 2.0/KVM, RS-232, IR, relay, GPIO, and CEC for flexible control. With up to 9×9 video wall processing, IGMP snooping, 802.1X security, and a robust metal housing, it is built for scalable and secure AV deployments in demanding environments.
Product Features
- Visually lossless 4K60 4:4:4 video encoding using JPEG2000, delivering pristine Ultra HD video over standard 1GbE with sub-frame latency.
- Dual input support via HDMI 2.0 and USB-C, featuring intelligent auto-switching, manual override, and USB-C power delivery up to 100W.
- Comprehensive audio handling with ARC/eARC, S/PDIF, and analog I/O, supporting Dolby Atmos, Dolby TrueHD, DTS-HD Master, DTS:X, and LPCM formats.
- Supports audio embedding and de-embedding across HDMI, analog, and digital interfaces for flexible integration.
- Full-speed USB 2.0 (480 Mbps) KVM extension enabling remote desktop and peripheral control in real-time applications.
- Built-in video wall processing with scaling, rotation, and bezel/gap management supporting layouts up to 9×9.
- MJPEG-based sub-stream preview via Web GUI or VLC, ideal for real-time monitoring and diagnostics.
- EDID management with 24 factory presets and a copy mode to ensure display compatibility and optimal resolution selection.
- Network-ready with support for IGMP snooping, jumbo frames (8KB), and 802.1X authentication for secure AV transport over IP.
- Supports unicast and multicast streaming with configurable IP addressing modes including Static, DHCP, and Auto-IP.
- Multiple control interfaces: RS-232, IR In/Out (5V/12V), 2× Relay Outputs, 2× GPIO (Digital I/O), CEC, Web GUI, Telnet, SSH, and Open API.
- Dante AV-A readiness (license required) for seamless integration into Dante-enabled AV ecosystems.
- Supports resolutions from 480i to 4K60 (4:4:4), with HDR formats including HDR10, Dolby Vision, and HLG.
- Flexible color support including RGB and YCbCr (4:4:4, 4:2:2, 4:2:0), with input depths up to 12-bit.
- Transmission range up to 100 meters over CAT6/6A/7 with visually imperceptible latency (<1 frame).
- Robust metal housing with passive thermal management for 24/7 operation in demanding environments.
- Power via DC 12V (2.5A) or PoE+ (802.3at) with a maximum power draw of 12W.
- Firmware upgradeable through Web GUI with support for real-time and scheduled updates.
- Certifications: CE, FCC, RoHS, and BIS. Backed by a 3-year warranty (extendable to 5 years).
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | Aurelia E800 |
| Video Standard | HDMI 2.0b, HDCP 2.2 compliant |
| Compression Codec | JPEG2000 visually lossless, ultra-low latency |
| Input Ports | 1× HDMI 2.0, 1× USB-C Video, 1× L/R Analog Audio (Phoenix) |
| Loop/Output Ports | 1× HDMI Loop Out, 1× S/PDIF Optical Out, 1× L/R Analog Audio Out (Phoenix) |
| Video Resolutions | 480i to 4K60 (4:4:4), HDR10, Dolby Vision, HLG |
| Color Formats | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | Input: 8/10/12-bit, Output: 8-bit |
| Video Bandwidth | 18Gbps |
| Audio Formats | LPCM 2.0/5.1/7.1, Dolby Atmos, Dolby TrueHD, DTS-HD Master, DTS:X |
| Audio Embedding/De-embedding | HDMI, Analog, S/PDIF |
| Audio Sample Rate | 32–192kHz |
| Audio SNR | >96 dB A-weighted |
| Audio THD+N | <0.015% @ 1kHz |
| USB Extension | 1× USB 2.0 Host (Type-B), 2× USB 2.0 Device (Type-A) |
| USB Bandwidth | 480Mbps (USB 2.0) |
| Video Wall Capability | Up to 9×9 layouts, bezel/gap compensation |
| Sub-Stream Preview | MJPEG preview via Web GUI or VLC |
| EDID Management | 24 presets + Copy mode |
| Control Interfaces | RS-232, LAN, IR In/Out, 2× Relay, 2× GPIO (Phoenix), CEC |
| Network | 1GbE, IGMP snooping, jumbo frames (8KB) |
| Streaming Modes | Unicast / Multicast |
| IP Modes | Static / DHCP / Auto-IP |
| Security | 802.1X, API/Telnet/SSH/Web GUI |
| Dante AV-A | Supported with license activation |
| Transmission Distance | Up to 100m over CAT6/6A/7 |
| Power Input | DC 12V/2.5A or PoE+ (802.3at) |
| Power Consumption | Max 12W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –20°C to +60°C |
| Humidity | 10–90% RH (non-condensing) |
| Enclosure | Metal housing, black finish |
| Dimensions | 204 × 136 × 25.5 mm |
| Weight | ~632 g |
| Certifications | CE, FCC, RoHS, BIS |
| Warranty | 3 Years (extendable to 5 Years) |

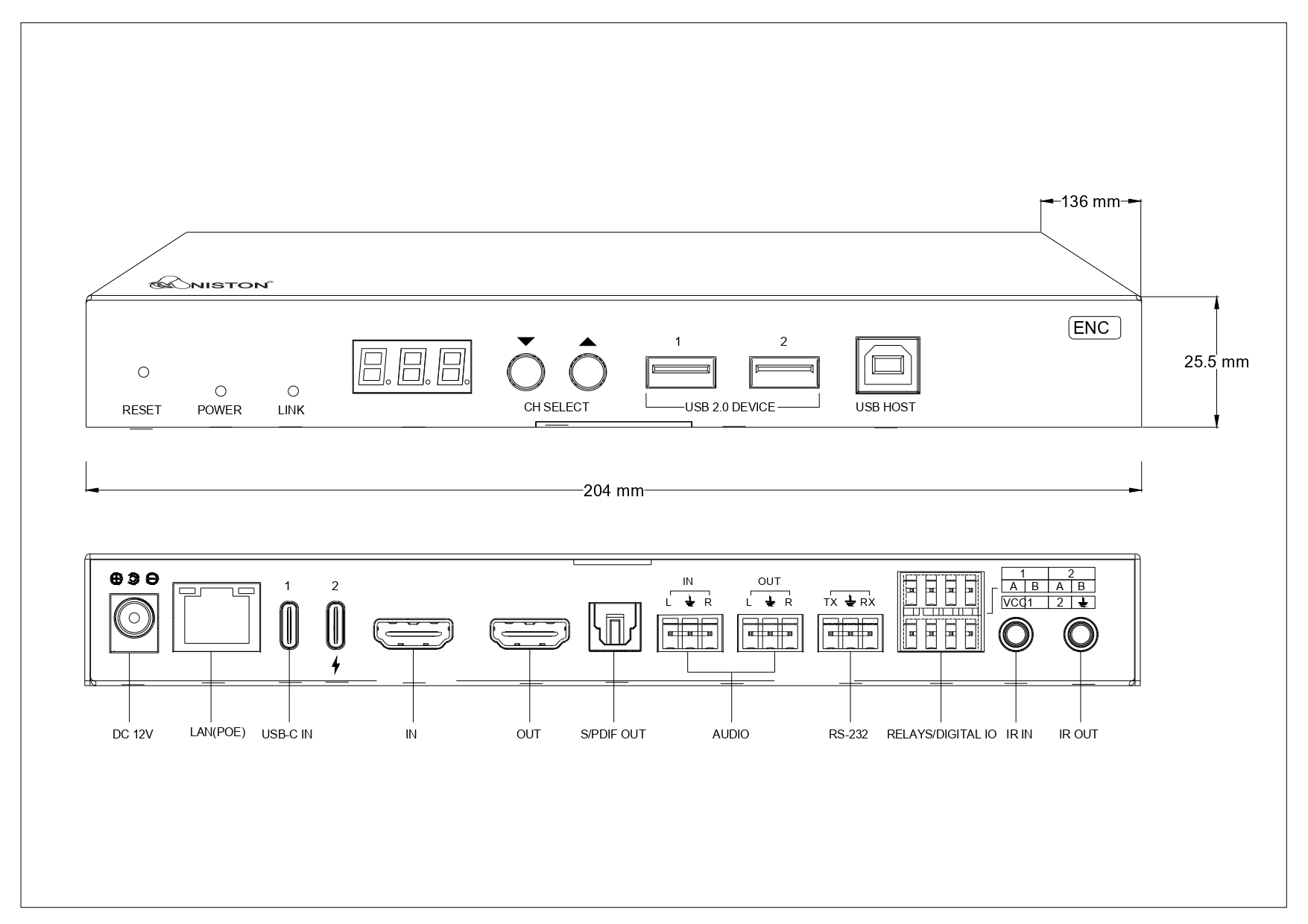

Mechanical Drawing
Software & Downloads
Coming Soon
Professional 4K60 AV-over-IP Encoder with Enterprise Control
The Aurelia E800 is Aniston’s flagship AV-over-IP encoder,
purpose-built for uncompromised 4K60 4:4:4 video distribution, high-fidelity audio
transmission, and advanced control across 1GbE networks.
Powered by JPEG2000 compression, it ensures visually lossless image quality with
sub-frame latency—ideal for critical environments like boardrooms, broadcast studios,
digital signage, and command centers.
With dual video inputs (HDMI 2.0 & USB-C), audio embedding/de-embedding, Dante AV-A
readiness, USB 2.0 KVM extension, and up to 9×9 video wall support, the E800 delivers
reliable performance and seamless integration into any pro AV setup.
Main Features
Visually Lossless 4K60 Video Encoding
The Aurelia E800 utilizes JPEG2000 compression to transmit Ultra HD 4K60 4:4:4 video over 1GbE networks with sub-frame latency—preserving image clarity and color integrity for mission-critical applications.
Comprehensive Audio Integration
Supports ARC/eARC, S/PDIF, and analog audio embedding/de-embedding with full compatibility for Dolby Atmos, Dolby TrueHD, DTS:X, and LPCM—ensuring flexible audio routing across digital and analog domains.
Enterprise-Class Network Control
Equipped with Web GUI, Telnet, SSH, and API access, the E800 allows seamless integration into AV control systems. It supports RS-232, IR, relay triggers, GPIO, and CEC for smart automation in enterprise AV networks.
High-Performance SDVoE Transceiver for Enterprise AV & Streaming Applications
The Aurelia E800 sets a new standard in AV-over-IP systems with its integrated
encoder-decoder design. It delivers uncompressed 4K60 4:4:4 video and high-fidelity audio across
10GbE networks, making it ideal for mission-critical, real-time applications.
Designed for flexibility and scalability, it excels in control rooms, classrooms, and multi-screen
video walls. With robust signal routing, PoE+ support, and standards-based security, the Aurelia
C800 is your go-to transceiver for modern AV infrastructures.
Visually Lossless 4K60 AV Encoding for Mission-Critical Installations
The Aurelia E800 delivers professional-grade AV-over-IP performance with JPEG2000-based 4K60
4:4:4 video encoding, sub-frame latency, and ultra-reliable audio handling—all over standard 1GbE
networks.
With dual HDMI and USB-C inputs, comprehensive audio I/O, and seamless USB 2.0/KVM extension, the
E800 is engineered for high-demand environments such as control centers, corporate AV, digital
signage, and education. Built-in video wall scaling, Dante AV-A readiness, and robust security
protocols make it a future-ready choice for scalable deployments.
Enterprise AV Encoding with Flexible Integration
Transform your AV workflows with the Aurelia E800 by ANISTON—an advanced
encoder designed for high-performance 4K60 AV-over-IP distribution. Built for
critical applications, it supports dual video inputs (HDMI 2.0 and USB-C), versatile audio
processing, and USB 2.0/KVM extension.
Engineered for seamless scalability, it integrates effortlessly into professional AV networks
with support for up to 9×9 video wall layouts, Dante AV-A compatibility, IR and GPIO triggers,
and relay automation. Whether you're deploying in a boardroom, studio, or campus-wide system,
the Aurelia E800 ensures unmatched reliability and crystal-clear media delivery across standard
1GbE networks.
