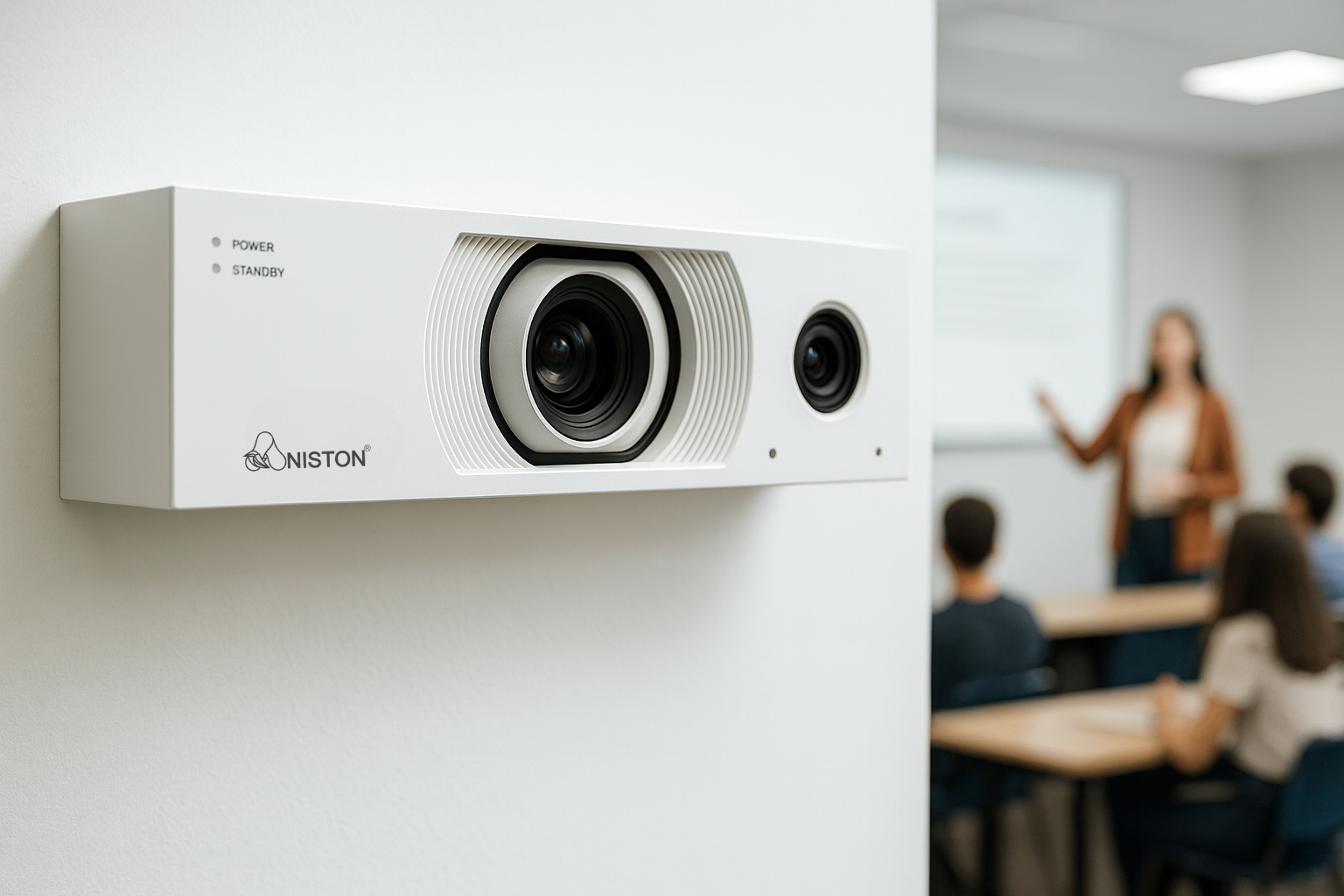

BinoVue Maestro BVM-2000
Teacher Camera

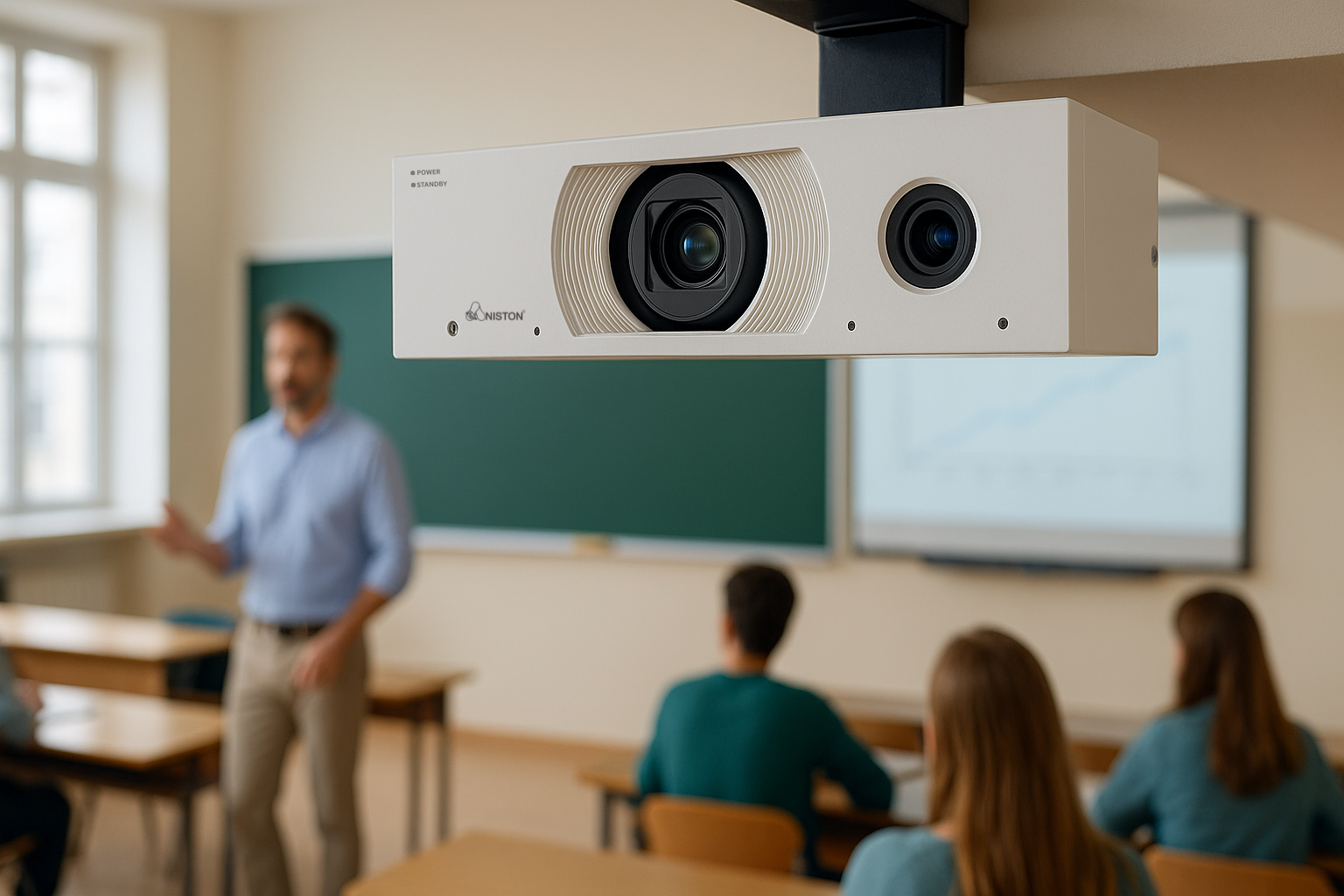

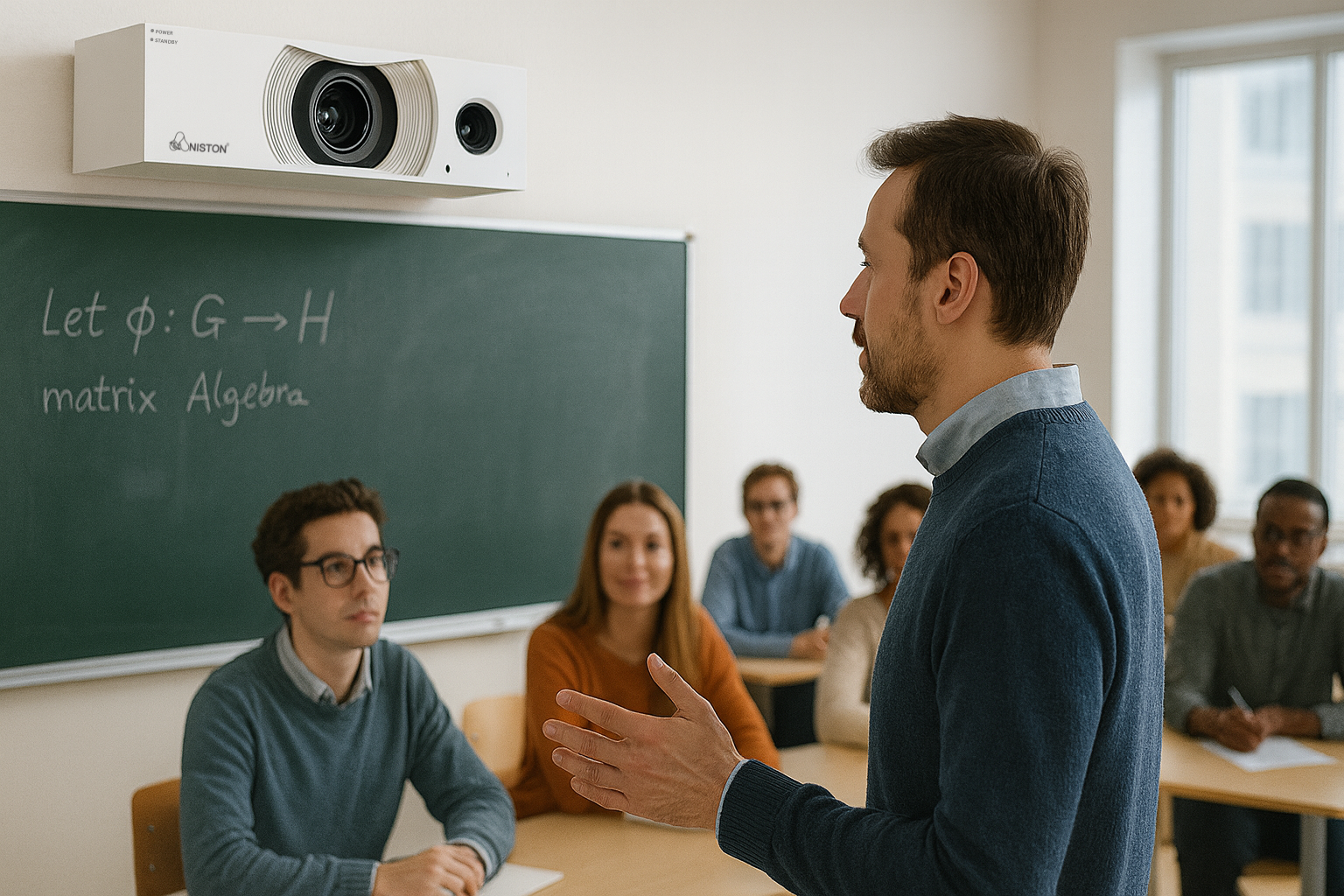

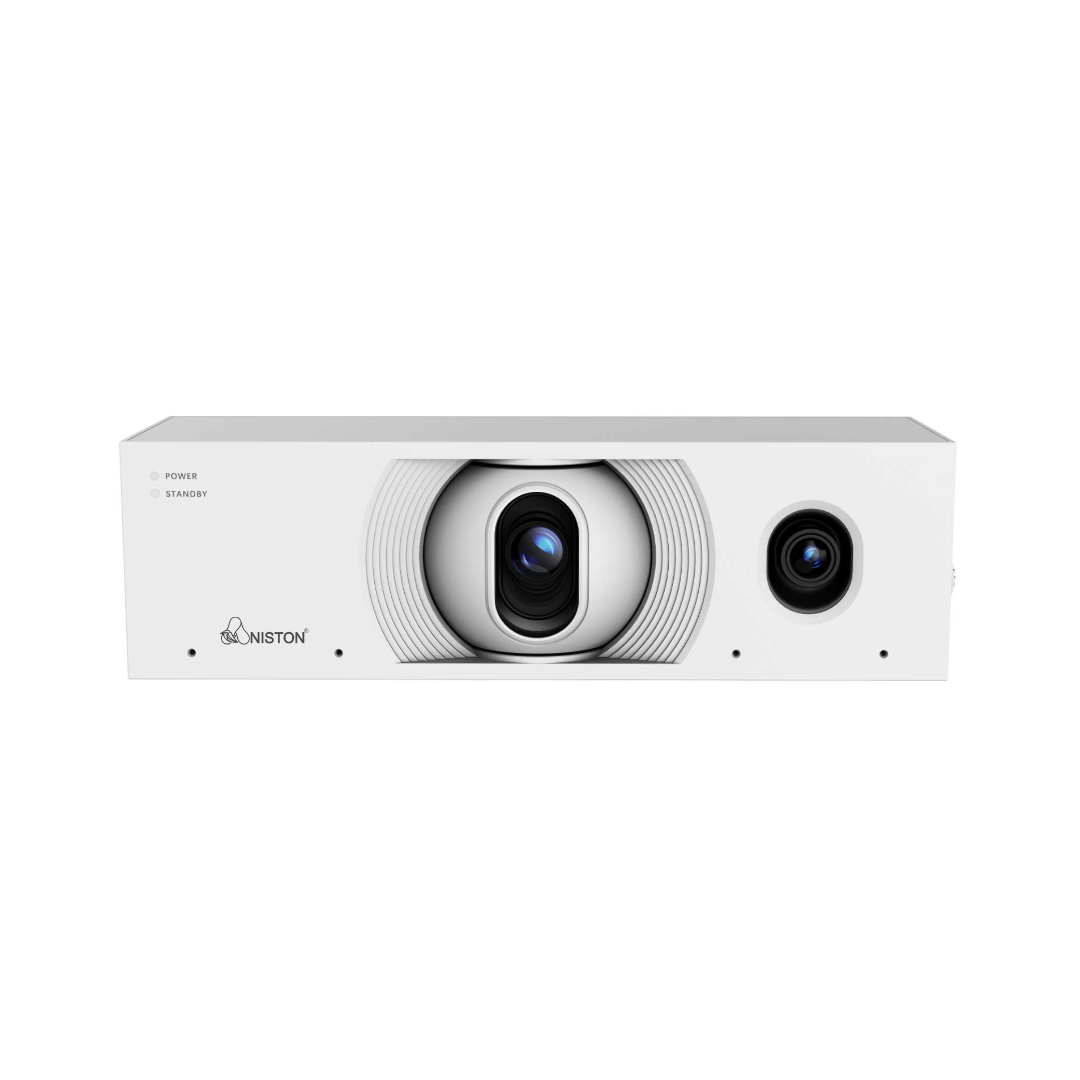

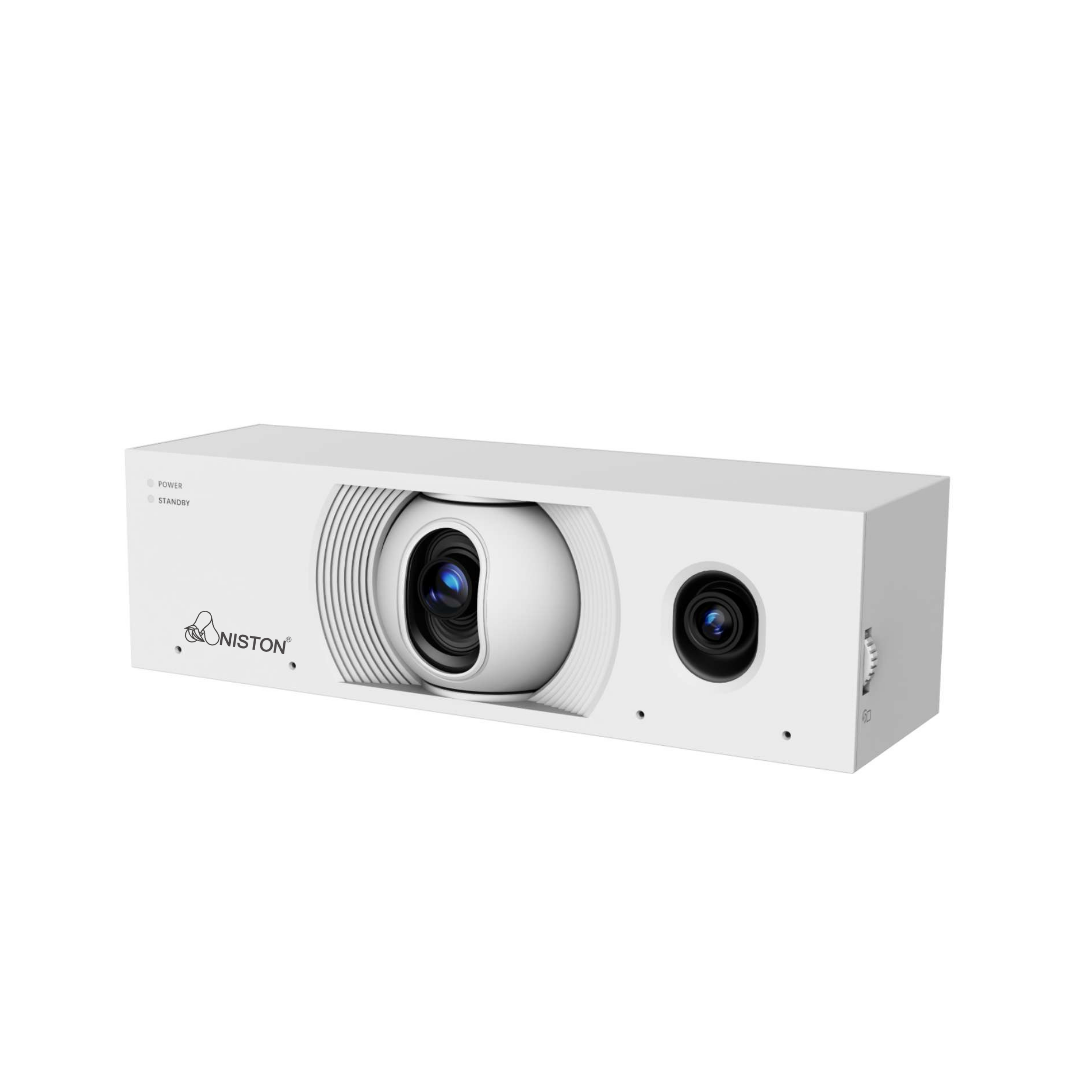

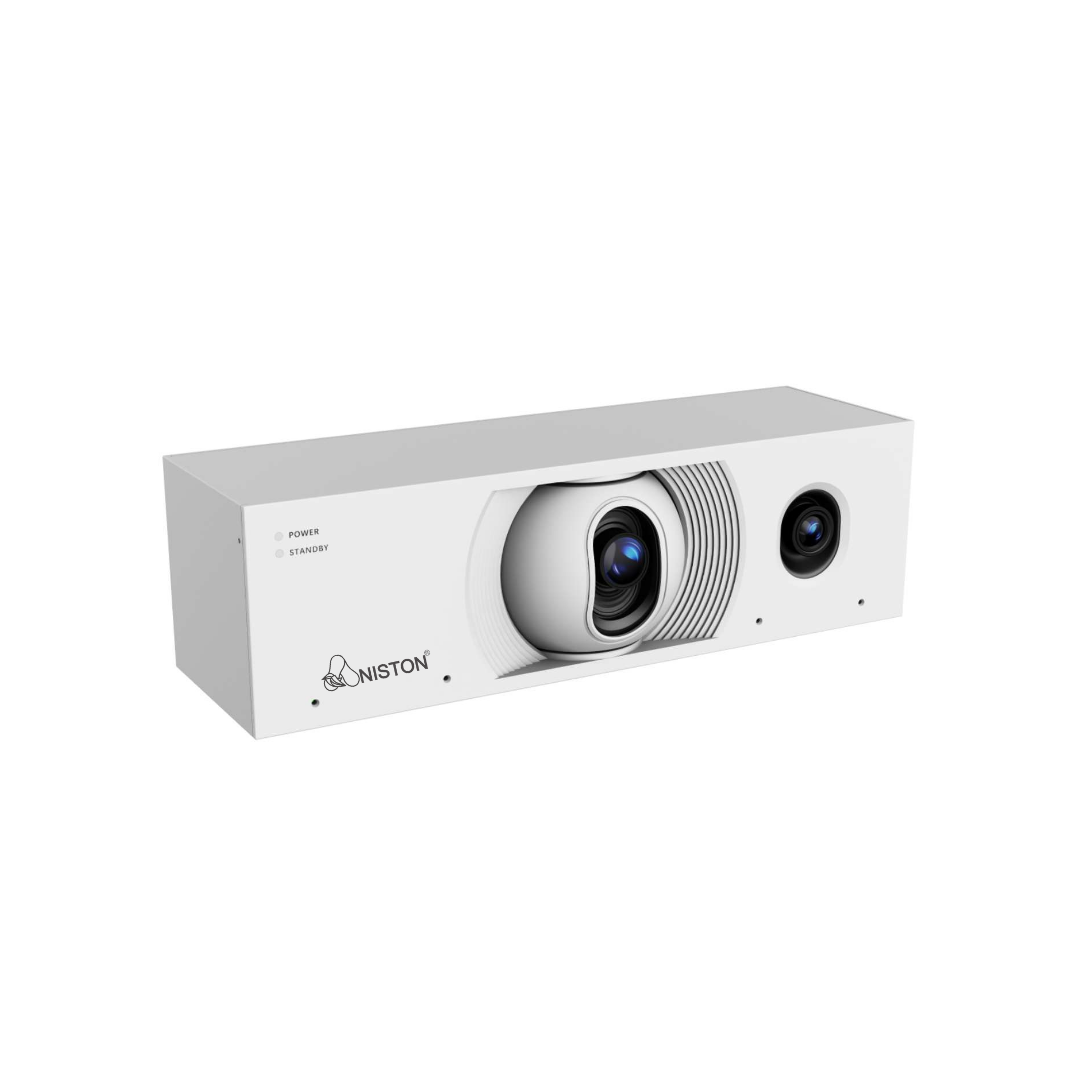

The BinoVue Maestro BVM-2000 is Aniston's flagship AI-driven PTZ camera engineered for next-gen classrooms, hybrid learning spaces, and professional lecture capture. Its dual-lens system includes an 8.29MP UHD close-up lens and a 4.93MP panoramic lens, delivering both sharp instructor views and wide classroom coverage.
- Intelligent Auto-Tracking: Utilizes AI-based computer vision to detect and track the teacher in real-time, dynamically adjusting pan, tilt, and zoom without external sensors or manual control.
- Dual-Stream 4K Video Output: Supports simultaneous 4K UHD close-up and up to 5MP panoramic streaming, ensuring comprehensive visual context for both in-room and remote learners.

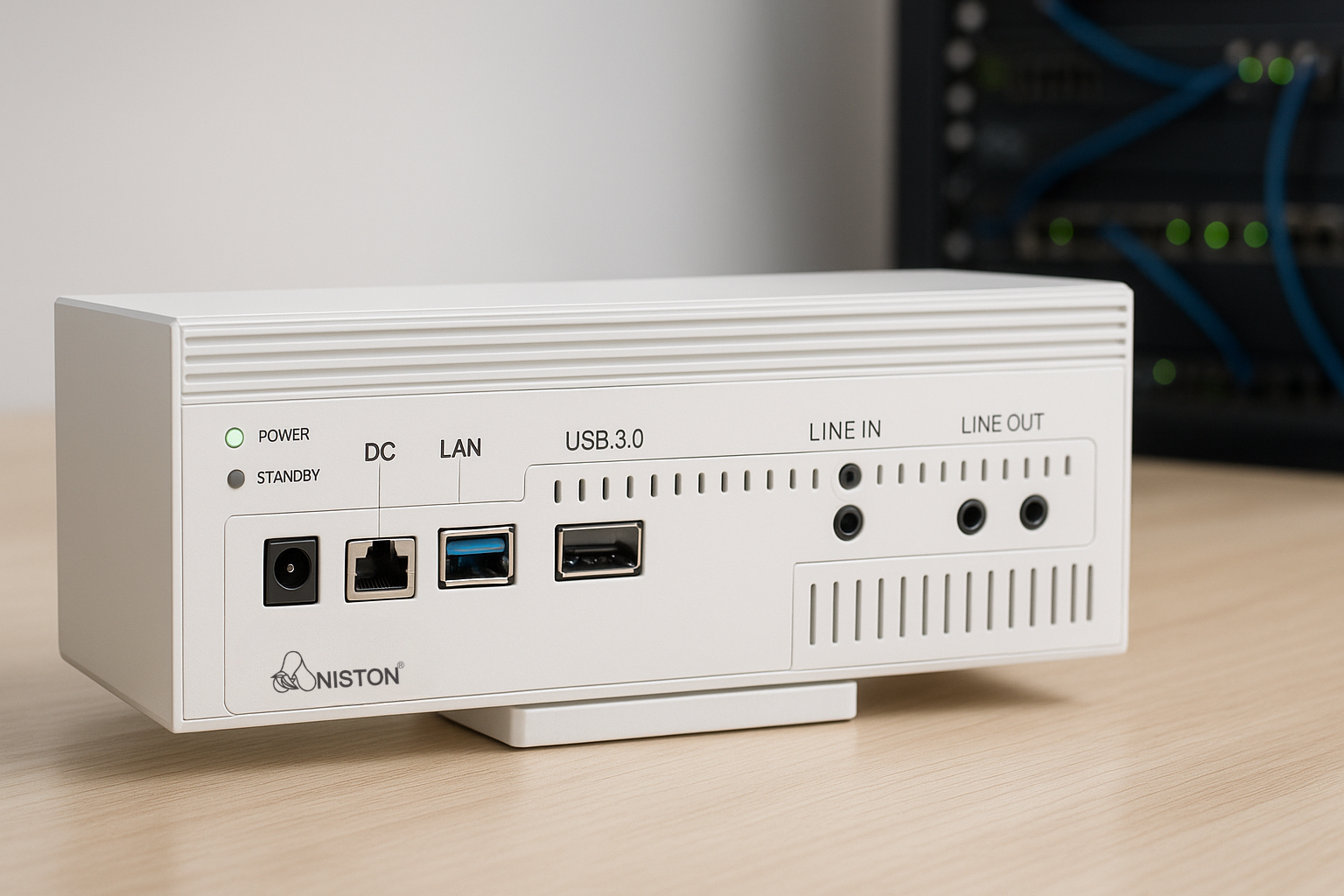

- Professional Integration & Connectivity: Equipped with USB 3.0, 3G-SDI, PoE LAN, and Line-In/Out audio, the BVM-2000 integrates seamlessly into recording systems, conferencing platforms, and live-streaming setups.
Designed for enterprise-grade reliability, the fanless BVM-2000 offers whisper-quiet operation, 30,000-hour MTBF, and multi-protocol support including RTMP, RTSP, SRT, and optional NDI®—making it an ideal solution for modern educational institutions and studio environments.
Product Features
- Dual-lens design: 8.29MP UHD close-up lens and 4.93MP panoramic lens for detailed and contextual coverage.
- AI-powered teacher tracking with intelligent pan, tilt, and zoom adjustments—no external sensors required.
- Simultaneous dual-stream output: 4K UHD (close-up) and up to 5MP (panoramic) video for complete lecture capture.
- High performance in low light with 0.5 lux minimum illumination, WDR, and 2D/3D DNR for superior clarity.
- Compact hybrid PTZ: ±40° pan, +5° to –30° tilt, and electronic PTZ with smooth and stable transitions.
- Supports 255 preset positions with 0.5° accuracy and 30°/s pan/tilt speed for fast repositioning.
- Digital zoom capability up to 2x for enhanced framing without quality loss.
- Video compression options include H.265, H.264, and MJPEG with multiple resolution streams.
- USB formats include YUY2, MJPEG, and H.264, supporting up to 4K@30fps output.
- Flexible bitrate control: VBR or CBR ranging from 32 kbps to 16 Mbps.
- Audio input/output includes Line In (3.5mm) and Line Out, with USB/SDI/network transmission support.
- Audio codecs supported: AAC and G.711A, with rates from 96 to 256 kbps.
- Optional built-in mic available in the conference version for added versatility.
- Multiple exposure modes: Auto, Manual, Shutter Priority, Brightness; plus backlight compensation.
- Features image flip and freeze options, progressive scanning, and preset white balance modes.
- Multi-interface connectivity: USB 3.0, 3G-SDI, LAN with PoE, and HDMI (optional).
- Supports multiple network protocols including TCP/IP, HTTP/HTTPS, RTSP, RTMP, SRT, Onvif, and optional NDI®.
- Fanless thermal design ensures silent operation with 30,000-hour MTBF for long-term durability.
- Certified for CE, FCC, RoHS, and BIS with a 3-year warranty (extendable to 5 years).
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | BinoVue Maestro BVM-2000 |
| Close-Up Camera | 1/2.7" CMOS, 8.29MP, f=12.49mm, HFOV 26° |
| Panoramic Camera | 1/2.7" CMOS, 4.93MP, f=7.37mm, HFOV 43° |
| Minimum Illumination | 0.5 lux |
| Digital Zoom | 2x |
| Pan Range | ±40° |
| Tilt Range | +5° to –30° |
| Preset Positions | 255 positions, 0.5° accuracy |
| Preset Speed | 30°/s (pan), 30°/s (tilt) |
| White Balance | Auto / Indoor / Outdoor / One-Push / Manual / VAR |
| Exposure Modes | Auto / Manual / Shutter Priority / Brightness |
| Shutter Speed | 1/30s – 1/10000s |
| WDR / DNR | Supported (2D + 3D DNR) |
| Image Flip / Freeze | Supported |
| Video Compression | H.265 / H.264 / MJPEG |
| USB Formats | YUY2 / MJPEG / H.264 |
| Main Output Resolution | 3840x2160 @ 30fps |
| Sub Stream Resolutions | 1920x1080, 1280x720, 960x540, 640x360 |
| Bitrate Control | VBR / CBR, 32 kbps – 16 Mbps |
| Audio Input | 1 x Line In (3.5mm), USB Audio |
| Audio Output | 1 x Line Out, USB / SDI / Network |
| Audio Compression | AAC / G.711A, 96–256 kbps |
| Built-in Mic | Optional (conference version) |
| Network Protocols | TCP/IP, HTTP, HTTPS, RTSP, RTMP, SRT, Onvif |
| Video Outputs | USB 3.0, 3G-SDI, RJ-45 (PoE), HDMI (optional) |
| Power Supply | DC 12V / PoE (802.3af) / PoC |
| Power Consumption | ≤12W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –20°C to 60°C |
| Dimensions (L x W x H) | 242 mm × 86 mm × 71 mm |
| Weight | 2.0 kg |
| Certifications | CE, FCC, RoHS, BIS |
| Warranty | 3 Years (extendable to 5 Years) |

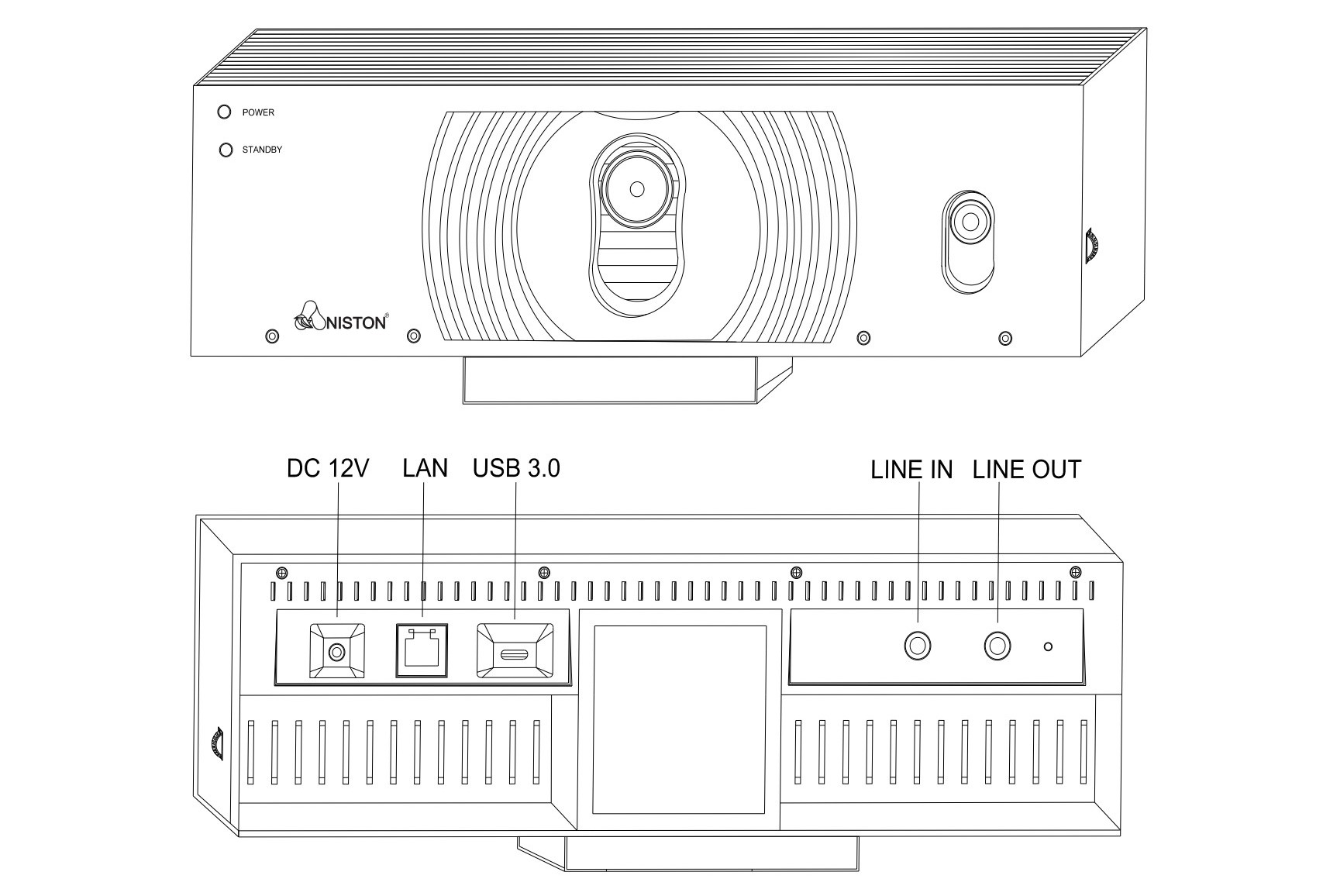

Mechanical Drawing
Resources & Manuals
Software & Downloads
Coming Soon
AI-Powered Dual-Lens PTZ Camera for Modern Learning Environments
The BinoVue Maestro BVM-2000 is an advanced AI-powered PTZ camera designed to enhance
classroom instruction,
hybrid teaching, and studio lectures with seamless automation. Its innovative dual-lens
system—featuring an
8.29MP UHD close-up camera and a 4.93MP panoramic lens—enables simultaneous output of
both instructor-focused
and classroom-wide views.
Intelligent auto-tracking algorithms dynamically follow the teacher, adjusting pan,
tilt, and zoom without
external sensors. With ultra-low light performance, 4K UHD streaming, and multi-protocol
support including
RTSP, RTMP, and optional NDI®, it delivers cinematic video capture for professional AV
environments.
Whether in lecture halls or remote studios, the BVM-2000 ensures every lesson is
delivered with clarity,
context, and control.
Main Features
AI-Enhanced Dual-Lens Architecture
The BinoVue Maestro BVM-2000 integrates an 8.29MP close-up PTZ lens and a 4.93MP panoramic lens to capture both instructor detail and full-classroom context in real time. This powerful dual-stream output supports synchronized UHD and wide-angle video—perfect for hybrid classrooms, lecture capture, and distance learning.
Robust Connectivity for Professional AV Environments
The BinoVue Maestro BVM-2000 is equipped with USB 3.0, 3G-SDI, PoE-enabled LAN, and optional HDMI output, ensuring seamless integration with AV systems, recording servers, and live-streaming platforms. With support for RTSP, RTMP, SRT, HTTP/HTTPS, and optional NDI®, it's built for reliability across enterprise networks.
AI-Driven Tracking & Autonomous Framing
The BVM-2000 leverages advanced AI to deliver real-time teacher tracking, precise auto-framing, and smooth PTZ transitions—without external sensors. Built-in logic ensures the instructor remains centered throughout the session, while optional gesture control enables hands-free toggling and preset recall, optimizing ease of use for smart classrooms.
Precision Dual-Lens PTZ Camera for Hybrid Education & AV Studios
The BinoVue Maestro BVM-2000 is an enterprise-grade AI classroom camera designed with
dual-lens innovation
for dynamic educational content capture. It combines a high-resolution 8.29MP PTZ lens and a 4.93MP
panoramic
lens, enabling real-time 4K close-up and wide-angle streaming for immersive instruction.
With intelligent tracking, seamless framing, and optional gesture control, it eliminates the need
for external
control devices—making it ideal for smart classrooms, lecture halls, and AV broadcast environments.
Effortless IP Connectivity & Intelligent PoE Deployment
The BinoVue Maestro BVM-2000 simplifies deployment with a single RJ45 connection supporting
both
PoE power and IP-based video streaming. Optimized for educational
and professional AV
environments, it is compatible with RTSP, RTMP, SRT, HTTP/HTTPS, and Onvif—making it highly
versatile for any
IP-based ecosystem.
With outputs including USB 3.0, 3G-SDI, LAN (PoE), and optional HDMI, it allows seamless
connectivity to
in-room AV setups and remote broadcasting platforms alike. Perfect for lecture capture, virtual
classrooms,
and live streaming across institutions.
Seamless Integration with BinoVue Maestro BVM-2000 PTZ Camera
Unlock smart classroom potential with the BinoVue Maestro BVM-2000 by ANISTON.
Engineered for
modern hybrid learning environments, this dual-lens PTZ camera combines an
8.29MP
tracking lens
and a 4.93MP panoramic lens for simultaneous instructor and classroom coverage.
With native PoE and IP streaming, plus support for USB, 3G-SDI, and optional
HDMI,
the BVM-2000
ensures flexible deployment using a single cable. Ideal for lecture capture, remote instruction,
and
smart AV
integration, it delivers reliable automation without complexity.
