BinoVue Panorama BVP-4000
Student Camera

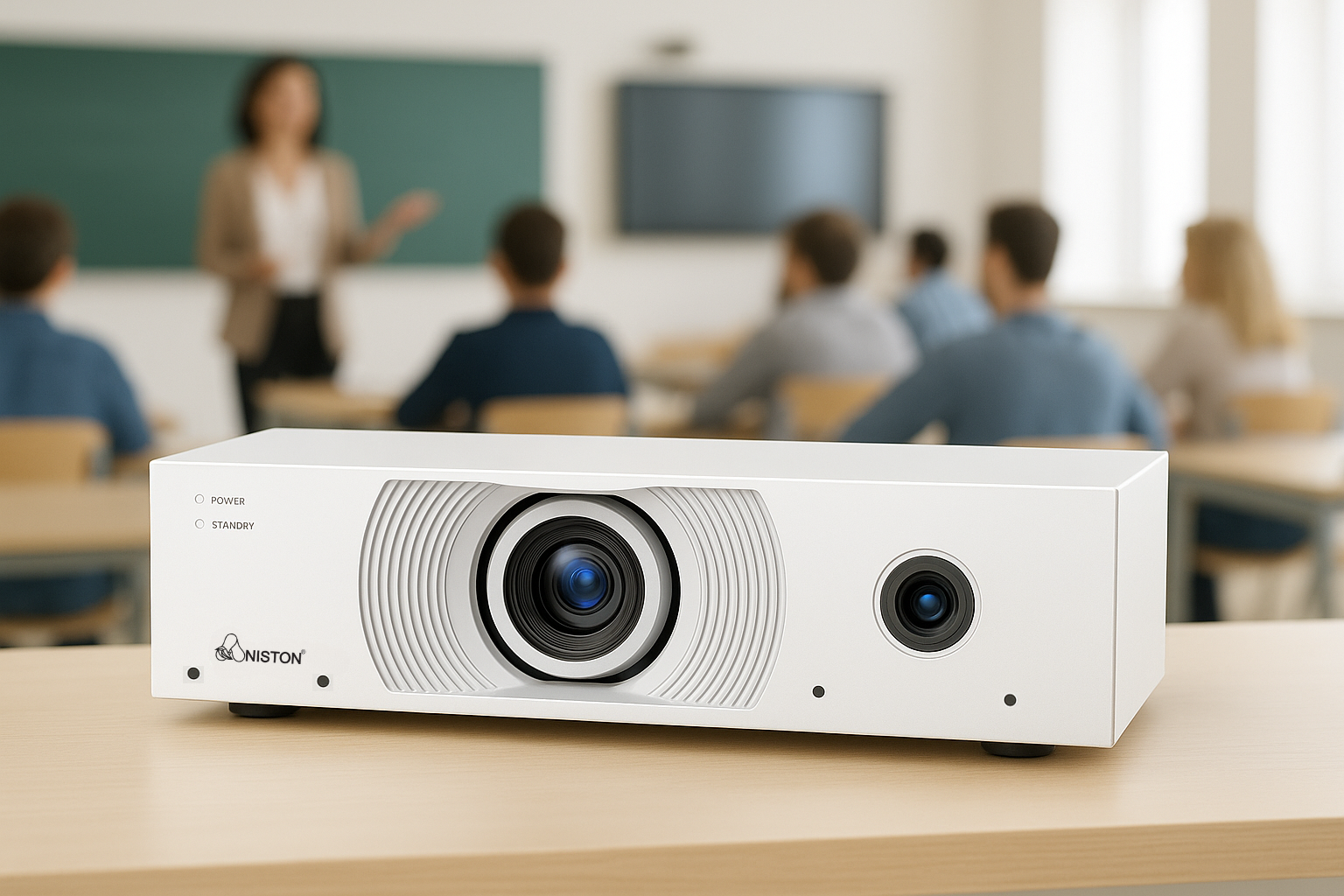

The BinoVue Panorama BVP-4000 is a student-centric PTZ camera built to enhance classroom interactivity and hybrid learning. Designed to complement instructor-focused systems, it features a dual-lens setup combining a 4.93MP ultra-wide panoramic lens with an 8.29MP UHD close-up lens, ensuring every student moment is captured in both breadth and detail.

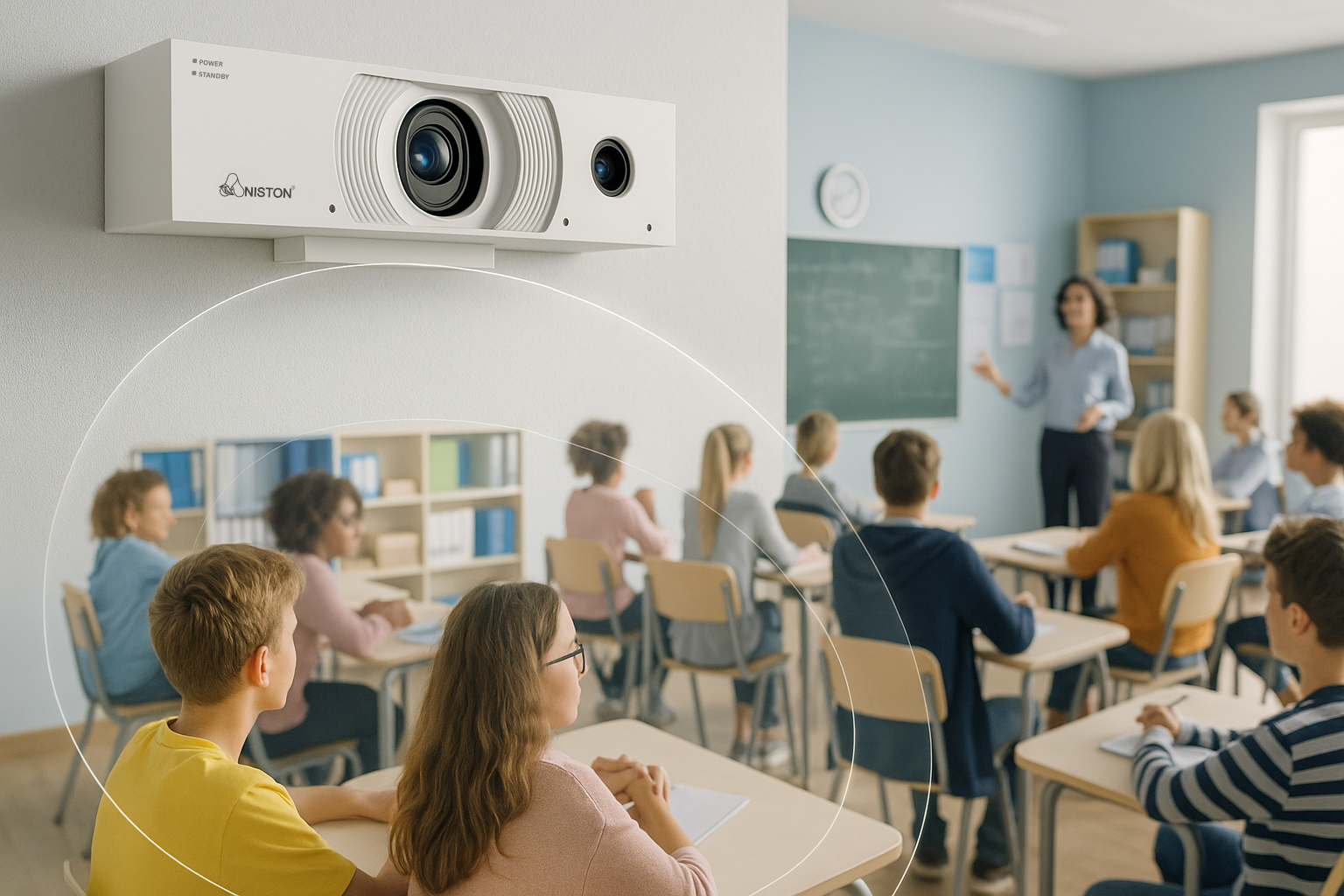

- Ultra-Wide Classroom View: The 110° panoramic lens captures the full scope of student activity, ideal for larger or dynamic classroom settings.
- High-Speed Tracking Performance: With 60°/s pan and 30°/s tilt speeds, the BVP-4000 excels at capturing spontaneous student interactions, questions, and movements.
- Dual-Stream Simultaneous Output: Outputs 4K close-up and 5MP panoramic streams in parallel, enabling synchronized recording, monitoring, and remote viewing.
The BVP-4000 integrates seamlessly into modern AV systems via USB 3.0, 3G-SDI, PoE LAN, and Line-In/Out audio, with optional beamforming mic array support for enhanced student voice pickup. Its fanless design, metal chassis, and AI-based auto-framing make it the perfect choice for student engagement in connected classrooms.
Product Features
- Dual-lens system: 4.93MP ultra-wide panoramic lens (110° HFOV) and 8.29MP UHD close-up lens for immersive classroom capture.
- AI-powered student tracking and auto-framing dynamically highlight student activity without manual camera control.
- High-speed pan (60°/s) and tilt (30°/s) mechanisms deliver fluid tracking of active participants in real time.
- Supports dual-stream output with up to 4K close-up and 5MP panoramic resolution simultaneously.
- Exceptional low-light performance with 0.5 lux sensitivity, WDR, and 2D/3D DNR for clarity in dim classroom lighting.

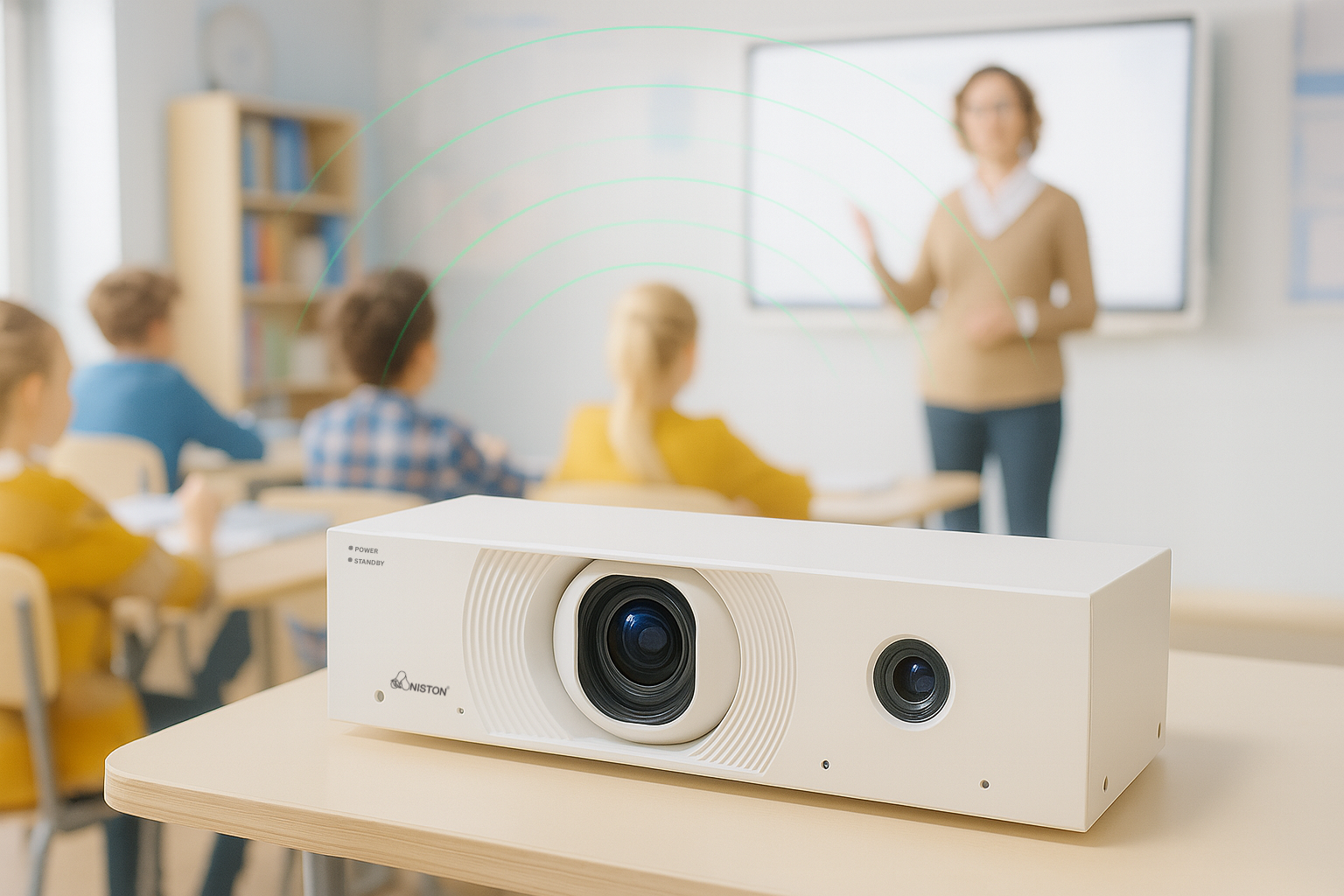

- Optional 4-mic beamforming array with noise suppression and echo cancellation for clear student voice pickup up to 6 meters.
- Connectivity options include USB 3.0 (Type-C), 3G-SDI, RJ-45 PoE, and 3.5mm Line-In/Out audio for easy AV system integration.
- Supports streaming protocols like RTMP, RTSP, SRT, HTTP/HTTPS, Onvif, and multicast for broad compatibility.
- Fanless metal housing, 30,000-hour MTBF, and CE/FCC/RoHS/BIS certifications for reliable, silent operation in education environments.
- Optional HDMI output and built-in microphone variant for all-in-one deployment.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | BinoVue Panorama BVP-4000 |
| Close-Up Camera | 1/2.7" CMOS, 8.29MP, f=7.37mm, HFOV 43° |
| Panoramic Camera | 1/2.7" CMOS, 4.93MP, f=2.2mm, HFOV 110° |
| Minimum Illumination | 0.5 lux |
| White Balance | Auto / Indoor / Outdoor / One-Push / Manual / VAR |
| Exposure Modes | Auto / Manual / Shutter Priority / Brightness |
| Backlight Compensation | Supported |
| Digital Zoom | 2x |
| Shutter Speed | 1/30s – 1/10000s |
| S/N Ratio | ≥55 dB |
| DNR / WDR | 2D + 3D DNR and Wide Dynamic Range supported |
| Scanning Mode | Progressive |
| Pan Range | ±40° |
| Tilt Range | +5° to –30° |
| Preset Speed | 60°/s (pan), 30°/s (tilt) |
| Preset Positions | 255 positions, 0.5° accuracy |
| Image Flip / Freeze | Supported |
| Video Compression | H.265 / H.264 / MJPEG |
| USB Formats | YUY2 / MJPEG / H.264 |
| Main Stream Resolution | Up to 3840x2160 @ 30fps |
| Sub Stream Resolutions | 1920x1080, 1280x720, 960x540, 640x360 |
| Bitrate Control | VBR / CBR, 32 kbps – 16 Mbps |
| Audio Inputs | 1 x Line In (3.5mm), USB audio |
| Audio Outputs | 1 x Line Out, USB / SDI / Network |
| Audio Compression | AAC / G.711A, 96–256 kbps |
| Built-in Mic | Optional (conference version) |
| Network Protocols | TCP/IP, HTTP, HTTPS, RTSP, RTMP, SRT, Onvif |
| Video Outputs | USB 3.0 (Type-C), 3G-SDI, RJ-45 (PoE), HDMI (optional) |
| Power Supply | DC 12V / PoE (802.3af) / PoC |
| Power Consumption | ≤12W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Dimensions (L × W × H) | 242 × 86 × 71 mm |
| Weight | 2.0 kg |
| Certifications | CE, FCC, RoHS, BIS |
| Warranty | 3 Years (extendable to 5 Years) |

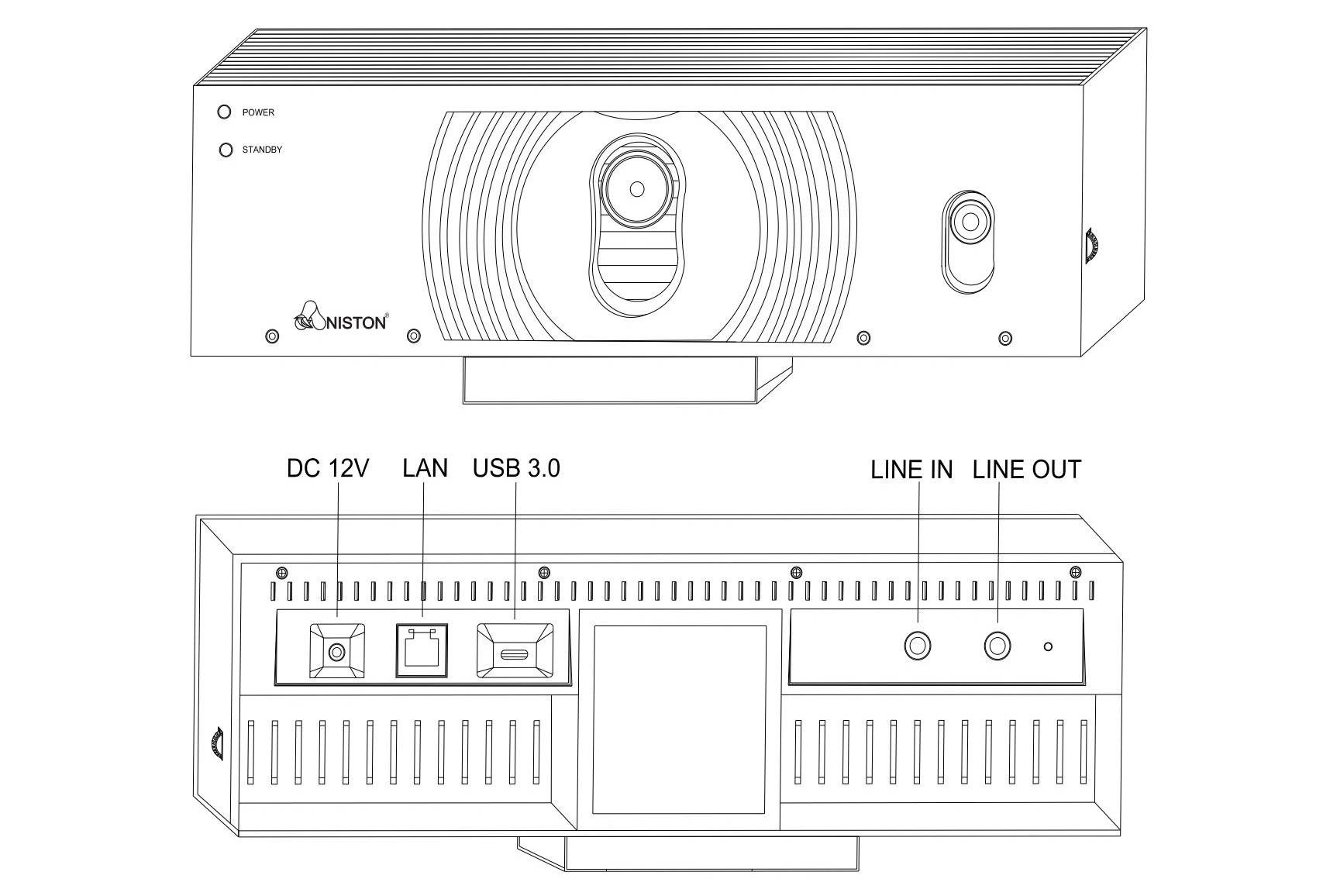

Mechanical Drawing
Resources & Manuals
Software & Downloads
Coming Soon
AI-Powered Student PTZ Camera with Dual-Lens Precision
The BinoVue Panorama BVP-4000 is purpose-built for modern classrooms that demand both
context and clarity.
With an 8.29MP close-up lens and a 4.93MP panoramic lens, this AI-driven PTZ system
captures student activity
in rich detail and broad perspective—simultaneously.
Designed to complement instructor-view cameras, the BVP-4000 uses AI tracking and
framing to follow classroom
interactions and student participation. It features seamless streaming via USB, SDI, or
PoE LAN, and is ideal
for interactive classrooms, hybrid lectures, and collaborative learning environments
where capturing every
moment counts.
Main Features
Dual-Lens System for Student Engagement
The BinoVue Panorama BVP-4000 combines a 4.93MP ultra-wide panoramic lens with an 8.29MP UHD close-up lens to deliver dual perspectives of student activity in real-time. Its synchronized output ensures instructors and remote participants see both group dynamics and individual student responses—ideal for hybrid learning environments and interactive classrooms.
Flexible Output Options for Smart Classrooms

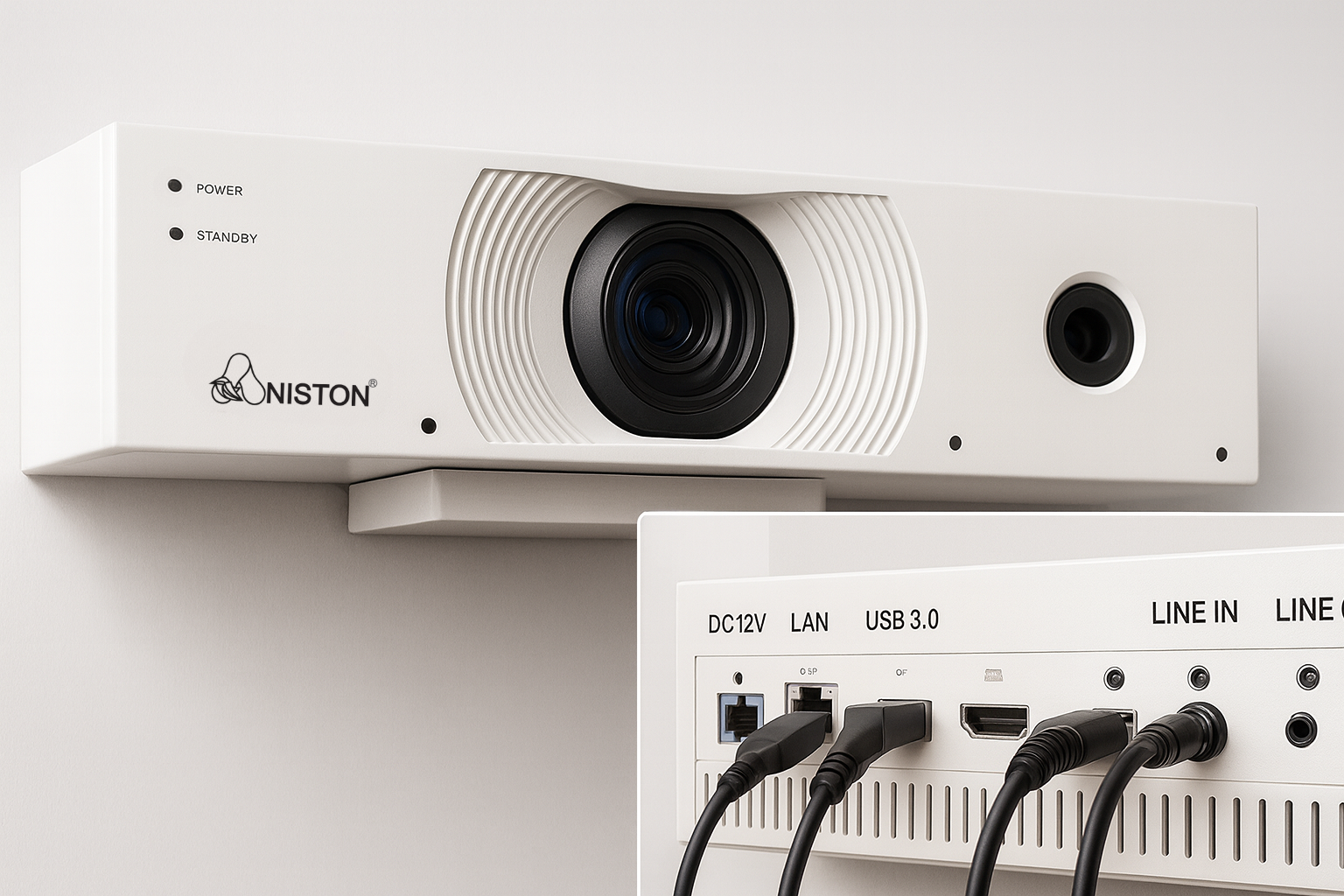

The BinoVue Panorama BVP-4000 offers professional-grade connectivity with USB 3.0 (Type-C), 3G-SDI, and PoE LAN built-in—plus optional HDMI support. Streaming protocols like RTSP, RTMP, SRT, and Onvif enable direct integration into modern AV and LMS platforms. Whether for recording, broadcasting, or virtual learning, the BVP-4000 adapts effortlessly.
AI Tracking with Panoramic Framing
Powered by intelligent tracking algorithms, the BinoVue Panorama BVP-4000 automatically identifies and follows student activity using smooth pan and tilt movement. Its panoramic framing ensures group behavior and reactions are always visible, while AI control removes the need for manual camera operation—perfect for autonomous classroom capture.
Precision Dual-Lens PTZ Camera for Hybrid Education & AV Studios
The BinoVue Panorama BVP-4000 is an enterprise-grade AI classroom camera designed with
dual-lens innovation
for dynamic educational content capture. It combines a high-resolution 8.29MP PTZ lens and a 4.93MP
panoramic
lens, enabling real-time 4K close-up and wide-angle streaming for immersive instruction.
With intelligent tracking, seamless framing, and optional gesture control, it eliminates the need
for external
control devices—making it ideal for smart classrooms, lecture halls, and AV broadcast environments.
Effortless IP Connectivity & Intelligent PoE+ Deployment
The BinoVue Panorama BVP-4000 streamlines AV integration with a single RJ45 port that
supports both
PoE+ power delivery and IP-based video streaming. Engineered for
modern
classrooms and lecture halls, it enables direct streaming through RTSP, RTMP, SRT, HTTP/HTTPS, and
Onvif
protocols.
With built-in outputs including USB 3.0, 3G-SDI, and PoE-enabled LAN—plus optional HDMI—the
BVP-4000 connects seamlessly to AV switching systems, recording appliances, and remote learning
platforms.
It’s the ideal solution for tech-enabled teaching environments.
Smart Integration for Student-Side Clarity & Classroom Context
Unlock advanced classroom experiences with the BinoVue Panorama BVP-4000 by
ANISTON.
Designed for
hybrid education and smart learning spaces, this AI-powered PTZ camera merges
an
8.29MP tracking lens
with a 4.93MP panoramic view for synchronized student-side coverage.
With native PoE+ and IP streaming, as well as USB, 3G-SDI, and optional HDMI
support,
the BVP-4000 enables flexible installation and seamless AV integration. Perfect for interactive
classrooms,
virtual lecture capture, and scalable campus-wide deployments.
