CeleroDrive
Professional PTZ Camera Controller
The CeleroDrive (CEL X1) by Aniston is a professional-grade PTZ camera controller engineered for smooth, responsive, and precise control across AV, broadcast, and educational environments. Designed for intuitive operation and large-scale management, it supports up to 1000 cameras with customizable presets and shortcuts.
- 4D Joystick & Ergonomic Knobs: Offers real-time control over pan, tilt, zoom, focus, and exposure using a high-precision joystick and dedicated adjustment knobs.
- Real-Time Monitoring: Integrated 3" LCD screen displays camera status, while HDMI output supports 4K@30fps previews on external displays.
- Flexible Connectivity & Protocols: Supports VISCA, Pelco-D/P, ONVIF, and optional NDI®|HX2 with PoE, RS232, RS422/485, RJ45 LAN, and HDMI connections.
With backlit silicone keys, customizable shortcuts, and a rugged ABS enclosure, the CeleroDrive is ideal for boardrooms, auditoriums, houses of worship, and multi-camera production studios.
Product Features
- 4D precision joystick for smooth and responsive control over pan, tilt, zoom, and focus.
- Dedicated 3D knobs for exposure, iris, gain, and white balance adjustments on the fly.
- Supports control of up to 1000 PTZ cameras with 255 preset positions and 7 shortcut buttons.
- Built-in 3-inch color LCD display for real-time monitoring and menu navigation.
- HDMI output for 4K@30fps external preview—ideal for multi-camera management setups.
- Multi-protocol compatibility: VISCA, Pelco-D, Pelco-P, ONVIF, and optional NDI®|HX2.
- Control interfaces include RJ45 (PoE), RS232, and RS422/485 for flexible AV integration.
- Dual-color backlit silicone buttons for reliable use in low-light environments.
- Assignable function keys (F1, F2, PVW) for customizable camera control workflows.
- Beep audio feedback with adjustable styles for operator cues.
- Compact industrial-grade ABS enclosure with 0.8kg weight for desktop use.
- Firmware upgradeable via USB or web interface for long-term usability.
- Power input via 12V DC or PoE (IEEE 802.3af) with low 3W max consumption.
- Supports secure camera access with password-protected web interface.
- CE, FCC, RoHS certified with a standard 3-year warranty (optional extension to 5 years).
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | CeleroDrive (CEL X1) |
| Joystick | 4D precision joystick |
| Knobs | 3D knobs for exposure, iris, gain, and white balance |
| LCD Screen | 3" color LCD display |
| HDMI Output | 1 × HDMI (4K@30fps) |
| Preset Positions | 255 presets |
| Max. Camera Control | Up to 1000 cameras |
| Shortcut Buttons | 7+ programmable camera shortcuts |
| Custom Buttons | 3 (F1, F2, PVW) |
| Control Interfaces | RJ45 (PoE), RS232, RS422/485 |
| Supported Protocols | VISCA, Pelco-D/P, ONVIF, NDI®|HX2 (optional) |
| Power Input | 12V DC / PoE (802.3af) |
| Power Consumption | Max 3W |
| Input Current | 0.25A |
| Audio | Beep feedback with adjustable styles |
| OSD Menu | Supported via LCD |
| Firmware Updates | Via USB or Web interface |
| Status Indicators | Multi-color LED for network and power |
| Application Scope | Boardrooms, classrooms, studios, houses of worship |
| Security | Password-protected web interface |
| Operating Temperature | –10°C to +40°C |
| Storage Temperature | –20°C to +60°C |
| Dimensions (W×D×H) | 332 × 136 × 116 mm (with joystick) |
| Weight | ~0.8 kg |
| Enclosure | Industrial-grade ABS |
| Certifications | CE, FCC, RoHS |
| Warranty | 3 Years (extendable to 5 Years) |
Mechanical Drawing
Software & Downloads
Coming Soon
Precision PTZ Camera Control for Broadcast & AV Environments
The CeleroDrive (CEL X1) is a professional-grade PTZ controller designed for seamless
camera management in live production, education, and enterprise AV systems. Engineered
for real-time responsiveness, it combines a tactile 4D joystick and ergonomic 3D knobs
with a vivid LCD display for streamlined control.
Compatible with leading PTZ protocols including VISCA, Pelco-D/P, ONVIF, and NDI®|HX2
(optional), the CeleroDrive supports up to 1000 cameras with 255 presets and 7 shortcut
buttons. Operators can view camera feedback via HDMI output and make adjustments on the
fly—all from a compact, PoE-enabled unit built for 24/7 operation.
Whether in broadcast control rooms, auditoriums, or smart classrooms, CeleroDrive
delivers precision, reliability, and workflow flexibility.
Main Features

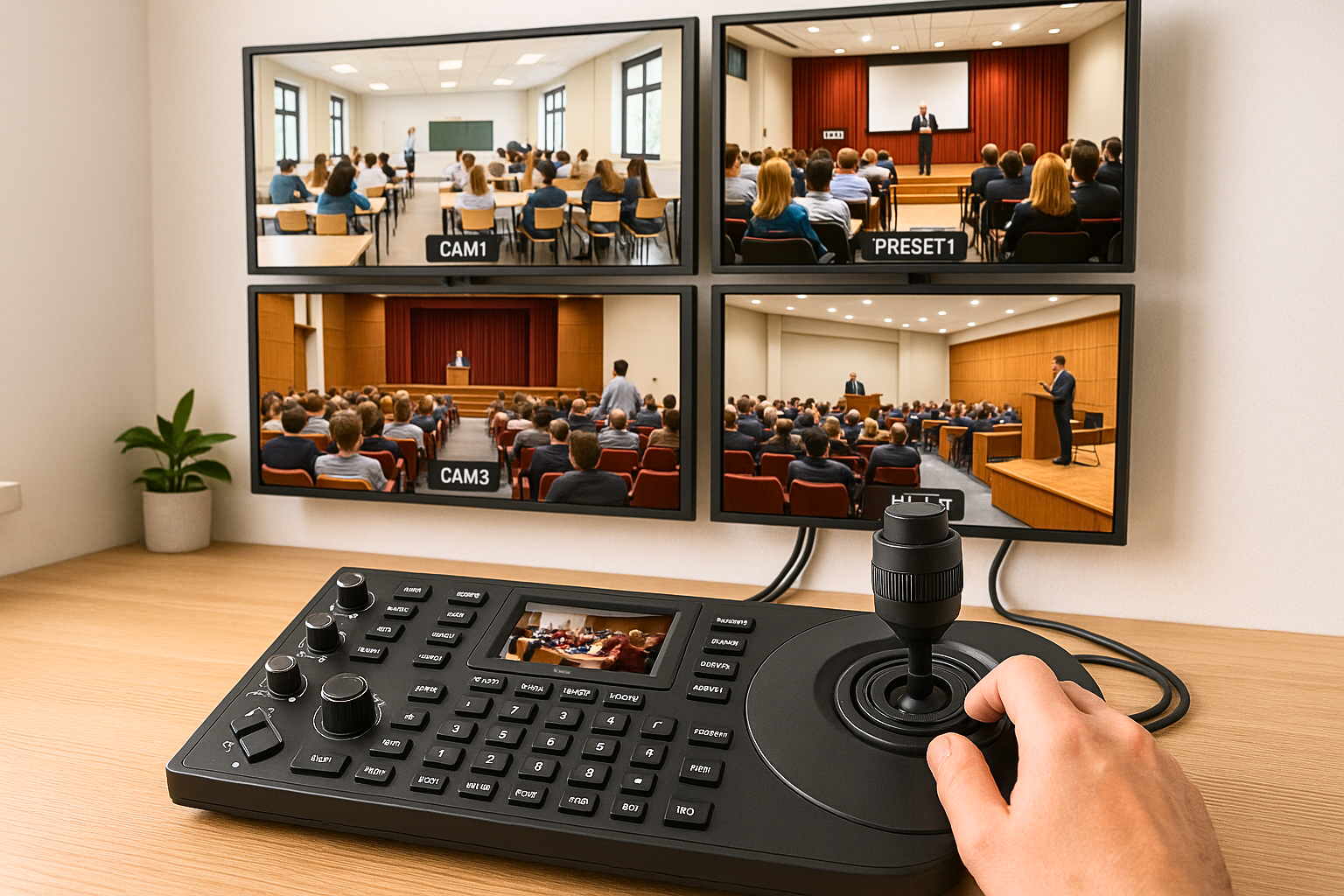

Precision 4D Joystick Control
Gain full control over pan, tilt, zoom, and focus with CeleroDrive’s industrial-grade 4D joystick. Engineered for smooth response and high-accuracy handling, it’s ideal for live production and multi-camera setups.
Universal Protocol & Multi-Camera Support
Supports up to 1000 PTZ cameras with direct switching between presets using VISCA, Pelco-D/P, ONVIF, and optional NDI®|HX2. Easily configure and recall up to 255 positions and 7 shortcut buttons for fast transitions.

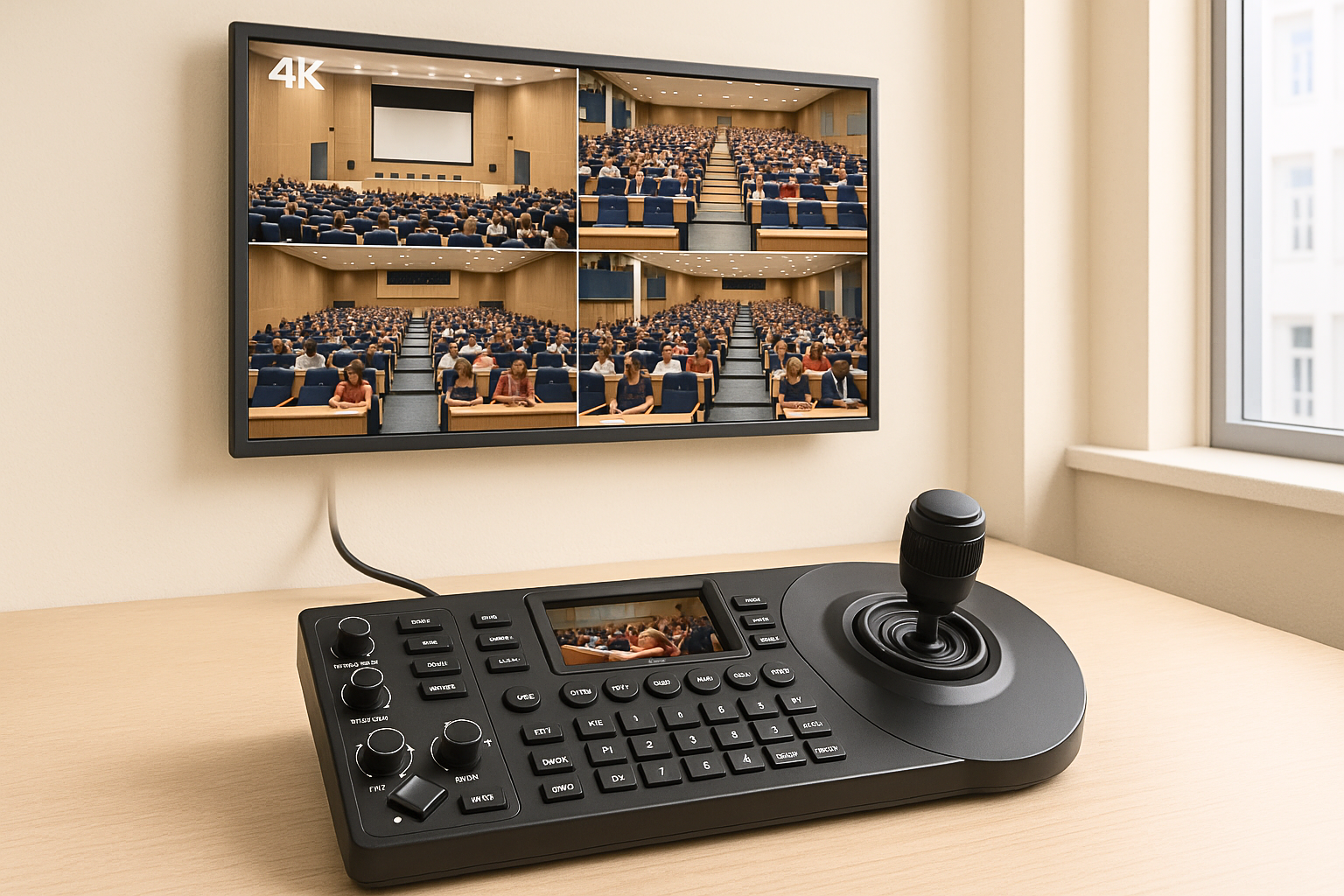

Real-Time Monitoring with HDMI Output
The built-in 3-inch LCD screen and 4K HDMI output enable live camera previews and menu navigation, making the controller a powerful command center for AV control rooms, auditoriums, and studios.
Enterprise-Grade PTZ Controller for Broadcast, AV & Education
The CeleroDrive by Aniston is a high-performance PTZ camera controller engineered to empower
control rooms, live production setups, and AV environments. Featuring a 4D joystick and 3D
adjustment knobs, it delivers precision handling for pan, tilt, zoom, and focus.
Designed for intuitive camera management, it integrates multi-protocol compatibility, a built-in LCD
screen, and dual-color backlit keys, making it a professional choice for studios, auditoriums, and
learning institutions.
Streamlined Connectivity with PoE & HDMI Monitoring
The CeleroDrive offers powerful deployment versatility with a single RJ45 connection enabling
Power over Ethernet and network control. Real-time camera feedback is supported via
HDMI output at 4K@30fps, ideal for live preview and monitoring stations.
With RS232, RS422/485, and web-based configuration support, it integrates effortlessly into
multi-brand AV setups, enhancing workflows in live productions, classrooms, and houses of worship.

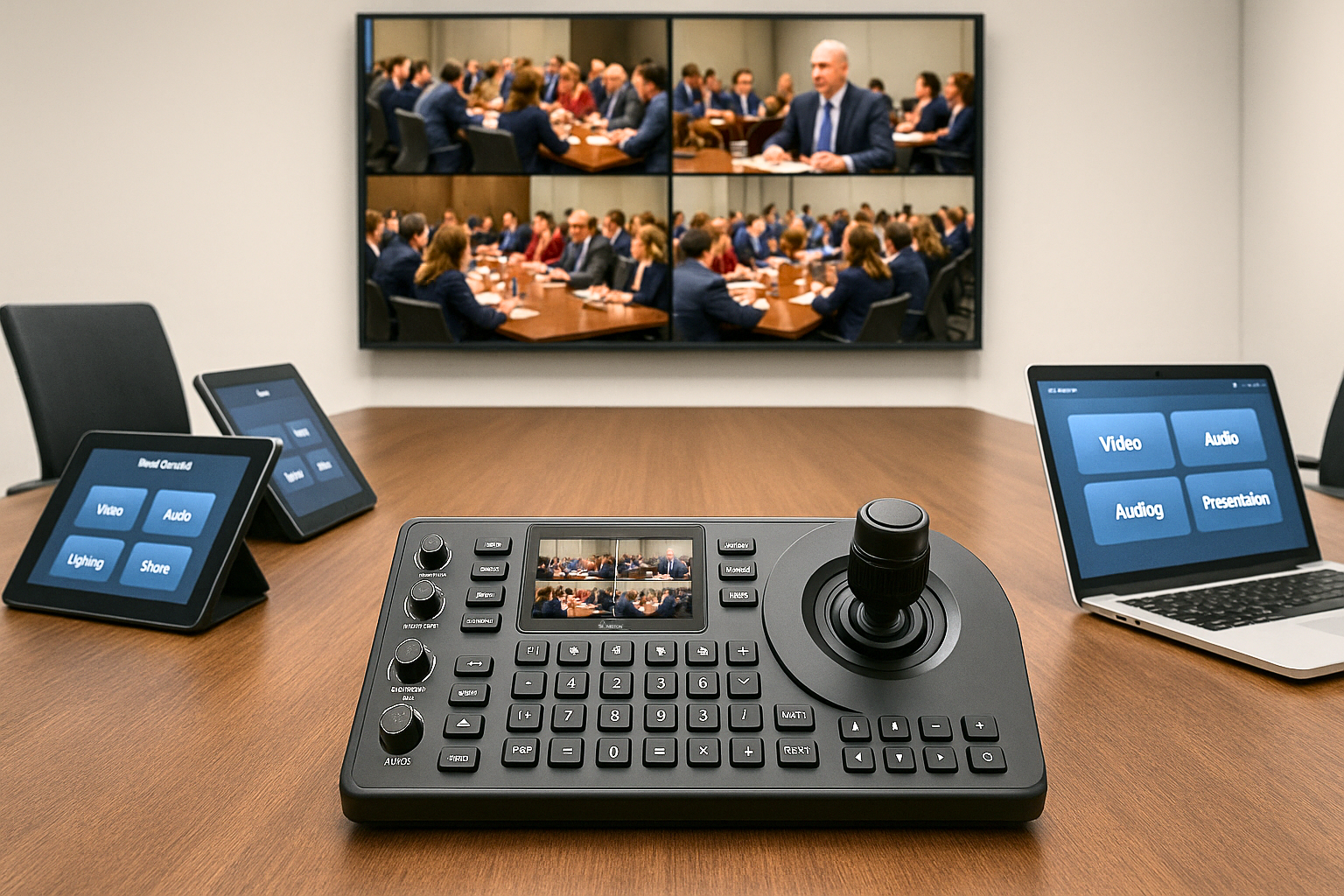

Command Center Integration with CeleroDrive PTZ Controller
Elevate your AV ecosystem with the CeleroDrive by ANISTON. Built for
professional production environments, this compact controller offers seamless
interoperability with industry-standard PTZ cameras across various protocols.
With PoE support, HDMI monitoring, and extensive I/O options including
RS232/422/485, it reduces cabling complexity while enhancing deployment flexibility. Whether
it’s for broadcasting, education, or virtual conferencing, CeleroDrive ensures a reliable,
unified control experience.
