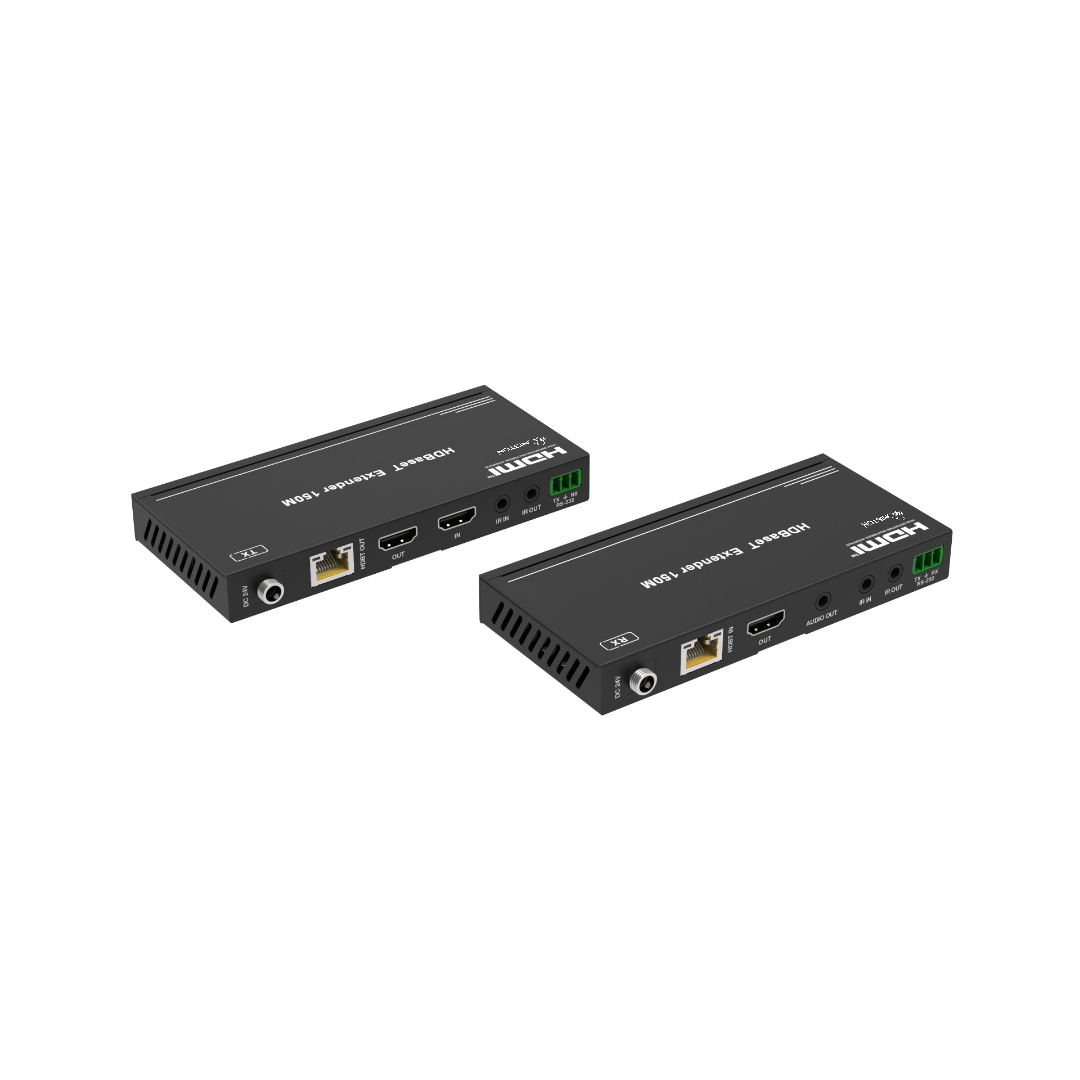

HBX-4K70 Pro
HDBaseT Extender Set
The HBX-4K70 Pro is a professional-grade HDBaseT Extender Set engineered for zero-latency transmission of uncompressed 4K@60Hz (4:4:4) HDMI signals with audio, control, and power—perfect for enterprise AV, education, signage, and broadcast applications.
- Uncompressed 4K60 HDMI Transmission: Transmits full HDMI 2.0b signals up to 70m at 4K@60Hz (4:4:4) and up to 150m at 1080p using a single CAT5e/6 cable—without latency or signal loss.
- PoC, IR & RS-232 Pass-through: Supports Power over Cable (PoC) from either TX or RX, along with bi-directional IR and RS-232 passthrough—ideal for remote control and system integration.
- HDR10+, Dolby Vision & HDMI Loop-out: Delivers superior color depth with HDR10, HDR10+, Dolby Vision support, plus HDMI loop-out on the transmitter for simultaneous local display or signal splitting.
Whether deployed in conference rooms, digital signage, classrooms, or control centers, the HBX-4K70 Pro ensures high-quality AV signal extension with simplified installation and robust performance—backed by HDBaseT Class A reliability.
Product Features
- Extends uncompressed 4K@60Hz (4:4:4) HDMI signals up to 70m and 1080p signals up to 150m via CAT5e/6 cable.
- HDBaseT Class A technology ensures zero-latency video, audio, control, and Ethernet signal transmission.
- Supports HDMI 2.0b and HDCP 2.2 for full compatibility with the latest 4K media sources and encrypted content.
- HDR10, HDR10+, Dolby Vision, and HLG support for high dynamic range and up to 12-bit deep color processing.
- Integrated HDMI loop-out on transmitter for local display or signal distribution without additional hardware.
- Flexible PoC (Power over Cable) allows power from either TX or RX unit, reducing power supply needs.
- Bi-directional IR pass-through (20–60kHz) enables remote control of source or display from either end.
- RS-232 pass-through for seamless integration with third-party control systems and serial devices.
- Supports LPCM 2.0–7.1, Dolby Digital, DTS, Dolby TrueHD, DTS-HD MA, and DTS:X audio formats.
- Audio de-embedding via 3.5mm stereo mini-jack on the receiver for external speaker output.
- CEC pass-through supported for HDMI-connected device interoperability and control.
- Sturdy aluminum enclosure with compact design ideal for rack, wall, or display-side installations.
- Passive cooling architecture ensures silent operation with no fans or mechanical noise.
- Firmware upgradeable via Mini-USB (Service Port) for future enhancements and maintenance.
- High-performance 18Gbps video bandwidth supports full 4K60 4:4:4 signal integrity.
- Input Connectors (TX): HDMI IN, HDMI Loop OUT, HDBT OUT, IR IN/OUT, RS-232.
- Output Connectors (RX): HDMI OUT, AUDIO OUT, HDBT IN, IR IN/OUT, RS-232.
- Dimensions: 140mm (W) × 65mm (D) × 18mm (H); Weight – TX: 160g / RX: 155g.
- Power: 24V / 1A DC (locking barrel connector), typical consumption <10W.
- Operating Temperature: 0°C to 40°C; Storage Temperature: -20°C to +60°C.
- Compliance: CE, FCC, and RoHS certified for safety and environmental standards.
- Package includes: TX unit, RX unit, IR Blaster Cable, IR Receiver Cable, 24V Adapter, Mounting Ears, Phoenix Connectors, and User Manual.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | HBX-4K70 Pro |
| Product Type | HDBaseT HDMI 2.0 Extender Set (TX + RX) |
| Video Interface | 1x HDMI IN (TX), 1x HDMI OUT (RX), 1x HDMI Loop OUT (TX) |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 |
| Supported Resolutions | Up to 4K@60Hz (4:4:4), 1080p, 720p, 480p |
| Max Distance @ 4K60 | Up to 70m via CAT5e/6 |
| Max Distance @ 1080p | Up to 150m via CAT5e/6 |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Color Depth | 8-bit (4K60 4:4:4), up to 12-bit (4K30 & 4:2:2) |
| HDR Support | HDR10, HDR10+, Dolby Vision, HLG |
| Video Bandwidth | 18Gbps |
| Audio Formats | LPCM 2.0–7.1, Dolby Digital, DTS, Dolby TrueHD, DTS-HD MA, DTS:X |
| Audio De-embedding | 1x 3.5mm Stereo Mini-Jack (Receiver) |
| IR Pass-through | Bi-directional (20–60kHz) |
| RS-232 Pass-through | Supported (3-pin Phoenix) |
| CEC Pass-through | Supported |
| Firmware Upgrade | Mini-USB (SERVICE Port) |
| PoC (Power over Cable) | Supported (Power from either TX or RX) |
| Cooling | Passive cooling (no fan) |
| ESD Protection | ±8kV (Air Discharge), ±4kV (Contact Discharge) |
| Power Supply | 24V / 1A DC (locking barrel connector) |
| Power Consumption | <10W typical |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 20%–80% RH (non-condensing) |
| Storage Humidity | 10%–90% RH (non-condensing) |
| Input Connectors (TX) | 1x HDMI IN, 1x HDMI Loop OUT, 1x HDBT OUT, 1x IR IN, 1x IR OUT, 1x RS-232 |
| Output Connectors (RX) | 1x HDMI OUT, 1x AUDIO OUT, 1x HDBT IN, 1x IR IN, 1x IR OUT, 1x RS-232 |
| Extender Technology | HDBaseT Class A |
| Chassis Construction | Industrial-grade aluminum enclosure |
| Dimensions (TX / RX) | 140mm (W) × 65mm (D) × 18mm (H) |
| Weight | TX: 160g / RX: 155g |
| Mounting | Surface mount with included ears |
| Package Includes | TX unit, RX unit, IR Blaster Cable, IR Receiver Cable, 24V/1A Adapter, Mounting Ears, Phoenix Connectors, User Manual |
| Compliance | CE, FCC, RoHS |

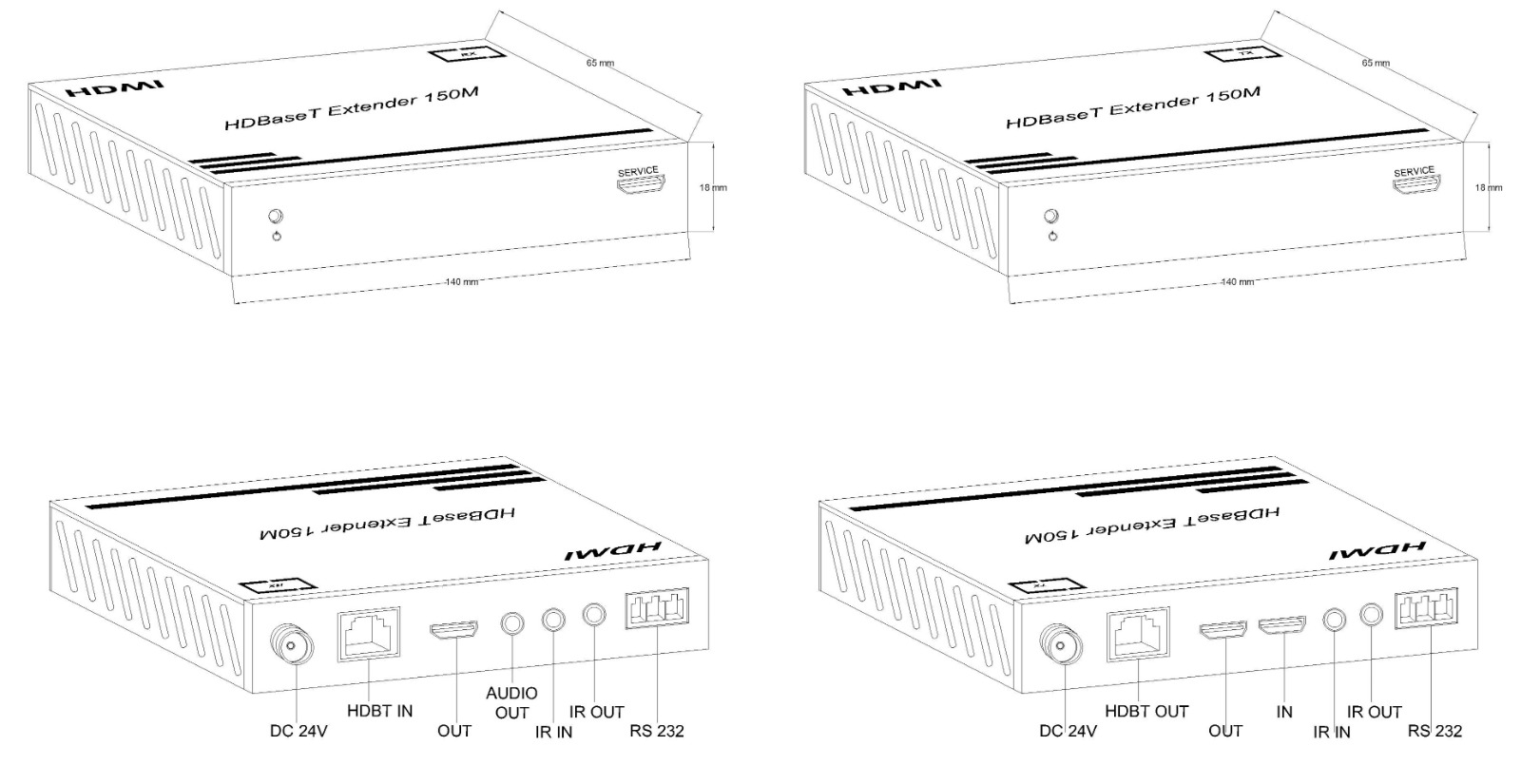

Product Dimension
Software & Downloads
Coming Soon
