MatrixOne-88 Elite
4K HDR HDMI Matrix Switcher
The MatrixOne-88 Elite is Aniston’s flagship 8x8 HDMI 2.0 matrix switcher engineered for mission-critical AV setups. It ensures ultra-fast switching, advanced audio-video routing, and seamless control integration—making it ideal for modern boardrooms, auditoriums, and hybrid environments.
- 4K@60Hz (4:4:4) Video Switching: Supports full uncompressed 4K Ultra HD at 60Hz with 18Gbps bandwidth and HDR10, HDR10+, Dolby Vision, and HLG—ensuring pristine visual fidelity.
- Independent Audio Matrix & Extraction: Features 8 analog L/R and 8 optical SPDIF outputs, with flexible audio routing—Bind to Input, Bind to Output, or Matrix Mode—for powerful AV distribution.
- Seamless Switching & Output Control: Enables glitch-free transitions and individual scaling, mirroring, HDCP settings, and EDID configuration per output—controlled via front panel, IR, RS-232, or Web GUI.
With built-in video wall support, preset memory, and multi-format audio compatibility, the MatrixOne-88 Elite delivers robust performance and versatile connectivity for any professional AV installation.
Product Features
- 8x8 Full Crosspoint HDMI 2.0b Matrix Switcher with 18Gbps bandwidth per channel.
- Supports 4K@60Hz (4:4:4) resolution with HDR10, HDR10+, Dolby Vision, and HLG compatibility.
- HDCP 2.2 and HDCP 1.4 compliant for seamless encrypted signal transmission.
- 12 EDID presets, 2 user-defined profiles, and 8 EDID copy modes for source compatibility.
- Seamless switching without frame loss—perfect for live AV applications.
- Analog and digital audio extraction via 8x balanced L/R (Phoenix) and 8x SPDIF (Toslink) outputs.
- Audio routing supports Bind to Input, Bind to Output, or full Matrix Mode configuration.
- Individual output scaling and control with per-output resolution, HDCP version, and mirror settings.
- Output mirroring options include horizontal, vertical, HV mirror, or off for flexible layouts.
- Advanced EDID management with Web GUI, RS-232, and front panel control options.
- Video wall support with custom layouts (1x8, 2x2, 2x3, 4x2, etc.) and bezel correction.
- CEC passthrough enabled on all HDMI inputs and outputs.
- Multiple video formats supported: RGB, YCbCr 4:4:4, 4:2:2, and 4:2:0.
- Front panel buttons with OLED display for quick operation and system status feedback.
- 8 preset memory slots for quick switching of routing, video wall layouts, or settings.
- Integrated Web GUI for routing, EDID setup, audio matrix, and system management.
- Control interfaces: Front panel, IR (built-in and external), RS-232, and TCP/IP via RJ45 LAN.
- Supports DHCP and Static IP configuration over LAN (Web GUI, Telnet).
- HDCP handling modes include Follow Source, Follow Sink, Force HDCP 1.4, and Force HDCP 2.2.
- Selectable background output: Black, Blue, Color Bars, Crosshatch, or Grayscale patterns.
- Supports multiple audio formats: LPCM, Dolby Digital/Plus, Dolby TrueHD, DTS, DTS-HD MA, and DSD.
- Chassis: 1U rackmount metal enclosure for professional installations.
- Power input: External 24V DC / 3.75A with locking barrel connector.
- Power consumption: ≤ 70W for energy-efficient operation.
- Dimensions: 440mm (W) × 300mm (D) × 44.5mm (H).
- Net weight: 3.95 kg—sturdy build with rackmount capability.
- Operating temperature: 0°C to 40°C (32°F to 104°F).
- Storage temperature: -20°C to 60°C (-4°F to 140°F).
- Humidity tolerance: 20% to 90% RH (non-condensing).
- Certified for CE, FCC, and RoHS compliance.
- Ideal for conference rooms, control centers, classrooms, AV rental setups, and auditoriums.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | MX1-88E |
| Series | MatrixOne-88 Elite |
| Matrix Type | 8×8 Full Crosspoint HDMI Matrix Switcher |
| HDMI Version Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 |
| Video Bandwidth | 18 Gbps (6 Gbps per channel) |
| Maximum Resolution | 3840×2160p @ 60Hz, 4:4:4 |
| Color Space Support | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| HDR Support | HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Inputs | 8 × HDMI Type-A, 19-pin female |
| HDMI Outputs | 8 × HDMI Type-A, 19-pin female |
| Audio Outputs (Analog) | 8 × Balanced L/R via 5-pin Phoenix connectors |
| Audio Outputs (Digital) | 8 × Optical S/PDIF (Toslink) |
| Audio Matrix Modes | Bind to Input / Bind to Output / Matrix Mode |
| Supported Audio Formats | LPCM, Dolby Digital/Plus, Dolby TrueHD, DTS, DTS-HD MA, DSD |
| Output Mirror Modes | H-Mirror / V-Mirror / HV Mirror / Off |
| Output Scaling | Independent resolution downscaling per output |
| HDCP Handling Modes | Follow Source / Follow Sink / Force HDCP 1.4 / Force HDCP 2.2 |
| EDID Modes | 12 Preset / 2 User-defined / 8 Copy-from-Output |
| Seamless Switching | Supported – no black screen during input switch |
| Video Wall Support | Custom layouts (1x8, 2x2, 2x3, 4x2, etc.) with bezel correction |
| Background Output | Black / Blue / Color Bars / Crosshatch / Grayscale / Cross |
| CEC Support | Enabled on all HDMI inputs and outputs |
| Preset Memory | 8 Presets – Save/Recall via Web GUI or RS-232 |
| Control Interfaces | Front Panel, IR (internal + external), RS-232, LAN (TCP/IP) |
| LAN Port | 1 × RJ45 (Web GUI / Telnet / DHCP / Static IP) |
| RS-232 Port | 1 × D-Sub 9-pin female (baud rate selectable) |
| IR Interface | Built-in receiver + 3.5mm port for external IR (20–60KHz) |
| Web Interface | Embedded Web GUI (Routing, EDID, Audio, System Control) |
| Front Panel Display | OLED status screen with navigation buttons |
| Chassis Type | 1U Metal Enclosure, Rackmountable |
| Power Supply | External 24V DC / 3.75A (locking barrel connector) |
| Power Input | 100–240V AC, 50/60Hz (via adapter) |
| Power Consumption | ≤ 70W |
| Dimensions (W×D×H) | 440 × 300 × 44.5 mm |
| Weight | 3.95 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 20% to 90% RH (non-condensing) |
| Certifications | CE, FCC, RoHS |

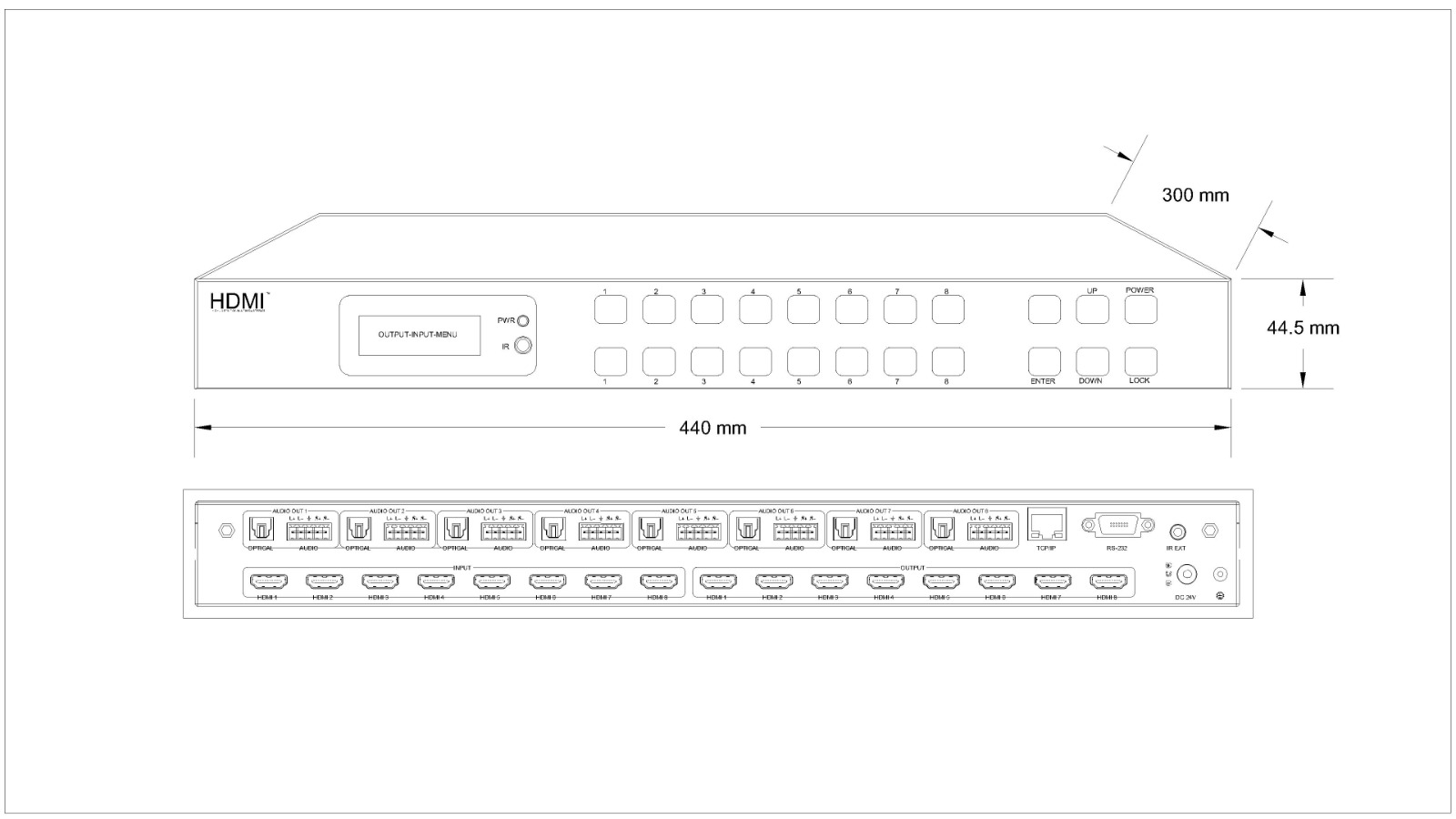

Product Dimension
Resources & Manuals
Software & Downloads
Coming Soon
4K HDR Matrix Switcher for Pro AV Integration
The MatrixOne-88 Elite is a professional-grade 8x8 HDMI 2.0 matrix switcher engineered for seamless AV routing in boardrooms, control centers, and hybrid event spaces. Designed to deliver ultra-reliable performance, it supports 4K@60Hz (4:4:4), HDR10+, Dolby Vision, and HLG for true-to-life image quality across displays. With advanced features like audio matrix extraction, individual output scaling, video wall configuration, and multi-protocol control—including Web GUI, RS-232, and IR—it empowers integrators with total flexibility. Whether for live production or critical business presentations, MatrixOne-88 Elite ensures intelligent signal management without compromise.
Main Features
Uncompressed 4K60 Video Switching
The MatrixOne-88 Elite supports ultra-high-bandwidth 4K@60Hz (4:4:4) switching across all inputs and outputs, ensuring vibrant, full-fidelity video without loss—ideal for high-impact presentations and live AV environments.
Integrated Audio Matrix & EDID Management
With 8x analog and 8x SPDIF audio outputs, MatrixOne-88 Elite allows flexible routing with Bind to Input, Output, or Matrix Mode. EDID can be customized or copied per output to ensure optimal source compatibility.
Multi-Mode Control & Video Wall Support
Control via front panel, IR, RS-232, or Web GUI over LAN. Create custom video wall layouts with output scaling and bezel correction—perfect for control rooms and dynamic AV environments.
Premium 4K Switching for Immersive AV Experiences
The MatrixOne-88 Elite HDMI Matrix Switcher enables ultra-fast 4K@60Hz (4:4:4) switching across 8 input and 8 output channels, delivering broadcast-level clarity and seamless AV control. With support for HDR10+, Dolby Vision, and EDID customization, it ensures pixel-perfect visuals across displays. Designed for mission-critical environments, MatrixOne-88 Elite is the ideal hub for boardrooms, control centers, and hybrid AV spaces.
Effortless Control Integration & Network Flexibility
The MatrixOne-88 Elite HDMI Matrix Switcher streamlines system deployment with multiple control options over a single network. Featuring built-in TCP/IP (LAN), RS-232, and IR control, it supports web-based configuration, Telnet, and front-panel access. Seamless interoperability with AV control systems and intuitive EDID/audio management make it ideal for centralized AV routing across boardrooms, auditoriums, and hybrid collaboration environments.
Flexible Signal Management with MatrixOne-88 Elite
Unlock seamless AV control with the MatrixOne-88 Elite from ANISTON—an advanced 8x8 HDMI 2.0 matrix switcher engineered for modern digital environments. Designed for scalable integration in boardrooms, auditoriums, and live setups, it offers full-resolution 4K@60Hz switching with zero signal loss. With support for LAN-based control, RS-232 commands, IR input, and Web GUI, it brings flexibility and simplicity to complex AV infrastructures. From intuitive configuration to synchronized video and audio routing, the MatrixOne-88 Elite is the smart choice for streamlined installations without technical barriers.
