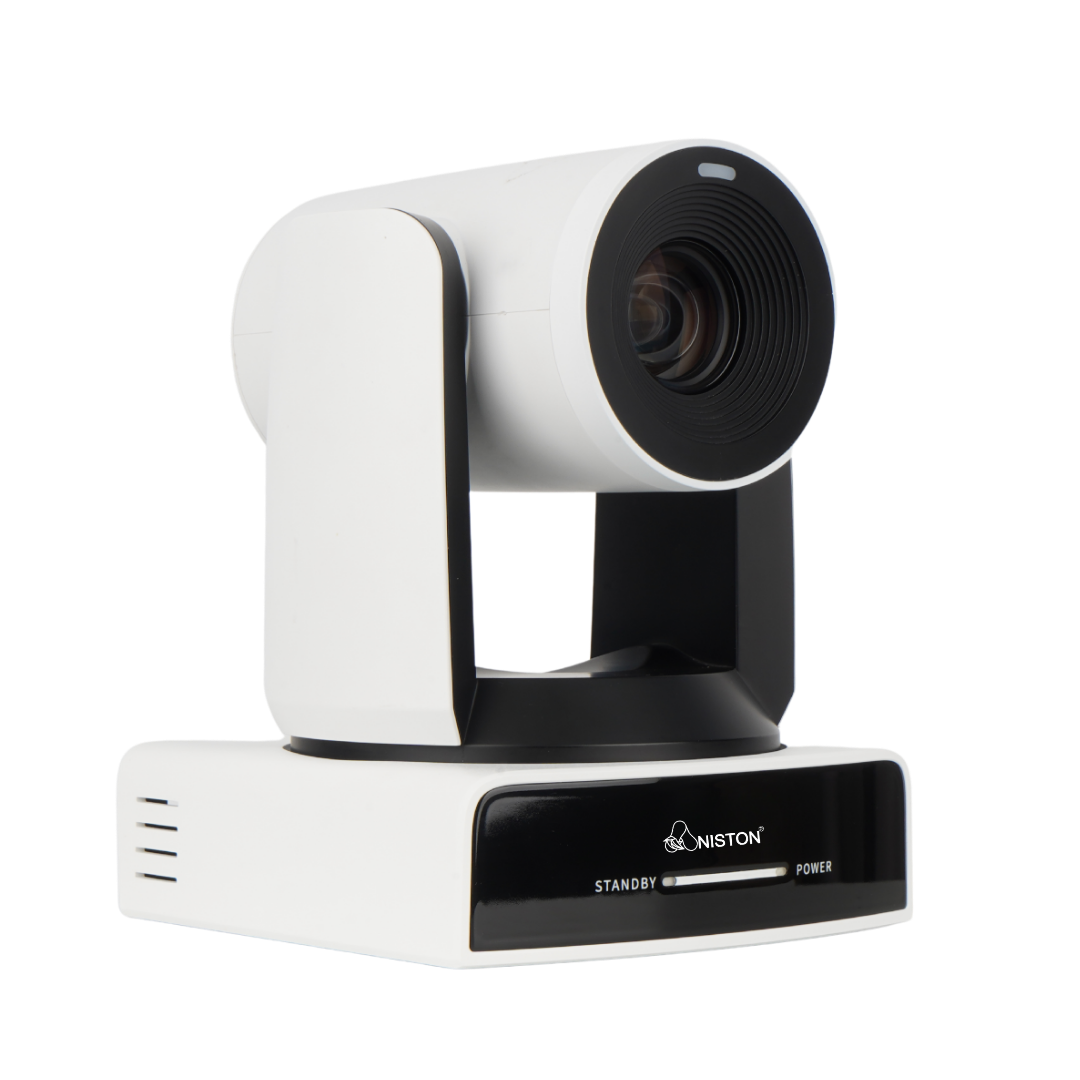

MCP-30U MeetCam Pro
4K60 Conference PTZ Camera
The MCP-30U MeetCam Pro is Aniston’s premier 4K60 PTZ camera tailored for professional conferencing, lecture capture, and hybrid learning. Featuring a 1/1.8” UHD CMOS sensor, it delivers ultra-clear 4K video with a powerful 30× optical zoom, ideal for large venues and dynamic speaker tracking.
- AI-Powered Auto-Tracking: Smart facial and gesture recognition automatically adjusts pan, tilt, and zoom to follow the presenter in real-time, ensuring fluid framing without manual intervention.
- True 4K60 Video with Extended Zoom: Delivers 4K Ultra HD at 60fps with 30× optical and 16× digital zoom for exceptional detail—from broad overviews to crisp close-ups.
- Flexible Multi-Protocol Streaming: Supports HDMI 2.0, 3G-SDI, USB 3.0, and LAN/IP outputs, with streaming compatibility for RTMP, RTSP, SRT, ONVIF, and optional NDI®|HX2.
With whisper-quiet motors, 255 preset positions, and low-light performance down to 0.5 lux, the MCP-30U offers enterprise-grade versatility for classrooms, studios, and boardrooms.
Product Features
- Advanced dual-lens system: Combines an 8.29MP UHD lens for close-ups and a 4.93MP panoramic lens to deliver detailed instructor views and wide-angle classroom coverage.
- AI-enhanced tracking: Utilizes intelligent vision algorithms to auto-adjust pan, tilt, and zoom for seamless presenter following—no external hardware needed.
- Dual-stream output: Simultaneously streams 4K UHD and up to 5MP video to provide comprehensive visual capture for hybrid learning and remote education.
- Optimized low-light performance: Operates at just 0.5 lux with WDR and 2D/3D DNR to maintain clarity in dim classroom conditions.
- Hybrid PTZ design: Features ±40° pan and +5° to –30° tilt range, along with ePTZ support for fluid, stable movement and framing.
- Fast and precise repositioning: Supports 255 preset angles with 0.5° accuracy and 30°/s motion speed for efficient camera control.
- 2× digital zoom: Enhances close-up framing while preserving image quality for streaming and recording.
- Multiple video compression standards: Compatible with H.265, H.264, and MJPEG to suit various bandwidth and recording requirements.
- USB output flexibility: Supports YUY2, MJPEG, and H.264 formats with up to 4K@30fps video over USB.
- Configurable bitrate: Offers VBR and CBR options from 32 kbps to 16 Mbps for optimized streaming control.
- Integrated audio I/O: Features Line-In (3.5mm) and Line-Out ports with full transmission support via USB, SDI, and IP networks.
- Audio codec compatibility: Supports AAC and G.711A audio at bitrates ranging from 96 to 256 kbps.
- Optional built-in microphone: Available for conferencing variants to simplify setup and audio capture.
- Flexible exposure settings: Choose from Auto, Manual, Shutter Priority, and Brightness modes; includes backlight compensation for complex lighting.
- Image tools: Includes flip and freeze functions, progressive scan output, and multiple white balance presets.

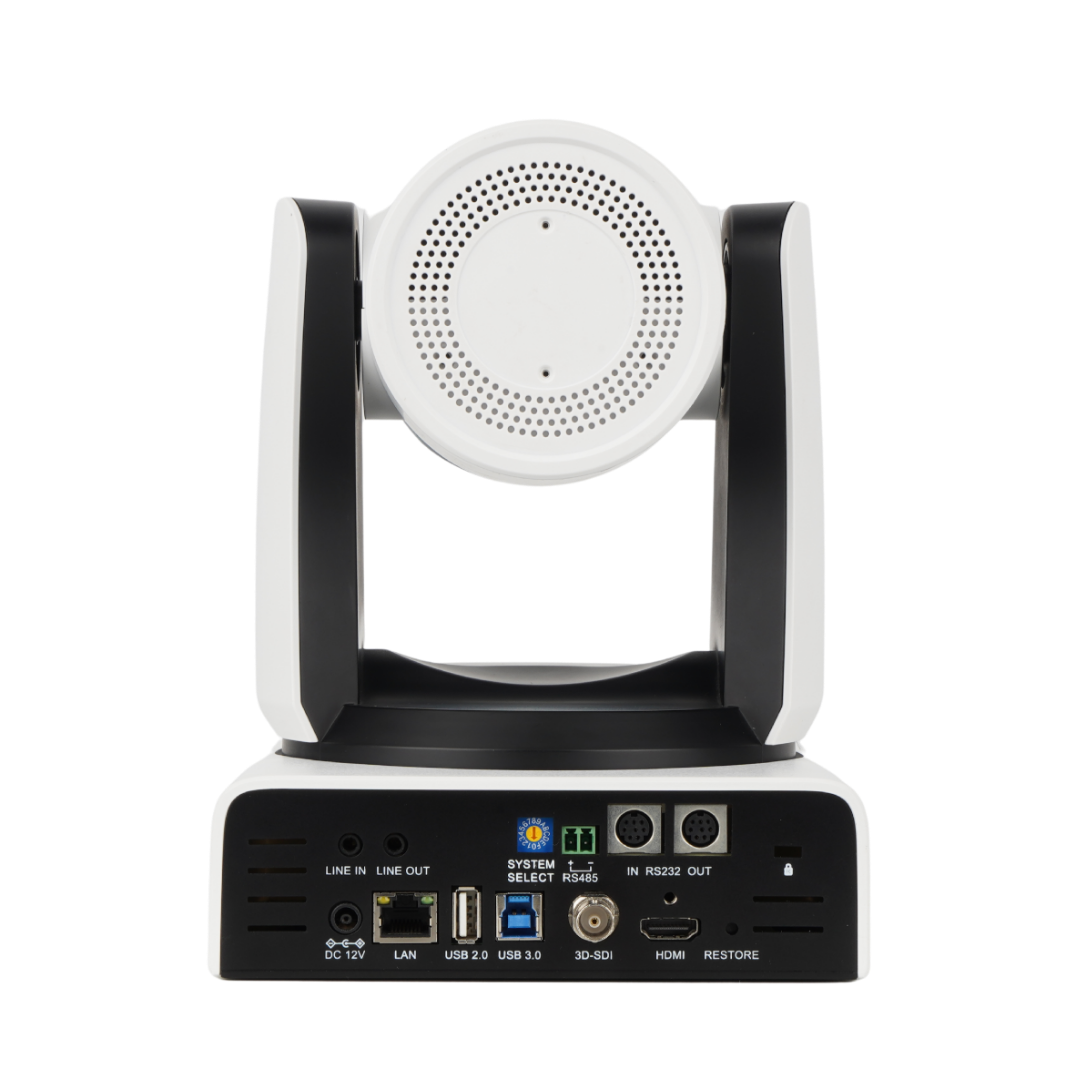

- Diverse connectivity: Offers USB 3.0, 3G-SDI, LAN with PoE, and optional HDMI for broad AV system compatibility.
- Protocol-rich streaming: Supports TCP/IP, HTTP/HTTPS, RTSP, RTMP, SRT, ONVIF, and optional NDI® for professional-grade network integration.
- Silent fanless operation: Built with passive cooling and a 30,000-hour MTBF, ensuring long-term reliability and noise-free performance.
- Certified reliability: CE, FCC, RoHS, and BIS certified with a standard 3-year warranty—optionally extendable to 5 years.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | MCP-30U MeetCam Pro |
| Image Sensor | 1/1.8″ UHD CMOS, 8.42MP |
| Optical Zoom | 30× Optical (f=7.1–210mm, F1.61–F5.19) |
| Digital Zoom | 16× Digital |
| Minimum Illumination | 0.5 lux (F1.8, AGC ON) |
| Pan Range | ±170° |
| Tilt Range | –30° to +90° |
| Pan/Tilt Speed | Pan: 1.7°–100°/s, Tilt: 1.7°–69.9°/s |
| Preset Positions | 255 positions, 0.1° accuracy |
| White Balance | Auto / Indoor / Outdoor / One-Push / Manual / VAR |
| Exposure Modes | Auto / Manual / Shutter Priority / Brightness / DRC |
| Shutter Speed | 1/30s – 1/10000s |
| WDR / DNR | WDR, 2D + 3D Digital Noise Reduction |
| Image Flip / Freeze | Supported (with gravity sensor) |
| Video Compression | H.265 / H.264 / MJPEG |
| USB Formats | YUY2 / H.264 / H.265 / MJPEG |
| USB Resolutions | Up to 4Kp30 (H.264/H.265/MJPEG), 1080p30 (YUY2) |
| Streaming Resolutions | Main: 4K, 1080p, 720p | Sub: 720x480, 640x360, 320x240 |
| Bitrate Control | VBR / CBR (32 kbps – 51200 kbps) |
| Audio Input / Output | Line In (3.5mm), USB / SDI / Network |
| Audio Compression | AAC / G.711A |
| Streaming Protocols | RTMP, RTSP, SRT, ONVIF, Multicast, NDI®|HX2 (optional) |
| Video Outputs | HDMI 2.0, 3G-SDI, USB 3.0, RJ-45 (LAN/IP) |
| Control Interfaces | RS232 / RS485 / IP (VISCA, Pelco-D/P, UVC 1.1–1.5) |
| Power Supply | DC 12V / PoE+ (802.3at) |
| Power Consumption | Max 18W |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –40°C to 60°C |
| Dimensions (W × D × H) | 170 mm × 196 mm × 228 mm |
| Weight | ~2.0 kg |
| Certifications | CE, FCC, RoHS, BIS |
| Warranty | 3 Years (optional extension to 5 Years) |

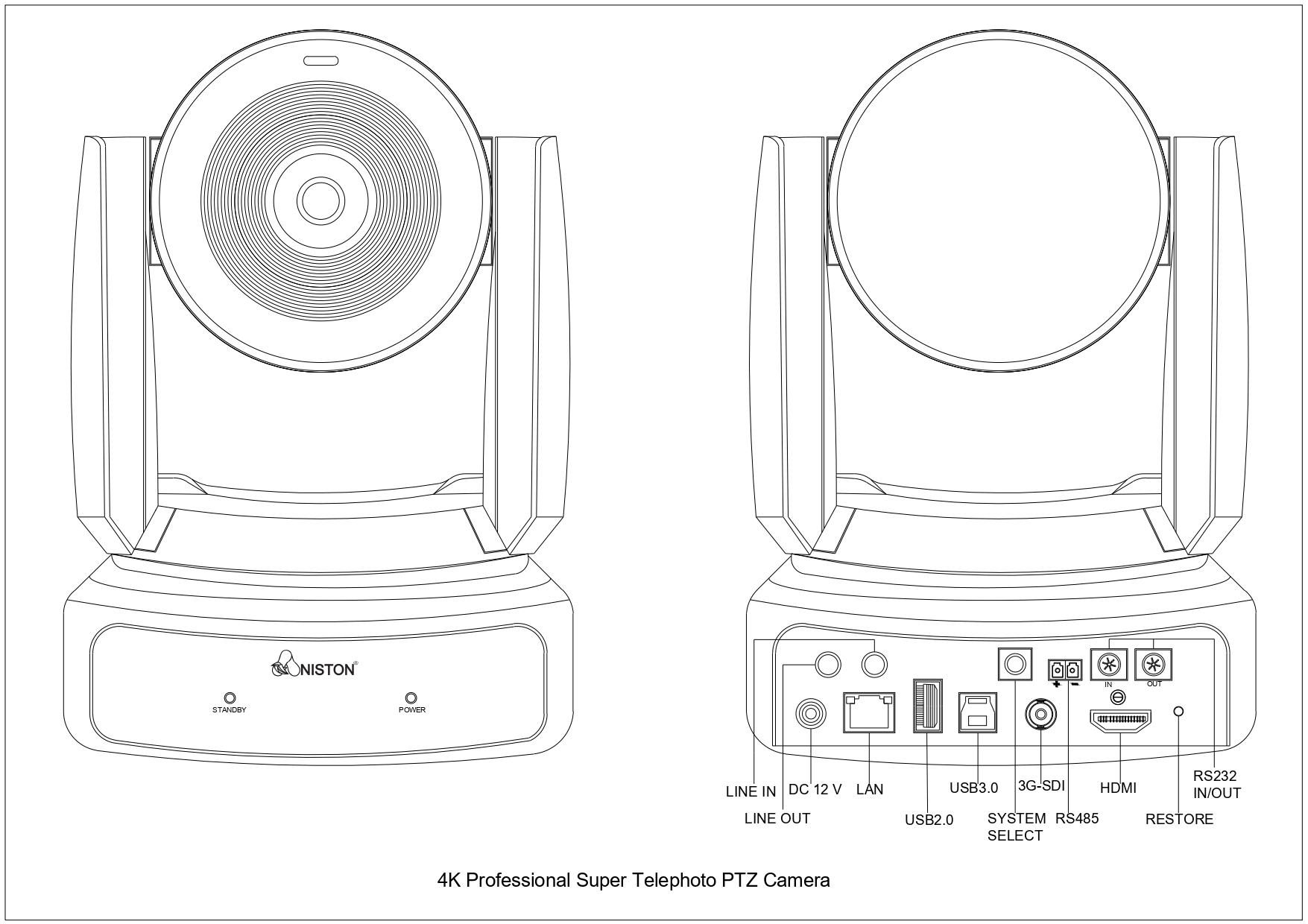

Mechanical Drawing
Resources & Manuals
Software & Downloads
Coming Soon

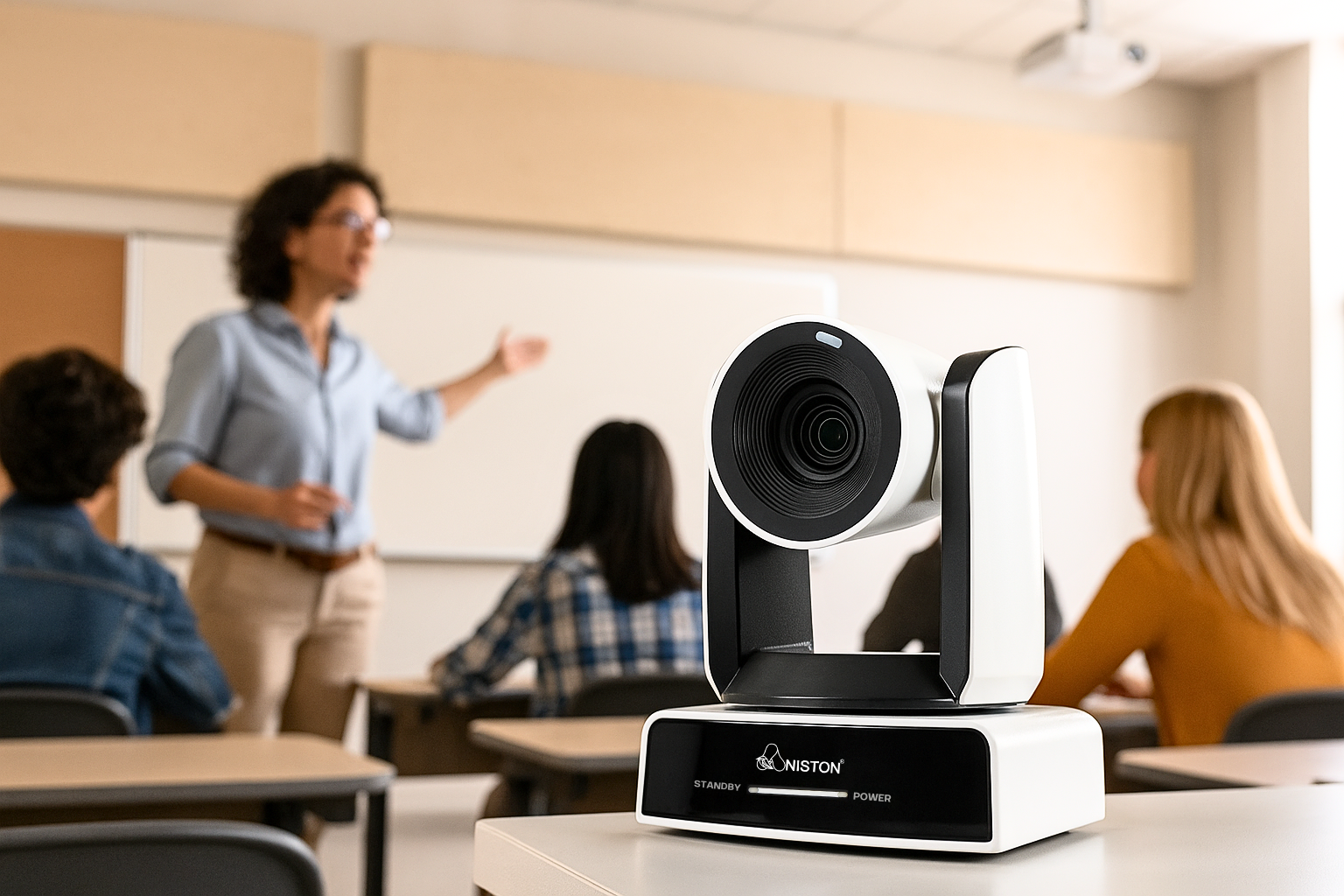

Professional 4K PTZ Camera with AI Tracking for Hybrid Classrooms
The MCP-30U MeetCam Pro by Aniston is a high-performance PTZ camera tailored for smart
classrooms, lecture capture, and professional AV environments. Equipped with a 1/1.8″
UHD CMOS sensor and 30× optical zoom, it delivers lifelike 4K60 video with pinpoint
detail—even in large or dimly lit spaces.
Featuring AI-enhanced auto-tracking and gesture control, the camera automatically
follows presenters, adjusts framing, and ensures seamless transitions without external
hardware. Its multi-interface output—including HDMI 2.0, USB 3.0, SDI, and IP—supports
flexible deployment for hybrid learning, streaming, and recording setups.
With support for protocols like RTMP, RTSP, SRT, ONVIF, and optional NDI®|HX2, the
MCP-30U offers enterprise-level video integration that adapts effortlessly to evolving
educational and broadcast needs.
Main Features
Precision 4K Imaging with 30× Optical Zoom
Powered by a 1/1.8″ UHD CMOS sensor and professional-grade optics, the MCP-30U delivers native 4K60 video with cinematic clarity. Its 30× optical and 16× digital zoom capabilities enable detailed shots from wide angles to distant subjects—ideal for lecture halls and broadcast stages.

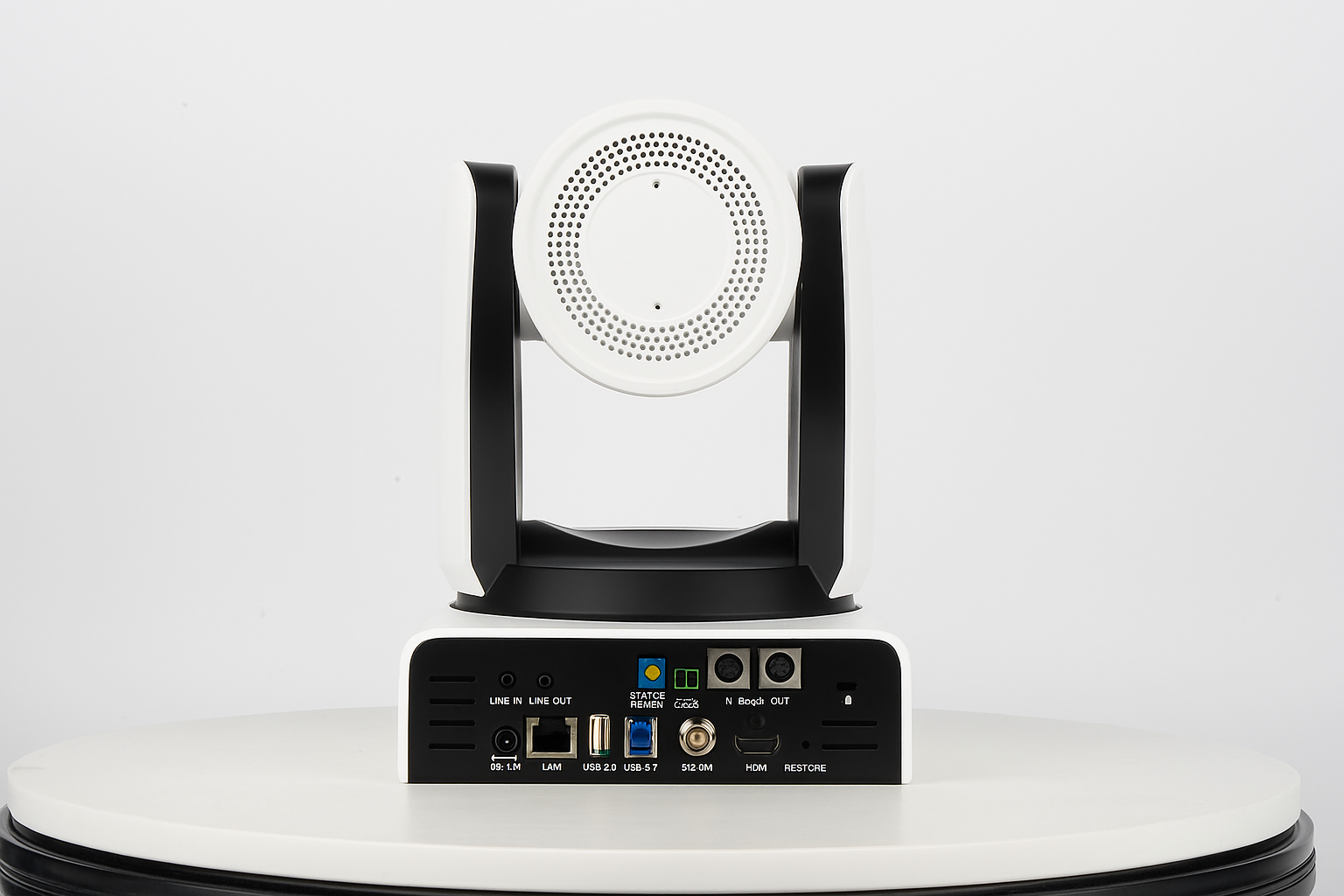

Versatile Multi-Interface AV Integration
The MCP-30U offers HDMI 2.0, 3G-SDI, USB 3.0, and IP streaming via RJ45, providing flexible connectivity for conferencing, recording, and streaming platforms. It supports RTMP, RTSP, SRT, ONVIF, and optional NDI®|HX2 for enterprise-grade deployment across AV infrastructures.

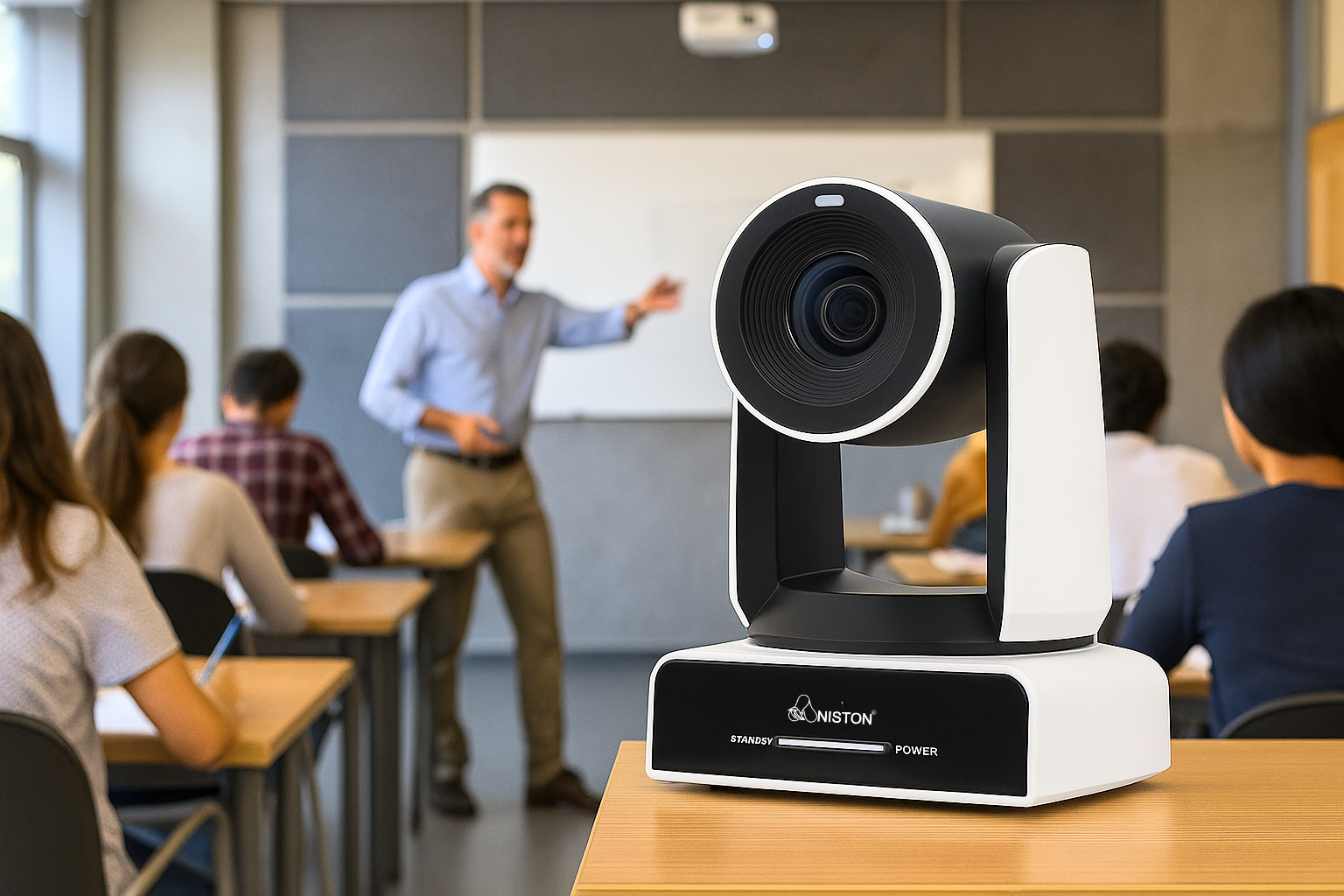

AI-Powered Auto-Tracking & Gesture Control
With intelligent facial recognition and gesture support, the MCP-30U autonomously pans, tilts, and zooms to follow presenters and optimize framing. The camera eliminates the need for remotes or operators, offering intuitive hands-free control in modern learning and studio environments.
High-Precision 4K PTZ Camera with Intelligent Dual-Lens Imaging
The MCP-30U MeetCam Pro is a professional-grade AI PTZ camera built to transform hybrid
classrooms and studio environments. Featuring a powerful 1/1.8″ UHD CMOS sensor with 8.42MP
resolution, it delivers lifelike 4K60 video through a 30× optical zoom lens—ideal for presenter
focus.
Integrated smart tracking, facial detection, and gesture control enable fully autonomous operation,
dynamically adjusting framing and movement to keep instructors in focus. Whether for in-room
engagement or remote delivery, the MCP-30U ensures premium video capture without external controls.
Seamless PoE+ Integration & Enterprise-Ready IP Streaming
Designed for professional AV and educational deployments, the MCP-30U MeetCam Pro features a
single RJ45 interface that delivers both PoE+ power and IP video
output for streamlined installation.
Supporting RTMP, RTSP, SRT, ONVIF, and optional NDI®|HX2 protocols, the camera integrates
effortlessly into broadcasting and conferencing networks. With multiple output interfaces—including
USB 3.0, 3G-SDI, LAN/IP, and HDMI (optional)—it adapts to both modern classrooms and high-demand
studio workflows.
Seamless Integration with MCP-30U MeetCam Pro PTZ Camera
Empower hybrid classrooms and professional AV setups with the MCP-30U MeetCam
Pro from ANISTON. This advanced PTZ camera leverages a high-resolution 1/1.8″ CMOS
sensor with 4K60 output and 30× optical zoom, delivering lifelike visuals
across diverse learning and broadcasting scenarios.
Equipped with native PoE+ and IP streaming capabilities, it also supports USB
3.0, 3G-SDI, and optional HDMI—allowing flexible deployment over a single network cable. Whether
used for lecture recording, live streaming, or virtual instruction, the MCP-30U simplifies
integration while maximizing performance and reliability.
