Meridian TRX5000
SDVoE-compliant Transceiver
The Meridian TRX5000 by Aniston is a cutting-edge SDVoE-compliant AV-over-IP transceiver that merges encoder and decoder capabilities into a compact powerhouse. It enables real-time, uncompressed 4K60 4:4:4 video transport across 10GbE networks with zero-frame latency—ideal for enterprise AV, video walls, and multiview deployments.
- Flexible Dual-Mode Operation: Combines encoder and decoder functions in one unit with switchable modes via front panel or API, streamlining AV system architecture and reducing hardware overhead.
- 4K60 Video with HDR & Audio Excellence: Delivers uncompressed 18Gbps video with full support for HDR10, Dolby Vision, HLG, and 3D formats—plus immersive audio including Dolby Atmos, DTS:X, and analog stereo I/O.
- Enterprise Integration Ready: Features dual copper/fiber ports, PoE+ support, USB 2.0 KVM extension, IR/RS-232/CEC routing, and Web GUI/API control—built for demanding corporate, educational, and broadcast environments.
Optimized for 24/7 reliability, the TRX5000 includes an integrated H.264/H.265 secondary stream for remote monitoring, advanced matrix and multiview processing, and scalable video wall support—making it the ultimate AV-over-IP solution for secure, high-performance content delivery.
Product Features
- All-in-one SDVoE transceiver with integrated encoder/decoder modes for simplified system design and reduced hardware inventory.
- Delivers uncompressed 4K60 4:4:4 video with zero-frame latency over standard 10GbE copper or fiber networks.
- Supports HDR10, Dolby Vision, HDR10+, HLG, and 3D video formats for vibrant, cinema-grade visuals.
- Dual network interfaces with auto-detection: 10GBase-T (RJ45) and 10G SFP+ fiber for maximum installation flexibility.
- Professional audio support including Dolby Atmos, DTS-HD, LPCM multichannel, and analog stereo I/O.
- Embedded audio routing with HDMI and analog in/out, plus audio embedding/de-embedding functionality.
- Matrix switching, 9×9 video wall, and 25-window multiview support for dynamic AV deployments.
- Built-in secondary H.264/H.265 stream for low-bandwidth preview via Web GUI or VLC—ideal for monitoring and mobile access.
- USB 2.0 KVM extension for peripherals like webcams, keyboards, and touchscreens over IP.
- Control interfaces include IR, RS-232, USB, TCP/IP, Web GUI, API, and CEC routing for full integration.
- Automatic port detection, device identification (LED Show-Me mode), and user role management via web login.
- CEC passthrough support and integrated circuit-level ESD/surge protection for secure AV integration.
- Supports 10GbE multicast switching with IGMPv2 snooping and filtering compatibility.
- Robust power options including DC 12V input and IEEE 802.3at PoE+ via network switches.
- Compact metal enclosure with passive thermal design ensures quiet 24/7 operation in rack or desktop installations.
- Certified for CE, FCC, RoHS, and BIS compliance; engineered for continuous enterprise use with 3-year warranty (extendable to 5 years).
- Accessible firmware upgrades via web GUI or controller with bulk update capabilities.
- Durable build with 693g weight, 204 × 134 × 21.5 mm dimensions, and multiple mounting options (6U vertical or 1U horizontal rack).
- Designed for reliability with 30,000-hour MTBF, wide temperature tolerance, and high humidity resistance.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | Meridian TRX5000 |
| Device Type | SDVoE-compliant AV-over-IP Transceiver |
| Operating Modes | Encoder / Decoder (switchable via button or API) |
| Latency | Zero-frame (sub-millisecond) |
| Max Resolution | 4K@60Hz, 4:4:4 chroma |
| Color Depth | 8/10/12-bit |
| HDR Formats | HDR10, HDR10+, Dolby Vision, HLG |
| 3D Video | Supported |
| Video Standard | HDMI 2.0b, HDCP 2.2 compliant |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Video Bandwidth | 18Gbps (uncompressed) |
| Audio Formats | LPCM 2.0/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS-HD Master, DTS:X |
| Analog Audio I/O | Stereo In/Out (3.5mm) |
| Audio Routing | HDMI, analog, secondary stream; supports embedding/de-embedding |
| Secondary Stream | H.264/H.265 (for preview monitoring) |
| HDMI Input | 1× HDMI (Type-A) |
| HDMI Output | 1× HDMI (loop-out or decoded) |
| Network Interfaces | 10GBase-T (RJ45), 10G SFP+ (fiber) |
| Transmission Distance | 100m (CAT6A/7), 70m (CAT6) |
| Matrix Support | One-to-one, one-to-many, many-to-one, many-to-many |
| Video Wall Capability | Up to 9×9 |
| Multiview Capability | Up to 25 windows per display |
| Preview Stream | RTSP, viewable via VLC/Web GUI |
| Control Interfaces | IR, RS-232 (4-pin Phoenix), USB, TCP/IP, Web GUI, API |
| USB Host Port | 1× USB-B 2.0 |
| USB Device Ports | 2× USB-A 2.0 |
| CEC Routing | Supported |
| Show-Me Mode | Device ID via LED blink |
| User Management | Web login (admin/password configurable) |
| Firmware Upgrade | Via Web GUI or bulk controller update |
| Power Supply | DC 12V/2.5A (locking adapter), PoE+ (802.3at) |
| Power Consumption | ~13.5W |
| Dimensions (W × D × H) | 204 × 134 × 21.5 mm |
| Weight | 693 g |
| Housing | Metal enclosure |
| Mounting | 6U vertical (10 units), 1U horizontal (4 units) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | –20°C to 60°C |
| Operating Humidity | 20%–80% RH (non-condensing) |
| Storage Humidity | 10%–90% RH (non-condensing) |
| Certifications | CE, FCC, RoHS, BIS Certified |
| ESD Protection | IEC 61000-4-2 ±8kV (air), ±4kV (contact) |
| Surge Protection | Integrated circuit-level |
| Reliability | Designed for 24/7 continuous operation |
| Warranty | 3 Years (extendable to 5 Years) |

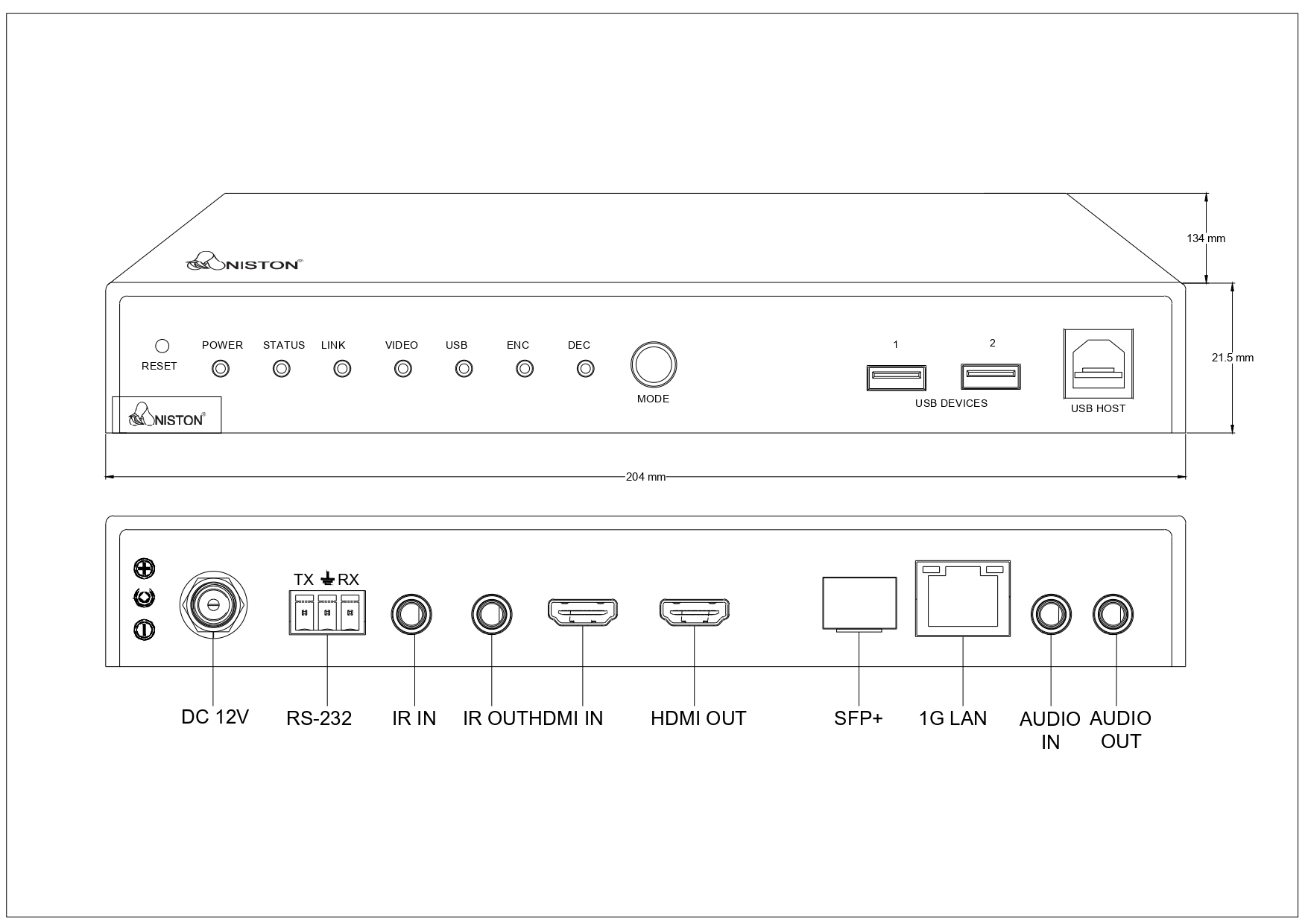

Mechanical Drawing
Resources & Manuals
Software & Downloads
Coming Soon
Versatile SDVoE AV Transceiver for Next-Generation Content Delivery
The Meridian TRX5000 is a high-performance SDVoE-compliant transceiver engineered for
flexible AV-over-IP distribution across corporate, educational, and broadcast networks.
Combining encoder and decoder functionality in one sleek chassis, it delivers
zero-latency, uncompressed 4K60 4:4:4 video over 10GbE copper or fiber.
With support for HDR10, Dolby Vision, multichannel audio formats like Dolby Atmos and
DTS:X, and advanced control via Web GUI and API, the TRX5000 simplifies complex
installations. It also integrates matrix switching, 9×9 video wall processing, and
multiview capabilities—all while offering PoE+ support and robust signal routing for IR,
USB 2.0 KVM, RS-232, and CEC.
Whether you're powering a command center, lecture space, or digital signage deployment,
the Meridian TRX5000 ensures scalable, reliable, and secure AV performance.
Main Features
All-in-One Transceiver Architecture
The Meridian TRX5000 integrates encoder and decoder functions in a single compact chassis, dramatically simplifying deployment and inventory management. With instant switching between modes, it offers unmatched flexibility for real-time AV distribution across dynamic environments.
Uncompressed 4K60 over Copper & Fiber
Built to handle demanding video standards, the TRX5000 supports uncompressed 4K60 4:4:4 video over 10GbE using either copper or fiber. With full HDR support and multichannel audio passthrough—including Dolby Atmos and DTS:X—it ensures true-to-source media reproduction.
Advanced AV-over-IP Control & Visualization
Equipped with Web GUI and API access, the TRX5000 offers centralized control over video walls (up to 9×9), multiview layouts (up to 25 windows), and signal routing for IR, USB, RS-232, and audio. Integrated H.264/H.265 secondary streaming supports low-bandwidth previews and remote monitoring.
High-Performance SDVoE Transceiver for Enterprise AV & Streaming Applications
The Meridian TRX5000 sets a new benchmark in AV-over-IP technology with its all-in-one
transceiver design, delivering uncompressed 4K60 video and multichannel audio across 10GbE networks.
Engineered for professional-grade installations, it combines zero-latency performance with versatile
input/output options for seamless AV integration.
Whether deployed in control rooms, lecture theatres, or multi-display video walls, the TRX5000
enables robust signal routing, advanced preview streaming, and secure, standards-compliant
operation—all from a compact, rack-mountable unit.
Integrated PoE+ Networking & Advanced IP Protocol Support
The Meridian TRX5000 streamlines installation through a single-port solution, delivering
power and high-bandwidth video via PoE+ (802.3at) on 10GbE networks. Its dual
copper and fiber ports allow flexible deployment across enterprise-grade infrastructures.
With native support for RTSP, RTMP, SRT, HTTP/HTTPS, and Onvif protocols—plus optional NDI®—the
TRX5000 offers broad interoperability. Its multi-format output via USB 3.0, 3G-SDI, and optional
HDMI ensures seamless integration with local AV systems and cloud-based streaming workflows.
Scalable AV Integration with the Meridian TRX5000 Transceiver
Elevate your AV infrastructure with the Meridian TRX5000 by ANISTON—a next-gen
SDVoE transceiver designed for enterprise-grade video distribution. Its
compact, all-in-one form factor enables both encoding and decoding, supporting matrix switching,
multiview, and large-scale video walls.
Featuring dual 10GbE interfaces (copper and fiber), PoE+ power, and outputs
including HDMI, USB 2.0, and analog audio, the TRX5000 fits seamlessly into IP-centric
workflows. Ideal for classrooms, control centers, and digital signage ecosystems, it delivers
robust performance, simple integration, and zero-latency content delivery.
