MCP-20U MeetCam Pro
Conference PTZ Camera
The MCP-20U MeetCam Pro is a high-performance 4K30 AI-powered PTZ camera engineered for professional video conferencing, lecture capture, and live broadcasting. It combines intelligent tracking, low-light excellence, and multi-interface output for seamless AV integration.
- 4K Ultra HD Imaging: Equipped with a 1/2.8" SONY CMOS sensor and 8.29MP resolution, the camera delivers clear 4K (3840×2160) video at 30fps, ensuring professional-grade visuals even in low-light conditions.
- 20X Optical + 16X Digital Zoom: Offers precision zoom capabilities with smooth transitions, making it ideal for detailed image capture across boardrooms, classrooms, and auditoriums.
- AI Auto Tracking and Gesture Control: Built-in AI features enable auto tracking, auto framing, and gesture recognition to control zoom and recall presets—perfect for dynamic speaker movement and hands-free control.
Whether deployed in corporate boardrooms, education spaces, or hybrid AV environments, the MCP-20U MeetCam Pro delivers superior video quality with intelligent automation and versatile connectivity including HDMI, USB 3.0, 3G-SDI, and IP streaming.
Product Features
- Ultra HD 4K30 output with a 1/2.8" SONY CMOS sensor delivering 8.29MP resolution and high visual fidelity.
- 20X optical zoom (f=5.2–104mm) and 16X digital zoom for sharp image capture across large spaces.
- Superior low-light imaging with 0.1 Lux minimum illumination and configurable 2D + 3D DNR.
- Simultaneous HDMI 1.4, USB 3.0, 3G-SDI, and LAN (IP streaming) outputs for seamless AV system integration.
- Supports IP video streaming via RTMP, RTSP, SRT, ONVIF, and DHCP for hybrid broadcast environments.
- Optional NDI®|HX2 protocol for next-gen AV-over-IP workflows and ultra-low latency streaming.
- AI-powered features including human detection, auto tracking, auto framing, and gesture recognition.
- Gesture control enables hands-free zoom, auto-tracking toggle, and preset switching functions.
- Supports 255 preset positions via IP/serial and 9 via IR remote, with ±0.1° positioning accuracy.

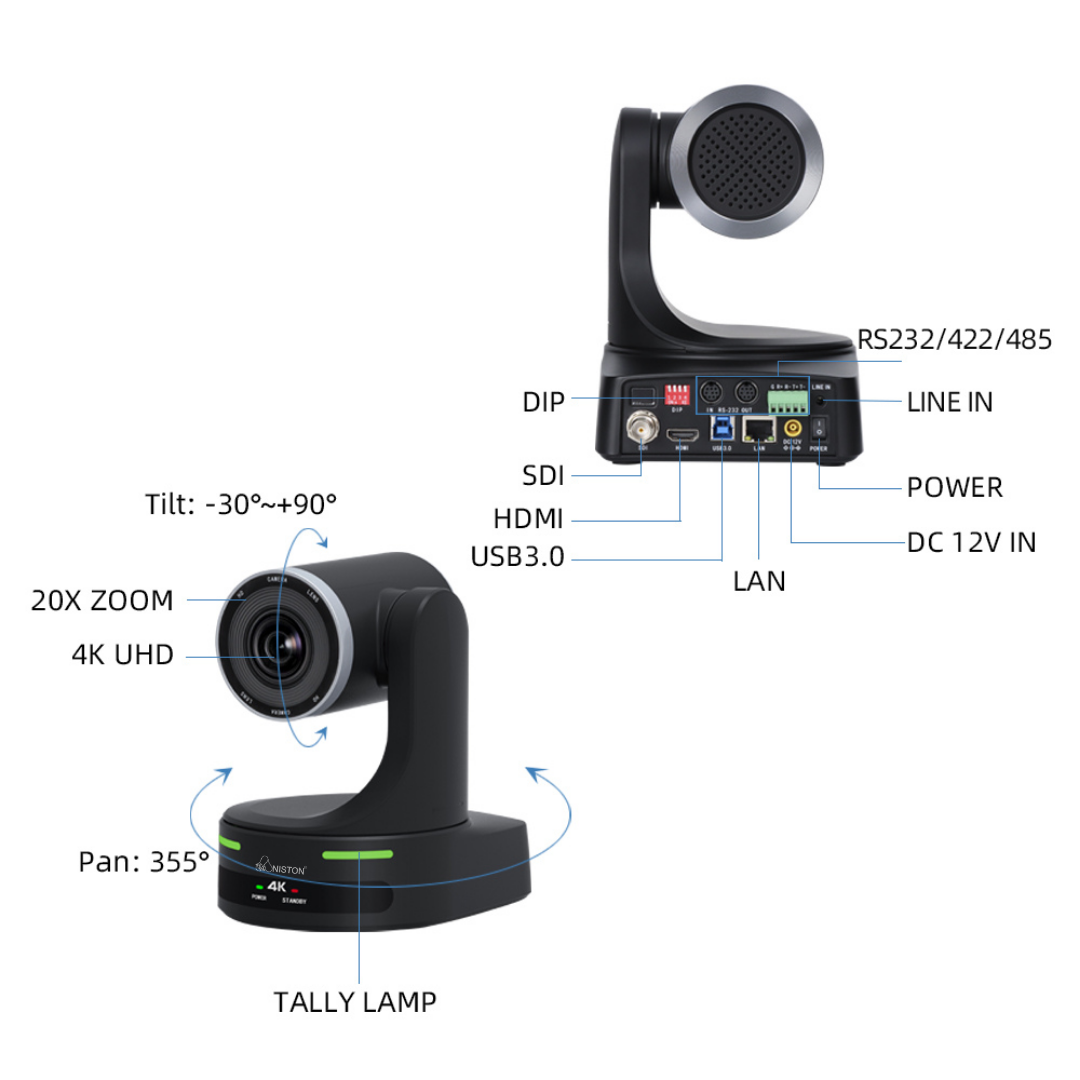

- Wide PTZ range with 355° pan and -30° to +90° tilt, including image flip and mirror support.
- Fast and smooth PTZ movement: pan speed up to 80°/s and tilt speed up to 60°/s for responsive control.
- Video encoding formats include H.264, H.265, YUY2, and MJPEG for platform-wide compatibility.
- Audio input via 3.5mm stereo jack with AAC and G.711 audio compression for synchronized streaming.
- USB Video Class (UVC 1.1) compatibility with Windows, macOS, Linux, and Android devices.
- Supports VISCA, VISCA over IP, PELCO-D, PELCO-P, ONVIF, and UVC 1.1 control protocols.

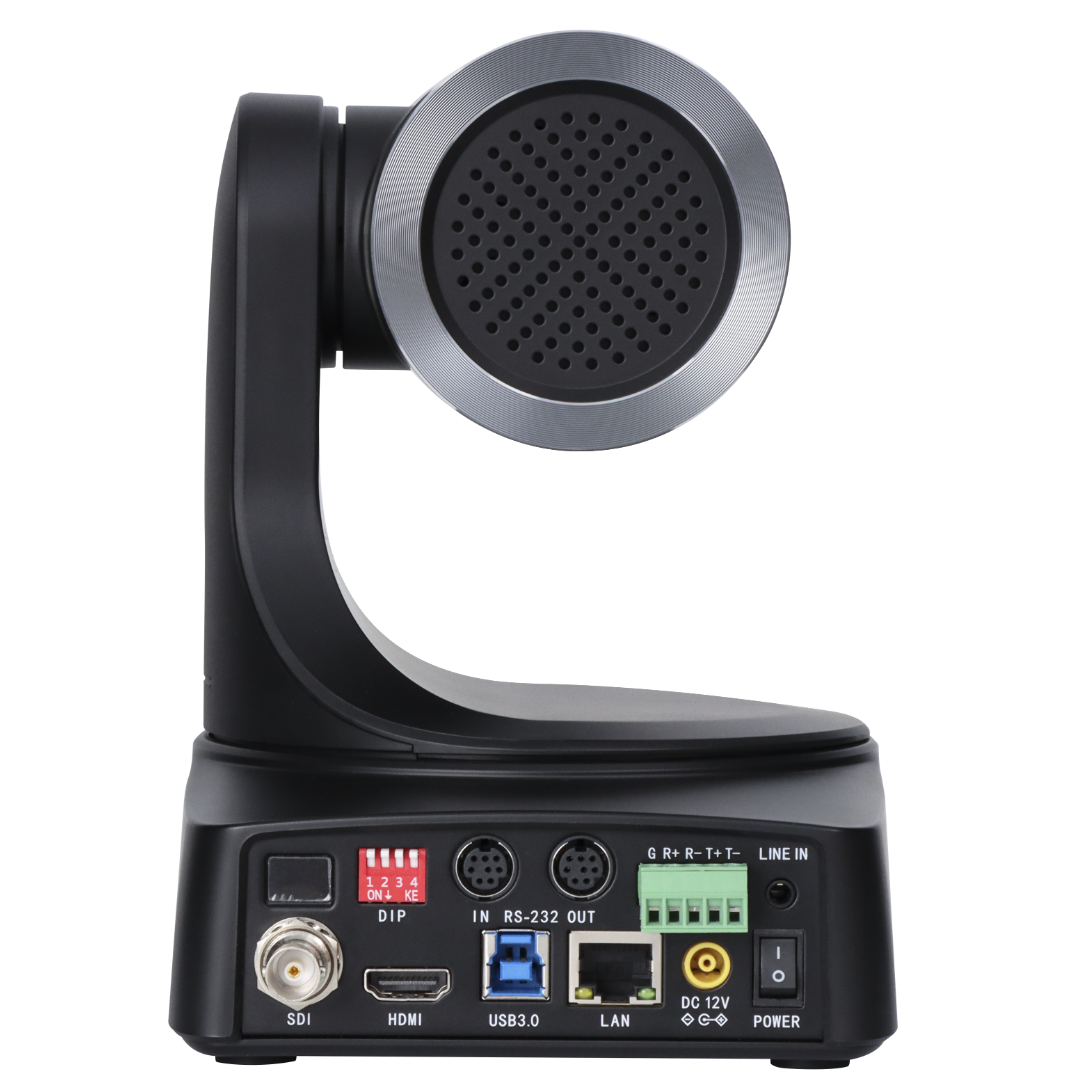

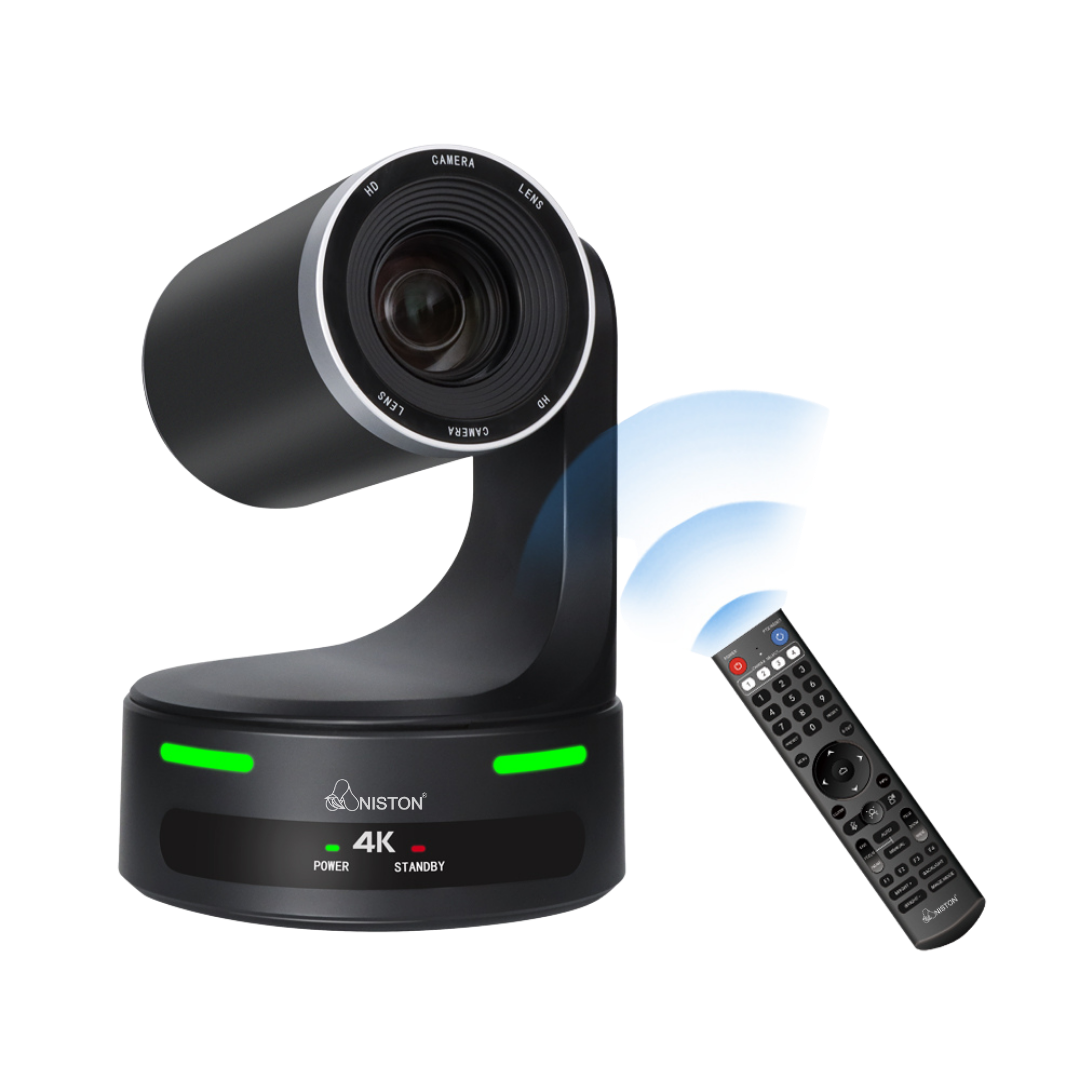

- Multiple control interfaces including RS232, RS422, USB, Ethernet (RJ45), and IR remote.
- Integrated red tally light on the front for live or recording status indication.
- Web-based GUI for configuration, live preview, and firmware updates via browser.
- PoE (IEEE 802.3af) supported for easy installation with single RJ45 cable powering and control.
- Max power consumption of 12W with DC 12V ±10% input and PoE alternative.
- Durable build with compact dimensions (134mm × 174mm × 187mm) and approx. 1.2 kg weight.
- Mountable on wall, ceiling, or tripod with included bracket and hardware.

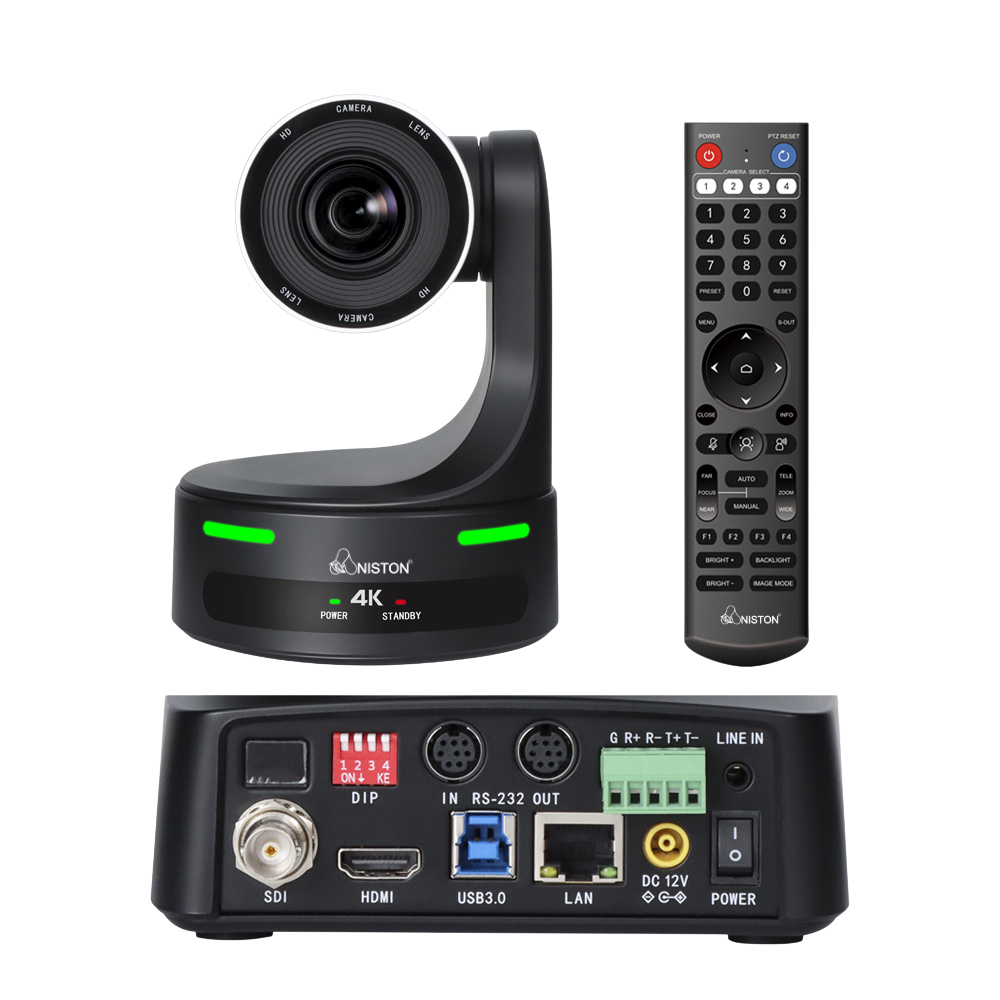

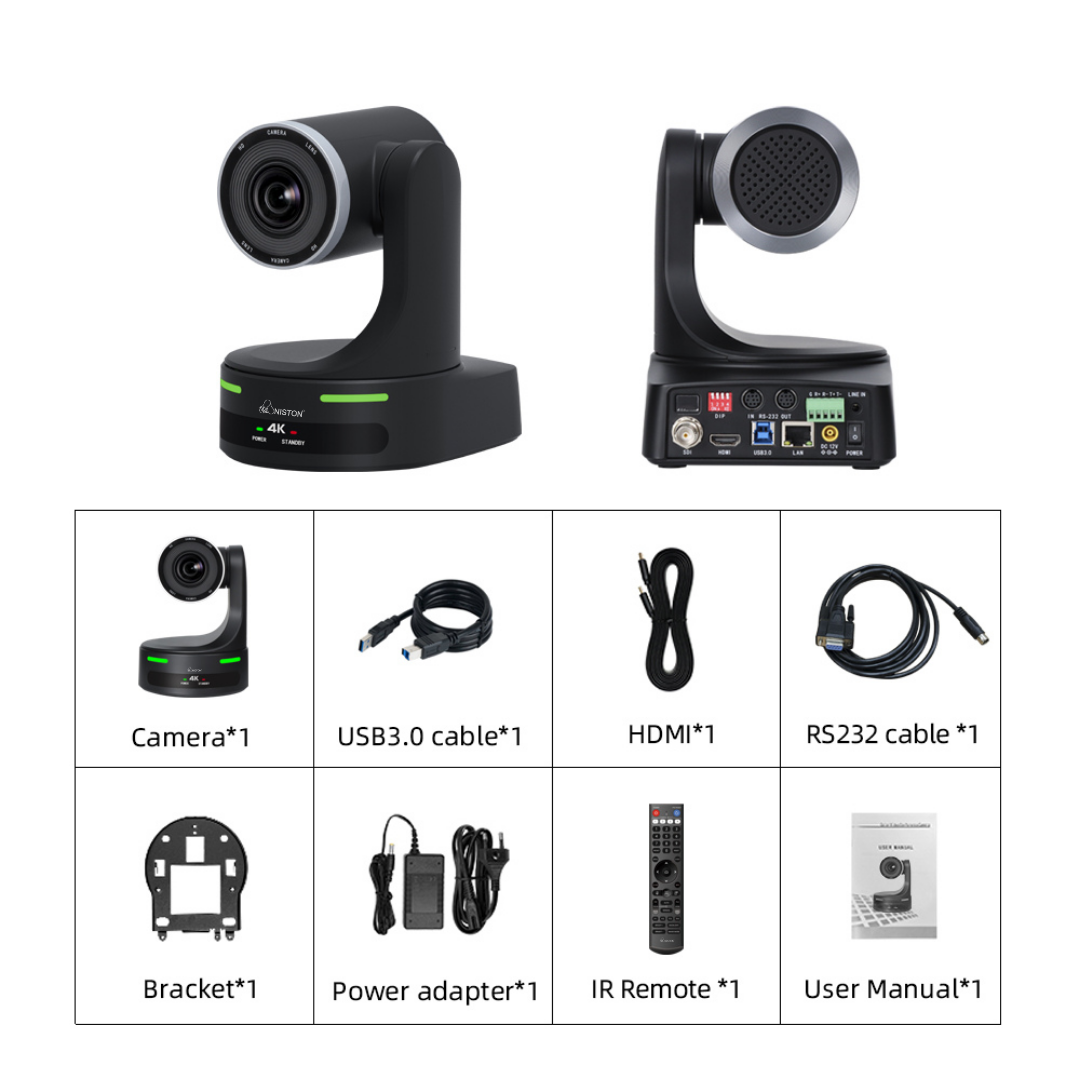

- Delivered with DC adapter, IR remote, USB cable, RS-232 cable, user manual, and mounting bracket.
- Perfect for boardrooms, classrooms, auditoriums, hybrid events, lecture capture, and live streaming.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | MCP-20U |
| Series | MeetCam Pro |
| Image Sensor | 1/2.8" SONY CMOS, 8.50 Megapixels |
| Effective Pixels | 8.29 Megapixels |
| Optical Zoom | 20X (f=5.2mm – 104mm, F1.55–F3.13) |
| Digital Zoom | 16X |
| Minimum Illumination | 0.1 Lux (color), 0.05 Lux with DNR (30fps, F1.6) |
| S/N Ratio | ≥ 55 dB |
| Shutter Speed | 1/25 to 1/10000 sec |
| Aperture | F1.55 – F3.13 |
| Focus Mode | Auto / Manual |
| White Balance | Auto / Indoor / Outdoor / One-push / Manual |
| Exposure Modes | Auto / Manual / Shutter Priority / Brightness Priority |
| Wide Dynamic Range (WDR) | Supported |
| Backlight Compensation | Supported |
| Digital Noise Reduction | 2D + 3D DNR (Configurable) |
| Viewing Angle (H/V/D) | H: 58.7° – 3.2° / V: 32.2° – 1.8° / D: ~65° |
| Pan Range | 355° |
| Tilt Range | -30° to +90° |
| Pan Speed | 1° to 80°/s |
| Tilt Speed | 1° to 60°/s |
| Preset Positions | 255 presets (via IP/Serial), 9 presets (IR remote) |
| Preset Accuracy | ±0.1° |
| Image Flip | Supported (H/V Flip) |
| Tally Light | Yes (Front Red LED Indicator) |
| AI Functions | Human Detection, Auto Tracking, Auto Framing, Gesture Recognition |
| Gesture Control | Yes (Zoom In/Out, Auto Tracking Toggle, Preset Recall) |
| Video Compression | H.264 / H.265 / YUY2 / MJPEG |
| Audio Input | 1x Line In (3.5mm Stereo Jack) |
| Audio Compression | AAC / G.711 |
| USB Video Class | UVC 1.1 (Windows, macOS, Linux, Android Compatible) |
| Frame Rate (USB) | Up to 30 fps |
| USB Output Resolutions | Up to 4K30, 1080p, 720p, 640×480, 352×288, 320×240 (auto-detect) |
| Video Output Interfaces | HDMI 1.4 / USB 3.0 / 3G-SDI / Ethernet (LAN/IP Streaming) |
| Max Output Resolutions | HDMI: 3840×2160@30fps; SDI: 1080p60; USB: 3840×2160@30fps |
| Video Formats | 4K: 30/25 fps; 1080p: 60/59.94/50/30/25 fps; 720p: 60/50 fps |
| Network Protocols | RTMP / RTSP / SRT / Onvif / DHCP / TCP/IP / HTTP / UDP |
| Control Protocols | VISCA / VISCA over IP / PELCO-D / PELCO-P / ONVIF / UVC 1.1 |
| Control Interface | RS232 / RS422 / USB / IP (Ethernet) / IR Remote |
| Web Interface | Yes (Web GUI with Live Preview, Configuration, Updates) |
| PoE Support | IEEE 802.3af (PoE Standard) |
| Power Input | DC 12V ±10% |
| Power Consumption | Max 12W (PoE or DC) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Dimensions (W×D×H) | 134mm × 174mm × 187mm |
| Weight | Approx. 1.2 kg |
| Mounting Options | Wall Mount / Ceiling Mount / Tripod Mount (Bracket Optional) |
| Included Accessories | DC 12V Adapter, IR Remote, USB Cable, RS-232 Cable, User Manual, Mount Bracket |
Product Dimension
Resources & Manuals
MCP-20U MeetCam Pro – AI-Powered 4K PTZ Camera for Smart Conferencing
The MCP-20U MeetCam Pro is a professional-grade PTZ camera built to deliver ultra-clear 4K30 video for hybrid meetings, lecture capture, and live streaming. Powered by a 1/2.8” SONY CMOS sensor with 20X optical zoom, it offers outstanding image quality and low-light performance. Integrated AI functions such as auto tracking, framing, and gesture recognition ensure dynamic and hands-free operation. With HDMI, USB 3.0, 3G-SDI, and IP outputs, plus PoE support, the MCP-20U enables seamless AV/UC integration for modern boardrooms, classrooms, and collaborative environments.
Main Features
True 4K30 Imaging with SONY CMOS Sensor
The MCP-20U features a 1/2.8" SONY CMOS sensor delivering stunning Ultra HD 4K video at 30fps. Its 20X optical and 16X digital zoom ensure crisp visuals across lecture halls, boardrooms, and event spaces.
Flexible Connectivity with PoE & Multi-Interface Output
Supporting HDMI, USB 3.0, 3G-SDI, and IP streaming, the MCP-20U integrates effortlessly into AV systems. With PoE support and streaming protocols like RTMP, RTSP, SRT, and ONVIF, setup is streamlined and scalable.

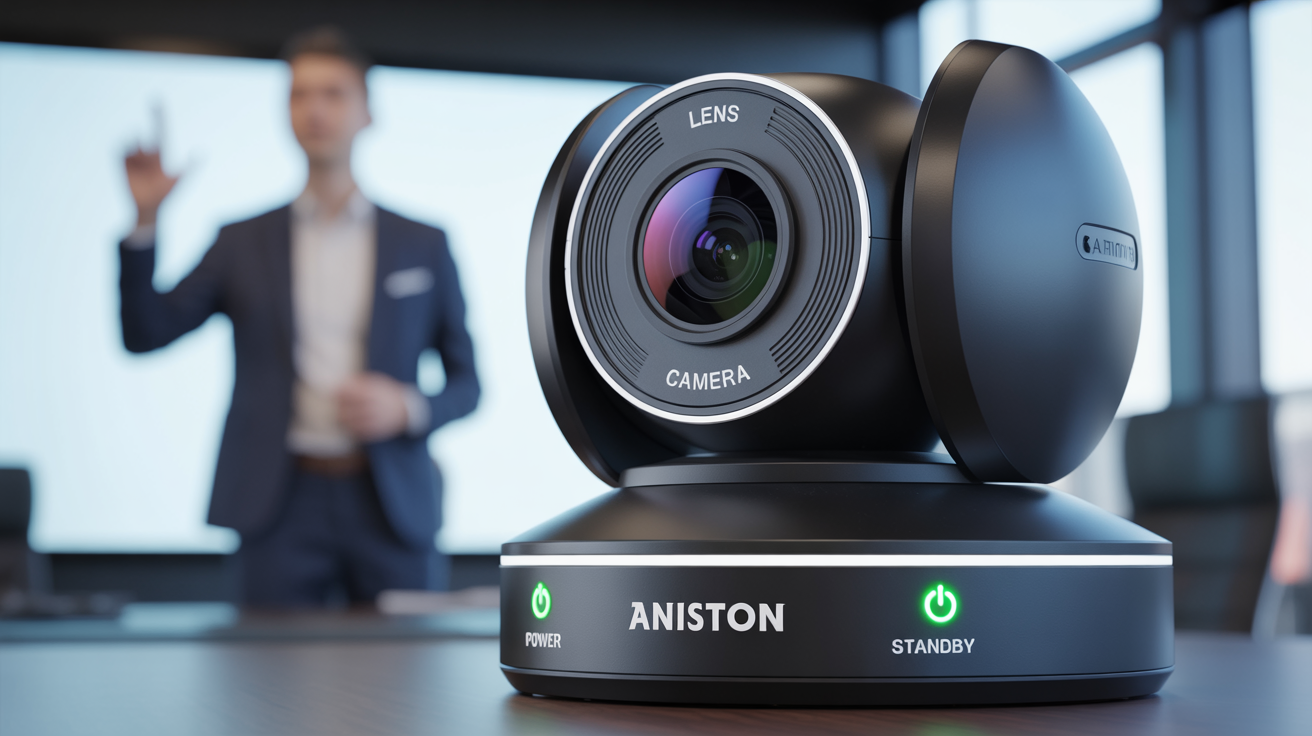

Smart AI Tracking with Gesture Recognition
Built-in AI enables human detection, auto framing, and presenter tracking. Gesture control allows hands-free commands for zoom and preset recall—ideal for dynamic presentations and hybrid collaboration.
Enterprise-Class 4K PTZ Camera for Seamless AV Integration
The MCP-20U MeetCam Pro PTZ Camera is a professional-grade 4K30 PTZ solution engineered to meet the evolving demands of modern conferencing and hybrid communication. Featuring a 1/2.8" SONY CMOS sensor, advanced AI tracking, and gesture-based control, it delivers precision framing and ultra-clear visuals across varied AV environments. With support for HDMI, USB, SDI, and IP streaming protocols including RTMP, SRT, and ONVIF, the MCP-20U ensures smooth integration into unified communication systems—making it ideal for boardrooms, classrooms, and live production setups.
Unified Streaming Flexibility & Intelligent Control Options
The MCP-20U MeetCam Pro PTZ Camera empowers AV environments with robust multi-interface streaming, delivering simultaneous output via HDMI, 3G-SDI, USB 3.0, and Ethernet. It supports IP-based workflows using H.264/H.265 compression and standard streaming protocols including RTMP, RTSP, SRT, and ONVIF—making it ideal for unified communication and broadcast systems. Designed for seamless integration, it offers broad control compatibility through RS232, RS422, USB, Ethernet, and IR. A built-in web GUI allows for easy remote setup and configuration. Combined with AI features like human detection, gesture control, and auto framing, it delivers automation-ready performance for boardrooms, classrooms, and hybrid conferencing setups.
Intelligent Video Conferencing with MCP-20U MeetCam Pro PTZ Camera
Redefine video collaboration with the MCP-20U MeetCam Pro PTZ Camera—a precision-built solution for today’s hybrid AV environments. Powered by a 1/2.8" SONY CMOS sensor and 20X optical zoom, it captures sharp 4K imagery with clarity and detail, even in challenging lighting. AI-enhanced features such as auto tracking, framing, and gesture control allow effortless presenter focus, while flexible outputs including HDMI, USB 3.0, 3G-SDI, and IP streaming (RTMP, SRT, ONVIF) ensure wide compatibility. With PoE support and streamlined integration, the MCP-20U transforms modern meeting spaces into intelligent, high-impact communication hubs.
