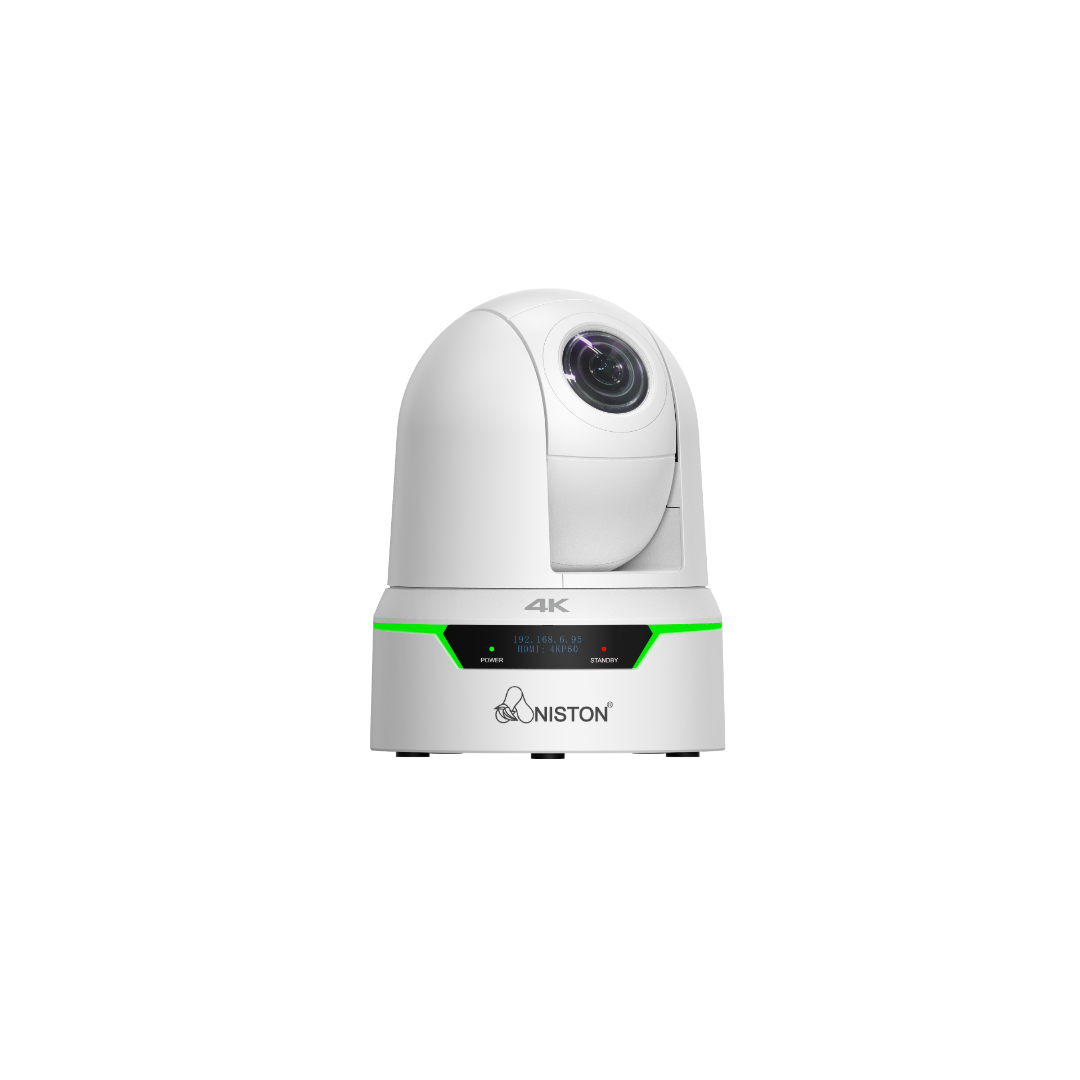

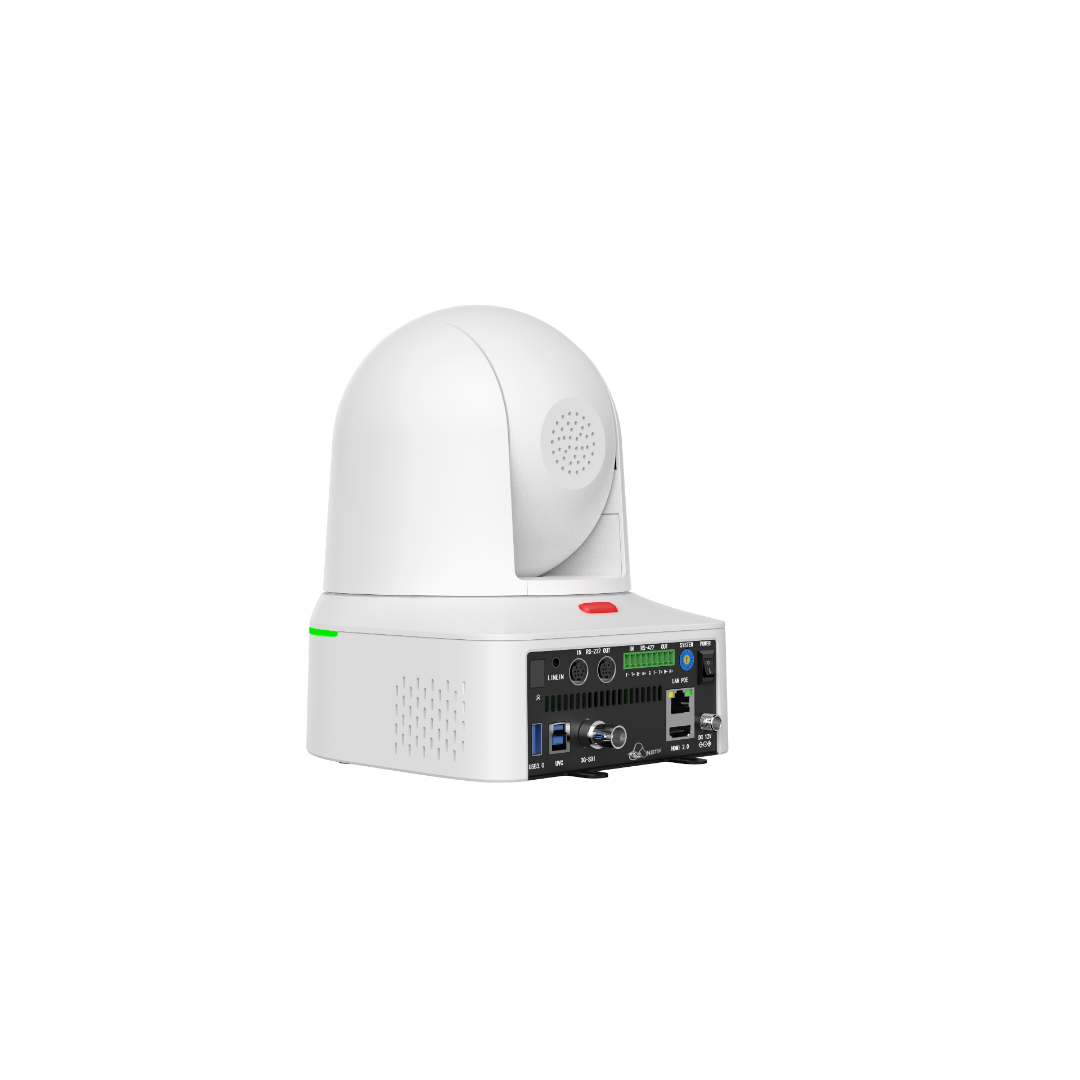

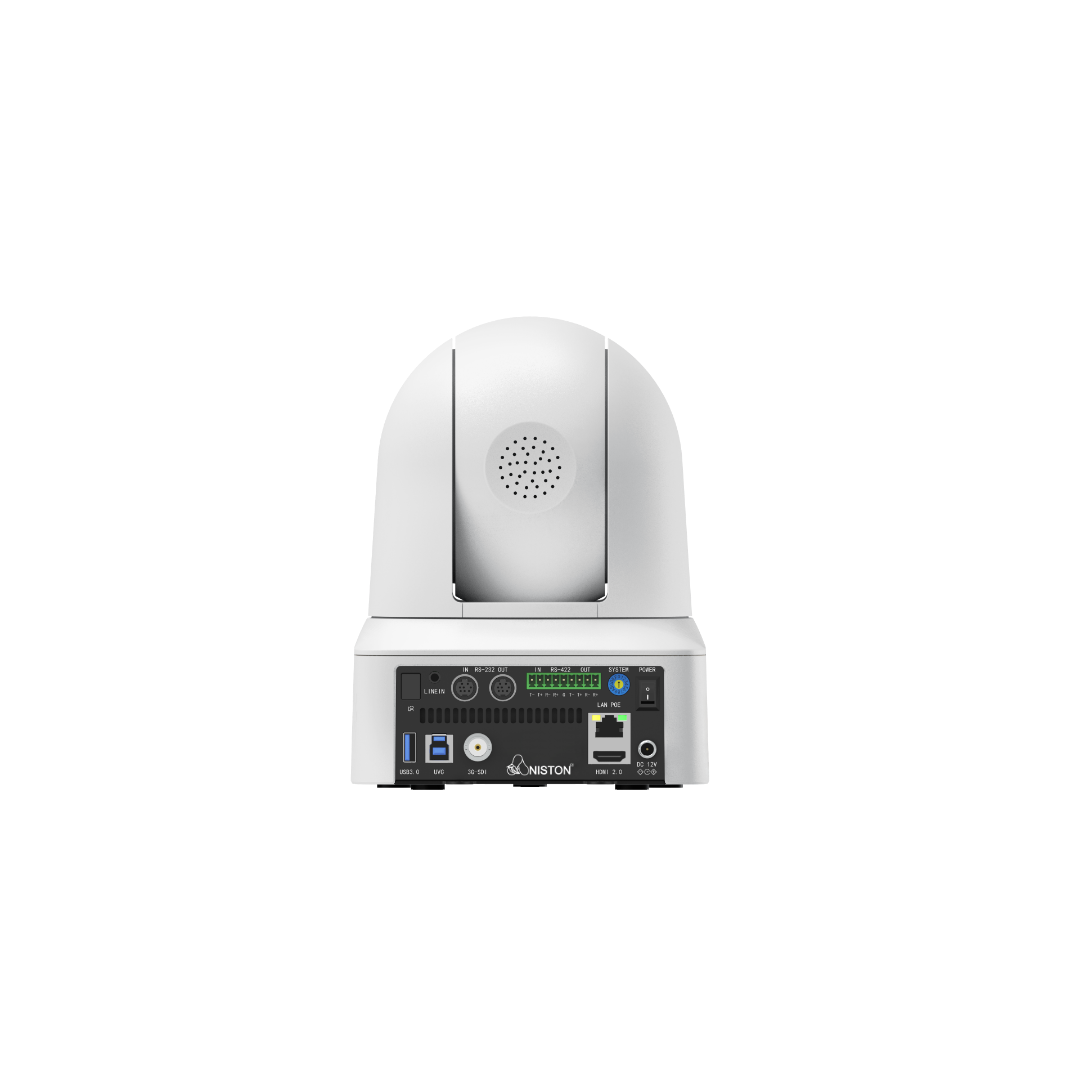

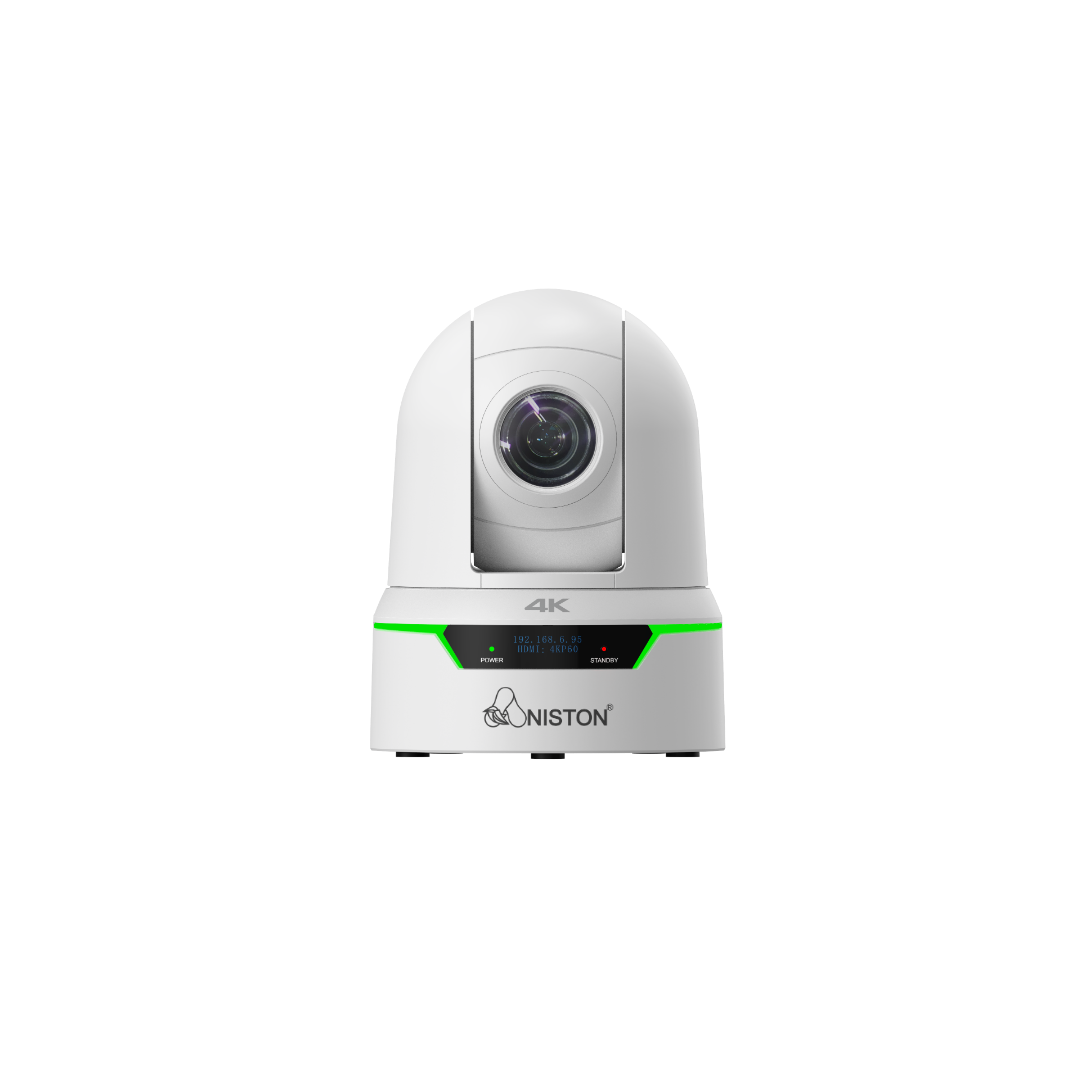

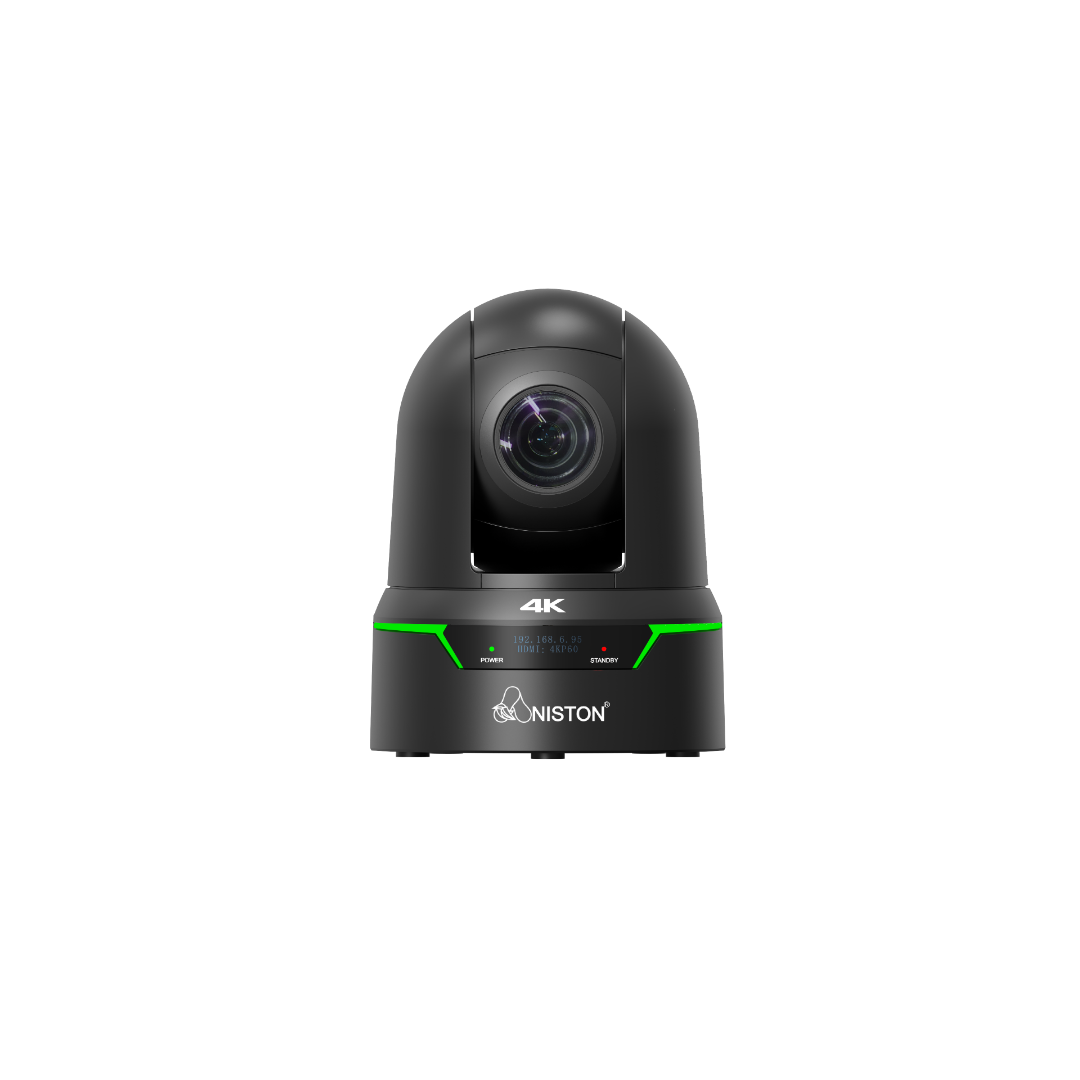

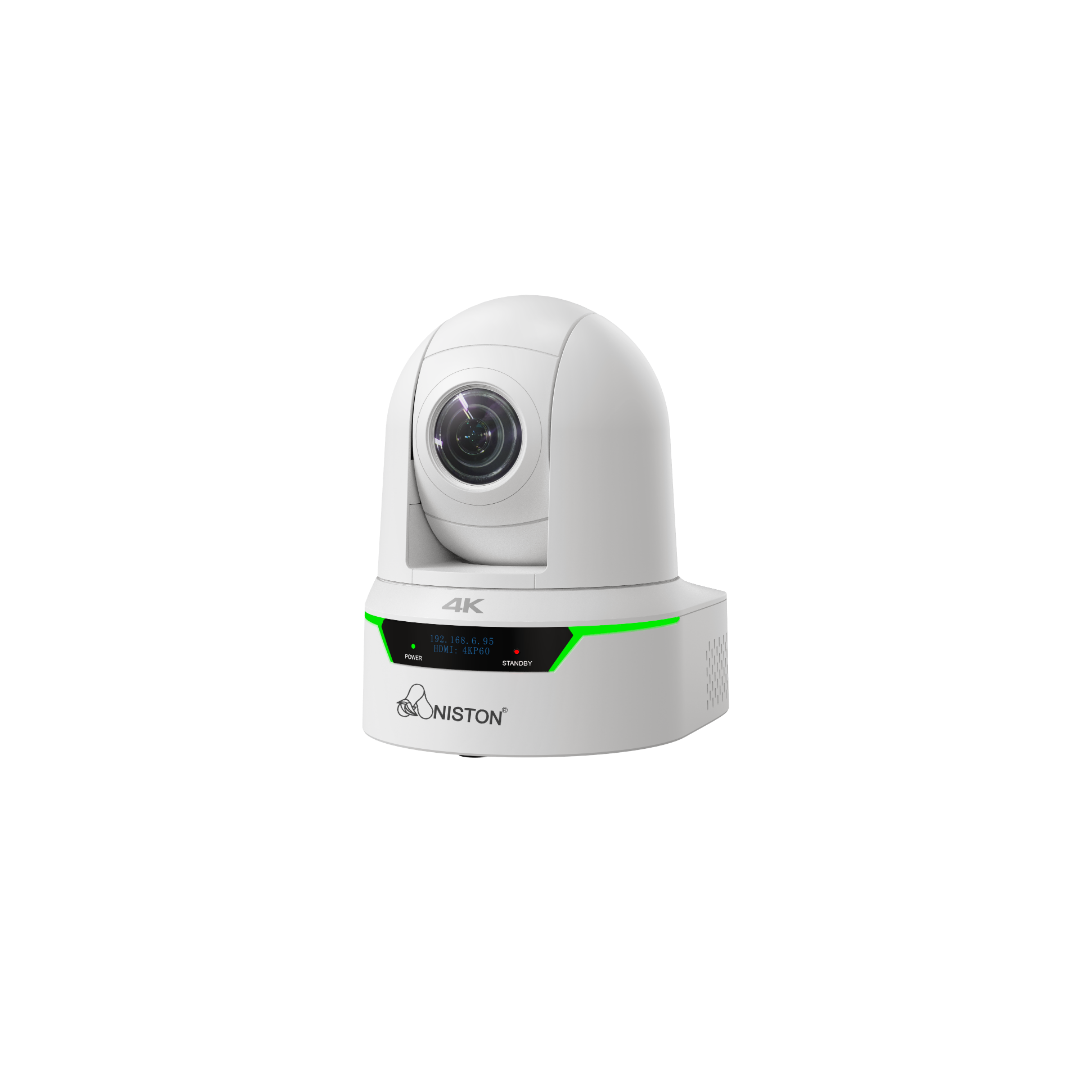

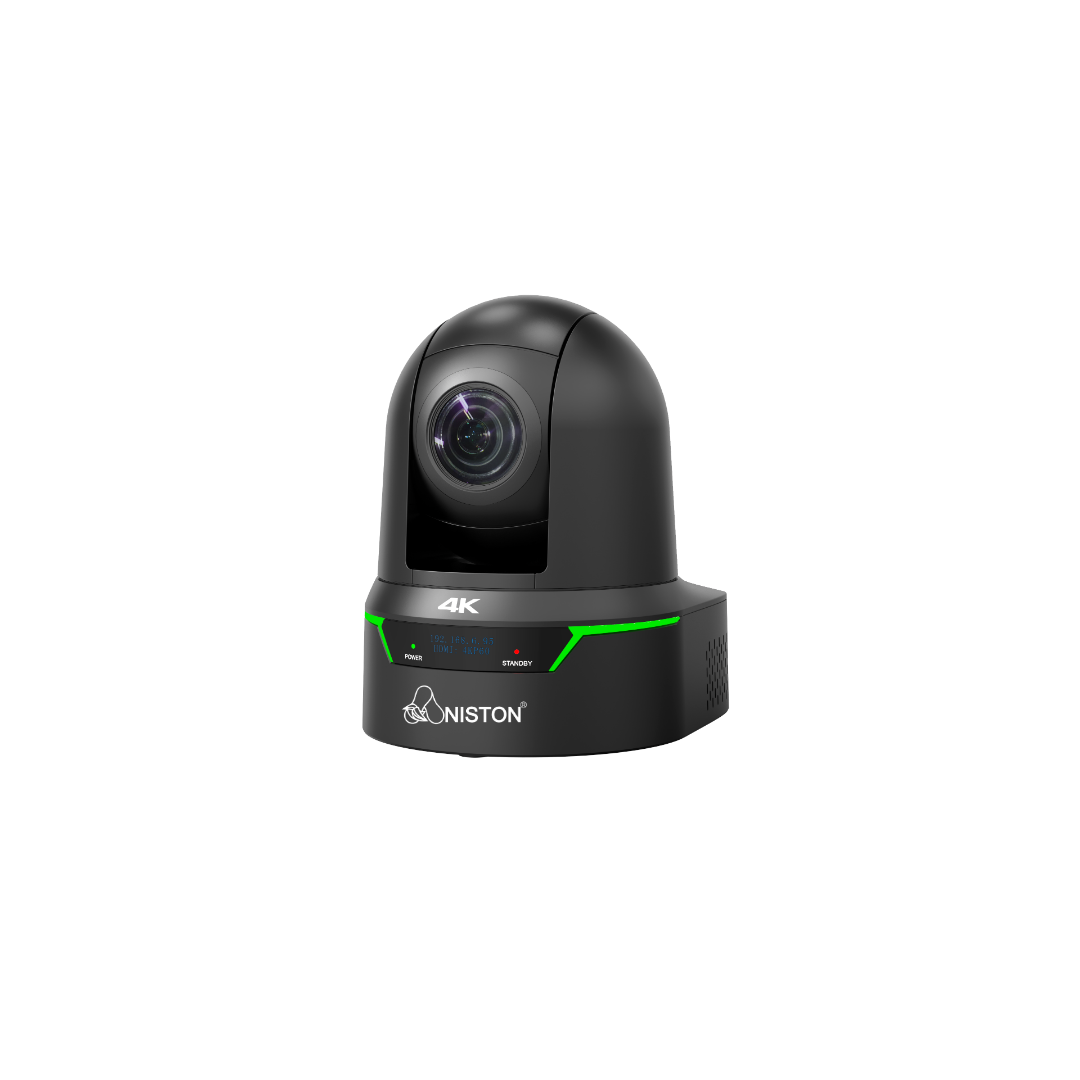

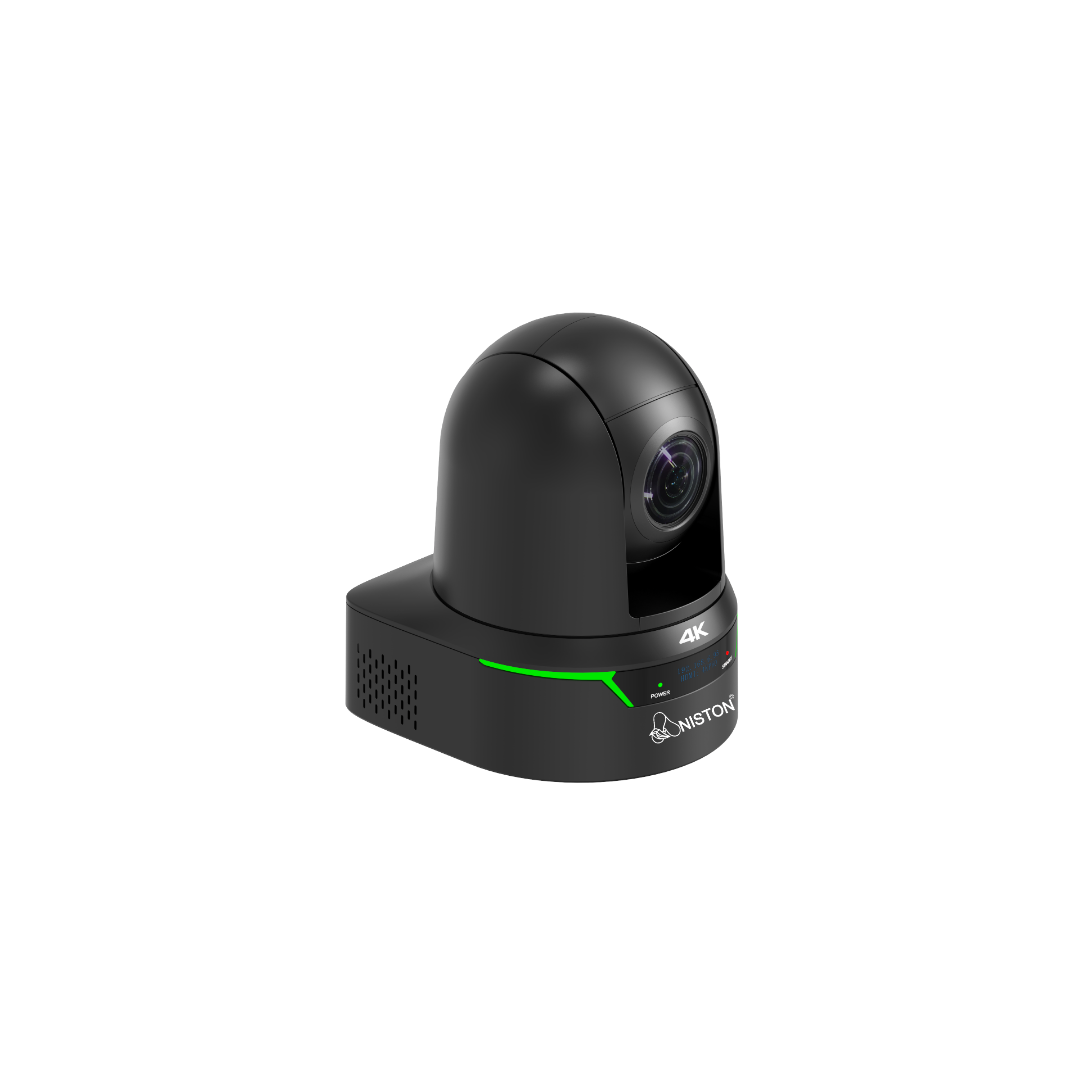

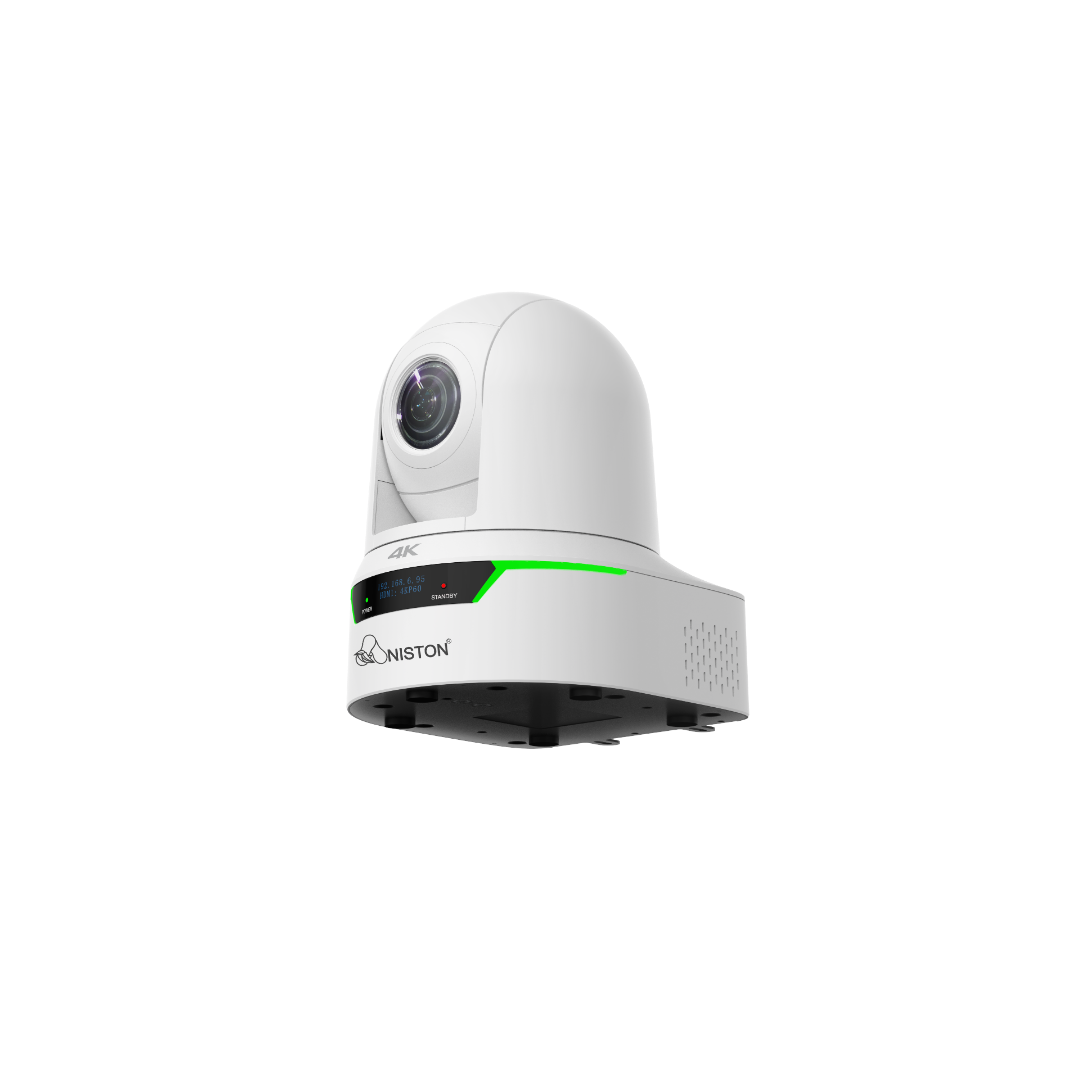

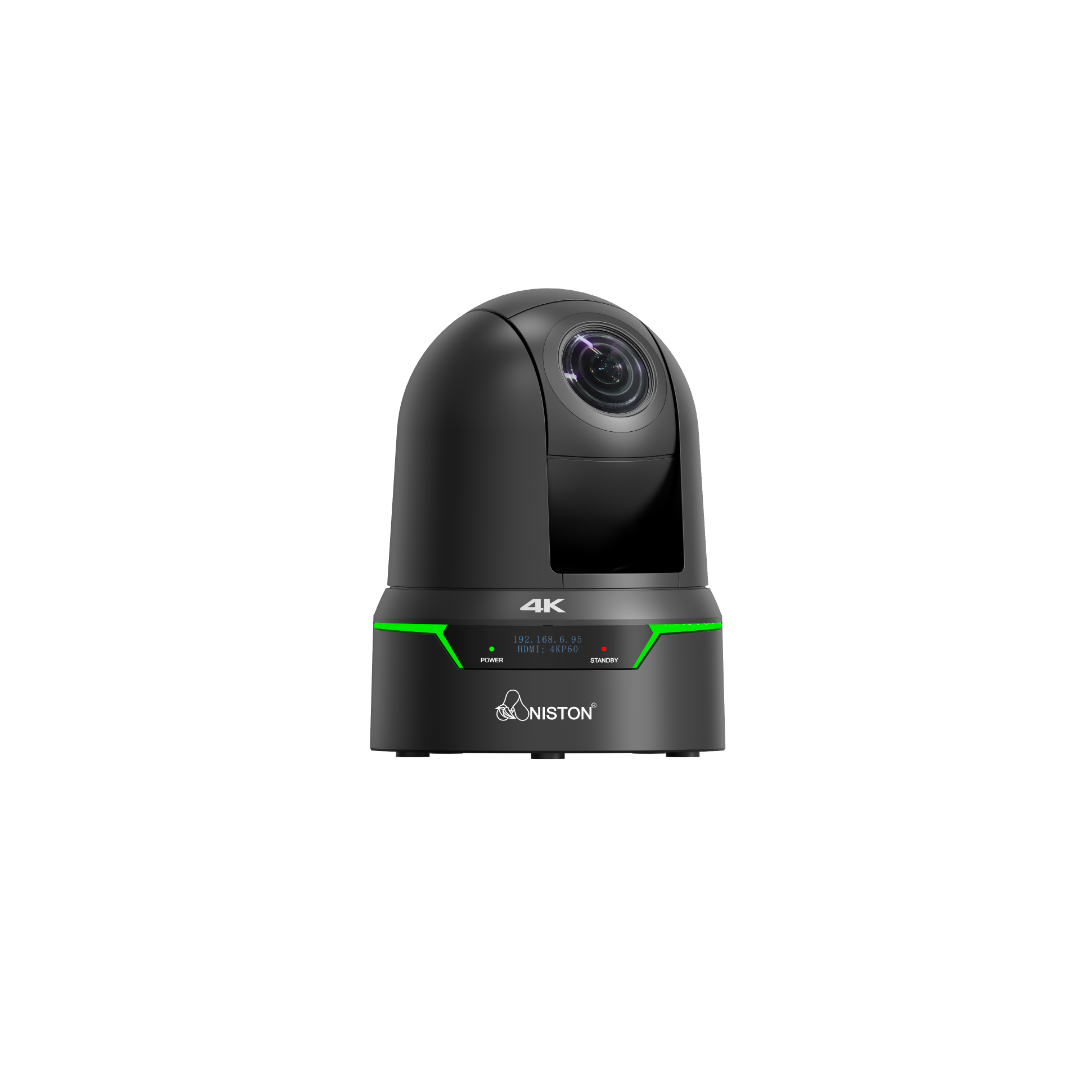

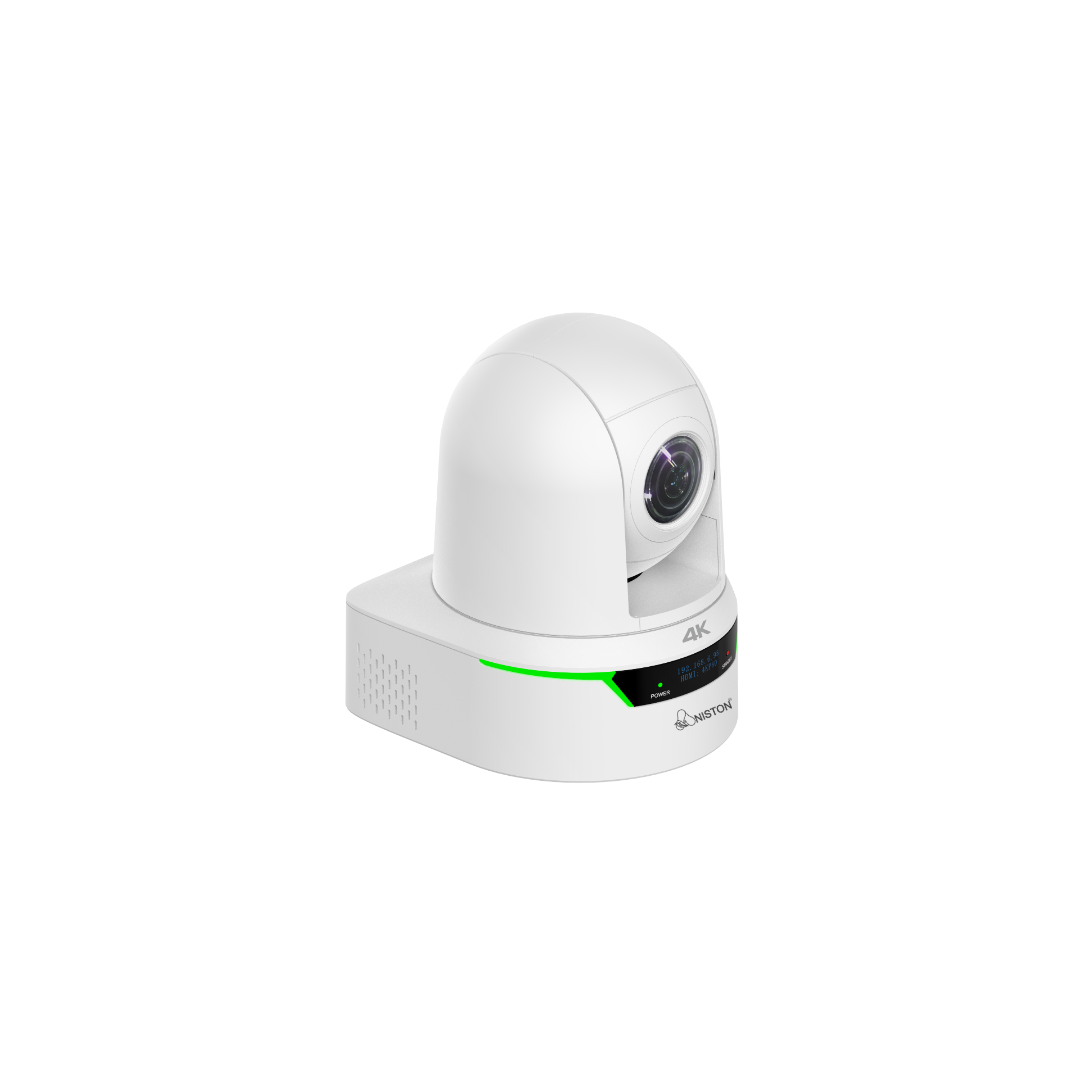

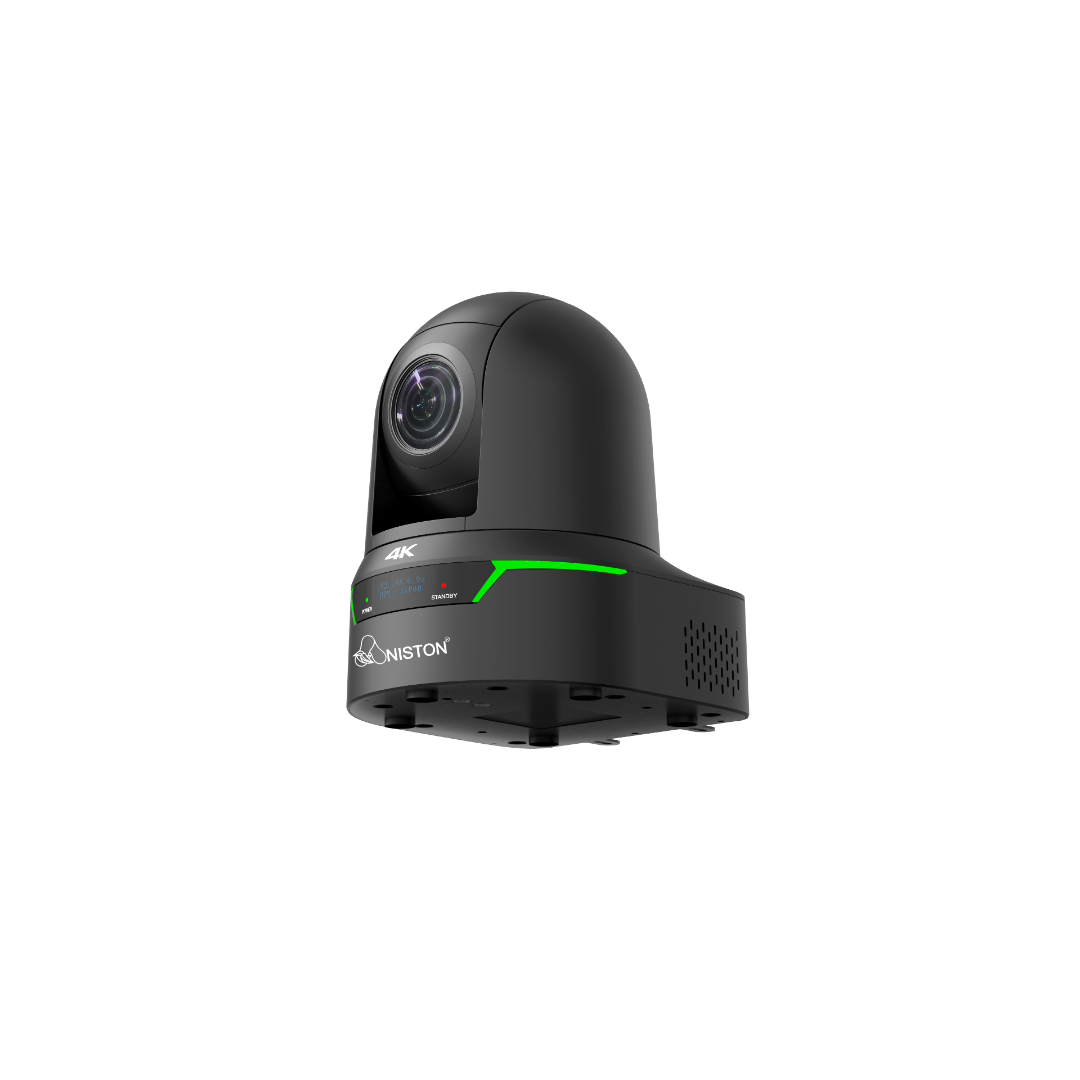

MCP-25U MeetCam Pro
Conference PTZ Camera
The MCP-25U MeetCam Pro is a high-performance 4K60 AI-powered PTZ camera designed for professional conferencing, lecture capture, and hybrid AV environments.
- Ultra HD 4K60 Resolution with SONY Sensor: Equipped with a 1/1.8" SONY CMOS sensor and 8.29MP resolution, the camera delivers stunning Ultra HD clarity at up to 60fps for high-quality visual output.
- 25X Optical + 16X Digital Zoom: Offers sharp and detailed image capture across large spaces, with seamless zoom transitions for precision framing in auditoriums and meeting rooms.
- AI-Based Tracking and Gesture Control: Built-in AI enables auto tracking, auto framing, and gesture recognition for intuitive control—enhancing usability in dynamic environments without needing a remote.
Whether in boardrooms, classrooms, or hybrid event spaces, the MCP-25U MeetCam Pro delivers professional-grade video quality with intelligent tracking and versatile AV integration.
Product Features
- Ultra HD 4K60 output with a high-performance 1/1.8" SONY CMOS sensor delivering 8.29MP resolution.
- 25X optical zoom (4.8mm–120mm) and 16X digital zoom for accurate long-distance framing.
- Exceptional low-light performance with 0.1 lux minimum illumination and advanced 2D + 3D DNR.
- Simultaneous HDMI 2.0, USB 3.0, 3G-SDI, and LAN (IP streaming) output for flexible system integration.
- Support for RTMP, RTSP, SRT, Onvif, DHCP, and FreeD for robust IP streaming workflows.
- Optional NDI|HX2 / HX3 support for next-gen IP-based AV transmission.
- AI-powered auto tracking, human detection, auto framing, and gesture recognition.
- Gesture control support for hands-free zoom, tracking toggle, and preset switching.
- Supports up to 255 preset positions via IP/serial and 9 via IR remote, with ±0.1° accuracy.
- Fast and silent PTZ motion with pan and tilt speeds from 0.1°/s to 120°/s.
- Wide PTZ range: -171° to +171° pan, -30° to +90° tilt, with image flip functionality.
- Video compression formats include H.264, H.265, YUY2, and MJPEG for compatibility across systems.
- 3.5mm audio input with AAC and G.711 compression for synchronized AV applications.
- Web-based GUI for remote camera configuration and firmware management.
- Supports VISCA, VISCA over IP, PELCO-D, PELCO-P, ONVIF, and UVC 1.1 protocols.
- Multiple control interfaces: RS232, RS422, USB, IR remote, and Ethernet (RJ45).
- Visible tally light for live and recording status indication.
- PoE+ (IEEE802.3at) support for simplified single-cable installation.
- Max power consumption of 15.6W, with 12V DC input and 1.3A current capacity.
- Durable and compact body measuring 158mm × 193mm × 208mm, weighing approx. 2.0 kg.
- Supplied with HDMI, USB, RS-232 cables, IR remote, power adapter, and user manual.
- Perfectly suited for boardrooms, lecture halls, classrooms, hybrid events, and live production setups.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | MCP-25U |
| Series | MeetCam Pro |
| Image Sensor | 1/1.8" SONY CMOS, 8.29 Effective Megapixels |
| Optical Zoom | 25X (f = 4.8mm ~ 120mm, F1.6 ~ F3.5) |
| Digital Zoom | 16X |
| Minimum Illumination | 0.1 Lux (color), 0.05 Lux with DNR (30fps, F1.6) |
| S/N Ratio | ≥ 50 dB |
| Shutter Speed | 1/50s to 1/10,000s |
| Aperture | F1.6 ~ F3.5 |
| Max Output Resolutions | HDMI: 3840x2160@60fps; SDI: 1080p@60fps; USB: 3840x2160@30fps |
| Video Formats | 4K: 59.94 / 50 / 30 / 29.97 / 25fps, 1080p: 59.94 / 50 / 30 / 25fps, 720p: 60 / 50fps |
| Viewing Angle (H/V/D) | H: 59.2° ~ 2.5° / V: 34.6° ~ 1.4° / D: 65° typical |
| Focus System | Auto / Manual |
| White Balance | Auto / Indoor / Outdoor / One-push / Manual |
| Exposure Modes | Auto / Manual / Shutter Priority / Brightness Priority |
| Digital Noise Reduction | 2D + 3D DNR (configurable) |
| Backlight Compensation | Supported |
| Wide Dynamic Range (WDR) | Supported |
| Pan Range | -171° to +171° |
| Tilt Range | -30° to +90° |
| Pan Speed | 0.1°/s to 120°/s |
| Tilt Speed | 0.1°/s to 120°/s |
| Preset Positions | 255 presets (via IP/Serial), 9 presets (IR remote) |
| Preset Accuracy | ±0.1° |
| Image Flip | Supported (H/V Flip) |
| Tally Light | Yes |
| AI Functions | Human Detection, Auto Tracking, Auto Framing, Gesture Recognition |
| Gesture Control | Yes (Zoom In/Out, Auto Tracking Toggle, Preset Recall) |
| Video Compression | H.264 / H.265 / YUY2 / MJPEG |
| Audio Input | 1x Line In (3.5mm Jack) |
| Audio Compression | AAC / G.711 |

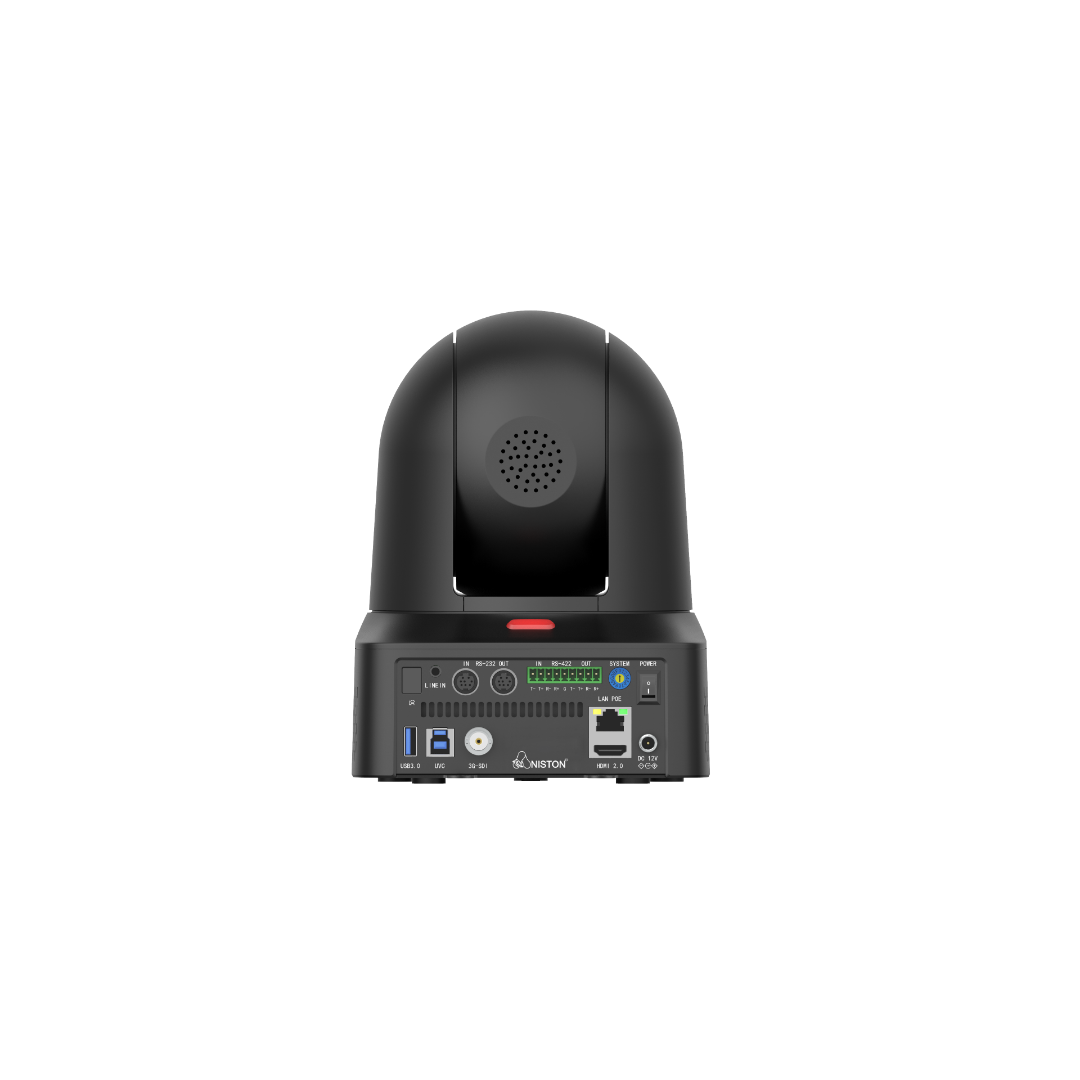

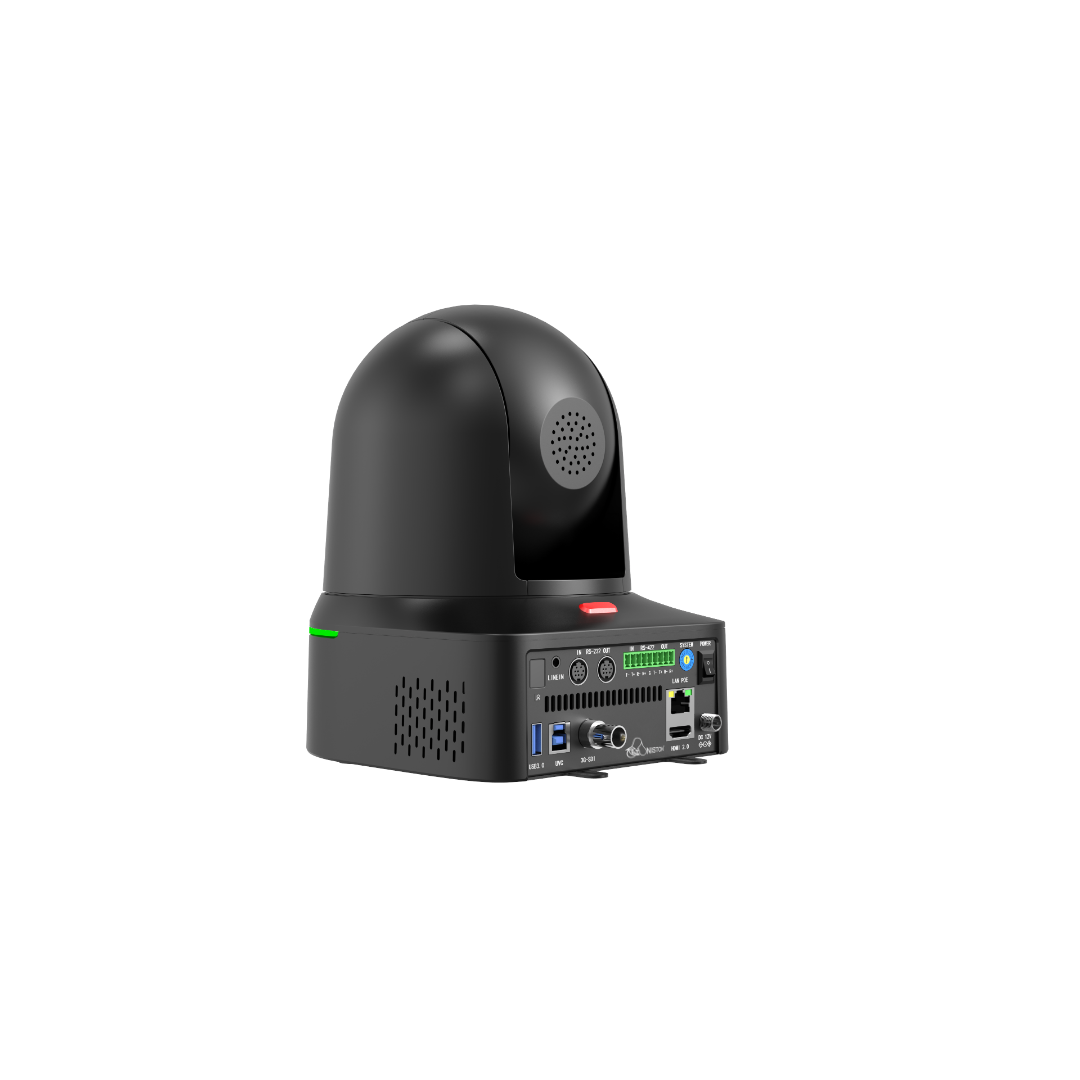

| Video Output Interfaces | HDMI 2.0 / USB 3.0 / 3G-SDI / Ethernet (LAN/IP Streaming) |
| IP Protocols | RTMP / RTSP / SRT / Onvif / DHCP / Free D / HTTP |
| NDI Support | Optional NDI (HX2 / HX3) |
| Control Protocols | VISCA / VISCA over IP / PELCO-D / PELCO-P / ONVIF / UVC 1.1 |
| Control Interface | RS232 / RS422 / USB / Ethernet / IR Remote |
| Web Interface | Yes (Web GUI over LAN) |
| PoE Support | PoE+ (IEEE802.3at) |
| Power Input | DC 12V ±20% (Max current 1.3A) |
| Power Consumption | Max 15.6W (PoE+ or DC adapter) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -10°C to 60°C |
| Dimensions (W×D×H) | 158mm × 193mm × 208mm |
| Weight | Approx. 2.0 kg |
| Mounting Options | Standard Tripod Mount, Wall/Ceiling Bracket (Optional) |
| Included Accessories | DC 12V Power Adapter, IR Remote, HDMI Cable, USB Cable, RS-232 Cable, User Manual |

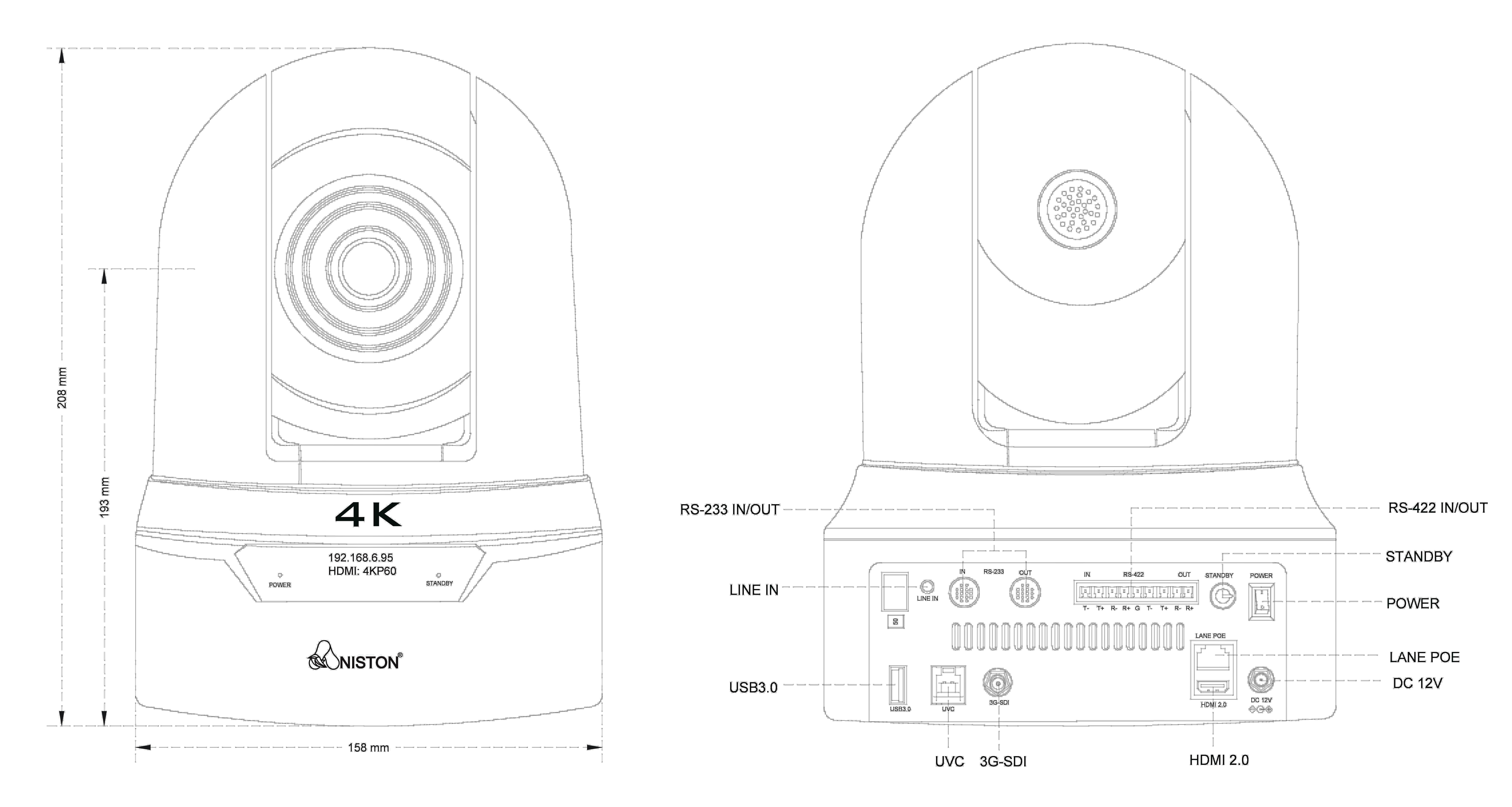

Product Dimension
Resources & Manuals
MCP-25U MeetCam Pro – AI-Enhanced 4K PTZ Camera for Next-Gen Conferencing
The MCP-25U MeetCam Pro is a precision-engineered PTZ camera designed to elevate hybrid meetings, virtual classrooms, and corporate broadcasts. Featuring a 1/1.8” SONY CMOS sensor, true 4K60 output, and intelligent AI tracking, it effortlessly follows presenters and frames discussions with cinematic clarity. With seamless connectivity options and gesture-based control, it transforms any space into a smart, professional-grade communication hub—without compromising on style or simplicity.
Main Features

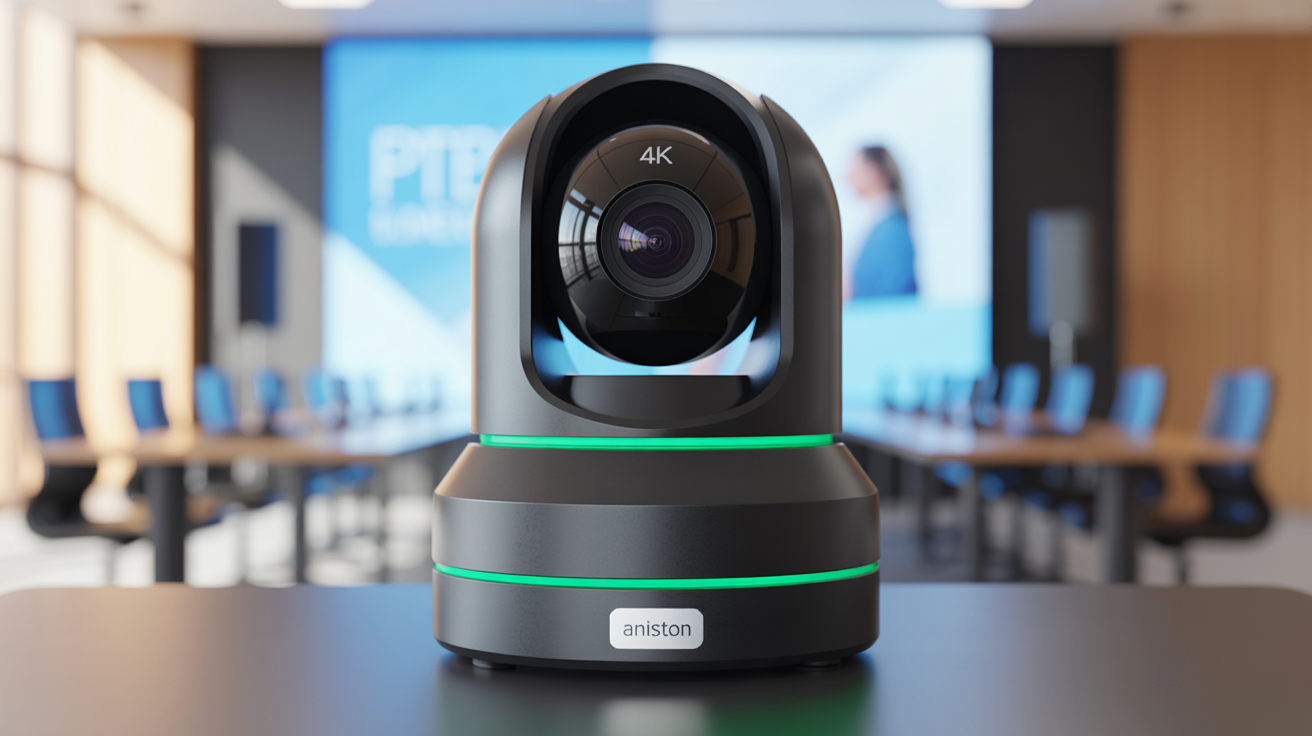

Crystal-Clear 4K60 Video Output
The MCP-25U delivers ultra-high-definition video at 4K resolution and 60fps, powered by a 1/1.8" SONY CMOS sensor. Ideal for conferences and live events, it ensures professional-grade clarity in every frame.
Versatile Connectivity with PoE+ & Multi-Protocol Support
Equipped with HDMI 2.0, USB 3.0, 3G-SDI, and LAN outputs, the camera supports PoE+ and protocols like RTMP, RTSP, SRT, and ONVIF, ensuring seamless integration with diverse AV systems.
AI-Powered Auto Tracking & Gesture Control
Advanced AI enables auto framing, human detection, and presenter tracking. With built-in gesture control, users can control zoom and presets hands-free, making meetings more dynamic and intuitive.
Premium 4K Visual Performance for Immersive Communication
The MCP-25U MeetCam Pro PTZ Camera delivers ultra-clear 4K60 video using a 1/1.8" SONY CMOS sensor, offering broadcast-quality visuals for meetings, lectures, and hybrid events. Designed for seamless AV integration, this AI-powered camera ensures intelligent tracking, dynamic framing, and a professional look for any conferencing environment.
Effortless IP Connectivity & PoE+ Integration
The MCP-25U MeetCam Pro PTZ Camera simplifies system setup with a single RJ45 connection supporting both power (PoE+) and IP video streaming. With support for protocols like RTMP, RTSP, SRT, and ONVIF, it enables seamless networked AV integration. Combined with multi-interface output and AI-driven functionality, it’s built to streamline installations in modern boardrooms, classrooms, and hybrid collaboration spaces.
Smart Connectivity with MCP-25U MeetCam Pro PTZ Camera
Redefine meeting room efficiency with the MCP-25U MeetCam Pro PTZ Camera from ANISTON. Built for intelligent collaboration spaces, this advanced camera delivers ultra-clear 4K60 video and intelligent auto-tracking—ensuring every speaker stays in focus. With native PoE+ and IP streaming support, it powers and connects over a single cable, making deployment effortless and reducing infrastructure overhead. Perfect for future-ready AV environments, it offers smart integration without the complexity.
