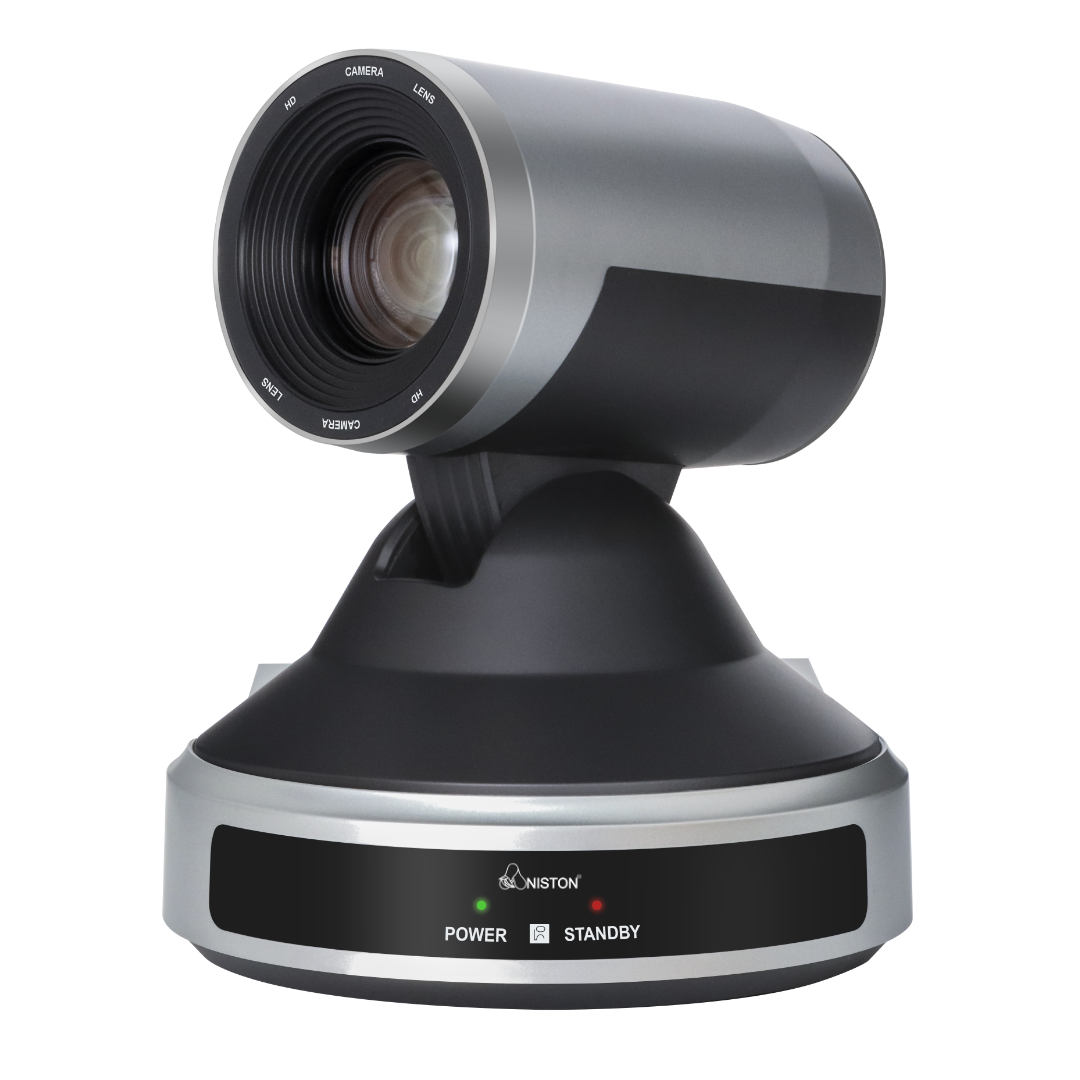

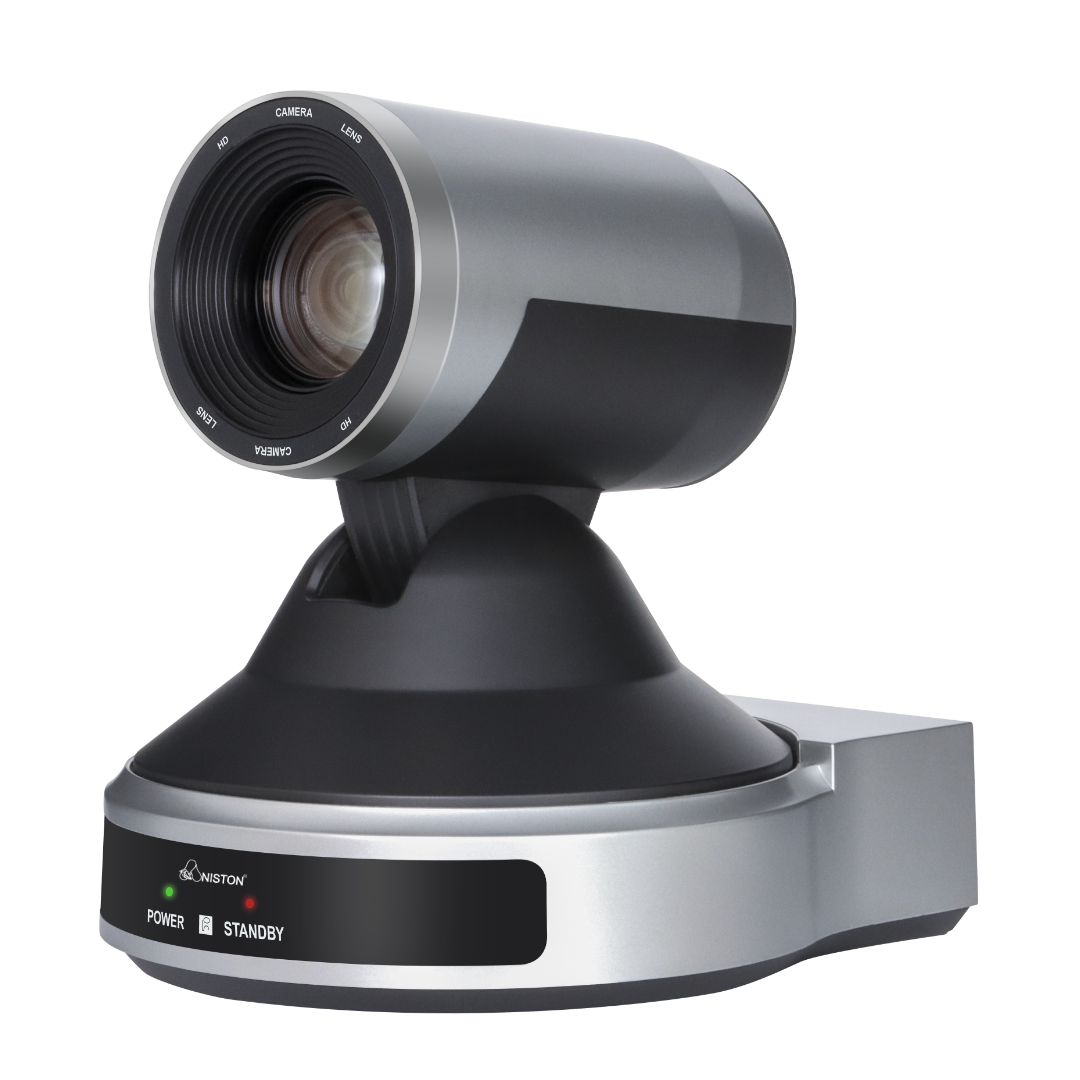

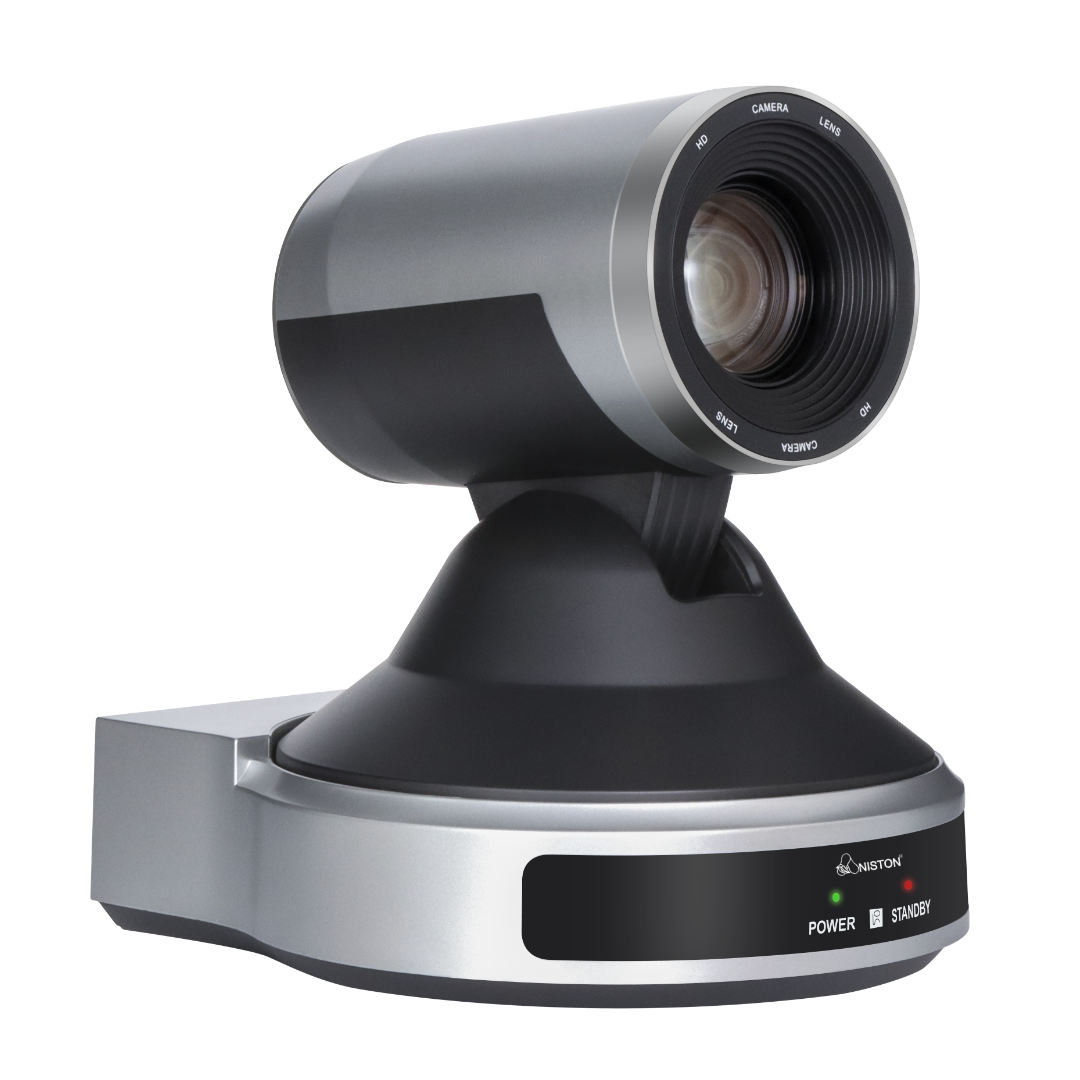

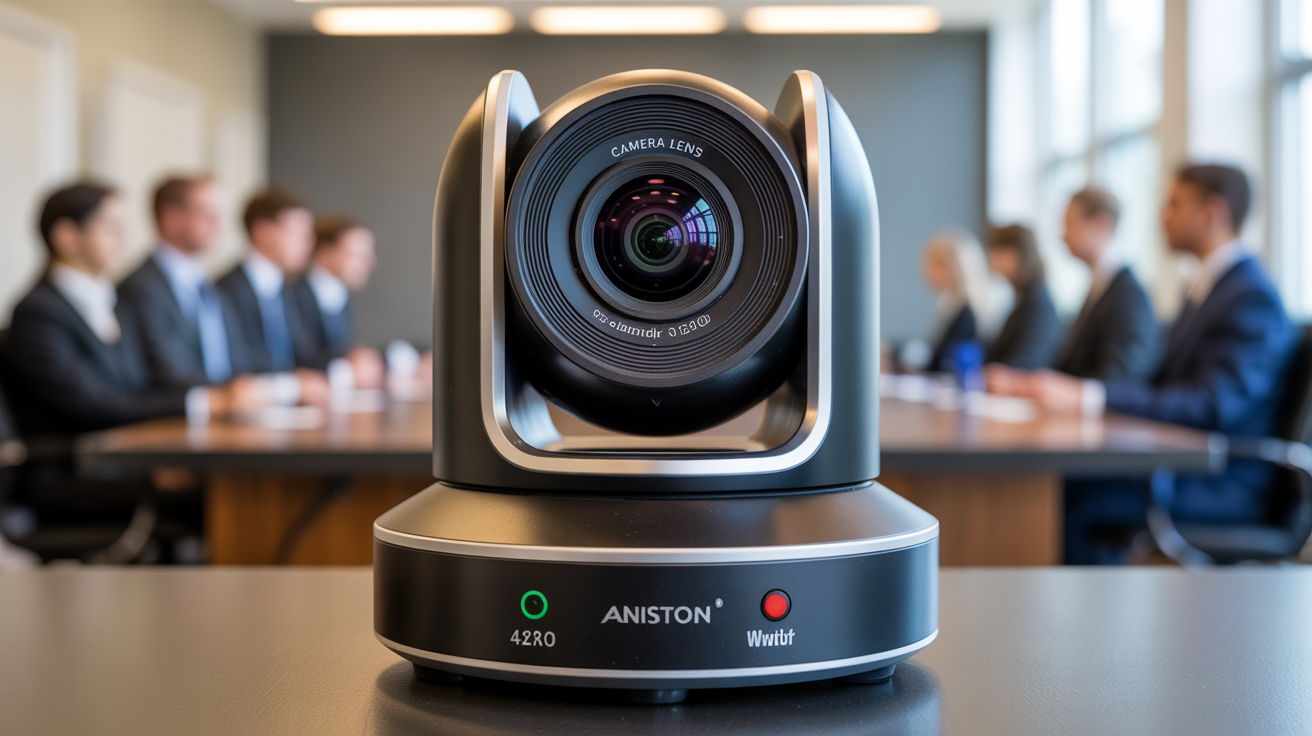

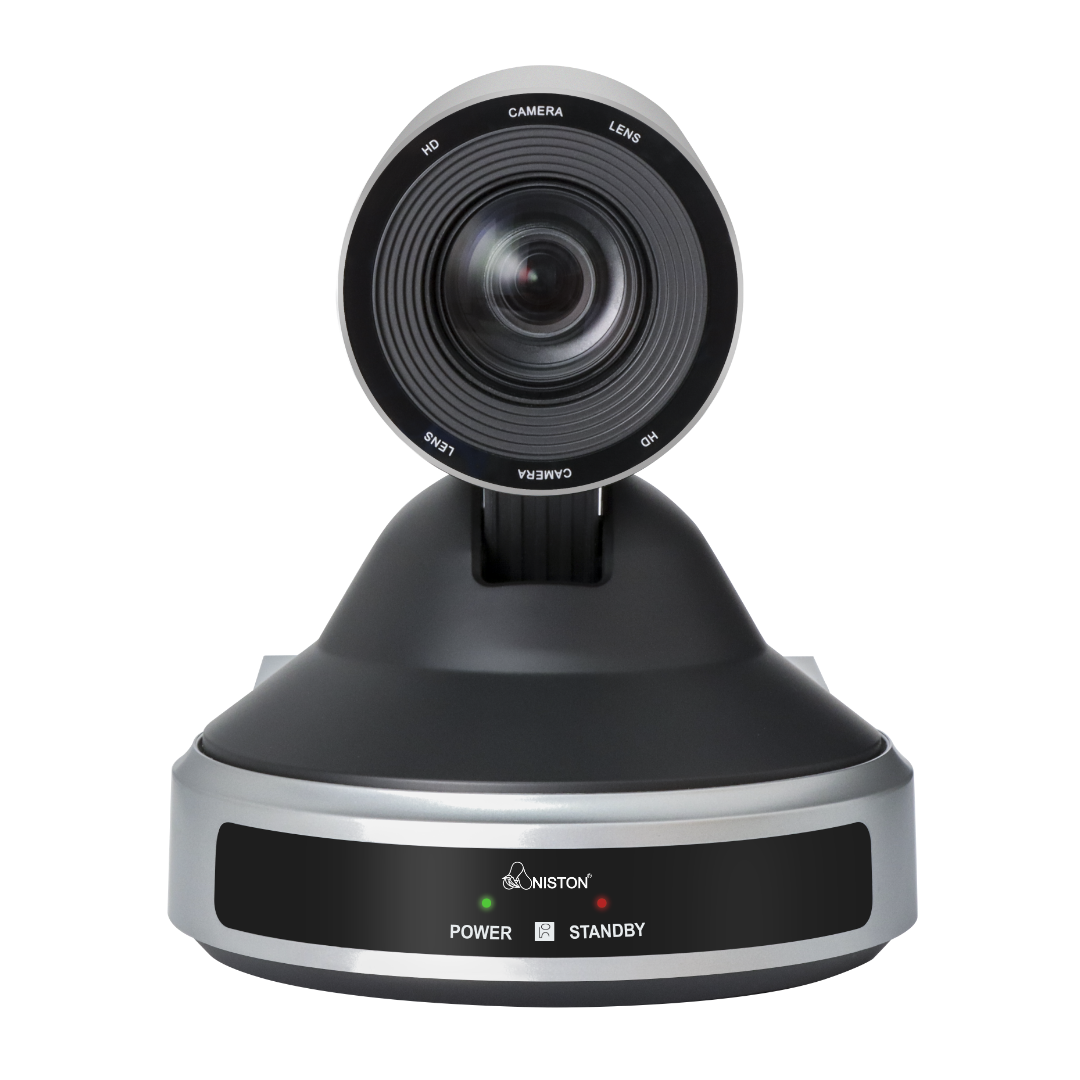

MCP-HD20 MeetCam Pro
AI-Powered 4K PTZ Camera for Smart Conferencing
The MCP-HD20 MeetCam Pro is a 4K60 AI-powered PTZ camera designed to elevate visual communication in conference rooms, lecture halls, and hybrid AV environments. It combines intelligent automation with ultra-high-definition imaging for seamless and professional AV delivery.
- True 4K60 Video with SONY CMOS Sensor: Equipped with a 1/1.8" SONY CMOS sensor and 8.29MP resolution, the camera outputs crystal-clear 4K video at 60fps, delivering smooth, broadcast-quality visuals across diverse lighting conditions.
- 25X Optical Zoom + 16X Digital Zoom: Offers highly detailed image capture and flexible framing from wide to close-up shots—ideal for large meeting spaces and auditoriums.
- AI-Powered Tracking, Framing & Gesture Control: Built-in AI enables smooth auto tracking, face detection, auto framing, and gesture recognition for touch-free, intuitive camera operation—maximizing engagement without manual adjustment.
From executive boardrooms to live lecture capture and remote production, the MCP-HD20 MeetCam Pro delivers premium-grade video with smart automation, making it a reliable choice for modern AV installations.
Product Features
- Professional-grade 4K60 output powered by a 1/1.8" SONY CMOS sensor delivering true 8.29MP resolution.
- 25X optical zoom with 4.8mm–120mm focal length and 16X digital zoom for flexible, long-range image capture.
- Excellent low-light imaging with 0.1 lux minimum illumination and dual-layer 2D & 3D digital noise reduction.
- Multiple outputs including HDMI 2.0, USB 3.0, 3G-SDI, and IP streaming via LAN for maximum deployment flexibility.
- Supports a wide range of streaming protocols: RTMP, RTSP, SRT, Onvif, DHCP, and FreeD for seamless integration.
- NDI|HX2 and HX3 compatibility (optional) for high-efficiency IP video transmission and virtual PTZ workflows.
- Integrated AI features like auto-tracking, face detection, auto-framing, and presenter-following capabilities.
- Smart gesture recognition enables contactless zooming, tracking toggles, and preset activation.
- Up to 255 PTZ preset positions supported via IP and serial, plus 9 presets accessible via IR remote.
- Whisper-quiet pan/tilt motors with adjustable speeds ranging from 0.1°/s to 120°/s for cinematic motion control.
- Flexible PTZ range: -171° to +171° pan and -30° to +90° tilt, with H/V flip support for custom mounting.
- Multiple video compression formats supported: H.264, H.265, YUY2, and MJPEG for adaptive encoding.
- 3.5mm stereo audio input with AAC and G.711 codec support ensures audio-video synchronization.
- Intuitive web-based GUI for remote configuration, firmware updates, and system diagnostics.
- Supports industry-standard control protocols: VISCA, VISCA over IP, PELCO-D, PELCO-P, ONVIF, and UVC 1.1.

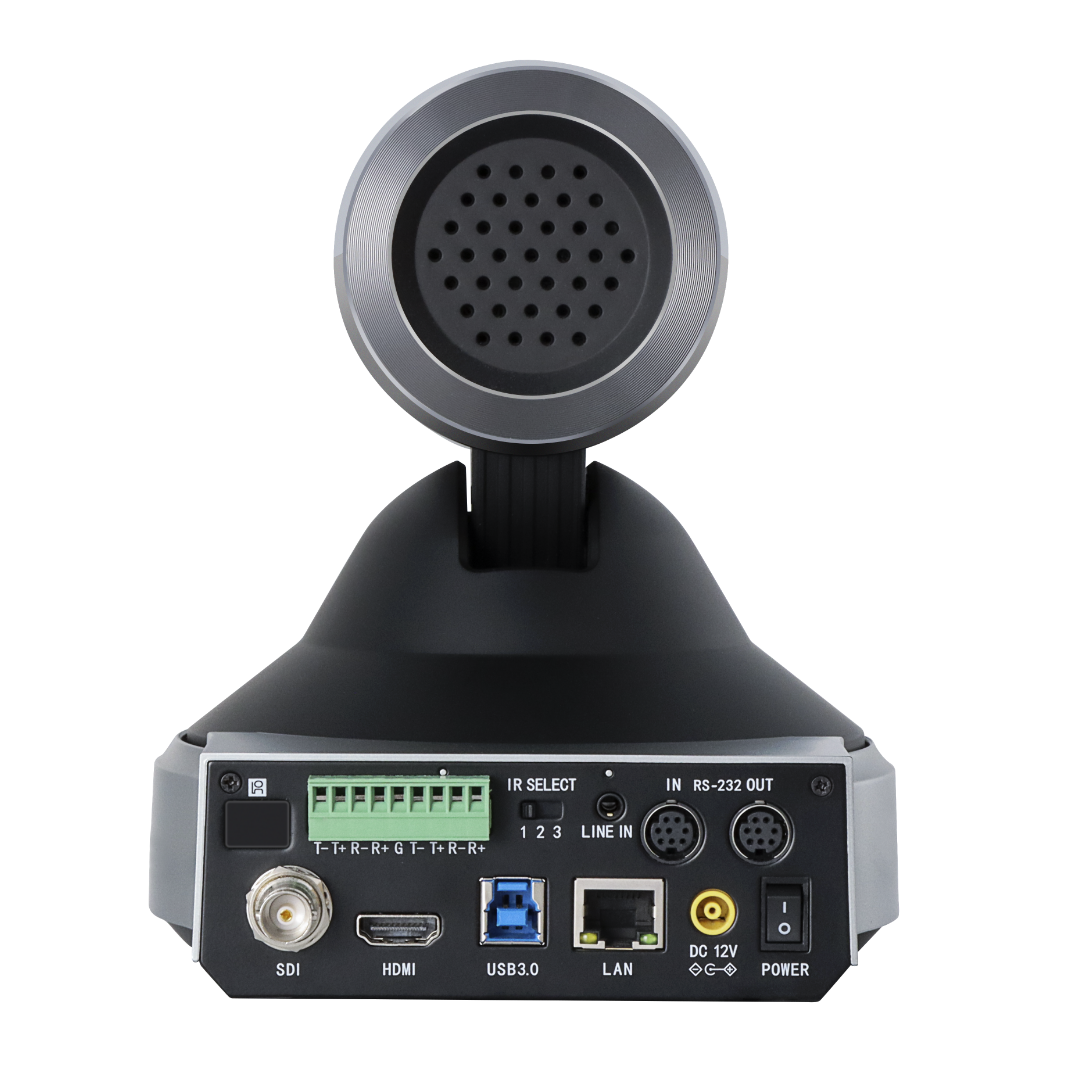

- Comprehensive control interfaces: RS232, RS422, USB, Ethernet (RJ45), and IR remote.
- Integrated tally light indicator for live streaming and recording feedback.
- Power-over-Ethernet Plus (PoE+) enables single-cable operation for power and network connectivity.
- Low power consumption of max 15.6W; operates on 12V DC input with 1.3A current.
- Rugged and compact chassis (158mm × 193mm × 208mm), weighing approximately 2.0 kg.
- Bundled accessories include HDMI cable, USB cable, RS-232 cable, IR remote, power adapter, and user manual.
- Perfect for modern AV setups in classrooms, auditoriums, boardrooms, hybrid meetings, and streaming studios.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | MCP-HD20 |
| Series | MeetCam Pro |
| Image Sensor | 1/2.8" SONY CMOS, 8.29 Megapixels |
| Optical Zoom | 20X (f = 4.7mm ~ 94.0mm) |
| Digital Zoom | 16X |
| Minimum Illumination | 0.1 Lux (color), 0.05 Lux (DNR On) |
| S/N Ratio | ≥ 50 dB |
| Shutter Speed | 1/30s to 1/10,000s |
| Aperture | F1.6 ~ F3.5 |
| Max Output Resolutions | HDMI/USB: 3840x2160@30fps; SDI: 1080p@60fps |
| Video Formats | 4K: 30 / 25fps, 1080p: 60 / 50 / 30 / 25fps, 720p: 60 / 50fps |
| Viewing Angle (H/V/D) | H: 60.7°, V: 34.1°, D: 68.6° |
| Focus System | Auto / Manual |
| White Balance | Auto / Manual / Indoor / Outdoor / One-push |
| Exposure Modes | Auto / Manual / Shutter Priority / Iris Priority |
| Digital Noise Reduction | 2D + 3D DNR |
| Backlight Compensation | Supported |
| Wide Dynamic Range (WDR) | Supported |
| Pan Range | -170° to +170° |
| Tilt Range | -30° to +90° |
| Pan Speed | 0.1°/s to 100°/s |
| Tilt Speed | 0.1°/s to 80°/s |
| Preset Positions | 255 presets (IP/Serial), 10 presets (IR) |
| Preset Accuracy | ±0.1° |
| Image Flip | Supported (H/V Flip) |
| Tally Light | Yes |
| AI Functions | Human Detection, Auto Tracking, Auto Framing |
| Gesture Control | Yes |
| Video Compression | H.264 / H.265 / MJPEG |
| Audio Input | 3.5mm Line In |
| Audio Compression | AAC / G.711 |
| Video Output Interfaces | HDMI / USB 3.0 / 3G-SDI / LAN (IP Streaming) |
| IP Protocols | RTMP / RTSP / SRT / Onvif / HTTP / DHCP |
| NDI Support | Optional (NDI|HX2 / HX3) |
| Control Protocols | VISCA / VISCA over IP / PELCO-D / PELCO-P / ONVIF / UVC |
| Control Interfaces | RS232 / RS485 / USB / IR / LAN |
| Web Interface | Yes (via LAN) |
| PoE Support | PoE+ (IEEE802.3at) |
| Power Input | DC 12V ±10% |
| Power Consumption | Max 15W |
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -10°C to 60°C |
| Dimensions (W×D×H) | 150mm × 170mm × 180mm |
| Weight | Approx. 1.8 kg |
| Mounting Options | Tripod, Wall / Ceiling Bracket (Optional) |
| Included Accessories | Power Adapter, IR Remote, HDMI Cable, USB Cable, RS-232 Cable, Manual |

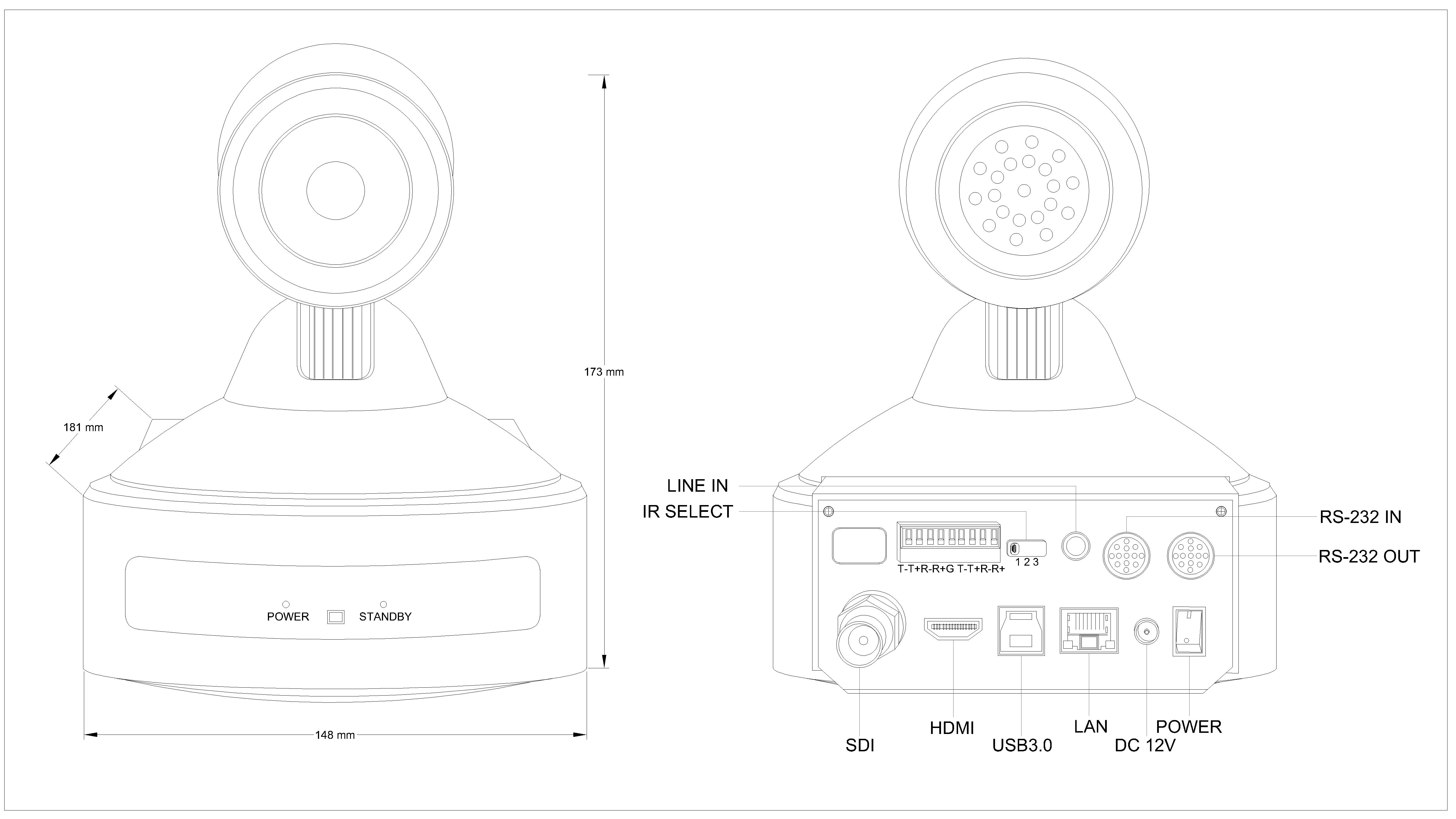

Product Dimension
Resources & Manuals
Precision 4K PTZ Camera with AI Intelligence
The MCP-HD20 MeetCam Pro is a high-performance 4K30 PTZ camera built for modern conferencing, live streaming, and educational setups. Powered by a 1/2.8” SONY CMOS sensor and 8.29MP resolution, it delivers ultra-clear 4K visuals at 30fps, even in low-light environments. Its 20X optical zoom and 16X digital zoom ensure smooth, detailed image capture across large spaces.
With built-in AI features like auto tracking, auto framing, and gesture recognition, the camera brings intelligent automation to any professional AV setup. Multi-protocol support including RTMP, RTSP, SRT, and ONVIF—along with PoE+ and HDMI/USB/SDI outputs—makes integration seamless in hybrid classrooms, boardrooms, and live events.
Main Features
Stunning 4K30 Clarity with SONY Imaging
The MCP-HD20 delivers crisp Ultra HD visuals at 4K 30fps, powered by a 1/2.8" SONY CMOS sensor with 8.29MP resolution. Whether for virtual meetings, lectures, or studio applications, every frame maintains cinematic sharpness.
Streamlined Connectivity with PoE+ & IP Protocols
With HDMI, USB, 3G-SDI, and LAN outputs, the MCP-HD20 supports PoE+ power and streaming via RTMP, RTSP, SRT, and ONVIF. Designed for seamless integration into hybrid classrooms, boardrooms, or streaming setups.
Smart AI Tracking & Intuitive Gesture Control
Built-in AI technology provides human detection, auto framing, and tracking, while gesture control allows users to adjust zoom or recall presets with a simple hand motion—perfect for presenter-led spaces without needing a remote.
Clear Vision in Every Frame with 4K Smart Imaging
The MCP-HD20 MeetCam Pro PTZ Camera is built for performance and precision, capturing lifelike 4K30 video through its 1/2.8" SONY CMOS sensor. Whether used in classrooms, studios, or conference rooms, it ensures vivid image reproduction and reliable focus across varying lighting conditions. Combined with intelligent features like AI-based framing and gesture-enabled control, it transforms ordinary meetings into seamless, high-quality visual experiences.
Unified Power & Streaming with Smart IP Integration
The MCP-HD20 MeetCam Pro PTZ Camera streamlines deployment with a single RJ45 interface supporting both PoE+ power delivery and IP-based video transmission. With built-in compatibility for RTMP, RTSP, SRT, DHCP, and ONVIF protocols, it offers plug-and-play network integration. Ideal for modern AV infrastructure, the camera delivers simplified wiring, efficient power management, and broad connectivity via HDMI, USB 3.0, 3G-SDI, and LAN—all within a compact, AI-enhanced PTZ platform.
Seamless Integration with AI-Ready IP & Power Delivery
Experience simplified AV setup with the MCP-HD20 MeetCam Pro PTZ Camera by ANISTON. Purpose-built for modern collaboration environments, it features PoE+ support and IP streaming through a single RJ45 connection—minimizing cabling while maximizing efficiency. From live classes to corporate meetings, this camera ensures intelligent automation, consistent power, and smart connectivity across platforms without added complexity.
