Sonorix 0604 DSP+D
Dante Network DSP Amplifier
The Sonorix 0604 DSP+D is a professional 4-channel DSP amplifier purpose-built for enterprise-grade AV installations. Integrating powerful Class-D amplification, real-time DSP processing, and dual-port Dante audio networking, it ensures pristine signal performance, flexible system configuration, and robust reliability for demanding commercial spaces.
- High-Efficiency Class-D Amplification: Outputs 4×900W @ 4Ω and 4×600W @ 8Ω, with bridged operation delivering up to 2×1800W @ 8Ω or 2×1250W @ 100V. Supports both low-impedance and high-voltage 70V/100V speaker systems for versatile deployment.
- Advanced DSP Processing: Powered by a 300MHz ADI DSP core running at 48kHz/24-bit, the amplifier includes FIR filters (2048 taps), 15-band input PEQ, 10-band output EQ, compressor, limiter, noise gate, and AFC for precise, real-time audio optimization.
- Dante Networking & I/O Flexibility: Integrated 4×4 Dante interface with AES67 support and dual-port redundancy. Offers 4× XLR analog/digital auto-switching inputs and 4× SpeakON outputs, plus control options via USB, TCP/IP, RS232/RS485, and GPIO.
- Comprehensive System Protection: Equipped with adaptive fan cooling and protection circuits for thermal shutdown, overcurrent, short circuit, DC fault, low load impedance, and back-EMF—ensuring uninterrupted operation and system longevity.
Whether for conference halls, educational campuses, or hospitality venues, the Sonorix 0604 DSP+D guarantees clean, efficient audio performance with unmatched configuration and protection options.
Product Features
- Outputs 4×900W @ 4Ω and 4×600W @ 8Ω; bridgeable to 2×1800W @ 8Ω or 2×1250W @ 100V constant voltage mode.
- Compatible with low-impedance speakers (4Ω/8Ω) and 70V/100V high-voltage distributed sound systems.
- Powered by a 300MHz ADI fixed-point DSP engine with 48kHz/24-bit audio resolution.
- Supports up to 2048-tap FIR filters, 15-band parametric EQ on input, and 10-band PEQ on output per channel.
- 4×4 DSP matrix with full input-output routing and adjustable crosspoint level controls.
- Dual Dante ports with redundancy and AES67 compatibility for fail-safe digital audio networking.
- 4× balanced XLR inputs with auto-detect Analog/AES-EBU switching and 4× SpeakON output connectors.
- Offers USB, TCP/IP, RS232, RS485, and Phoenix GPIO for wide-ranging control and third-party integration.
- Full-spectrum protection: surge, thermal shutdown, short-circuit, DC, and load impedance failure recovery.
- Advanced fan cooling system with temperature-based speed control ensures quiet, effective heat dissipation.
- Ultra-low latency (<1ms) processing with ≥103dB signal-to-noise ratio for premium sound quality.
- Includes channel-wise AFC (adaptive feedback control), compressor, limiter, and noise gate functionality.
- Real-time monitoring via software interface for temperature, voltage, current, and speaker load metrics.
- Supports 100V–240V AC input with power factor correction (PFC) and energy-efficient standby power usage.
- Space-saving 1U rackmount design built with durable, thermally optimized metal chassis.
- CE, FCC, RoHS, and BIS certified with 3-year warranty (extendable to 5 years upon request).
Technical Specifications
| Parameter | Details |
|---|---|
| Model Name | Sonorix 0604 DSP+D (SX-0604-D) |
| Amplifier Class | Class D |
| Output Power @ 8Ω | 4 × 600W |
| Output Power @ 4Ω | 4 × 900W |
| Bridge Mode Output @ 8Ω | 2 × 1800W |
| Frequency Response | 20Hz–20kHz (±0.5dB @ 8Ω) |
| DSP Processor | 300MHz ADI Fixed-Point Core |
| Sampling Rate / Bit Depth | 48kHz / 24-bit |
| System Latency | < 1ms |
| SNR | ≥103dB (A-weighted @ 12dBu) |
| Input Connectors | 4 × XLR (Balanced, Analog / AES-EBU switchable) |
| Link Outputs | N/A |
| Speaker Outputs | 4 × SpeakON |
| Dante Audio Channels | 4-in / 4-out, Dual-Port Redundancy |
| AES67 Support | Yes |
| Matrix Mixer | 4×4 with adjustable crosspoints |
| Input PEQ | 15-band PEQ per channel |
| Output PEQ | 10-band PEQ per channel |
| FIR Filters | 2048 taps (linear phase) |
| Audio Functions | Noise Gate, Compressor, Limiter, Delay, AFC |
| Protection | Thermal, DC, Surge, Short-Circuit, Back-EMF |
| Cooling | Dual intelligent fans, front-to-back airflow |
| Control Interfaces | TCP/IP, USB, RS232/485, Phoenix GPIO |
| Software Interface | PC GUI (Windows) |
| Preset Management | User-defined presets and recall |
| Power Supply | AC 100–240V, 50/60Hz with PFC |
| Standby Power Consumption | <62W |
| Operating Temperature | -20°C to +60°C |
| Chassis Dimensions | 483 × 309 × 44.5mm (1U rackmount) |
| Weight | 6kg (net) / 7kg (packaged) |
| Mounting | Standard 19” 1U rackmount |
| Certifications | CE, FCC, RoHS, BIS |
| Warranty | 3 Years (extendable to 5 Years) |

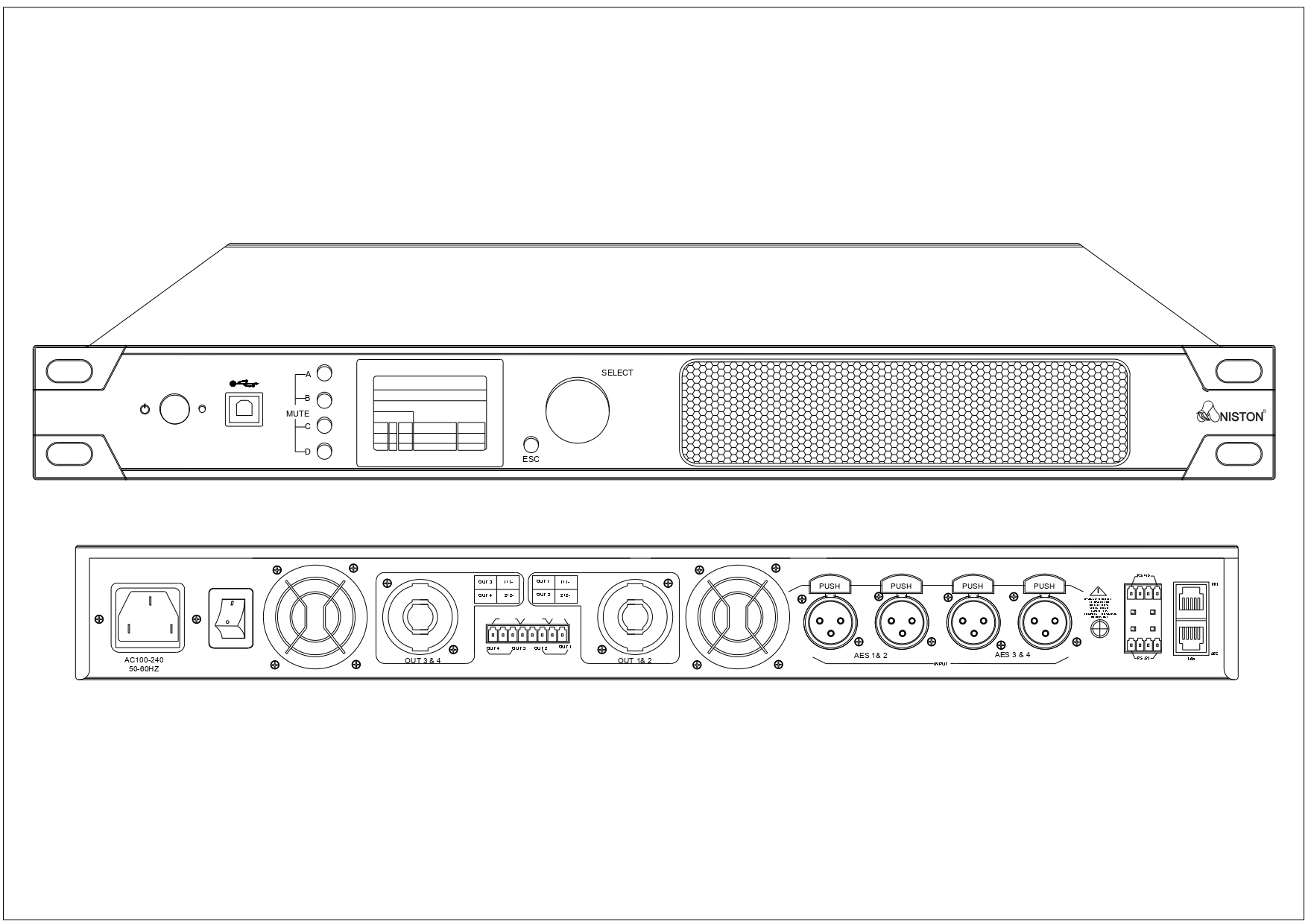

Mechanical Drawing
Resources & Manuals
Software & Downloads
Coming Soon
Intelligent DSP Amplifier with Redundant Dante Networking
The Sonorix 0604 DSP+D is a compact, professional 4-channel DSP
amplifier
engineered for commercial audio installations such as lecture halls, hospitality venues,
campuses, and enterprise AV systems. With 4×900W @ 4Ω output and support for 70V/100V
constant
voltage distribution, it delivers both power and flexibility in a space-saving 1U form
factor.
Its 300MHz fixed-point DSP processor ensures precise audio management through 2048-tap
FIR
filtering, 15-band input and 10-band output EQ, compressor, limiter, delay alignment,
and AFC.
A fully configurable 4×4 matrix mixer allows seamless routing across multiple zones.
Integrated dual Dante ports with AES67 support provide network redundancy and reliable,
low-latency audio streaming over IP. With real-time monitoring, USB/TCP/IP/RS232
control,
intelligent thermal cooling, and multi-layer protection, it’s built to deliver long-term
stability in mission-critical AV applications.
Main Features
High-Power Class-D Amplification
Delivers 4×900W @ 4Ω and 4×600W @ 8Ω, with bridge mode offering up to 2×1800W @ 8Ω or 2×1250W @ 100V. Optimized for low-impedance and 70V/100V systems, it’s built for commercial AV deployments in large venues.
Advanced DSP Processing
Equipped with a 300MHz fixed-point DSP core operating at 48kHz/24-bit, the unit offers 2048-tap FIR filters, 15-band input and 10-band output PEQ, dynamic controls, and real-time matrix mixing with per-channel audio shaping and feedback suppression.
Dante Networking with Redundancy
Includes a 4×4 Dante interface with AES67 compatibility and dual-port redundancy. Ensures reliable, low-latency digital audio transport over IP networks for fail-safe integration in mission-critical sound systems.
High-Efficiency DSP Amplifier for Commercial Audio Solutions
The Sonorix 0604 DSP+D is a compact yet powerful 4-channel Class-D amplifier tailored for
demanding AV setups in auditoriums, hotels, campuses, and commercial venues. It outputs 4×900W @ 4Ω
and supports bridge mode up to 2×1800W @ 8Ω, offering efficient and stable performance across
low-impedance and 70V/100V distributed audio systems.
Designed for space-saving 1U rackmount integration, it brings together scalable power delivery,
rugged durability, and precision DSP in one streamlined solution.
Seamless Dante Integration & Advanced DSP Control
The Sonorix 0604 DSP+D incorporates dual Dante ports with AES67 compatibility and redundancy
for uninterrupted, lossless digital audio transmission. It enables ultra-low latency performance for
critical multi-zone AV systems.
Engineered with a 300MHz DSP core and real-time matrix mixing, it features 2048-tap FIR filters,
per-channel EQ, compressor, limiter, delay, and AFC. Flexible I/O includes USB, TCP/IP, RS232/485,
and GPIO—managed through an intuitive GUI for seamless system control.
Seamless Integration with Sonorix 0604 DSP+D Amplifier
Experience scalable, high-precision audio distribution with the Sonorix 0604
DSP+D by ANISTON. Designed for commercial AV
environments, it merges robust Class-D power amplification with intelligent
FIR-based DSP
and dual-port Dante networking.
Supporting both 4Ω/8Ω low-impedance and 70V/100V constant voltage configurations, this amplifier
integrates seamlessly into multi-zone sound systems. From lecture halls to hospitality venues,
it
ensures dependable performance through advanced protection, adaptive cooling, and comprehensive
control
interfaces.
