ANLED-OBBX4-G1
Outdoor Full-Color LED Video Wall
The Aniston Outdoor LED Video Wall is a high-brightness, rugged display solution engineered for continuous 24×7 outdoor operation in mission-critical environments. Built using precision aluminium die-cast cabinets and high-efficiency LED modules, the display delivers exceptional brightness, color uniformity and long-term reliability even under direct sunlight and harsh weather conditions.
- High-Brightness Outdoor Performance: Delivers ≥6000 nits brightness for clear visibility in daylight and direct sunlight conditions.
- Ultra-Fine Pixel Pitch: 4 mm pixel pitch provides sharper visuals and improved image clarity for closer viewing distances.
- Wide Viewing Angle: Provides 150° horizontal and 150° vertical viewing angles for consistent image quality across large audiences.
- Superior Color & Contrast: High 5000:1 contrast ratio with 16/32-bit grayscale processing for vibrant and uniform color reproduction.
- Ultra-Smooth Motion Display: Supports ≥3840 Hz refresh rate ensuring flicker-free visuals for live video, broadcast and digital signage.
- Weatherproof Rugged Design: IP65 protection for reliable operation in rain, dust, humidity and harsh outdoor climates.
- Intelligent Brightness Control: Supports automatic and manual brightness adjustment for changing ambient light conditions.
- Long Lifespan LED Modules: High-quality LED modules rated for 100,000 hours ensuring long-term reliability and minimal maintenance.
Featuring a 4 mm pixel pitch and ultra-high brightness, the display ensures crystal-clear visibility for large audiences in outdoor venues, command centers, public spaces and advertising applications. The system provides wide viewing angles, high refresh rate performance and advanced grayscale processing for smooth, flicker-free images and superior color reproduction.
Designed for durability, the video wall offers IP65 front and IP54 rear protection, ensuring reliable operation in rain, dust, humidity and extreme environments. Intelligent brightness control and energy-efficient power design make it ideal for long-term outdoor deployment while maintaining low operational cost and consistent performance.
Product Features
- High-Brightness Outdoor Performance – Delivers ≥6000 nits brightness for clear visibility in daylight and direct sunlight conditions.
- Ultra-Fine Pixel Pitch – 4 mm pixel pitch provides sharper visuals and improved image clarity for closer viewing distances.
- Wide Viewing Angle – Provides 150° horizontal and 150° vertical viewing angles for consistent image quality across large audiences.
- Superior Color & Contrast – High 5000:1 contrast ratio with 16/32-bit grayscale processing for vibrant and uniform color reproduction.
- Ultra-Smooth Motion Display – Supports ≥3840 Hz refresh rate ensuring flicker-free visuals for live video, broadcast and digital signage.
- Weatherproof Rugged Design – IP65 protection for reliable operation in rain, dust, humidity and harsh outdoor climates.
- Intelligent Brightness Control – Supports automatic and manual brightness adjustment for changing ambient light conditions.
- Long Lifespan LED Modules – High-quality LED modules rated for 100,000 hours ensuring long-term reliability and minimal maintenance.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Outdoor Full-Color LED Video Wall |
| Model Number | ANLED-OBBX4-G1 |
| LED Type | SMD1921 |
| Pixel Pitch | 4 mm |
| Pixel Density | ≥ 62,500 dots/m² |
| Brightness | 5500 – 6000 nits |
| Grayscale Processing | 16 / 32 bit |
| Color Temperature | 3200K – 9300K (Adjustable) |
| LED Luminance Center Deviation | ≤ 3% |
| Viewing Angle (H/V) | 150° / 150° |
| Refresh Rate | ≥ 3840 Hz |
| Power Supply | SMPS 5V 60A with PFC Protection |
| Input Voltage | AC 220 – 240V, 50Hz |
| Average Power Consumption | 267 W/m² |
| Maximum Power Consumption | 900 W/m² |
| IP Rating | IP65 |
| Operating Temperature | –20°C to +55°C |
| Storage Temperature | –30°C to +60°C |
| Operating Humidity | 10% – 80% RH (Non-condensing) |
| Outdoor Durability | Rain, Dust, Humidity & Harsh Weather Resistant |
| LED Lifetime | 100,000 hours |
| Frame Rate | ≥ 60 Hz |
| Contrast Ratio | 5000 : 1 |
| Continuous Operation | 24×7 Rated |
| Brightness Control | Automatic & Manual Adjustment |
| Application Areas | Outdoor advertising, public display, command centers, smart city displays |
| Warranty | 3 Years |
| Video Compatibility | HD / Full HD / 2K / 4K / UHD |
| Module Size (W×H) | 320 × 160 mm |
| Module Resolution | 80 × 40 pixels |
| Panel Size (W×H) | 960 × 960 mm |
| Panel Resolution | 240 × 240 pixels |
| Panel Material | Die-Cast Aluminium Cabinet |

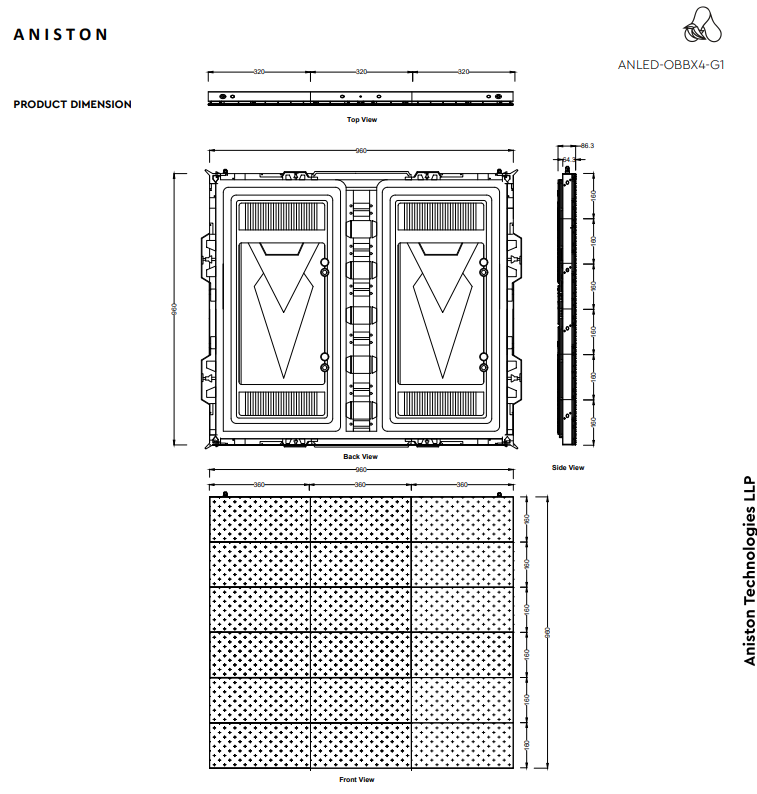

Mechanical Drawing
Resources & Manuals
Software & Downloads
Coming Soon
ANLED-OBBX4-G1 Outdoor Full-Color LED Video Wall
The Aniston Outdoor LED Video Wall is a high-brightness, rugged
display solution engineered for continuous 24×7 outdoor operation in
mission-critical environments. Built using precision aluminium
die-cast cabinets and high-efficiency LED modules, the display
delivers exceptional brightness, color uniformity and long-term
reliability even under direct sunlight and harsh weather conditions.
Featuring a 4 mm pixel pitch and ultra-high brightness, the display
ensures crystal-clear visibility for large audiences in outdoor
venues, command centers, public spaces and advertising applications.
The system provides wide viewing angles, high refresh rate
performance and advanced grayscale processing for smooth,
flicker-free images and superior color reproduction.
Weatherproof Rugged Outdoor Design
Designed for durability, the video wall offers IP65 front and IP54
rear protection, ensuring reliable operation in rain, dust, humidity
and extreme environments.
Intelligent brightness control and energy-efficient power design
make it ideal for long-term outdoor deployment while maintaining low
operational cost and consistent performance.
