TapShare
Wireless Presentation System
The TapShare Wireless Presentation System is an innovative, user-friendly solution designed to enhance collaboration and streamline presentations in any professional setting.
- Multi-Screen Sharing: Supports up to 9 split screens simultaneously, allowing multiple participants to present content in real time.
- 4K Ultra HD Output: Provides high-quality HDMI 2.0 output with resolutions up to 4096 x 2160p60, ensuring crystal-clear visuals for presentations and videos.
- Seamless Wireless Connectivity: Eliminates cable clutter with a 50-meter WiFi range supporting WiFi6 2T2R technology for a fast and stable connection.
Whether for corporate meetings, classrooms, or professional AV installations, the TapShare Wireless Presentation System delivers a seamless and interactive content-sharing experience.
Product Features
- Linux embedded system for stable and reliable 24/7 wireless presentation.
- Supports up to 9 split screens for simultaneous multi-user presentations.
- 4K Ultra-High Definition output via HDMI 2.0, supporting resolutions up to 4096 x 2160P60.
- Wireless connectivity with a 50-meter transmission range via WiFi6 (2T2R) and a transmission rate of up to 1200Mbps.
- Compatible with Windows 10, Windows 11, and macOS 11 or later.
- Seamless screen-sharing via TapShare Button (Windows/Mac) or TapShare App (laptop, mobile, tablet).
- Versatile compatibility supporting USB and HDMI cameras, USB microphones, and speakers.
- High user connectivity with support for up to 64 simultaneous connections.
- Camera tracking control for remote screen interaction, improving meeting efficiency.
- BYOM (Bring Your Own Meeting) support with Microsoft Teams and Zoom integration.
- Low-latency wireless conferencing (<150ms) for real-time collaboration.
- Power over Ethernet (PoE) support with IEEE 802.3af Class 4 compatibility.
- Easy-to-use interface with no software downloads or training required.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | TapShare Wireless Presentation System |
| Video Output Interface | 1 × HDMI 2.0 (Female), up to 4K@60Hz |
| Video Input Interface | 1 × HDMI Input (for external source switching) |
| Latency | <150 ms end-to-end screen casting |
| Transmission Protocols | AirPlay, Google Cast, Miracast (native) |
| Split Screen Support | Up to 9 simultaneous presenters |
| Maximum Connected Users | 64 participants |
| Audio Output | 1 × 3.5mm stereo mini jack (line out) |
| Audio Format | 2-Channel LPCM, 48kHz sampling |
| Video Compression | H.264 / H.265 compliant |
| Wireless Transmitters | 2 × USB-A / Type-C / HDMI wireless converters (included) |
| System Architecture | Embedded Linux-based secure OS |
| Wi-Fi Standard | IEEE 802.11ac (Wi-Fi 5), dual-band |
| Wi-Fi MIMO Configuration | 3×3 MIMO (casting), 2×2 MIMO (network bridging) |
| Wireless Bandwidth | Up to 1200 Mbps |
| Wireless Range | Up to 50 meters (open space) |
| Network Bridge Function | Yes – simultaneous casting and internet access |
| Wired LAN Port | 1 × RJ-45 Gigabit Ethernet (10/100/1000 Mbps) |
| Authentication Protocols | WPA2-PSK (AES), WPA-PSK (TKIP), PEAP-MSCHAPv2, EAP-TLS |
| Encryption | AES 128-bit, WPA2 Enterprise |
| BYOM Support | USB camera, microphone, speakerphone passthrough |
| Supported VC Platforms | Microsoft Teams, Zoom, Cisco Webex, Google Meet |
| USB Ports | 2 × USB 2.0 Type-A, 1 × USB 3.0 Type-A |
| Control Interface | USB mouse/touchscreen for remote screen interaction |
| On-Screen Display (OSD) | Custom splash screen, logo upload (PNG/JPEG, up to 10MB) |
| Device Compatibility | Windows 10/11, macOS 11+, iOS, Android |
| Power Supply | DC 24V @ 1.25A (100–240V AC input) |
| Power over Ethernet (PoE) | IEEE 802.3af (Class 4) compliant |
| Power Consumption | <10W typical operation |
| Mounting Options | Tabletop, wall-mount, ceiling mount compatible |
| Chassis | Metal alloy housing with passive cooling |
| Temperature Range | Operating: 0°C to 40°C; Storage: -10°C to 60°C |
| Humidity | 10% – 90% RH (non-condensing) |
| Fan Noise | Fanless design – silent operation |
| Firmware Updates | OTA (Over-the-Air) or USB/manual upgrade |
| Management Tools | Web GUI, remote admin, device naming, auto/static IP |
| User Interface | Touch-friendly UI, LED indicators for power/network |
| Security Management | Guest Mode, Admin Lockout, Password-protected access |
| Compliance & Certifications | CE, FCC, RoHS, BIS (optional), WPC India (for Button) |
| Warranty | 3-year standard, optional 5-year extended support |
| Accessories Included | 2 × wireless dongles, power adapter, mounting kit, guide |
| Dimensions (Main Unit) | Approx. 160mm × 100mm × 30mm |
| Weight | Approx. 420g |
| Button Support | TapShare Button (USB-A/Type-C) – no software needed |

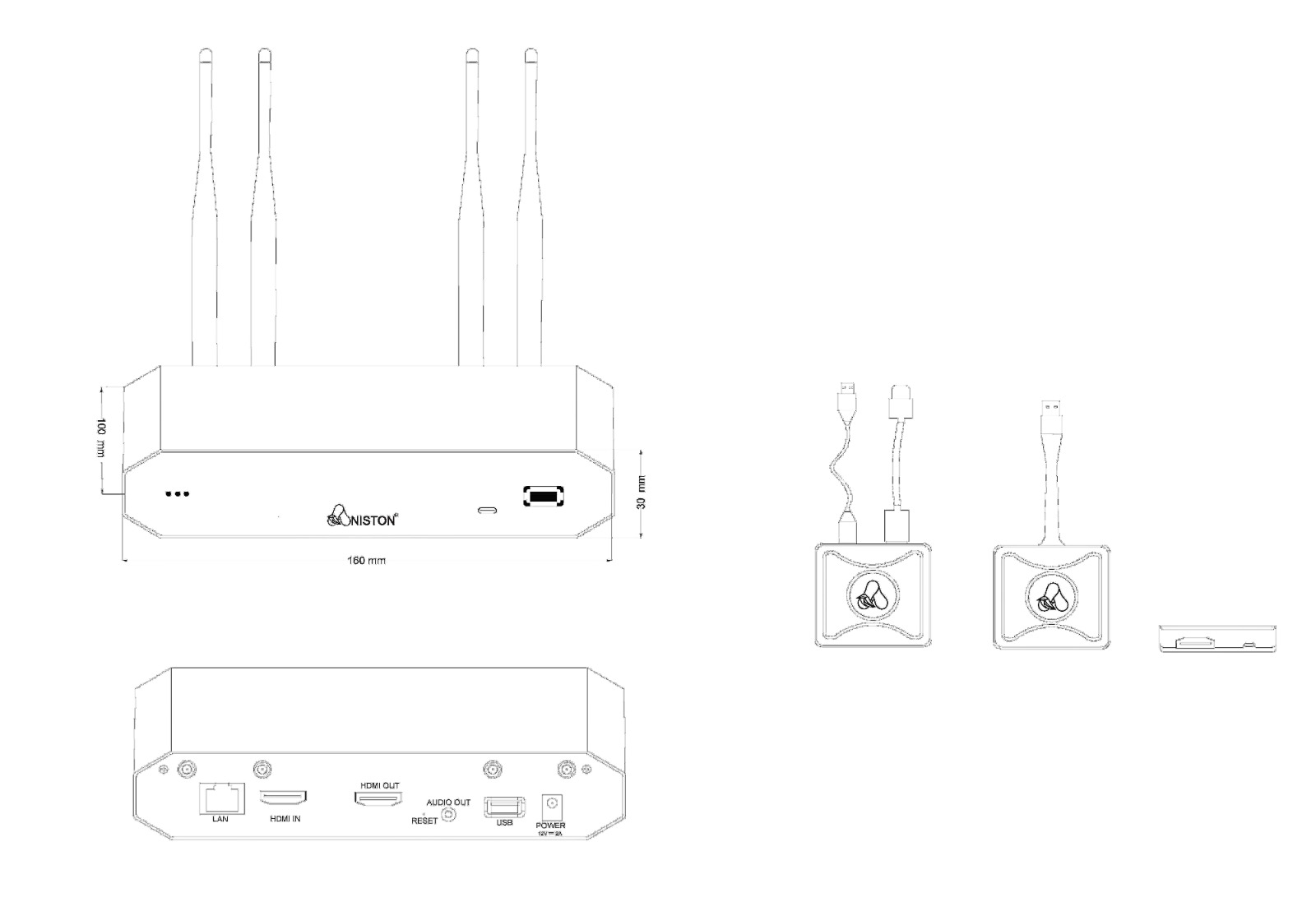

Product Dimension
Resources & Manuals
Software & Downloads
Latest Firmware Update
DownloadAndroid Application
Download APKConfiguration Software Latest
DownloadTapShare Wireless Presentation System for Seamless Collaboration
The TapShare Wireless Presentation System is designed to enhance collaboration and streamline presentations in professional environments. With its advanced wireless connectivity, multi-screen sharing, and 4K Ultra-HD output, it eliminates cable clutter and provides an effortless content-sharing experience.
Main Features
Seamless Wireless Presentation
TapShare enables effortless screen sharing with support for up to 9 split screens and 64 simultaneous connections. Users can present wirelessly via Airplay, Miracast, or the TapShare Button without cables or software installations.
4K Ultra HD Output
Experience crystal-clear visuals with HDMI 2.0 output supporting up to 4K60 resolution. Ideal for high-definition presentations, video conferencing, and business meetings.
Enterprise-Grade Connectivity
With WiFi6 technology and a 50-meter wireless transmission range, TapShare ensures stable, high-speed connectivity. The system integrates with Microsoft Teams and Zoom, making it perfect for hybrid and remote meetings.
Seamless Wireless Presentations
The TapShare Wireless Presentation System revolutionizes meeting rooms with its cable-free content sharing. Supporting up to 9 split screens and 64 simultaneous connections, TapShare allows users to share screens instantly via Airplay, Miracast, or the TapShare Button/App without software installations. Experience effortless collaboration with high-speed wireless transmission and enterprise-grade security.
4K Ultra HD & Enterprise Connectivity
The TapShare Wireless Presentation System delivers crystal-clear 4K visuals with HDMI 2.0 output, making it ideal for high-resolution presentations, video conferencing, and boardroom discussions. Its WiFi6 technology ensures a 50-meter wireless transmission range, while seamless integration with Microsoft Teams and Zoom supports hybrid and remote meetings. Designed for corporate environments, lecture halls, and smart offices, TapShare provides uninterrupted, high-quality presentations with secure, low-latency connectivity.
Seamless Wireless Presentations with TapShare
Transform your meeting experience with the TapShare Wireless Presentation System by ANISTON. Designed for modern conference rooms, boardrooms, and professional AV environments, TapShare enables effortless wireless screen sharing with support for up to 9 split screens and 64 simultaneous connections. With WiFi6 technology and a 50-meter transmission range, TapShare ensures **stable, high-speed connectivity** for presentations, video conferencing, and collaborative discussions.
