  1. Display Solutions
  2. LED Video Walls
PRO Color Series

LED Video Wall - VDN

Unleash Brilliance with Pixel Pitch 0.9mm to 2.5mm!

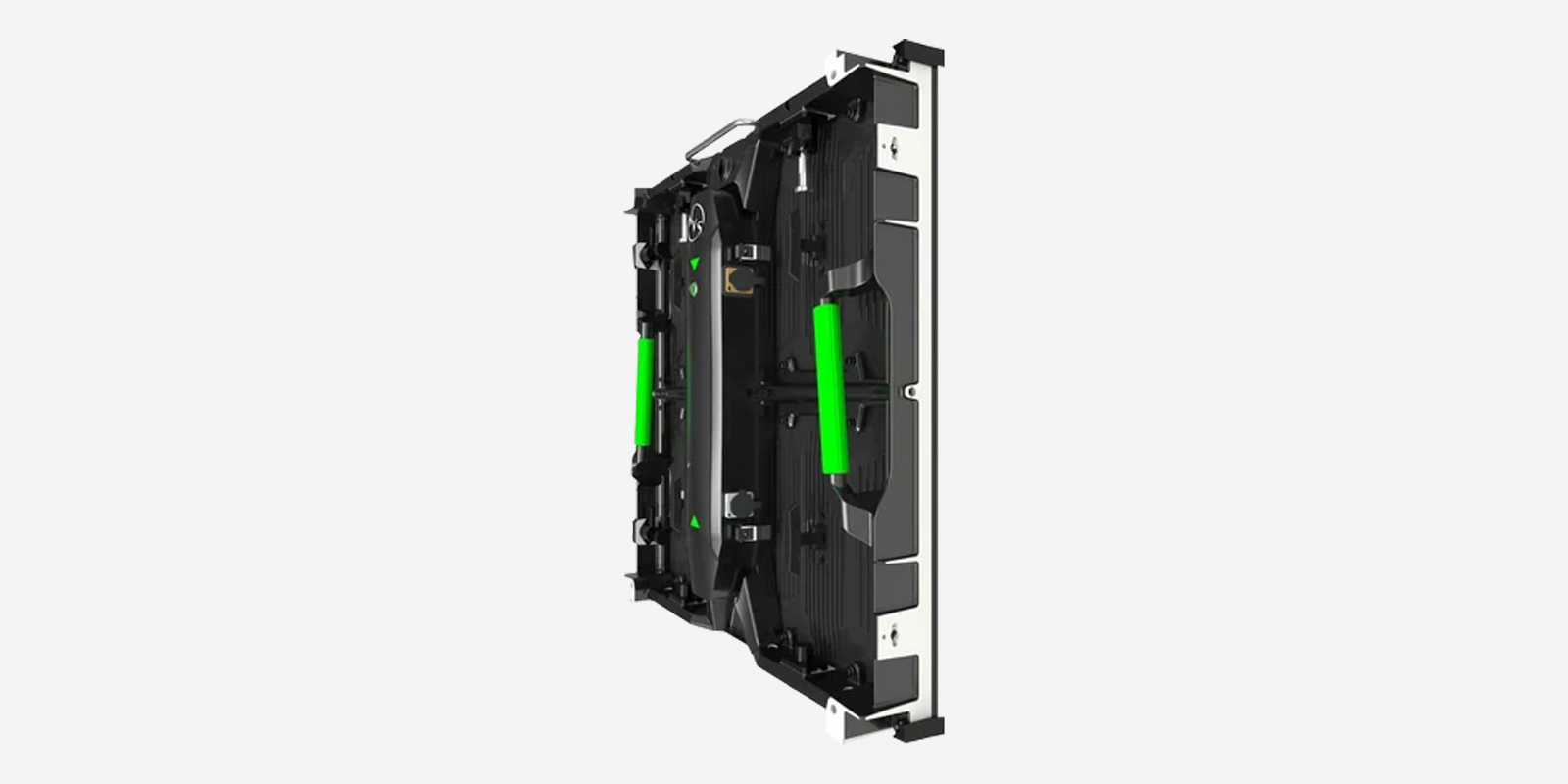

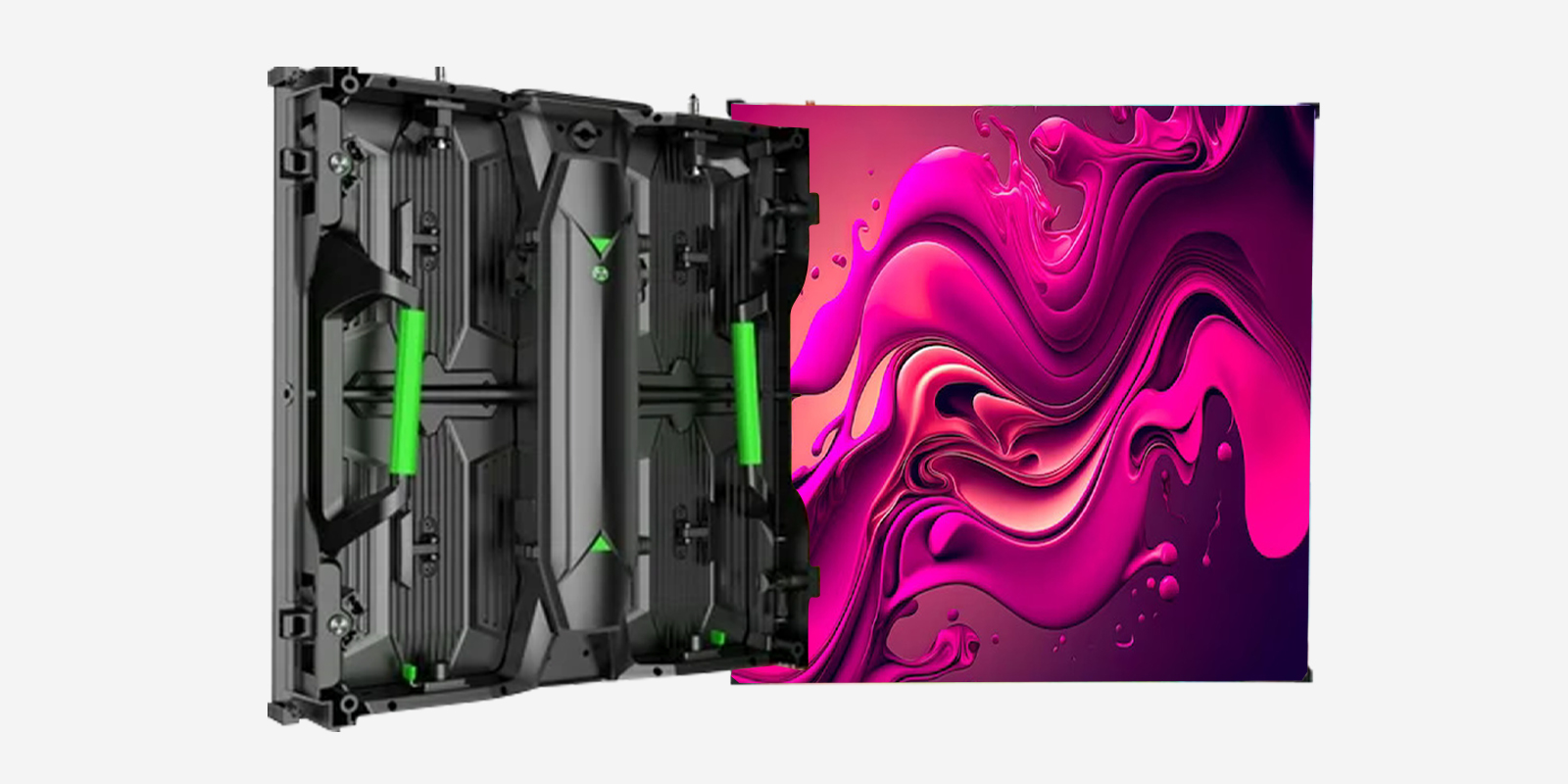

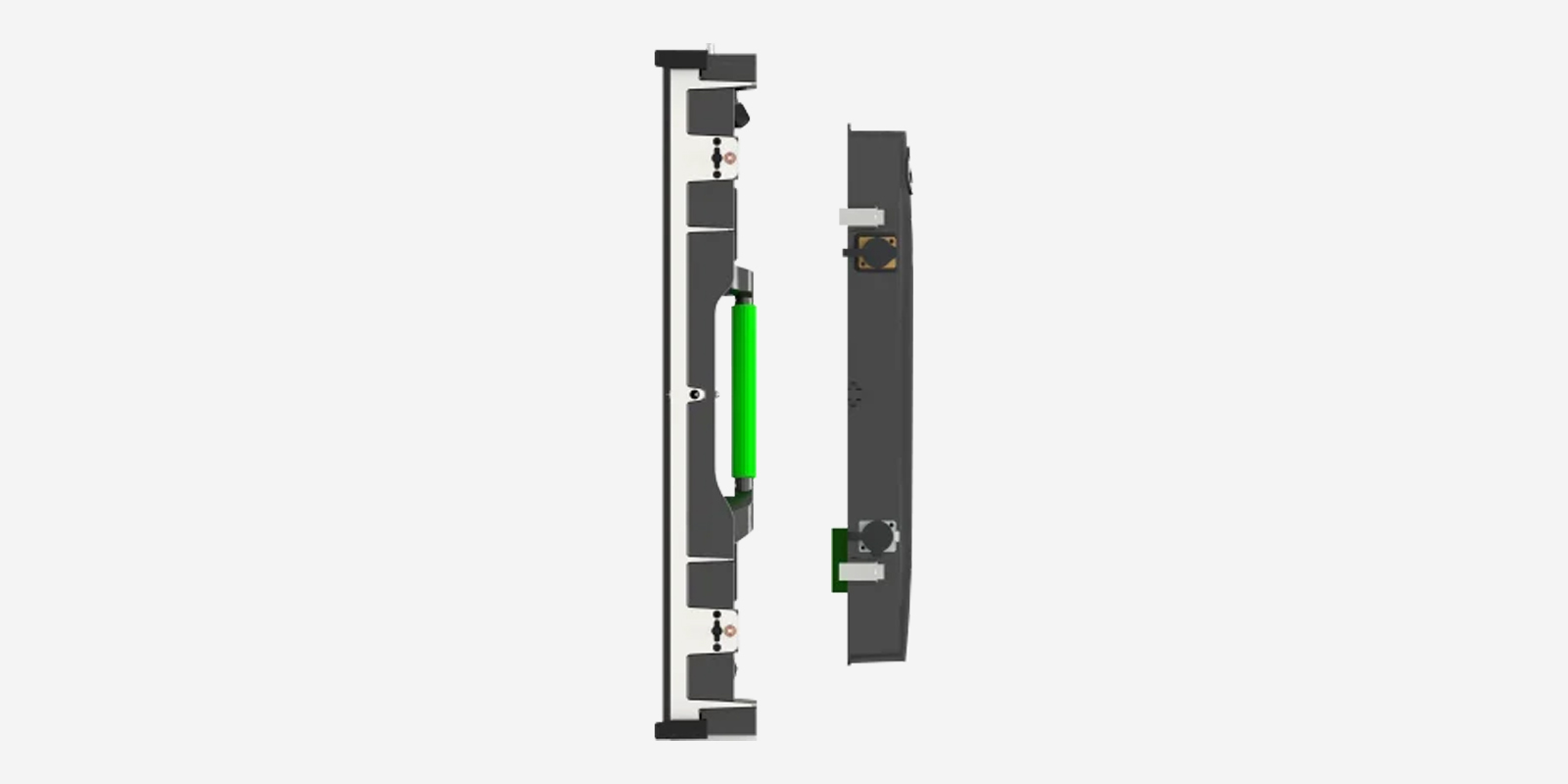

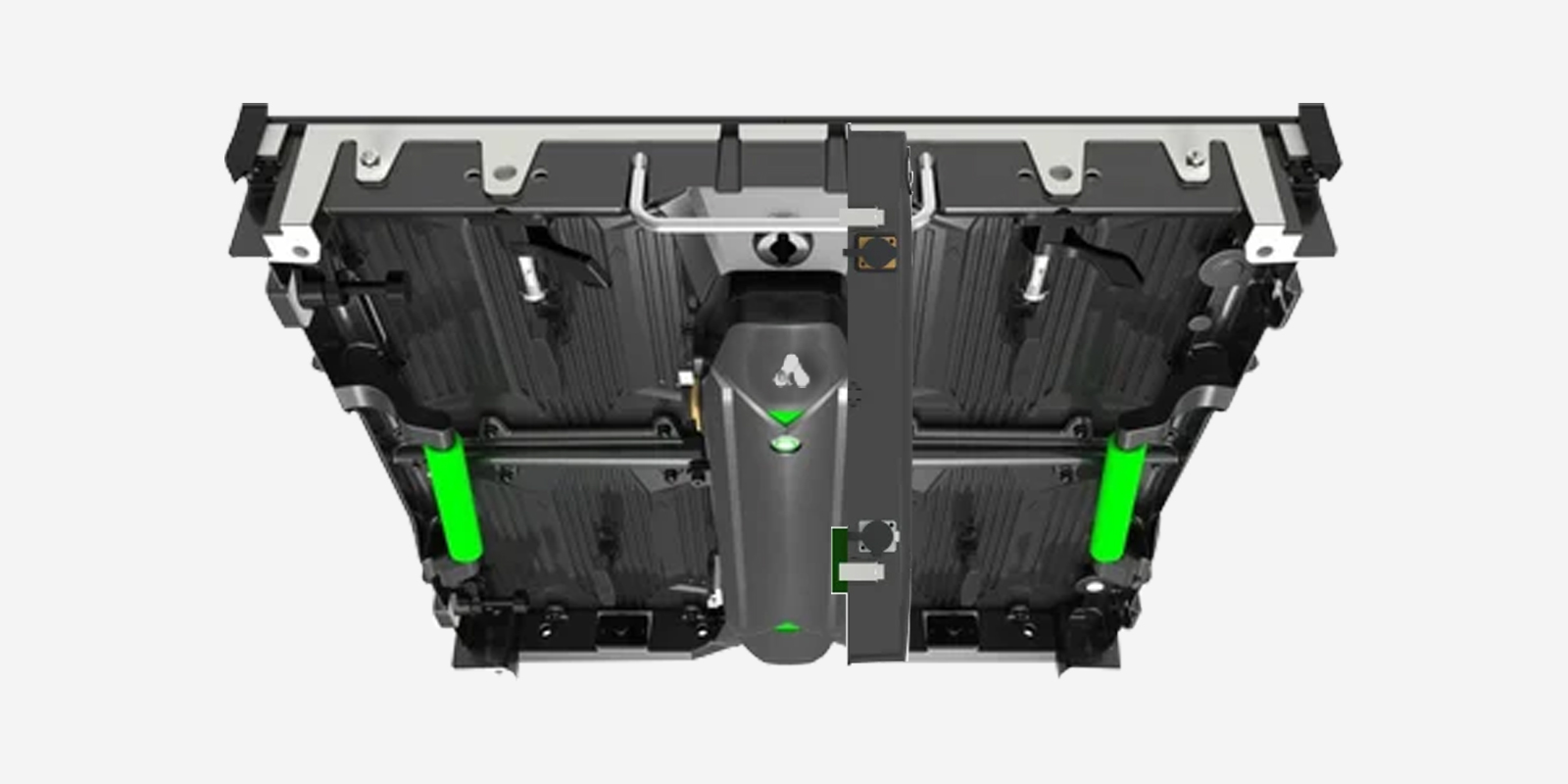

MX MECHANICAL View 1
MX MECHANICAL View 2
MX MECHANICAL View 3
MX MECHANICAL View 4
MX MECHANICAL View 5
MX MECHANICAL View 6
PRO Color Series

LED Video Wall - VDN

Unleash Brilliance with Pixel Pitch 0.9mm to 2.5mm!

Specifications

Display Technology

Pixel Pitch
  • VDN009-P2-I: 0.9mm
  • VDN009-P2-I: 1.25mm
  • VDN009-P2-I: 1.5625mm
  • VDN009-P2-I: 1.875mm
  • VDN009-P2-I: 2.5mm
Configuration
  • Pixel Configuration: 3-in-1 (1 Red, 1 Green, 1 Blue)
  • Pixel Density: 160,000 pixels/m²
  • Calibrated Brightness: 800 Nits (cd/m²)
  • Aspect Ratio: 16:9
Display Details
  • Contrast Ratio: 2000:1 @ 10Lux
  • Viewing Angle: 160ºH, 160ºV
  • Refresh Rate: >3840Hz
  • Color Temperature: 2700-9600K

Technical Specifications

Unleash Brilliance with Pixel Pitch 0.9mm to 0.2mm!
  • 1: Featuring a pixel pitch of 2.5mm, our Pro Color Series LED Video Wall offers exceptional clarity and precision.
  • 2: With its high-quality LED modules, our LED video wall ensures vibrant and true-to-life colors.
  • 3: Designed for both indoor and outdoor environments.
  • 4: LED video wall offers high brightness levels, making it visible even in challenging lighting conditions.
  • 5: With energy-efficient LED technology, you can enjoy cost savings while reducing your environmental footprint.

Warranty Information

1-Year Hardware Warranty

System Applications

  • Its high-resolution display ensures clear visibility of crucial information, enabling operators to make informed decisions efficiently.
  • Its high pixel density and exceptional color reproduction make it an ideal choice for creating immersive environments that captivate viewers.
  • The Pro Color Series LED Video Wall is perfectly suited for control rooms and command centers where real-time monitoring and data visualization are critical.

Design

  • Power Input Rating – Supply : 100-240 VAC @ 50-60Hz
  • Power Consumption Per Tile: 32W Typical, 97W Maximum
  • Heat Output Per Tile: 109 BTU/hr Typical, 331 BTU/hr Maximum
  • Operating Temperature: 32-104ºF (0-40ºC)
  • Operating Humidity: 20-75% non-condensing
  • Storage Temperature: 14-122ºF (-10-50ºC)
  • Gross Weight: 15.87lbs (7.2kg) /78.26lbs (35.5) per square meter
  • Net Weight: 14.33lbs (6.5kg) /70.77lbs (32.1kg) per square meter
  • Cabinet Design: Die-cast aluminum

Resources

Locate all the documentation we have accessible to expedite the installation and datasheet of this product.

DataSheet
Firmware
Product Release Notes
Contact US

PRO Color Series

Introducing the ANISTON Pro Color Series LED Video Wall!

VDN009-P2-I: 2.5mm

Pixel Pitch - 2.5mm

Introducing the Pro Color Series LED Video Wall with a remarkable pixel pitch of 2.5mm. This cutting-edge product represents the pinnacle of LED display technology, designed to deliver unparalleled visual experiences for a wide range of applications.

Logi option + app configuration

VDN009-P2-I: 1.25mm

Pixel Pitch - 1.25mm

The 1.25mm pixel pitch of the Pro Color Series guarantees seamless content reproduction, enabling detailed and intricate imagery without compromising on clarity. Each LED module is precisely calibrated to maintain uniform color and brightness across the entire video wall, ensuring a seamless and immersive display.

VDN009-P2-I: 0.9mm

Pixel Pitch - 0.9mm

The Pro Color Series LED Video Wall is designed to offer a seamless and immersive viewing experience. With its ultra-fine pixel pitch of 0.9mm, it delivers incredibly high resolution and sharp image details, ensuring vibrant and lifelike visuals.

This makes it an ideal choice for venues where image clarity and precision are of utmost importance, such as control rooms, broadcast studios, command centers, corporate boardrooms, and retail environments.
